GeoTech SP 520 4S - Wheeled Petrol Sprayer Pump - 4-stroke Petrol

Questions & Answers (13)
ID: K500381

EAN: 8053435092517

MPN: 500381

8,9/10
After-sales assistance & Spare parts
GeoTech SP 520 4S - Wheeled Petrol Sprayer Pump - 4-stroke Petrol
+1000 sold
FREE
4-stroke engine oil bottles4-stroke engine oil bottles
On kit: spray lance with adjustable nozzleOn kit: spray lance with adjustable nozzle
3-jet lance3-jet lance
Configuration
With trolley and tank
Water pump type
Piston
Flow rate
8 L/min
Max. operating pressure
25 bar
Tank capacity
50 l
Motor type
4-stroke
Motor brand
Producer-manufactured
Cubic capacity
37.7 cm³
Nominal power
1.5 HP
Pressure regulator
Yes
Hose reel
Product Features
Model:
SP 520 4S
Type:
Wheeled - opened
Configuration:
With trolley and tank
Operating mode:
Petrol
Motor type:
4-stroke
Configuration:
Pump+trolley+tank
Flow rate:
8 L/min
Max. operating pressure:
25 bar
Minimum operating pressure:
15 bar
Max. spraying height:
6 m
Max range:
8 m
Wheeled trolley:
Yes
Tank capacity:
50 l
Starting mode:
Recoil
Pump quick release:
Yes
Manufacturing country:
China
Motor data
Motor brand:
GeoTech
Motor type:
4-stroke
Cubic capacity:
37.7 cm³
Nominal power:
1.5 HP
Fuel:
Petrol
Engine lubrication system:
Oil bath
Decompression system:
Automatic
Manufacturing country:
China
Pump data
Pump brand:
GeoTech
Water pump type:
Piston
Flow rate:
3 - 8 l/min
Pressure regulator:
Yes
Manufacturing country:
China
Equipment
Pressure control valve:
Yes
Hose reel:
Free gifts/extra features
Safety goggles:
Yes
Safety gloves:
Yes
Headscarf:
Yes
Hose length:
30 m
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
100x36x88 cm
Net weight:
36 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
74x39x51 cm
Gross weight (packaging included) :
36 Kg
Assembly time:
5 minutes
Prompt Delivery
46 items in stock
Free Shipping
Estimated delivery: 14/10/2024 - 16/10/2024
€ 465,33
VAT Included
You're viewing:
Customers also viewed:
Description

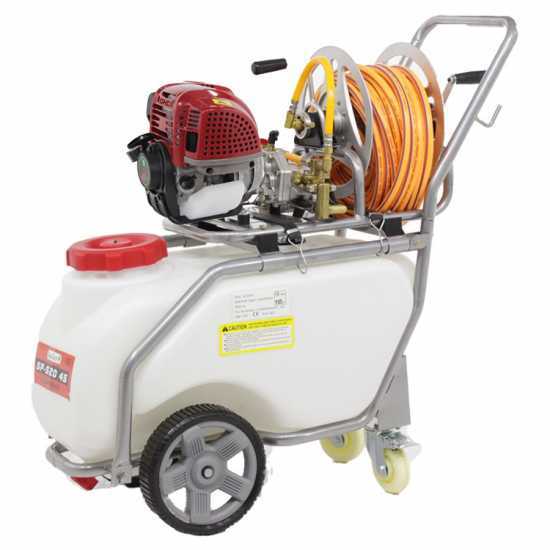

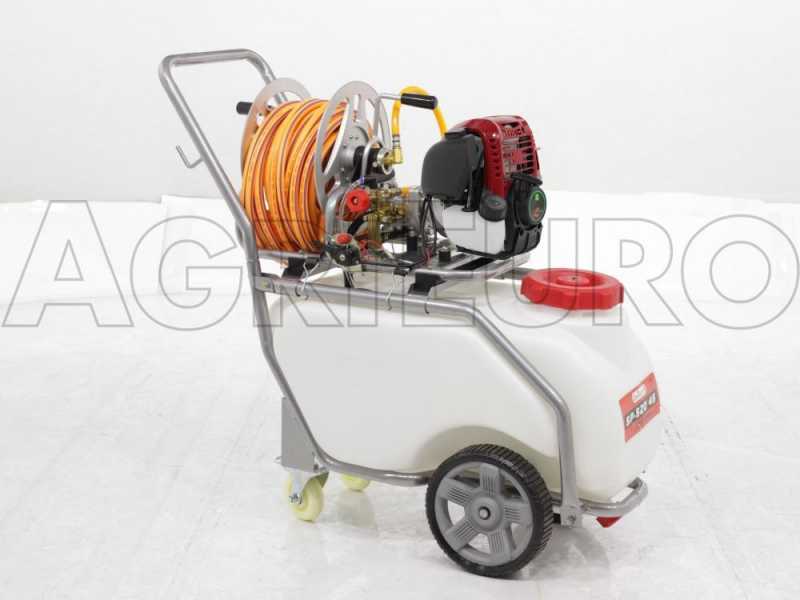

GeoTech Trolley Sprayer Pump - 50 L tank

GeoTech SP 520 4S sprayer pump on trolley with 4-stroke engine and 50 L tank.

Very easy to use thanks to the supplied hose reel, and easy to move thanks to the wheels of the trolley. Perfect for small and medium spraying jobs.

The adjustable operating pressure is 15-25 bar. It allows you to work horizontally up to 8 metres and vertically up to 6 m.

The frame and hose reel are entirely made of steel.

The sprayer pump is shipped with 30 m high-pressure hose and many other accessories.

If necessary, the pumping unit equipped with its own frame can be removed from the trolley and tank to be used independently.

The pictures have illustrative purposes, some details may differ.

Heavy Series Pump

The pump is part of heavy series.

Most of the pumps mounted on the spraying machines on the market are part of light series.

As you can see from the picture, the pump in the foreground (heavy series) is much larger, almost double. This provides greater durability and sturdiness.

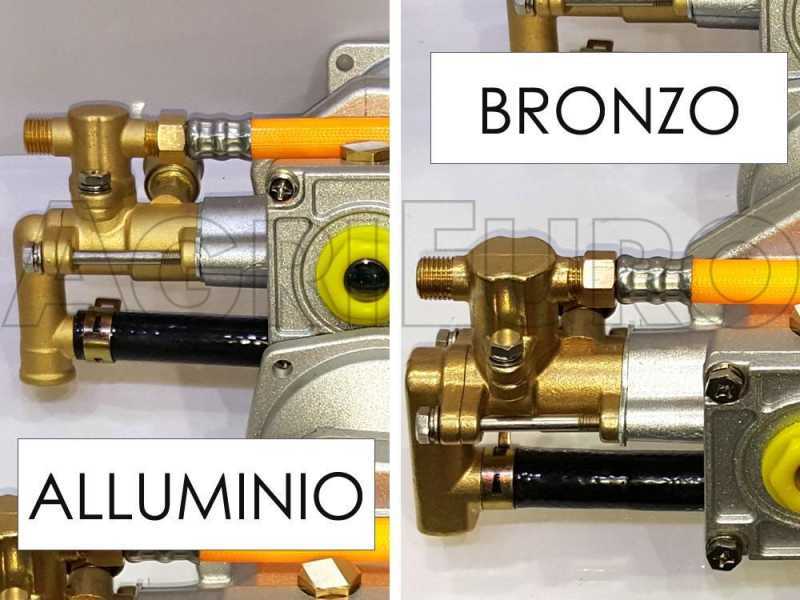

In the second picture, you can see that the material used in the heads of heavy series is BRONZE, the best material available for spraying work. Light series, on the other hand, is made of bronze painted aluminium. Efficient material, but not as efficient as bronze.

The pump is equipped with pressure adjustment control.

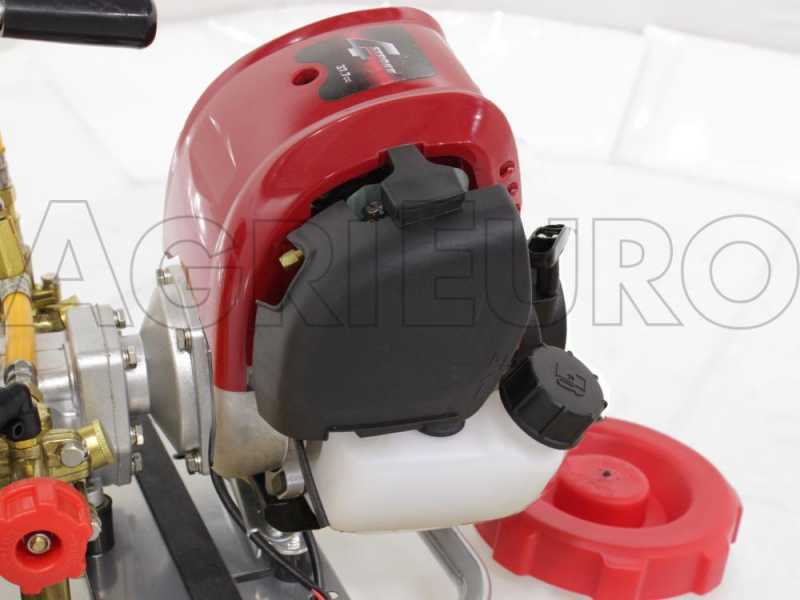

4-Stroke Engine

37.7 cc, air-cooled 4-stroke engine. Equipped with a single cylinder, it develops a maximum power of 1.5 HP.

Small machine for amateur use It can work for many hours without stopping.

The engine and pump are equipped with anti-vibration rubber pads which absorb the engine vibrations, improving working comfort.

Further Features

For easier transport on uneven ground, the trolley is equipped with large wheelspivoting front wheels with lock and convenient handle.

Tank with suction filter to avoid jamming in the pump hydraulic system. Tank with external indicator.

Focus on the engine controls: gas adjustment and stop button

Focus on the pump controls:
pressure adjustment

Focus on the hose reel crank handle

Focus on the hose winding anti-jamming system

Focus on the removable handle.

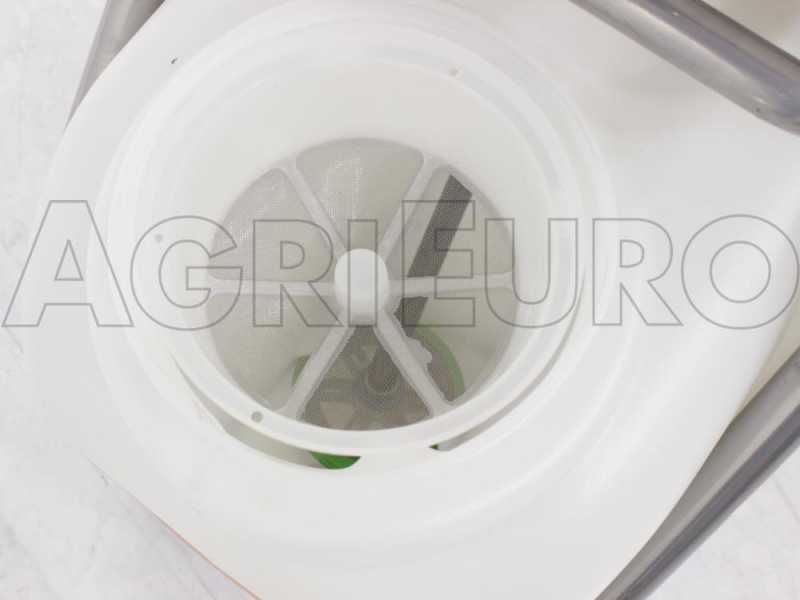

Tank filter

Free items & Standard equipment

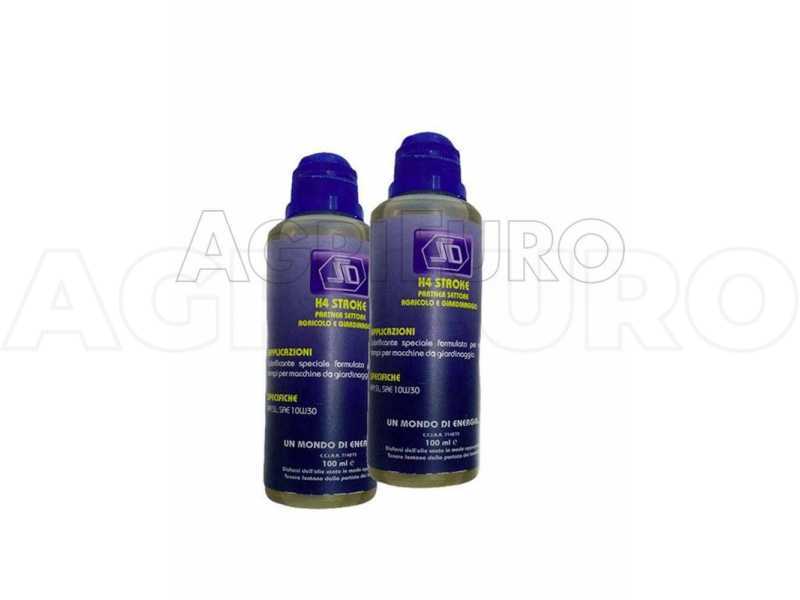

Bottles of Oil for 4-stroke Engines

2 bottles of oil suitable for all 4-stroke engines

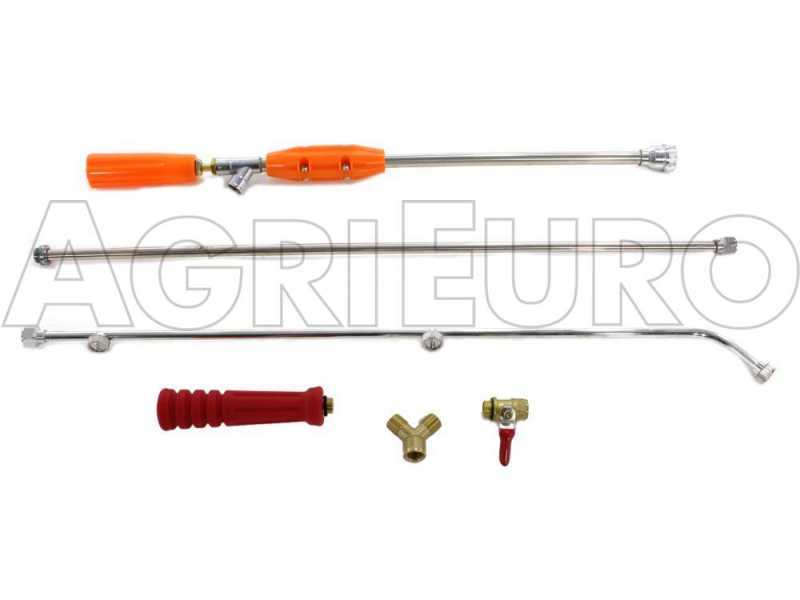

Free Items Included

The sprayer pump is shipped in its original packaging, equipped with the following accessories:

two lances, one of which standard with knob jet adjustment, to adjust spray concentration.

30 m high-pressure hose

set of valves and gaskets, useful for major repairs

safety non-slip gloves

instruction manual

assembly/maintenance tools
