GeoTech SP 520 2S - Wheeled Petrol Sprayer Pump - 2-stroke Mixture

Questions & Answers (20)
ID: K500380

EAN: 8053435092500

MPN: K-500380

8,9/10
After-sales assistance & Spare parts
GeoTech SP 520 2S - Wheeled Petrol Sprayer Pump - 2-stroke Mixture
+3000 sold
Free gifts from AgriEuro
On kit: spray lance with adjustable nozzleOn kit: spray lance with adjustable nozzle
3-jet lance3-jet lance
Technical data
Configuration
With trolley and tank
Water pump type
Piston
Flow rate
8 L/min
Max. operating pressure
25 bar
Tank capacity
50 l
Motor type
2-stroke
Motor brand
Producer-manufactured
Cubic capacity
26 cm³
Nominal power
1 HP
Pressure regulator
Yes
Hose reel
Product Features
Model
SP 520 2S
Type
Wheeled - opened
Configuration
With trolley and tank
Operating mode
Fuel-oil mix
Motor type
2-stroke
Configuration
Pump+trolley+tank
Flow rate
8 L/min
Max. operating pressure
25 bar
Minimum operating pressure
15 bar
Max. spraying height
6 m
Max range
8 m
Wheeled trolley
Yes
Tank capacity
50 l
Starting mode
Recoil
Pump quick release
Yes
Manufacturing country
China
Motor data
Motor brand
TU 26
Motor type
2-stroke
Cubic capacity
26 cm³
Nominal power
1 HP
Fuel
Petrol/oil mixture
Engine lubrication system
Direct with petrol/oil mix
Decompression system
Automatic
Manufacturing country
China
Pump data
Pump brand
GeoTech
Water pump type
Piston
Flow rate
3 - 8 L/min
Pressure regulator
Yes
Manufacturing country
China
Equipment
Anti-vibrating system
Yes
Hose reel
Valve and gasket kit
Yes
Free gifts/extra features
Hose length
30 m
Instructions manual
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H)
83x44x93 cm
Net weight
35 Kg
Packaging
Original packaging
Original packaging/s dimensions in cm (L x W x H)
83x44x93 cm
Weight including packaging
35 Kg
Assembly time
5 minutes
Prompt Delivery
186 items in stock
Free Shipping
Estimated delivery: 26/09/2025 - 30/09/2025
Suggested price:
€ 450,68
€ 338,01
Vat included

Add Accessories and get a discount
You're viewing:
Customers also viewed:
Description

GeoTech Trolley Sprayer Pump 50 L Tank

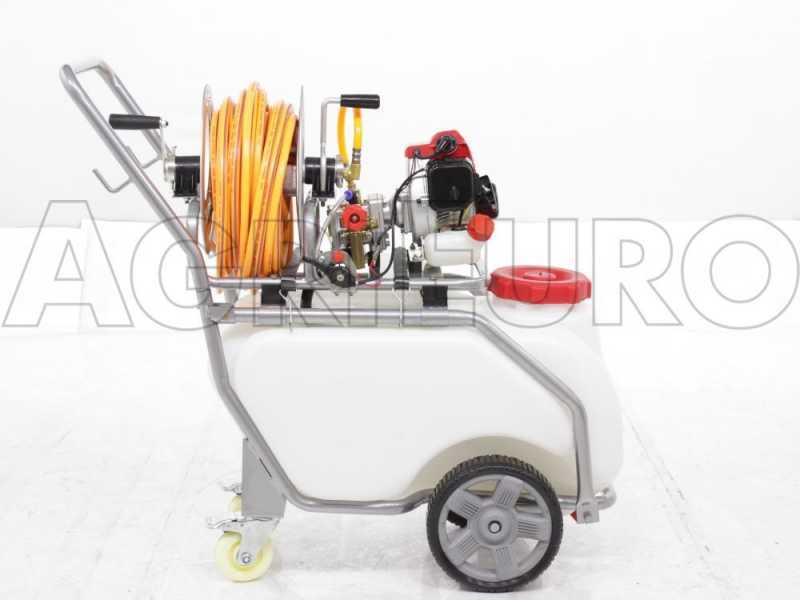

GeoTech SP 520 2S sprayer pump on trolley with 2-stroke engine and 50 L tank.

Very easy to use, thanks to its hose reel, and to move thanks to the wheels of the trolley. These can be locked when working on uneven ground.
Perfect for small and medium spraying jobs.

The adjustable operating pressure is 15-25 bar. It allows you to operate horizontally up to 8 m and vertically up to 6 m

the frame and hose reel are entirely made of steel.

The sprayer pump is shipped with 30 m high-pressure hose and many other accessories.

If necessary, the pumping unit equipped with its own frame can be removed from the trolley and tank to be used independently.

The pictures have illustrative purposes, some details may differ.

Heavy Series Pump

The pump is part of heavy series.

Most of the pumps mounted on the spraying machines on the market are part of light series.

As you can see from the picture, the pump in the foreground (heavy series) is much larger, almost double. This provides greater durability and sturdiness.

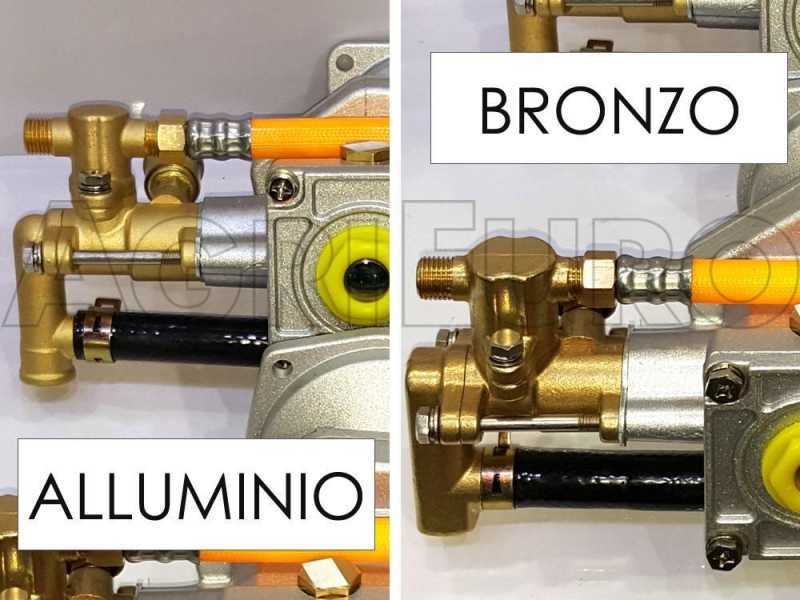

In the second picture, you can see that the material used in the heads of heavy series is BRONZE, the best material available for spraying work. Light series, on the other hand, is made of bronze painted aluminium. Efficient material, but not as efficient as bronze.

The pump is equipped with pressure adjustment control.

2-Stroke Engine

26 cc, air-cooled 2-stroke engine. Equipped with a single cylinder, it develops a maximum power of 1 HP.

Small machine for amateur use It can work for many hours without stopping.

The engine and pump are equipped with anti-vibration rubber pads which absorb the engine vibrations, improving working comfort.

Further Features

For easier transport on uneven ground, the trolley is equipped with large rear wheels, pivoting front wheels with lock and convenient handle.

Tank with suction filter to avoid jamming in the pump hydraulic system. Tank with external indicator.

Focus on the engine controls: gas adjustment and stop button

Focus on the pump controls:
pressure adjustment

Focus on the hose reel crank handle

Focus on the hose winding anti-jamming system

Focus on the removable handle.

Tank filter

Free items & Standard equipment

Free Items Included

The sprayer pump is shipped in its original packaging, equipped with the following accessories:

two lances, one of which standard with knob jet adjustment, to adjust spray concentration.

30 m high-pressure hose

set of valves and gaskets, useful for major repairs

assembly/maintenance tools

tank for mixture preparation
