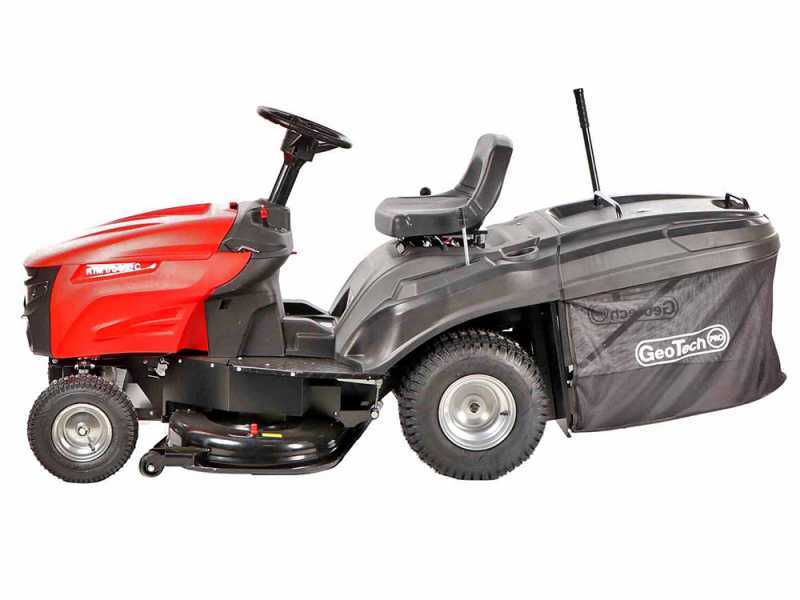

GeoTech-Pro RTM 170-960 C - Riding-on Mower - Mechanical Gearbox - Grass Collector

Lawn tractor GeoTech-Pro RTM 170-960 C with 220L collection box and mechanical transmission, capable of easy and comfortable speed and manoeuvring.

The GeoTech-Pro RTM 170-960 C lawn tractor is an outstanding machine for cutting and collecting grass in green areas, such as gardens and lawns, making it easier to cut grass near trees and flower beds.

Thanks to the robust 96 cm double-bladed cutting deck and five different forward gears , the lawn tractor guarantees an optimal and even finishing of the turf.

The Loncin 1P92F-1 4-stroke 452cc petrol engine of the GeoTech-Pro RTM 170-960 C ensures high performance and good energy efficiency , thanks also to OHV technology, which reduces harmful emissions and engine vibration.

It is equipped with a 12V lead-acid battery for electric starting, included with a battery charger.

The transmission system includes:

• 5 forward gears
• Neutral (N)
• Reverse gear (R)

The 96 cm double-blade cutting deck and the two anti-skid wheels, together with the washing connections, make maintenance of green areas particularly easy.

The blades, electromagnetically activated at the touch of a button and adjustable in five different heights from 35 to 75 mm, adapt perfectly to different lawn conditions and cutting needs.

Warning: never cross sideways on high slopes to avoid the machine overturning.

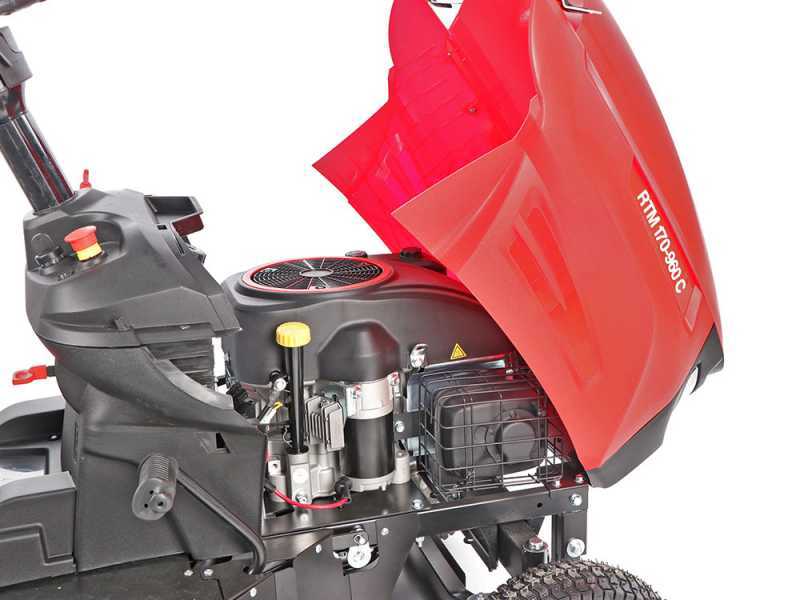

The Loncin 1P92F-1 engine is a 4-stroke, air-cooled petrol engine.

It is a 452 cc engine with a displacement and develops 17 hp.

Machine equipped with electric starter.

GRASS COLLECTION SYSTEM:

Assembling the basket is quite simple and can be done in a few minutes.

Capacious 220 litre collection basket.

The system for emptying the bag is very simple: it is done through a very effective system, using the pull-out handle. Thus, it will be possible to empty the grass collector at any time while working without any effort.

The bag can be disassembled in an instant: simply lift it upwards to remove it from its ‘bridge’ housing.

The GeoTech-Pro RTM 170-960 C lawn tractor has a selector switch that allows you to set between:

• Forward motion with 5 different driving speeds.
• Neutral (N)
• Reverse gear (R)

Once selected one of the 5 gears, you’ll get the possibility to adjust the speed (reducing it) by simply adjusting the pressure on the braking pedal (decelerating in the brake circuit).

Releasing the brake pedal, the riding-on mower will automatically return to the gear that has been previously selected.

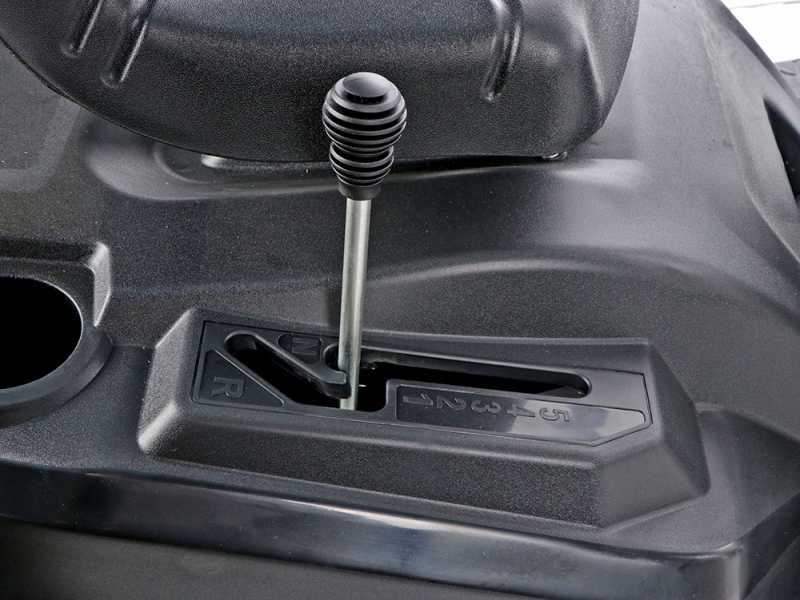

Detail of the mechanical gear transmission.

GeoTech-Pro RTM 170-960 C cutting equipment features

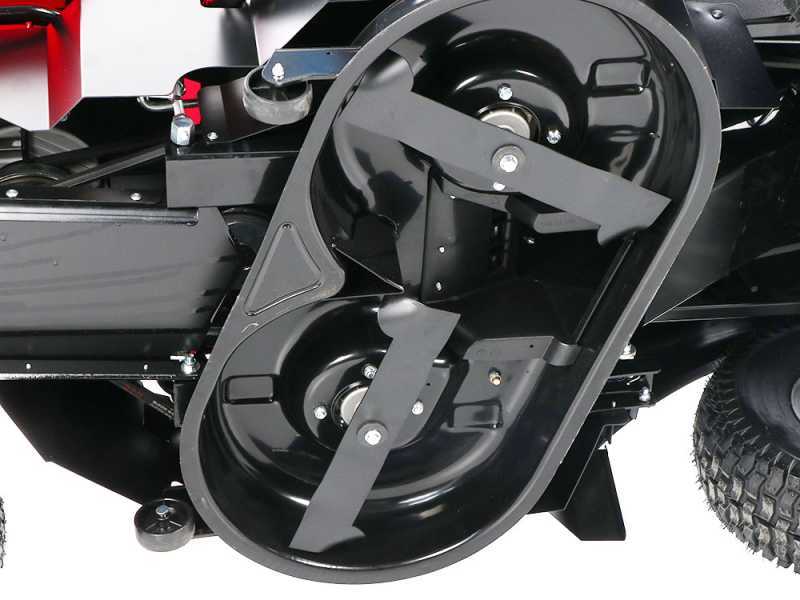

Robust twin-blade cutting deck: effective cutting width 96 cm.

The tractor is fitted with two universal blades as standard.

The cutting height is adjustable via the cutting lever in 5 different sizes between 35 and 75 mm.

The blade engagement is electromagnetic and is operated via the red button to the right of the steering wheel. This system avoids manual engagement by means of the classic lever on many types of lawn tractors, and works thanks to an electromagnetic clutch that allows easy and fast engagement of the blades.

Easy and user-friendly controls.

After starting the engine, from the driver's seat it is possible to select the different forward gears, change the cutting height of the tractor, activate the blades even in reverse, change the engine speed, engage the parking brake or switch on the front lights.

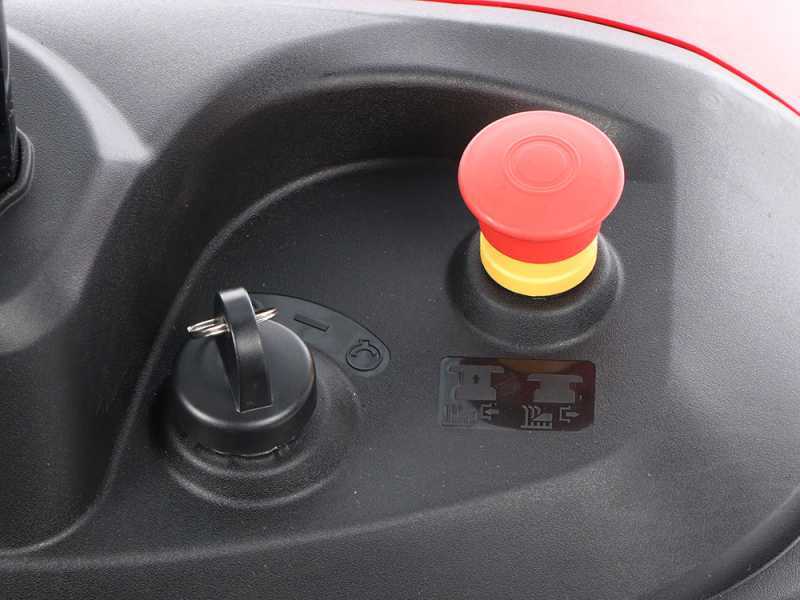

• Ignition lock with key: electric starting
• Electromagnetic blade coupling
• Braking pedal
• Engine rpm adjustment lever
• Cutting height adjustment lever in 5 different positions from 35 to 75 mm.
• Parking brake engagement lever
• Reverse blade and light activation
• Engagement of forward, reverse and neutral.

Other features of the GeoTech-Pro RTM 170-960 C lawn tractor

• Large-sized tyres: they ensure higher care of the lawn and great adherence to the ground and traction on a riding-on mower.
• Comfort Operator’s seat

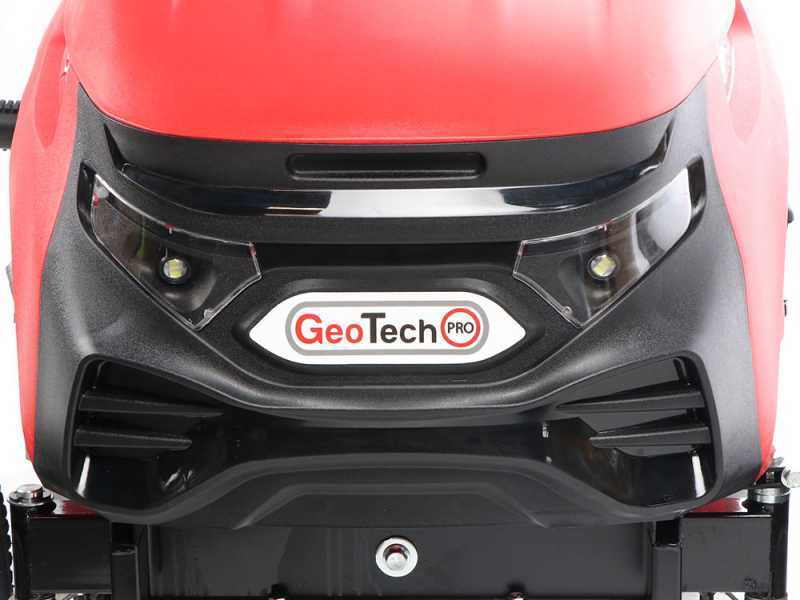

• Front lights
• Ergonomic steering wheel
• Glass storage compartment on both sides
• Electric start, with 12 V lead battery
• Dish washing connection, present on both sides
• Springs on which the seat rests, for greater comfort
