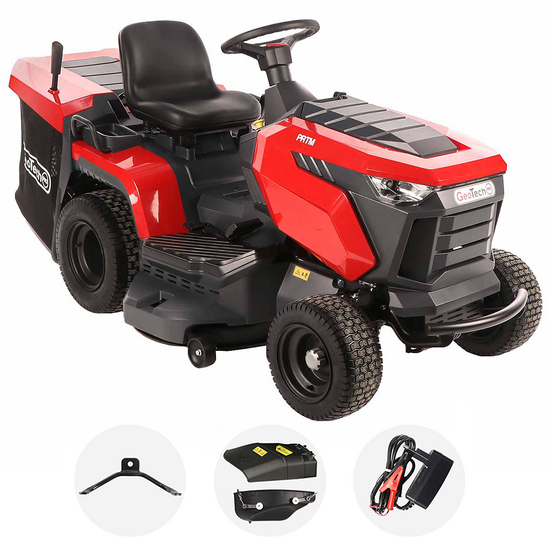

GeoTech-Pro PRTM 200-1020 H-CM - Riding-on mower - Hydrostatic transmission - Grass catcher

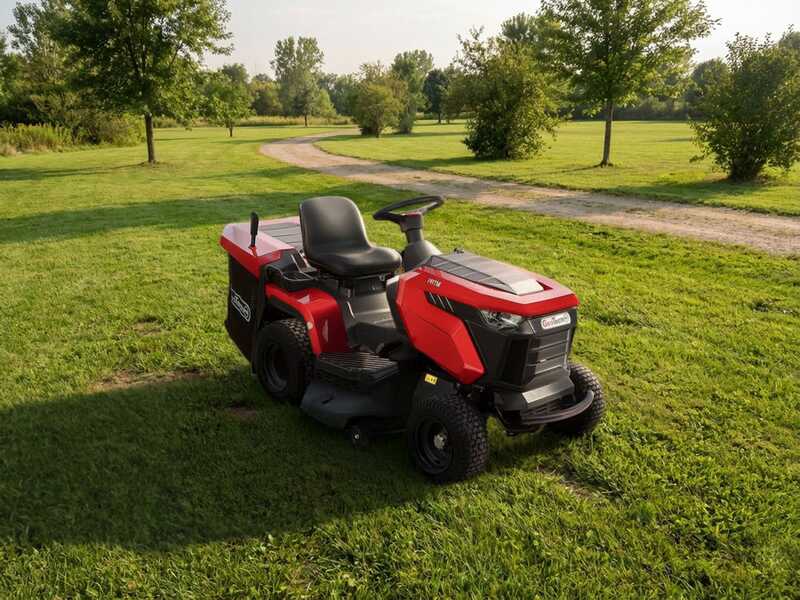

The GeoTech Pro 200-1020 H-CM riding-on mower with grass collector is a machine designed for the efficient management of medium to large grass surfaces.

It is equipped with a 102 cm double blade cutting system, which allows for a wide working width, optimising time and productivity. The housing is made of painted steel, with a functional and sturdy design to ensure long life even in semi-professional environments.

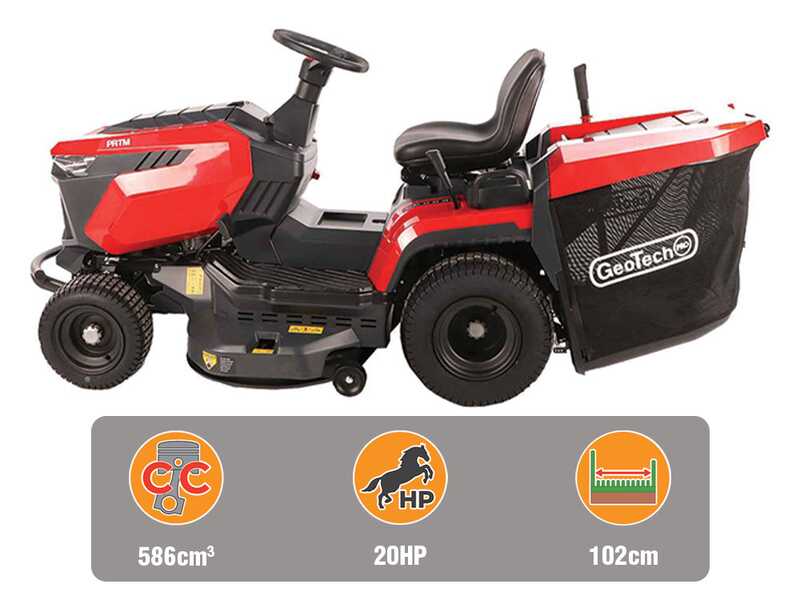

The machine is equipped with a 586 cc Loncin engine with a rated power of 20 HP. This twin-cylinder combustion engine guarantees good performance even on the most demanding terrain.

The hydrostatic transmission ensures smooth speed control without having to change gears, improving manoeuvrability and precision.

The cutting system has two operating modes: collection with a large 280-litre rear collection bag or mulching (kit included).

Cutting height adjustment is centralised and allows you to choose between 6 positions, from a minimum of 35 to a maximum of 90 mm, adapting to different ground conditions.

Another noteworthy feature is the reverse cutting function, which makes it easy to manage even the most complex spaces.

The simple and intuitive control panel provides all the information you need to monitor the status of the riding-on mower and your work session, including battery charge, engine speed and hours worked.

To further enhance its functionality, the GeoTech-Pro PRTM 200-1020 H-CM is equipped with a towing hook.

The large front and rear wheels facilitate traction on moderate slopes and uneven terrain. The seat is padded and adjustable, with an ergonomic steering wheel and dashboard equipped with LED indicator.

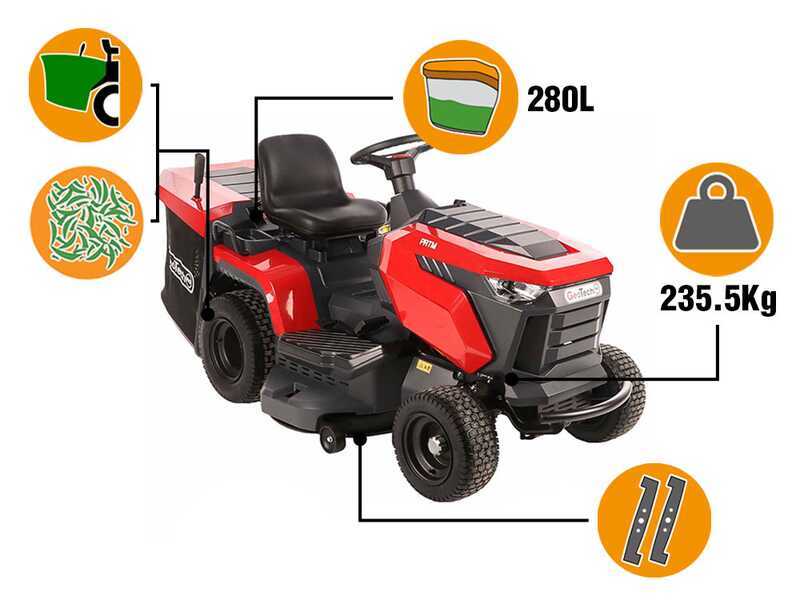

The main features of the GeoTech Pro 200-1020 H-CM model are listed below:

• 102 cm double blade cutting: allows wide coverage in every pass, with synchronised blades for uniform and efficient cutting even on tall grass;
• 586 cc 20 HP Loncin engine: latest generation twin-cylinder unit, designed to provide high torque and reliability even on demanding surfaces;
• Hydrostatic transmission: allows for progressive speed adjustment without changing gears, optimising comfort and driving control;
• 2-in-1 system: 280 L rear collector for clean collection or mulching function to naturally nourish the lawn;
• Centralised 6-position height adjustment: allows quick adjustment of the cutting height according to the season and type of vegetation.

The Loncin LC2P73F is a powerful twin-cylinder 4-stroke petrol engine designed to guarantee high performance and reliability over time, even under heavy loads. This engine is air-cooled by a system that allows for optimal heat dissipation, preserving its efficiency during prolonged use.

The 586 cc displacement allows it to develop a rated power of 20 HP, making it ideal for applications requiring vigorous thrust, such as riding-on mowers.

It is equipped with an electric start, which allows the engine to be started immediately at the push of a button, eliminating the effort of manual starting and making it practical even for less experienced operators.

This engine stands out for its balance of performance, reliability and ease of maintenance, with internal components designed for long life and smooth, quiet operation. In addition, the twin-cylinder design ensures greater thermal stability and smoother torque, especially at low revs.

Detail of the air choke

ATTENTION!

The engine is SUPPLIED WITHOUT OIL.
Read the instruction manual carefully before starting it.

Nominal power: 20 HP
The most correct term would be "Commercial Power", meaning the classic standard definition of power officially used until a few years ago by all the most well-known engine manufacturers.

* This figure is still the most widely used and advertised in the main commercial sales channels, even though it is higher than the actual power.

Actual Power: 16 .76 HP (at 2800 rpm)
This corresponds to the real power expressed at the motor shaft. It is the figure indicated as official in the manual or in the technical data provided by the motor manufacturer.

* This figure may vary for the same engine model, depending on the rotation speed that the equipment manufacturer has decided to apply to the engine.

1- BASKET COLLECTION (standard):

Large 280-litre collection basket, one of the largest in its category.

The bag emptying system is very simple: it works through a highly effective system, using the removable handle as a lever. This allows the bag to be emptied at the desired point without any effort.

The bag can be removed in a moment: simply lift it upwards to slide it out of its "bridge" housing

2- MULCHING (standard):

Cutting system that shreds grass clippings and leaves them on the lawn, pulverising them so small that they look as if they have been collected. This eliminates the problem of disposal (reducing effort and drastically shortening the time required for mowing) and, as it decomposes, it is transformed into nutrients for the lawn itself and into water (grass is 80% water), thus ensuring a perfectly balanced biological cycle. However, it is worth remembering that, in order to ensure the absolute efficiency of the system, the lawn must still be watered, and the grass clippings mowed very often. Conversion from one system to the other is very easy.

Conversion: remove the grass collector and insert the mulching plug into the central tunnel.

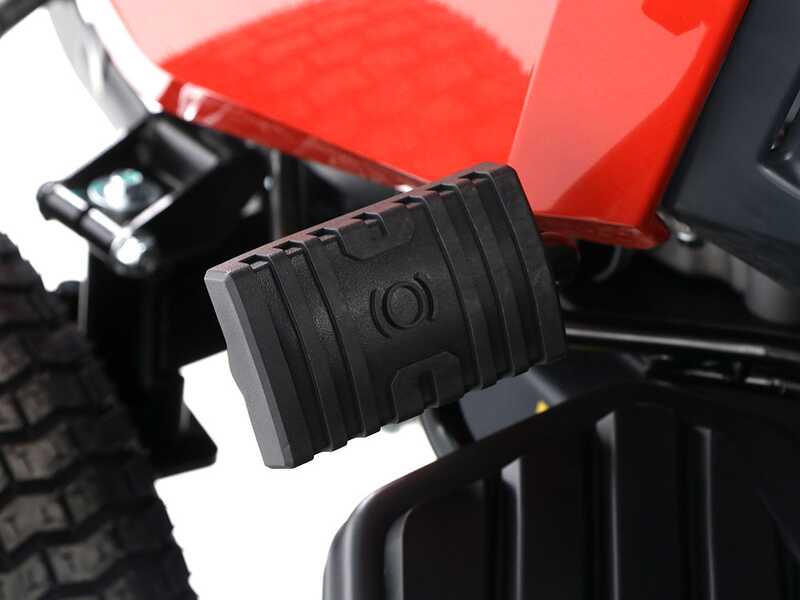

Thanks to the hydrostatic pedal gearbox, driving the riding-on mower is easy and intuitive. Everything can be controlled simply with your right foot on the pedal.

Operation is very simple: to move forward, just push the pedal with the tip of your foot. The riding-on mower will move forward according to the pressure exerted. To engage reverse, simply push the other end of the pedal with your heel.

As soon as the pedal is released, the machine stops, allowing you to operate in complete safety.

• Detail of the transmission oil filler cap
• Detail of the transmission release for forward movement

Sturdy gears make the gearbox difficult to break.

The hydrostatic transmission is by its nature much more modern and functional (albeit more expensive) than the traditional manual gearbox. The latter requires the operator to stop, change gear (because all riding-on mowers with manual or mechanical transmission require the gear to be changed when stationary), release the clutch and restart at the desired speed whenever the speed needs to be changed.

Certainly, if the speed needs to be changed several times (for example, in gardens with trees, pots or any other kind of obstacle), the traditional gearbox would be decidedly impractical. The hydrostatic transmission, on the other hand, allows immediate speed changes without ever stopping, in the most practical way possible, totally automatically, simply by varying the pressure on the drive pedal.

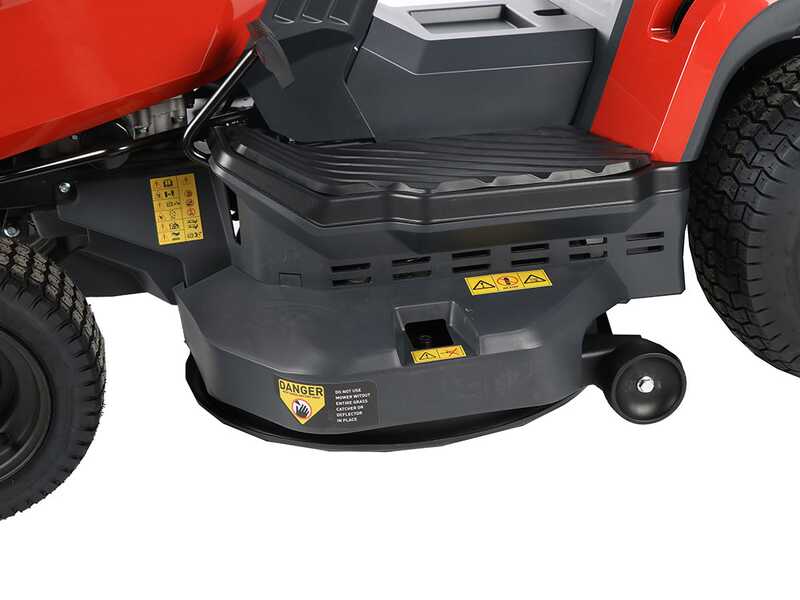

The GeoTech-Pro PRTM 200-1020 H-CM riding-on mower is equipped with a double-blade cutting deck with two anti-scalp wheels

• Sturdy double-blade cutting deck : effective cutting width 102 cm.

The riding-on mower is equipped with two universal blades as standard.

The cutting height can be adjusted to 6 different settings between 35 and 90 mm using the lever.

The blades are engaged electromagnetically and controlled by the yellow button to the right of the steering wheel. This system avoids manual engagement via the classic lever found on many types of riding-on mowers, and works thanks to an electromagnetic clutch that allows the blades to be engaged quickly and easily.

• Detail of the anti-scalp wheels
• Detail of the connection for washing the deck

Very simple and intuitive controls and adjustments.

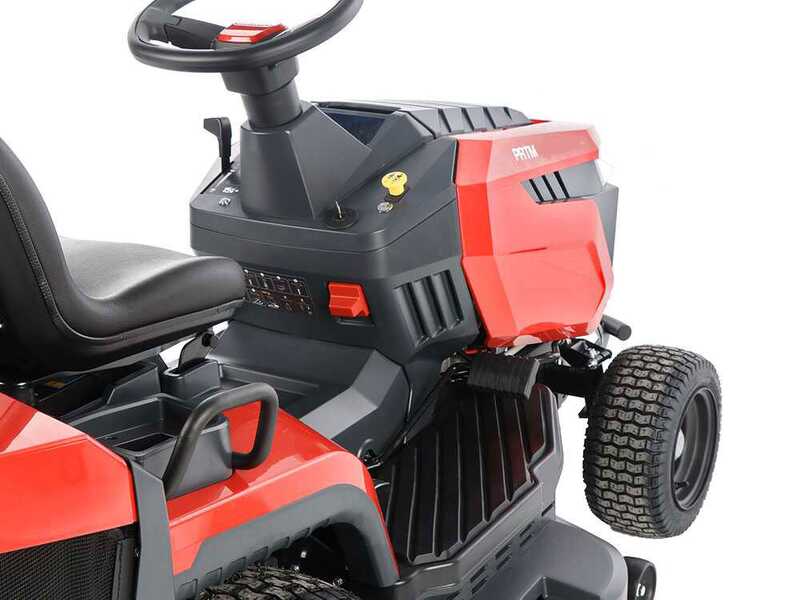

After starting the engine, from the operator's seat it is possible to adjust the cutting height of the riding-on mower, activate the blades even in reverse, increase the engine speed, apply the parking brake, engage reverse or turn on the front lights, all of which can be viewed on the innovative display.

Detail of the digital panel: the innovative smart display provides useful information on the status of the machine and your work session, and also shows the battery charge, engine speed and hours worked.

• Key start switch: electric motor start.
• Electromagnetic blade engagement
• Pedal brake
• Control pedals for hydrostatic transmission: allows forward and reverse gear to be engaged
• Engine speed adjustment lever
• Cutting height adjustment lever with 6 different heights between 35 and 90 mm
• Parking brake engagement
• Reverse blade engagement
• Air choke (adjust air flow)

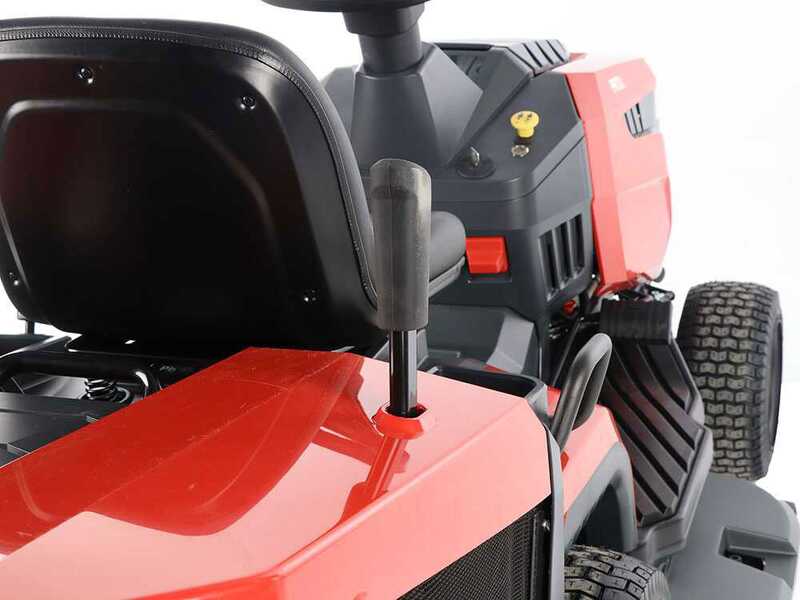

• Handle for emptying the bag directly from the seat

Other features of the GeoTech-Pro PRTM 200-1020 H-CM riding-on mower:

• Large pneumatic tyres: Guarantee greater respect for the lawn and the best possible traction on a riding-on mower.
• Comfort seat
• Powerful front lights with LED strip
• Towing hook
• Sturdy front bull bar for added impact protection
• Ergonomic steering wheel
• cupholders and storage compartments on both sides
• Electric start , with 12V / 18Ah lead battery
• Washing joint for the floor, present on both sides
• Safety device on the seat
• Springs under the seat for greater comfort

The ride-on lawn mower is designed and intended exclusively for cutting grass in gardens and parks (and not on other types of terrain). The working surface must be level, free of irregularities, stones, or other solid objects, and covered with maintained lawn grass (not uncultivated or spontaneous vegetation). Grass should be cut regularly and must not be allowed to grow beyond 25–30 cm, as most ride-on mowers are no longer capable of cutting at this height. Slopes exceeding 15% (equivalent to 9°) must be avoided, except when using 4x4 models.

For heavier-duty tasks, involving spontaneous vegetation, grass taller than the above-mentioned limits, or rougher surfaces than a garden, please consider alternative product categories such as Petrol Flail Mowers or Ride-On Flail Lawn, which are suitable for tall and uncultivated grass.

Grass must only be cut when both the lawn and the underlying soil are completely dry. Mowing operations should be carried out exclusively in dry weather, well away from periods of rain or irrigation, and preferably in the afternoon, when the grass is no longer affected by morning humidity. Wet grass tends to bend under the blades, reducing cutting efficiency, increasing the risk of clogging inside the deck, and subjecting both the engine and the transmission belt to excessive strain, which may result in damage.
