GeoTech-Pro PRTM 180-1020 CM - Lawn Tractor - Mechanical Transmission - Collection Basket

The GeoTech-Pro PRTM 180-1020 CM lawn tractor is the ideal choice for those who want a robust and versatile tool for maintaining medium to large-sized gardens and grounds. Designed to offer maximum efficiency and practicality, this model is suitable for various types of work.

Equipped with a Loncin LC1P92F-1 17HP nominal engine, the PRTM 180-1020 CM ensures consistent power and high performance. The mechanical gear transmission allows selection between 5 forward gears, neutral, and reverse, optimizing control and operation management.

Two different cutting modes:

1. Collection basket of 280 litres that reduces the need for frequent emptying, increasing overall work efficiency. The ability to empty the basket directly from the driver's seat, via a lever, adds another practical advantage.
2. Mulching function, easily activated thanks to the supplied plug to be inserted into the rear tunnel.

Additionally, the reverse cutting function allows easy manoeuvring in tight or hard-to-reach spaces, enhancing the versatility of the machine.

The dual-blade cutting deck of 102 cm is ideal for tackling large areas. Maintenance is simplified thanks to the wash connection, which allows easy cleaning of the cutting deck. The blades are electrically activated and adjustable on 6 levels, from 30 to 90 mm, to suit any cutting need.

The control panel, clear and intuitive, allows easy monitoring of the tractor, providing useful information such as the battery charge level, engine RPM, and hours of use.

To increase functionality, the PRTM 180-1020 CM is also equipped with a towing hook, perfect for additional towing operations, and a strip with front LED lights, for optimal work even in low light conditions.

The Loncin LC1P92F-1 engine is a 4-stroke petrol engine, air-cooled.

It is an engine with a 452cc displacement and develops a power of 17hp.

Machine equipped with electric start.

WARNING!

The engine is SUPPLIED WITHOUT OIL.
Before starting, carefully read the instruction manual.

Nominal Power: 17 HP
The most correct term would be "Commercial" Power, meaning the classic standard definition of power officially used until a few years ago by all the most well-known engine manufacturers.

* This data is still the most widespread and advertised in the main commercial sales channels, although it is an increased data compared to the actual power.

Effective Power: 12.33 HP (at a rotation speed of 2600 rpm)
Corresponds to the actual power expressed at the engine shaft. It is the one indicated as official in the manual or in the technical data of the engine manufacturer.

* This data can vary for the same engine model depending on the rotation speed that the equipment manufacturer has decided to have the engine deliver applied.

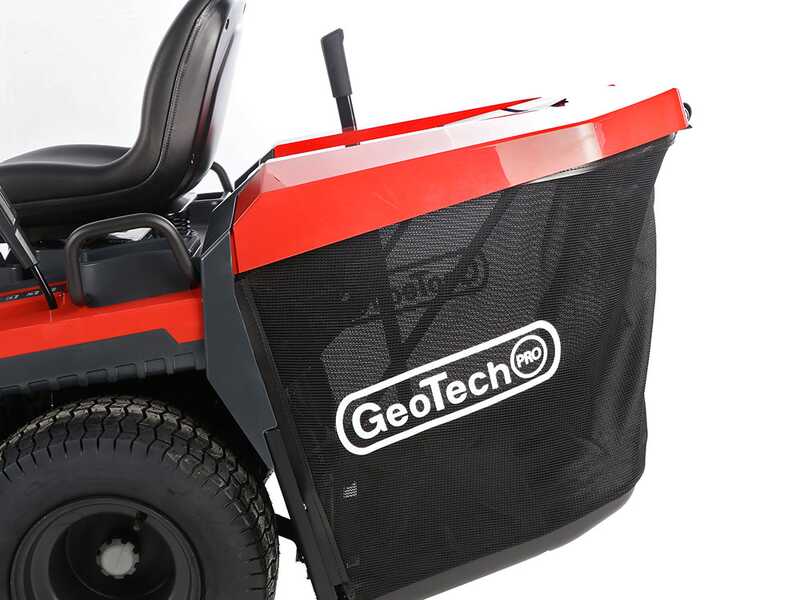

1- COLLECTION WITH BASKET (standard):

Brand new and spacious collection basket with a capacity of 280 litres, among the most spacious in its category.

The bag emptying system is very simple: it is done through a very effective system, leveraging the removable handle. You can thus empty the bag at the desired point without any effort.

The bag is removable in an instant: just lift it upwards to remove it from its "bridge" housing

2- MULCHING (standard):

cutting system that shreds the cut grass leaving it on the lawn, pulverizing it to the point that it will almost appear as if it has been collected. This eliminates the problem of its disposal (reducing effort and drastically shortening the time spent cutting) and furthermore, as it decomposes, it will subsequently transform into a nutrient for the lawn itself and into water (grass is composed of 80% water) thus ensuring a perfectly balanced biological cycle. However, it is useful to remember that, to ensure the absolute efficiency of the system, the lawn must still be irrigated, and the grass cut very often. The conversion from one system to another is very easy.

Conversion: remove the collection bag and insert the mulching plug into the .

The GeoTech-Pro PRTM 180-1020 CM lawn tractor is equipped with a selector that allows setting between:

• forward motion with 5 different speed gears
• neutral (N)
• reverse motion (R)

Once one of the 5 gears is set, it is also possible to adjust its speed (reducing it) simply by dosing the pressure on the brake pedal (decelerating).

Releasing the pedal, the tractor automatically returns to the speed of the engaged gear.

Detail of the mechanical transmission with gears.

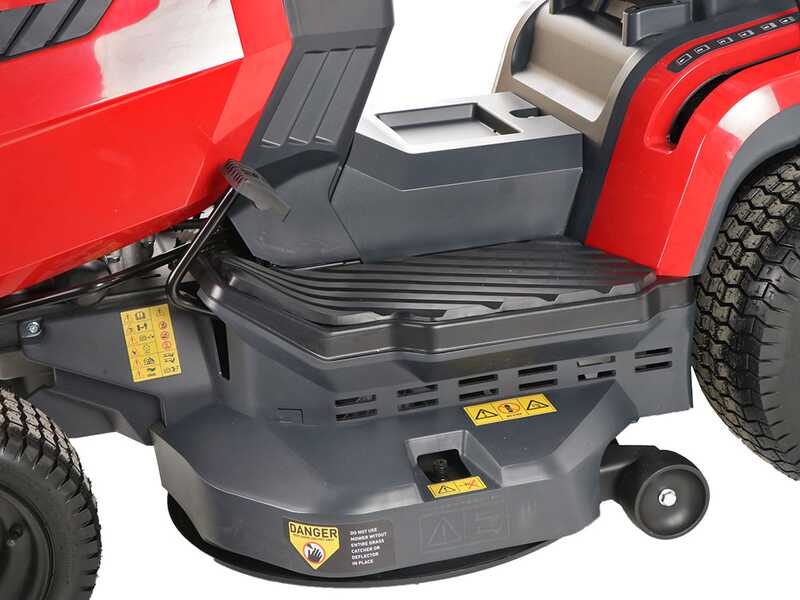

The GeoTech-Pro PRTM 180-1020 CM lawn tractor is equipped with a 2-blade cutting deck with two anti-scalp wheels

• Robust dual-blade deck: effective cutting width 102 cm.

The tractor comes standard with two universal blades.

The cutting height is adjustable, via the appropriate lever, in 6 different sizes between 30 and 90 mm.

The blade engagement is electromagnetic and is controlled via the yellow button to the right of the steering wheel. This system avoids manual engagement via the classic lever found on many types of tractors and works thanks to an electromagnetic clutch that allows for easy and quick blade engagement.

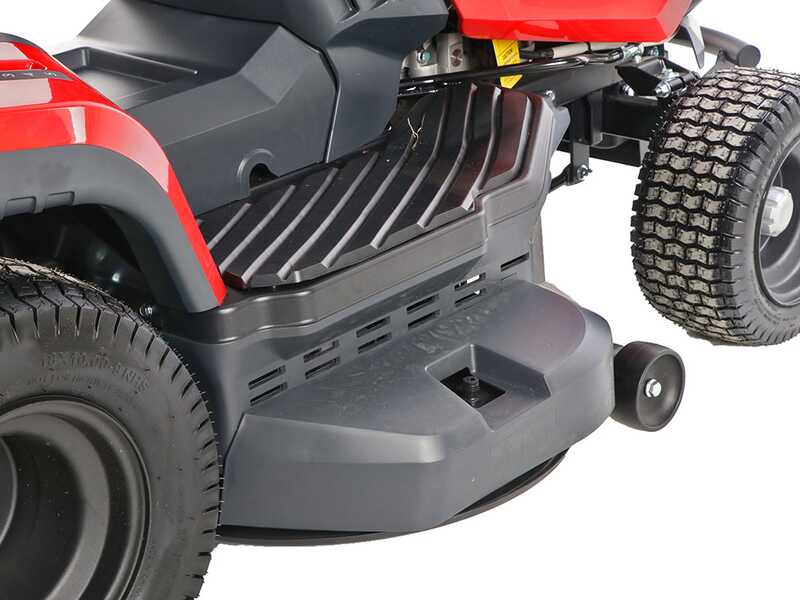

• Detail of the anti-scalp wheels
• Detail of the deck wash connection

Very simple and intuitive controls and adjustments.

After starting the engine, from the driver's seat it is possible to change the forward gear, adjust the cutting height of the tractor, activate the blades even in reverse, increase the engine speed, engage the parking brake, engage reverse gear or turn on the front lights, all visible on the innovative screen.

Detail of the digital panel: the innovative smart display provides useful information on the machine's status and your work session, also showing the battery charge, engine RPM, and hours worked.

• Activation block with key: electric engine start.
• Electromagnetic blade engagement
• Foot brake

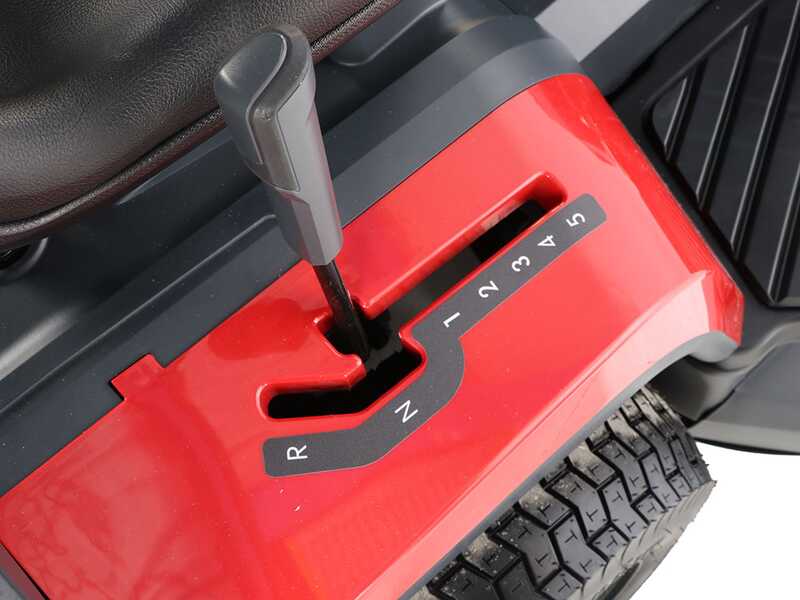

• Lever for selecting forward gears
• Lever for engine speed adjustment
• Lever for cutting height adjustment with 6 different heights between 30 and 90mm
• Parking brake engagement
• Reverse blade activation and LED light activation
• Handle for emptying the bag directly from the seat

Other features of the GeoTech-Pro PRTM 180-1020 CM lawn tractor:

• Large format tyres: Ensure greater respect for the lawn surface and the best possible traction on a tractor.
• Comfort seat

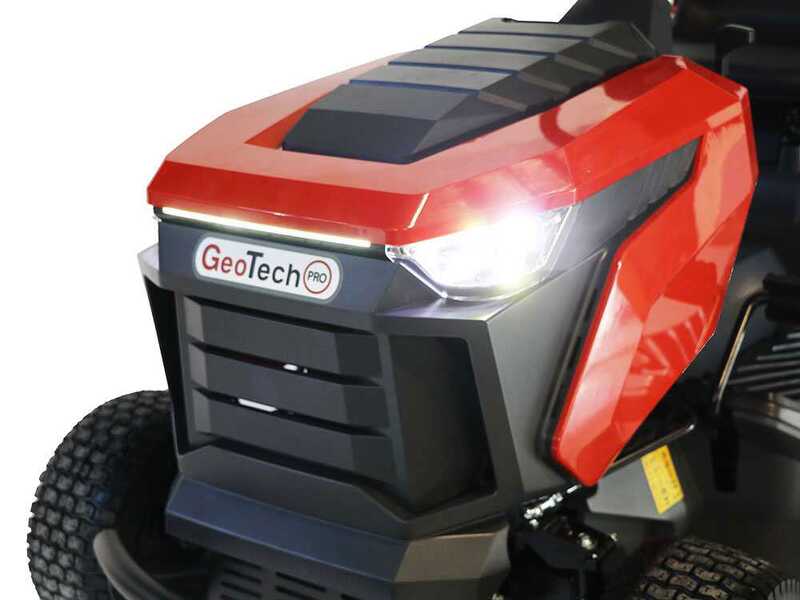

• Powerful front lights with LED strip
• Towing hook
• Robust front bull bar for greater protection against impacts
• Ergonomic steering wheel
• cupholder and storage compartment on both sides

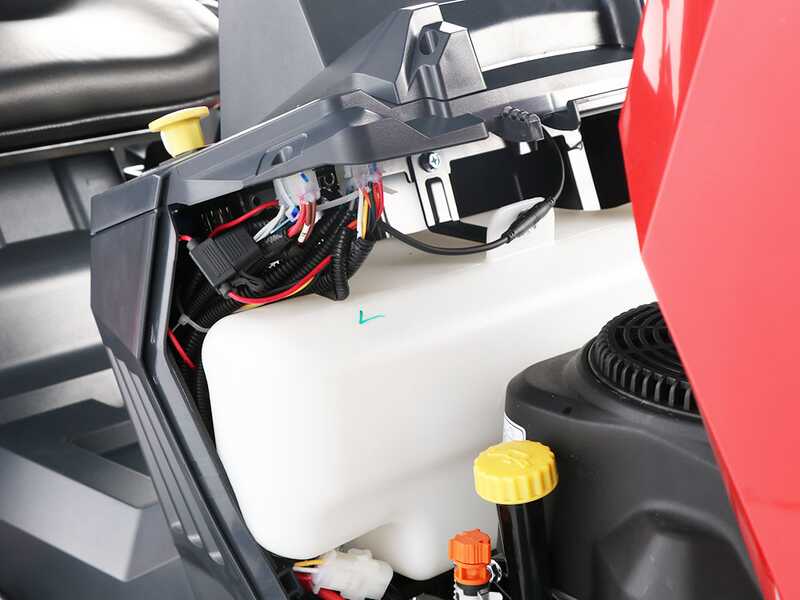

• Electric start, with 12V / 18Ah lead battery
• Deck wash connection, present on both sides
• Seat safety device
• Springs on which the seat rests, for greater comfort
