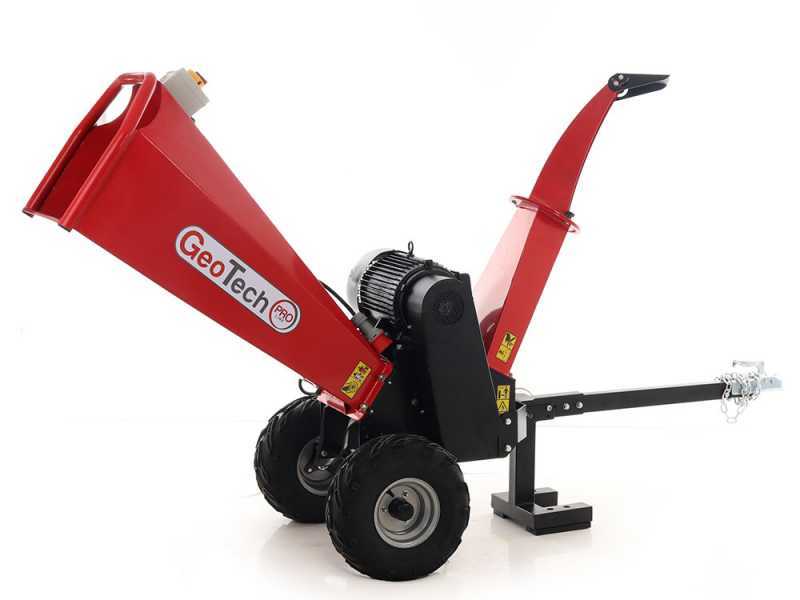

PCS 55ET electric motor shredder

The GeoTech PRO PCS 55 ET bio-wood chipper or chipper is specifically designed for shredding medium-diameter branches and stumps. Ideal for anyone who needs to maintain green spaces and quickly remove and grind biodegradable waste from the ground.

The PCS 55ET is equipped with modern electrical safety devices that comply with CE standards.

The strengths of this machine are:

Robustness thanks to the steel rotor system.
Cutting diameter (easily reaches 80 mm on green, not dry wood).
Exceptional working capacity, it can handle intense and heavy work sessions, even constantly grinding large diameter wood-fired at a professional level.
High hourly productivity, well above that of classic petrol-powered shredders with blade and hammer rotors (can reach a productivity of 5/7 mc/h)

Limitations: the final size of the wood chips is larger than average due to the lack of centrifugal hammers. The shredder produces fragments of approximately 2-3 cm and is not suitable for grinding leaves or other small green material

Please note: Like all shredders and wood chippers, it is not suitable for grinding grass, leaves, pine needles, etc. (it is designed to shred branches, but can grind leaves, needles and other vegetation that may be attached to them)

Main instructions for use for all shredders on the market:
- The shredder must grind branches that have been recently cut from the tree and are not dry (as this would limit its shredding capacity and cause rapid deterioration of the blades).
- The branches should preferably be long, regular in shape and not knotty (otherwise the cutting diameter is reduced);
- The stated cutting diameter is the maximum, so in use it represents the exception rather than the rule. In this case, consider purchasing a shredder with a larger cutting diameter;
- The cutting diameter may vary depending on the consistency of the wood (for example, oak, olive, plum and peach are very hard woods and can reduce the cutting capacity of shredders)

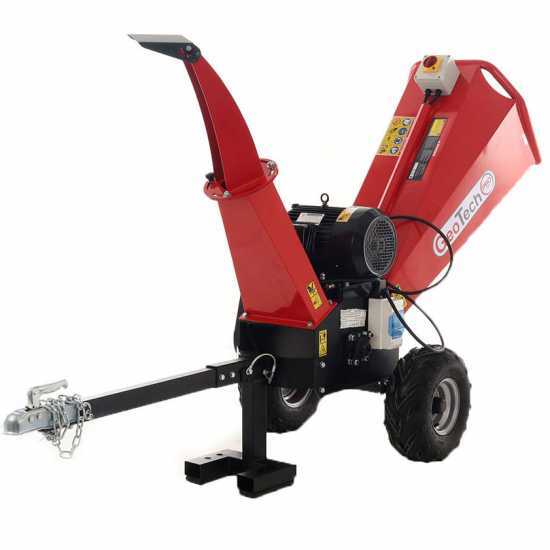

GeoTech-Pro PCS 55ET - Electric motor shredder - Three-phase

Unified hopper

Steel hopper capable of receiving even very bulky branches and foliage without pre-shredding.

UNIFIED HOPPER:

greatly simplifies and speeds up the work.
It eliminates the constant task of sorting (before grinding) the material into large, woody sections and smaller, green sections, each of which must be placed in its own hopper (a task required by all classic shredders equipped with two hoppers)

SELF-FEEDING:

once the branches are placed in the hopper, it tends to pull them in by itself. This is possible thanks to the hopper, which is designed to be almost vertical. Assisted by gravity, the mechanism is able to pull in the branches to be shredded.

PLEASE NOTE: the branches must not be too voluminous, as this could limit functionality.

Detail of the protective rubber bulkheads at the hopper entrance.

Mouth dimensions: (W x H) 49 x 44 cm

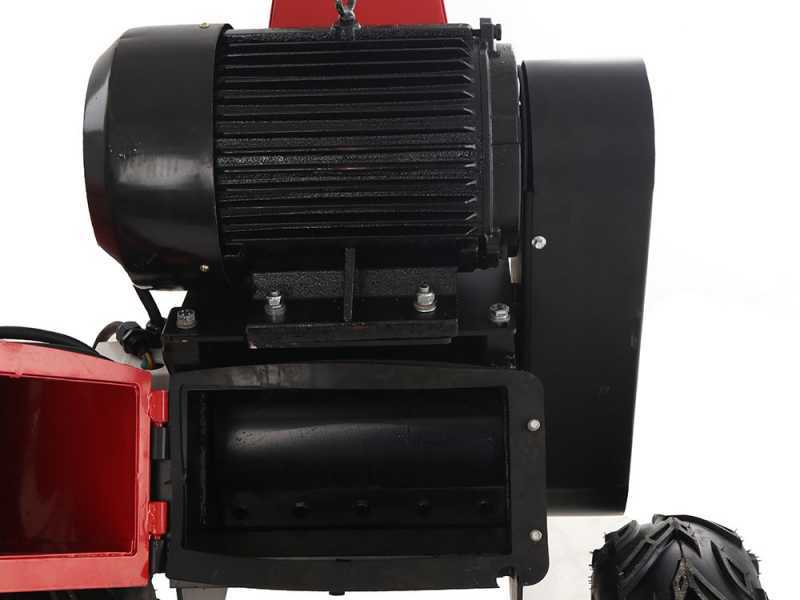

Shredding system with 2 blades and counter-blade

2 large, thickcutting blades mounted on a rotating steel roller.

The double blade system is completed by the counter-blade in the shredding chamber.

This produces high-quality wood chips with an hourly output ranging from 2.5 to 4 mc/h.

The rotor is solid and sturdy, made entirely of steel.

Detail of the counter-blade adjustment: this is deliberately assembled at an angle to the frame and the direction of rotation of the rotor to increase the cutting capacity of the machine and achieve better performance

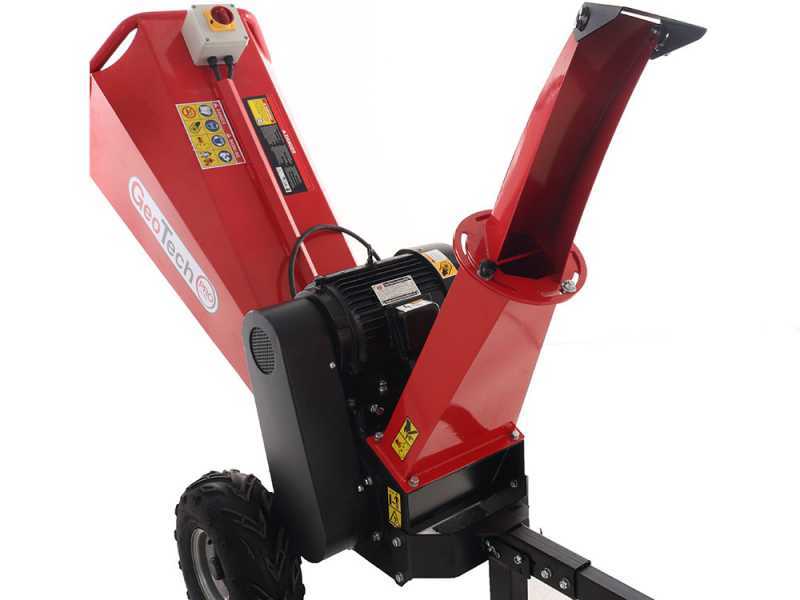

Reinforced intermediate belt drive

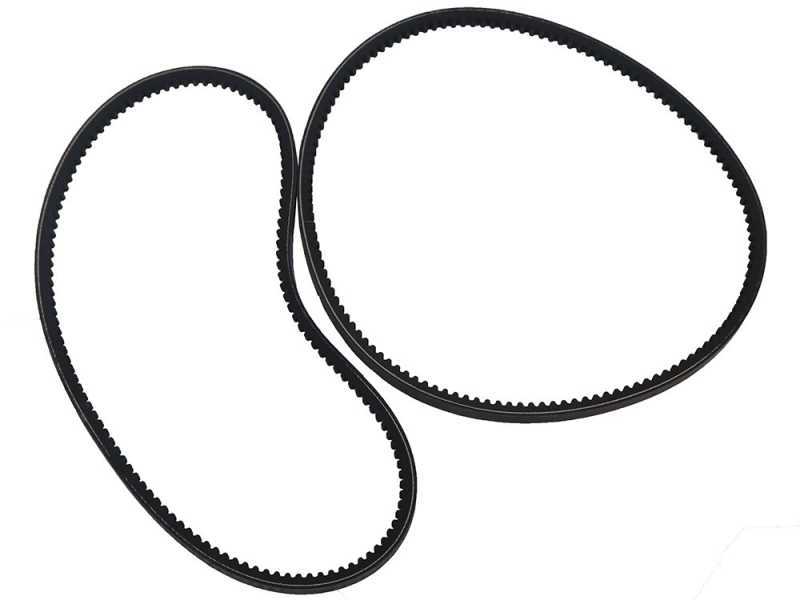

INTERMEDIATE TRANSMISSION REINFORCED BELT.

This transmission gives the machine exceptional sturdiness, protecting both the motor and the internal shredding rotor from any type of internal impact or kickback.

High-quality 5.5 kW three-phase electric motor that guarantees perfect shredding of wood chips.

In the event of rotor blockage caused, for example, by too large wood, stones, etc., there is no risk of breaking the drive shaft and thus ruining the motor, but rather a slippage or, at most, a breakage of the intermediate belt.

Much longer life than traditional systems still used by all manufacturers with combustion engines directly connected to the shredding apparatus.

The front support is very wide and ensures the stability of the machine. This allows the weight to be distributed over a larger surface area, thus preventing the bio-chipper from sinking into soft ground.

In addition to the deflector angle, the discharge chute is also adjustable: it rotates and can be turned to the right or left at various angles by simply loosening and tightening the knobs manually.

Detail of the ignition knob.

The bio-chipper is also equipped with large tractor wheels for easy transport.

Detail of the towing hook.
