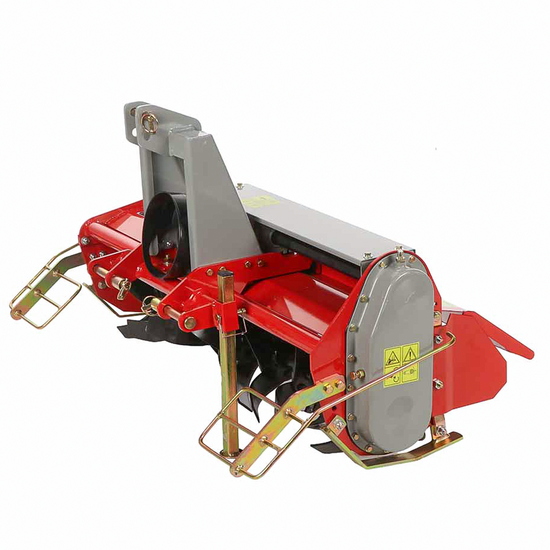

GeoTech Pro LRT-125 - Light Series Tractor Rotary Tiller - with Manual Displacement

Questions & Answers (4)
ID: 100153

EAN: 8054141549272

MPN: 500199

After-sales assistance & Spare parts
GeoTech Pro LRT-125 - Light Series Tractor Rotary Tiller - with Manual Displacement
+100 sold
141 Kg
Tractor power
Up to 25 HP
Body material
Enamelled steel
Working width
120 cm
Cardan shaft
With safety bolt
Cast iron gearbox
Product Features
LRT 125
Tractor power:
Up to 25 HP
Body material:
Enamelled steel
Manual shift:
3-point hitch category:
Manufacturing country:
Transmission data
Cast iron gearbox:
Cutting data
Working width:
120 cm
No. of blade holders:
No. of blades:
Blade type:
Rear adjustable Hood:
Free gifts/extra features
Side skids:
Cardan included:
Cardan shaft:
With safety bolt
Instructions manual:
Dimensions and logistics
Product dimensions in cm (L x W x H):
145 x 93 x 84 cm
Net weight:
141 Kg
On pallet
Original packaging/s dimensions in cm (L x W x H):
140 x 68 x 65 cm
Gross weight (packaging included) :
161 Kg
Assembly time:
30 minutes
Out of stock
Free Shipping
€ 1.207,21
VAT Included
You're viewing:
Customers also viewed:

GeoTech Pro LRT-125 Tractor rotary tiller

LIGHT series

Useful working width: 120 cm. Suitable for tractors up to 25 HP

The GeoTech Pro LRT series rotary tiller is a light with manual side shift designed for working with medium and small tractors.

  • for hobby use
  • for medium and small surfaces
  • for light use and soils enough free of stones.

Attention: this machine is shipped ready for use. After the assembly, check for bolts tightening.
Before using this product, please carefully read the instructions manual.

Please carefully read the instructions manual before using.

Technical features

Rotary tiller's features:

  • Outer dimension: 145 cm
  • Real working width: 120 cm
  • Weight:141 kg
  • Indicated demand: up to 25 HP
  • Working height: 18–20 cm
  • Hoes for flange: 4
  • Number of hoes: 24
  • Hoes supports: 6


Steel hoes:

  • 6 blades attachments

  • 4 hoes each attachment (24 in total)

Focus on the side support of the rotor's fixing by the inside.

Focus on the outer rotor's anchoring, with greaser hole in the middle.


All rotary tillers have to work on "clean soil", that is to say without stones and rocks of a size that could damage not only the hoes but in the worst case even the rotor, frame or several transmission components (ball bearings, oil retainers, etc.).

Hydraulic side shift and 3 points hitch

Equipped with manual side shift.

It is possible to move the 3 point hitch along the shift bar by loosing the locking bolts. It will slide along the full rotary tiller's length.

Some positioning examples:

  • Position 1
  • Position 2
  • Position 3

Focus on thesetting holes.

Universal type PTO ( 1 3/8" Z6 )

Connections areuniversal type for all tractors on market.

Transmission and other features

Height adjustable side skids

Movable rear hood with levelling action on the hoed ground

Adjustable hood by means of proper chain

Sturdy oil bath big chain side transmission

Cast iron oil bath sturdy gear box

Universal standard power take-off (1 3/8" Z6)

Universal lifter linkage pins (with two sections diameter each, adaptable to any tractor on market)

Cardan provided as standard equipment is equipped with safety bolt.

The torque limiter shear bolt is designed to protect the machine from damages due to mechanical overload caused by forecasted or excessively high torque. This means if the torque force is higher than the one the bolt can bear, the bolt snaps off. To reactivate transmission, the shear bolt shall be replaced with a new one having the same features.


The machine is shipped ready to use. Once assembled, please check that the bolts are tightened.

The gearbox of this machine cannot contain more than 1.5 L of oil.

Please carefully read the instruction manual before using.

Free items & Standard equipment

Free gifts & Standard equipment

The flail mower is shipped on pallet. Only the three point hitch and few other particulars need to be assembled.

Cardan shaft included on package.

Assembly and Instructions Manual.
