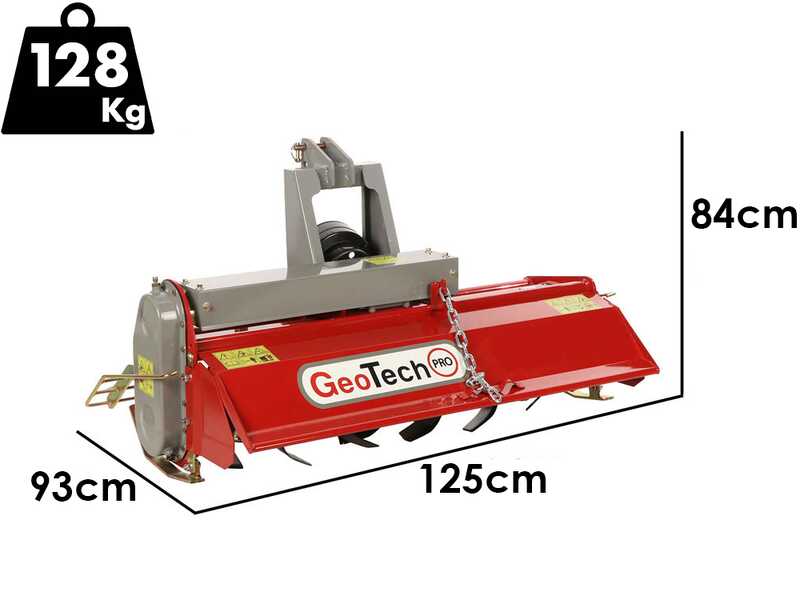

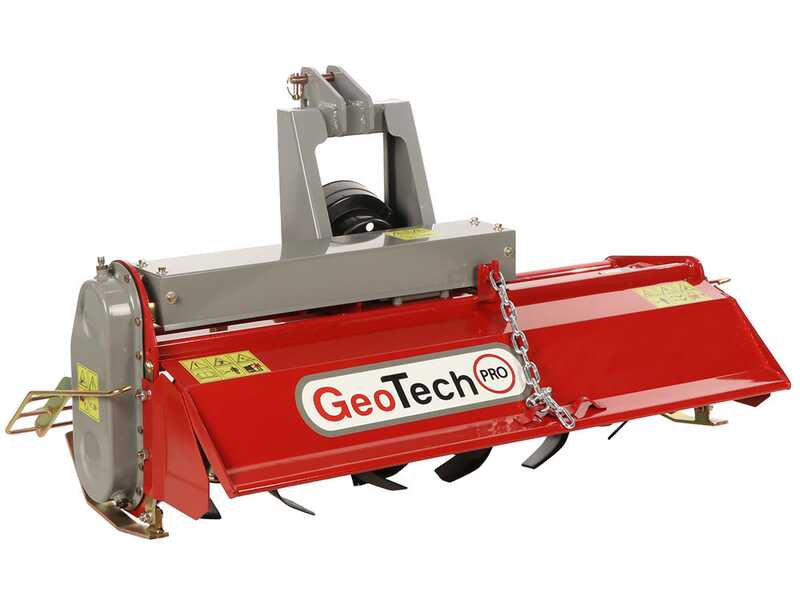

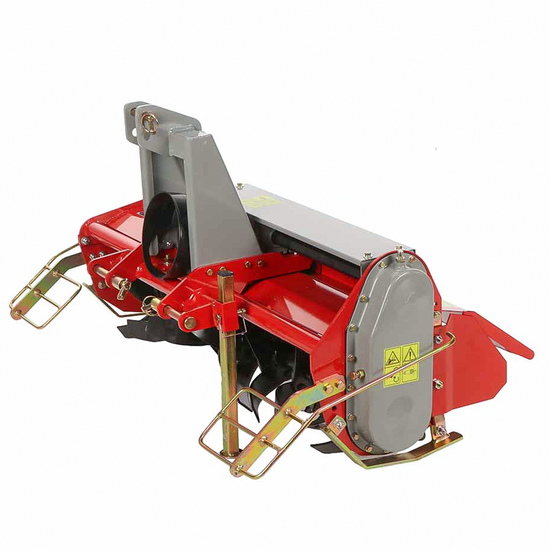

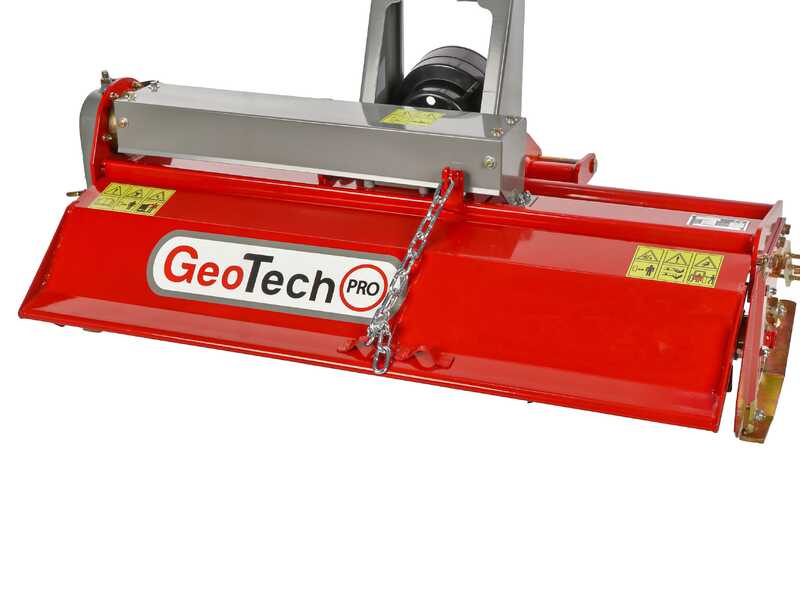

The GeoTech PRO LRT 105 tractor-mounted rotary tiller is a piece of equipment designed for shallow soil cultivation and ideal for hobby use and routine maintenance of vegetable patches, gardens and small agricultural plots. The working width of 100 cm allows for efficient operation on small surfaces, whilst remaining suitable for use with compact tractors up to 20 HP.

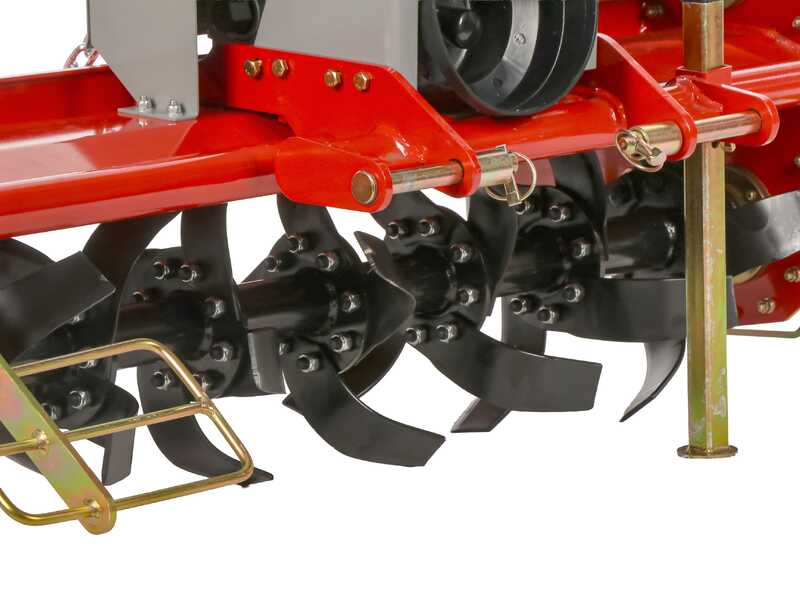

It is powered by connection to the tractor’s power take-off (PTO) at 540 rpm. Power is transmitted to the tine rotor, which works the topsoil, breaking up clods and promoting soil aeration. The maximum working depth of 90 mm is suitable for seedbed preparation, the shallow incorporation of crop residues and maintenance operations on previously cultivated land.
The main technical specifications of the GeoTech PRO LRT 105 tractor-mounted rotary tiller are:
- Working width of 100 cm: allows a large area to be covered with each pass. Suitable for use with low-power tractors.
- Compatibility with tractors up to 20 HP: requires low power. It can also be used with compact machinery designed for the maintenance of vegetable gardens and small plots of land.
- PTO at 540 rpm: uses the most widely used agricultural standard, facilitating connection to numerous tractor-mounted models.
- Manual side shift: allows the machine’s position relative to the tractor-mounted centreline to be adjusted. Useful near rows, fences or borders.
- Working depth up to 90 mm: suitable for shallow soil cultivation. Ideal for refining and preparing the soil prior to sowing.
The lightweight design of the GeoTech PRO LRT series is intended for occasional use and for even ground with few stones. For this reason, it is less suitable for intensive tillage, particularly compacted soil or soil with a high concentration of stones.
Warning: Once all parts have been fitted, check that the bolts are tight.
Read the instruction manual carefully before use.
A PTO shaft with shear bolt is included.
