GeoTech-Pro iGGP5000ES - Wheeled 4 kW Inverter Power Generator with Electric Start - DC 3.5 kW Single-phase

Questions & Answers (23)
ID: K605835

EAN: 9999237533386

8,9/10
After-sales assistance & Spare parts

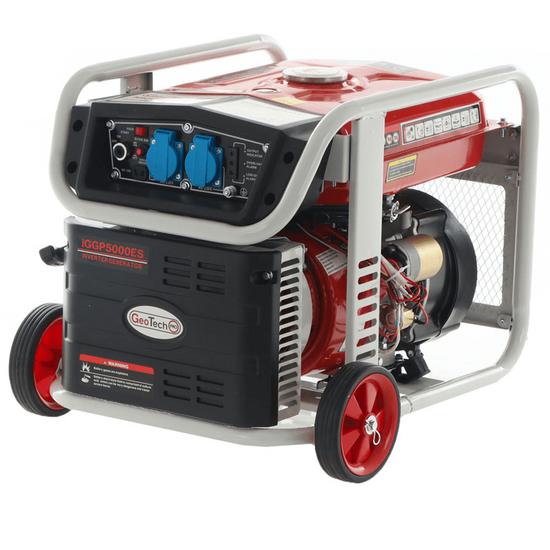

GeoTech-Pro iGGP5000ES - Wheeled 4 kW Inverter Power Generator with Electric Start - DC 3.5 kW Single-phase
+200 sold
FREE
2 bottles of 600 ml engine oil each2 bottles of 600 ml engine oil each
Power supply
Petrol
Electric Current
Single-phase
Single-phase rated power
3.5 kW
Max. power
4 kW
Inverter technology
Yes
Electric start
Yes
Motor brand
Producer-manufactured
Cubic capacity
212 cm³
Nominal power
7 HP
Battery charger
Yes
Product Features
Model:
iGGP5000ES
Power supply:
Petrol
Type:
On cart
Electric Current:
Single-phase
Voltage stabiliser:
Inverter
Single-phase power supply 220 V:
Yes
Frequency:
50 Hz
Inverter board:
Yes
Single-phase rated power :
3.5 kW
Max. power:
4 kW
Tank capacity:
9 L
Electric start:
Yes
Manufacturing country:
China
Motor data
Cubic capacity:
212 cm³
No. of cylinders:
1
Nominal power:
7 HP
Fuel:
Petrol
Power supply:
Overhead valve OHV
Engine lubrication system:
Oil bath
Decompression system:
Automatic
Tank capacity:
9 L
Noise level:
74 dB(A)
Manufacturing country:
China
Equipment
Automatic Transfer Switch (ATS):
No
Inverter technology:
Yes
On wheeled frame (with wheels and handles):
Yes
Battery charger:
Yes
CEE power outlets:
2
Electric start with key :
Yes
Recoil start system (with rope):
Yes
Tank level indicator:
yes
Free gifts/extra features
Wooden pallet (safe shipping):
Yes
Maintenance tool kit:
Yes
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
59 x 43.5 x 44 cm
Net weight:
38.5 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
75 x 52 x 58 cm
Gross weight (packaging included) :
53 Kg
Assembly time:
5 minutes
Prompt Delivery
973 items in stock
Free Shipping
Estimated delivery: 15/11/2024 - 19/11/2024
Suggested price:
€ 541,52
€ 460,29
VAT Included

You're viewing:
Customers also viewed:
Description

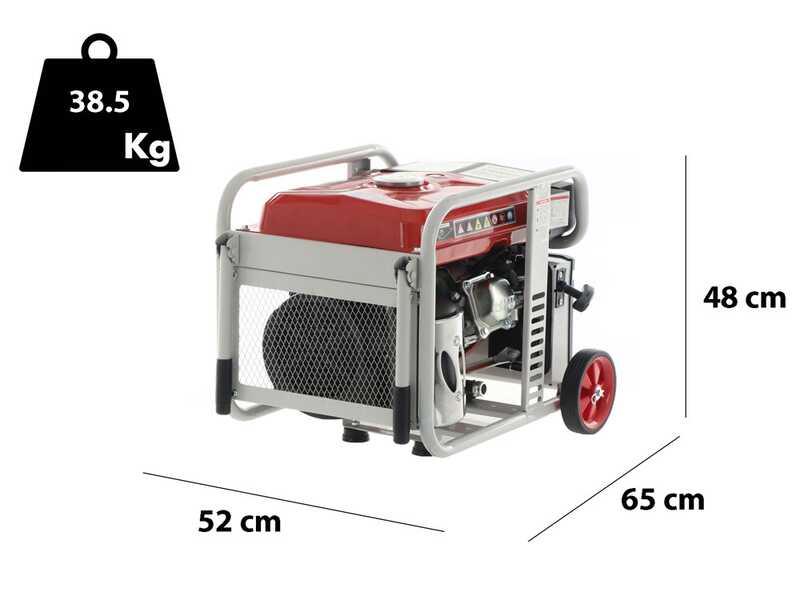

Technical features

Max power output: 4 KW

Rated power output in continuous running (COP): 3.5 KW

This last feature represents the technical data to take into account as effective according to the generator capacity of generating electric power (since it allows the generator running for a long period of time).

Voltage: 230 V

Operating frequency: 50 Hz

Petrol tank capacity: 9 L

Weight: 38.5 kg

Sound intensity: 74 dB[A]/7m

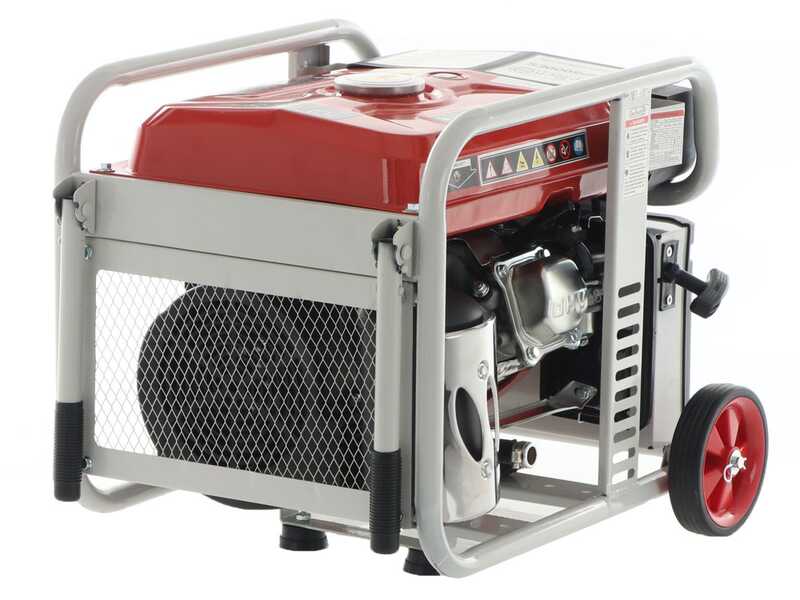

Engine and silencer

Engine type: 4-stroke single-cylinder air cooled petrol engine

Rated power: 4 hp

Petrol tank capacity: 9 L

Start type: Electric key start

Secondary start: recoil start

WARNING: the engine does not provide oil (please, ensure to fill the tank with oil specific for 4-stroke engines before starting it).

A 4-stroke petrol engine shows a higher number of positive aspects compared to the standard 2-stroke motors. It is possible to describe them as follows:

  • Higher reliability;
  • Longer durability over time;
  • Far easier to use engine (especially when it has been sitting unused for a long time);
  • Lower problems related to the fuel preparation and to preserve its quality keeping it fresher longer;
  • Considerably reduced fuel consumptions;
  • Low maintenance requirements.

Sound intensity: 74 db(A)/7m

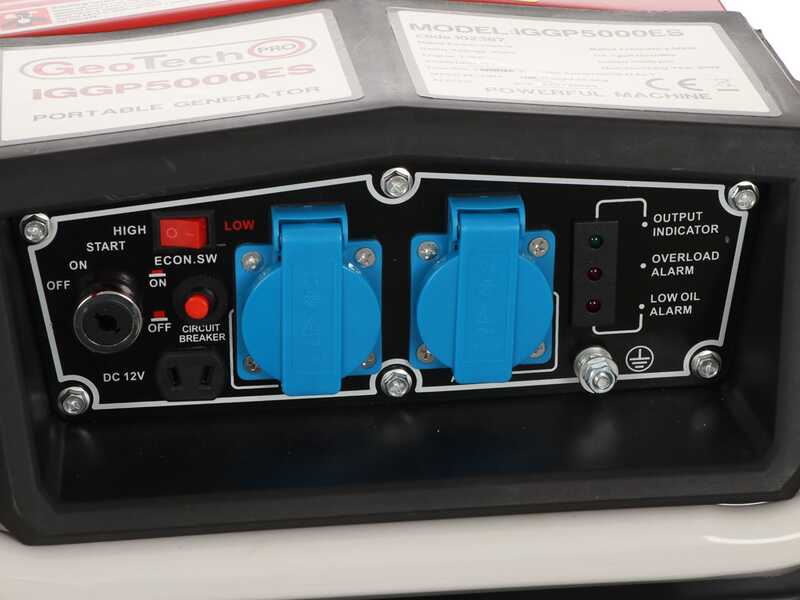

Control panel

ECON push button:

Whenever there are no electric appliances connected to the generator or they are turned off, the generator does not provide energy and power consumptions because it works in fuel saver mode. This device is specifically used in order to considerably reduce fuel consumptions and to ensure low noise running when there is no load connected to the generator. On the opposite side, whether it is restored the energy consumptions by connecting or turning on the electrical supplies, our generator automatically establishes its proper running speed in order to ensure constant average output voltage and to generate the proper amount of electricity. * This solution can just be used by generating 220 v power outputs (it cannot work with battery chargers).

Warning lamps

- Current flow: its starting comes immediately after the power switch has been turned on (it normally provides the green light on).

- Overload signal: a common problem is that a generator can be overloaded, there can be power quality problems resulting in malfunction and equipment failure or in case of short-circuits of one of the appliance powered by the generator: on this occasion, the machine consists of a red light that comes on as a overload sensor. The generator stops powering the operating loads letting the green light turning off in a very short time. To solve the problem, it is necessary shutting the engine off trying to find out the reason why the generator is not able to produce enough power due to its overload conditions.

- Engine oil warning system: it has been specifically designed to avoid damaging the engine when the oil level drops too low. Whenever the engine is not running properly, the red oil warning light comes on before the oil drops below the safety level. On this occasion, the oil warning system immediately stops the engine. * Warning: the engine does not provide oil.

Power plugs:

- 2 Schuko power outlets CE with 230 volts power supply.

- 1 power outlet for battery charger: each battery charger is used to force electric current into a secondary cell. It consists of a overload circuit, which eventually activates the safety device (to protect the battery from overload).

- 1 Electric start key

- 1 Circuit breaker

Additional features

Detail of the fuel level indicator

Detail of the recoil start

Detail of the rubber wheels

Foldable transport handle

How To Select The Correct Power Rating Of The Generator

As regards the power needed referring to the use you will make of your generator, here below an extremely useful table to guide you among consumptions, starting coefficient and watt. Firstly, the highest-quality method is to identify which are the electric appliances we need to power with the generator and then perform a simple calculation to identify the necessary power that the generator must supply, as explained below.

Power required = Electric appliance consumption X Breakaway starting coefficient

The starting coefficient represents a fundamental feature for all the electric equipment as it indicates how much the consumption of the electric appliance increases. Therefore, it allows to concretely determine how many WATTs are necessary during the start-up operations.

Example: Air compressor ( 1500 Watt ) X Starting coefficient ( 2 ) = 3000 Watt

Hence, it is important to address your choice on a generator featuring equal or higher WATT-rated electric power than the result obtained from the calculation made.

( * ) Check the consumption of the electric appliance on the operator’s use and maintenance manual or on the plate attached to the machine.

WARNING! Purely indicative table. Thanks to the formula indicated above you can easily calculate the electric power that the generator has to supply in order and connect to the generator specific electric appliances and select the model of generator which best suits your needs. We remind you that to operate electric equipment (computers, TVs and all the other electric appliances provided with electronic card) you need to focus the attention on inverter generators (which allows stabilizing the electric current supplied).

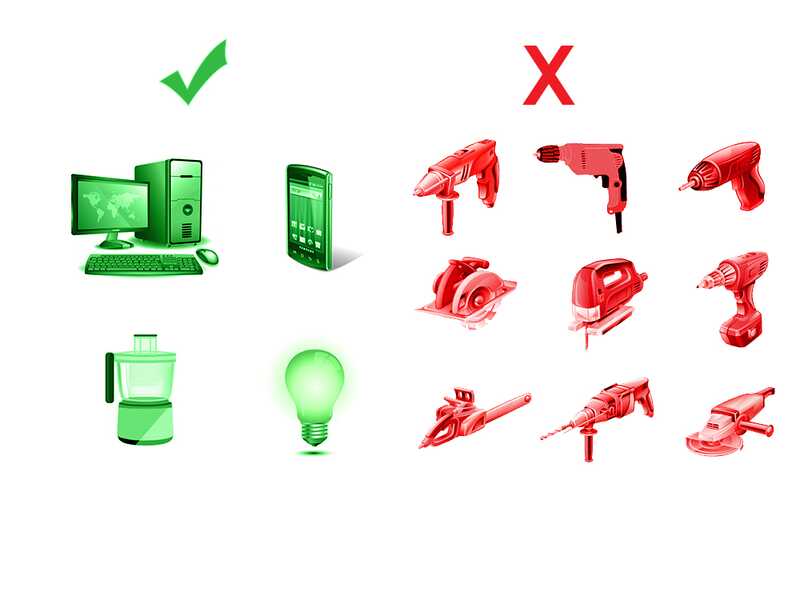

Inverter Generator – Warnings And Range Of Application

  • This inverter generator is provided with ELECTRONIC CARD, which allows stabilizing the electric power supplied, producing an almost perfectly shaped electric wave.

    This makes the generator particularly suitable for different applications, but also unsuitable for others.

    RANGE OF APPLICATION, some examples: it allows powering all types of electronic equipment (as they are equipped with electronic card, consequently requiring stable electric current to avoid the risk of damaging these cards). It is also intended to ensure electric power to electric household appliances, kitchen appliances as well as leisure time equipment (appliances used on motor homes, boats, etc.).


    The generator is NOT SUITABLE FOR powering construction and workshop equipment, DIY equipment, welding machines and other appliances that are equipped with brush motors (they may cause electric power surges back to the unit in case of wear of the brushes damaging the generator electronic card). Inverter generators are not suitable for all the appliances listed above that are typically construction equipment applied on crafts or building sectors. In this case, you’ll need to address your choice on standard generators, which are not provided with inverter electronic card, but the ones featuring standard alternators with heavy-duty stator and rotor, which are specifically intended to power these appliances.

    We remind that the inverter generator is NOT intended for PROFESSIONAL use. It means that it is exclusively designed for occasional use (infrequent use of the unit). The working hours must not exceed 3-4 of continuous running (which may lead to the alternator overheating or wear, especially to its internal components: alternator stator and rotor). Whether you’re looking for a generator for intensive use (once a week, for instance), the operator should address the choice to a different type generator specifically designed for a more intensive use. Indeed, you should focus the attention on PROFESSIONAL or even INDUSTRIAL quality-level generator.

    The generator is not designed to be installed in photovoltaic or solar energy systems for energy production nor for the recharging or maintenance of batteries of these specific or other electric systems. Indeed, it may damage seriously the generator on its internal components (alternator, engine and electrical component). Each photovoltaic system requires a generator for INDUSTRIAL use (not for domestic use as this present model), specifically designed and manufactured for this purpose. WE DO NOT PROVIDE WARRANTY on generators connected to photovoltaic systems, as this entails an IMPROPER USE OF THE UNIT.

Free items & Standard equipment

COMPLIMENTARY: 2 Oil Bottles

TWO oil bottles for 4-stroke engines

Extra features

Free gifts that are sent to you together with the generator provided on standard kit:

Spark plug wrench

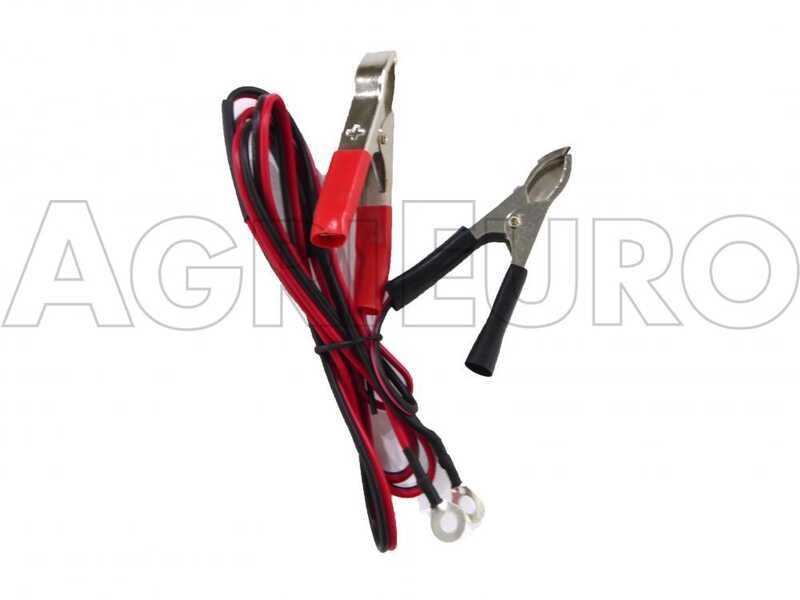

12 V Cables

Start key

Original certification and instructions manual included in the package.

The generator is shipped in its original packaging on a pallet for a safe shipping.
