Description

GeoTech Pro HRT-135 Tractor rotary tiller

MEDIUM series

Useful working width: 134.5 cm. Suitable for tractors from 25 to 40 HP

The GeoTech Pro HRT series rotary tiller is a light with manual side shift designed for working with medium and small tractors.

for semi-professional use
for medium and small extensions

ATTENTION!

Attention: this machine is shipped ready for use. After the assembly, check for bolts tightening.
Before using this product, please carefully read the instructions manual.
. Assembly all these units parts and check the boolts are correctly tightened.

Please carefully read the instructions manual before using.

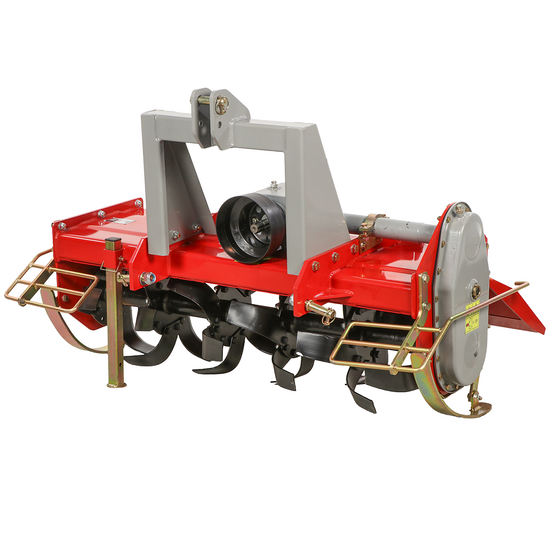

GeoTech Pro HRT-135 - Medium Series Tractor Rotary Tiller - with Fixed Hitch

Technical features

Rotary tiller's features:

Outer dimension: 161 cm
Real working width: 135 cm
Weight: 300 kg
Indicated demand: 35 -40 HP
Working height: 15 cm
Hoes for flange: 6 (3 in the 2 side flanges)
Number of hoes: 30
Hoes supports: 6

Hoes

Steel hoes:

4 blades attachments (6 hoes each attachment)
2 blades attachments (3 hoes each attachment)
30 hoes in Total

Focus on the side support of the rotor's fixing by the inside.

Focus on the outer rotor's anchoring, with greaser hole in the middle.

ATTENTION:

All rotary tillers have to work on "clean soil", that is to say without stones and rocks of a size that could damage not only the hoes but in the worst case even the rotor, frame or several transmission components (ball bearings, oil retainers, etc.).

Transmission and other features

Height adjustable side skids

Movable rear hood with levelling action on the hoed ground

Adjustable hood by means of proper chain

Sturdy oil bath big chain side transmission

Cast iron oil bath sturdy gear box

Universal standard power take-off ( 1 3/8" Z6 )

Universal lifter linkage pins (with two section’s diameter each, adaptable to any tractor on market)

Cardan provided on standard equipment is equipped with safety bolt.

The torque limiter shear bolt is designed to protect the machine from damages due to mechanical overload caused by unforecasted or excessively high torque. This means if the torque force is higher than the one the bolt can bear, the bolt snaps off. To reactivate transmission, the shear bolt shall be replaced with a new one having the same features.

ATTENTION!

This machine is delivered ready to use. The only exception is the gearbox and the chain unit: transmission oil 80/90 type must be added. Assembly all these units parts and check the boolts are correctly tightened.

Please carefully read the instructions manual before using.
