Description

Side flail mower with arm for tractor

The GeoTech-Pro HAMF 180 side flail mower of medium-heavy series with arm is an entirely Italian machine with an excellent quality and components.

The transmission gearbox of this model is located outside; this enables a further movement towards outside, thus maintaining the cardan shaft in movement even in detached position and without too much effort.

This model represents the maximum level of flexibility of the flail mowers, in fact, the (totally hydraulic) movement is both horizontal and vertical. It can be used to clean street edges, banks and moats where it is requested that the flail mower works sideways to the tractor or even in vertical for the hedge and bush cutting.

Ideal for municipal words, ditches, embankmets and inclined lands in general.

The hydraulic side shift is carried out by two sturdy pistons and the side transmission is made by 4 belts.

It is equipped with oil regulation valve in the rear cylinder for an enhanced speed regulation.

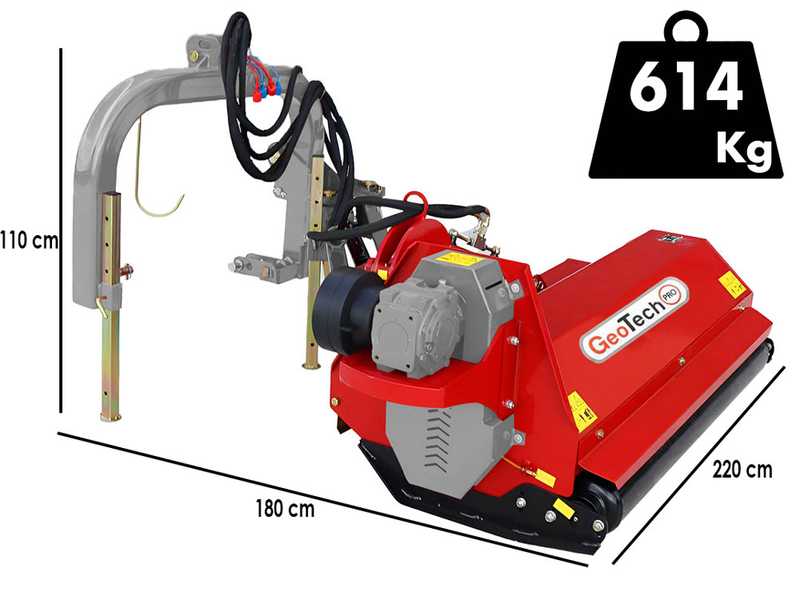

TECHNICAL DETAILS (in summary):

Real working width: 180 cm
Real width occupied (with side skids assembled): 220 cm
Weight: 614 kg

STANDARD EQUIPMENT (in summary):

Universal 3 point hitch
Rear roller
Oil regulation valve
Locking devices for transport

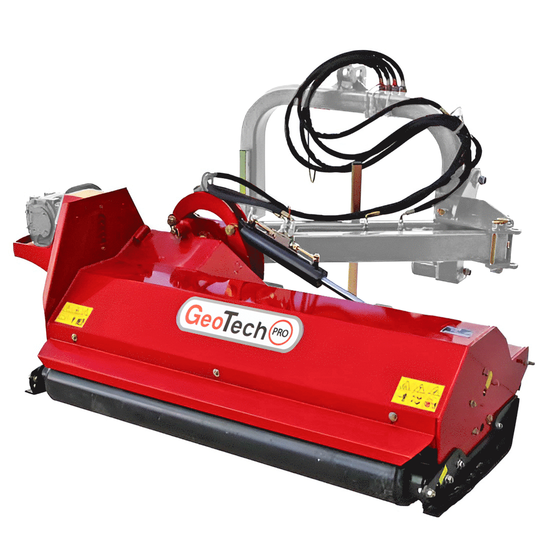

GeoTech Pro HAMF 180 - Tractor-mounted side verge flail mower with Arm - Medium-heavy Series

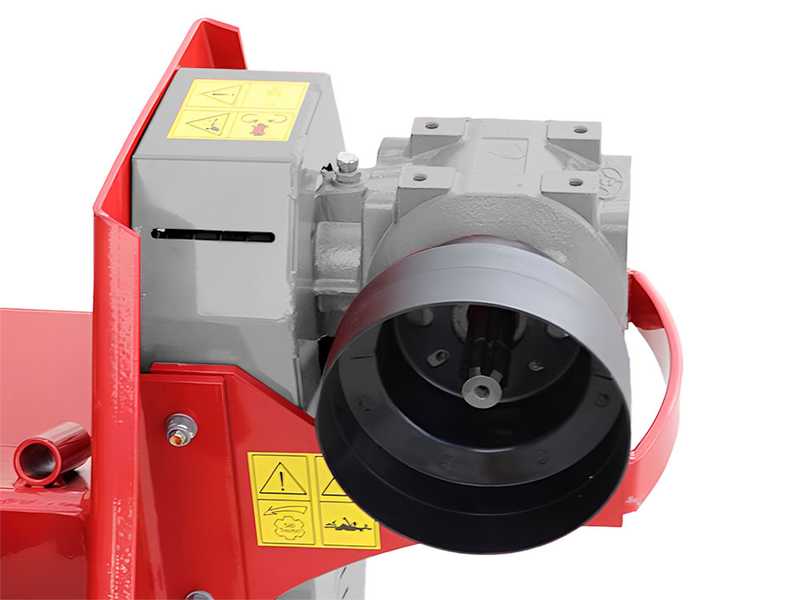

Side belt transmission and reduction gearbox group

Big size oil bath reduction gearbox group. The outer body is moulded, while the inner gear made of tempered steel.

Provided with caps for filling

Side 4 big section belts transmission (the most part of the flail mowers on market have a 3 belt transmission)

Easy removable side belt protection carter

Focus on the side greaser on the transmission side, easy to access from a dedicated opening

Detail of the gearbox:
1 - Oil level cap
2 - Oil drain cap
3 - SAE 80/90 oil filler cap and vent

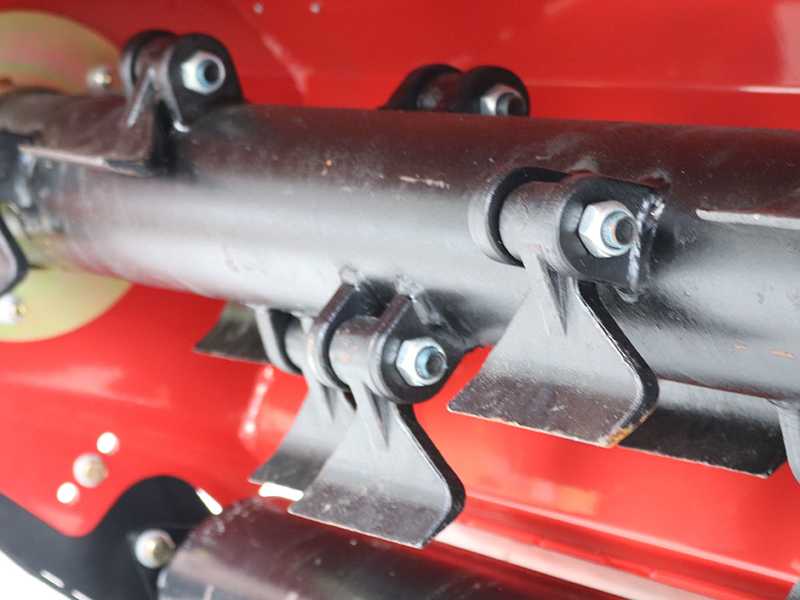

Cutting tools: hammer flails

Nr. of hammer flails on standard equipment: 18

Side support with internal fixing bearing in the hammer flail rotor.

Central cavity with greaser.

Figurative image of the double-spiral rotor.

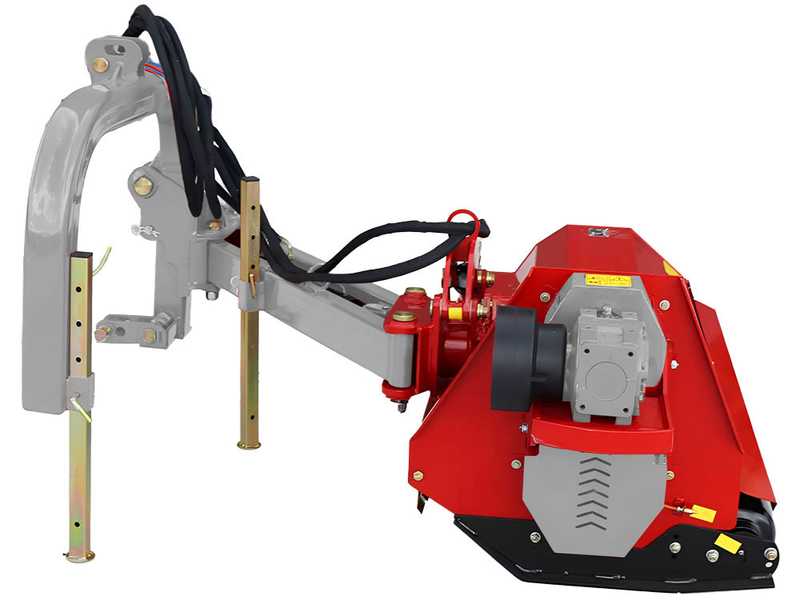

Hydraulic side and vertical shift

Side and vertical movement actioned by means of 2 cylinders. Provided with four fast linkage tubes to be connected to the tractor’s hydraulic joints.

It is a very sturdy side shift system with flexible arms and rotation mechanisms on hardened steel bushings (Pcm).

Focus on the locking valve of the hydraulic piston. This ensures that flail mower maintains the right position when tractor is moving.

Fitted with oil regulation system in the rear piston to guarantee the right speed.

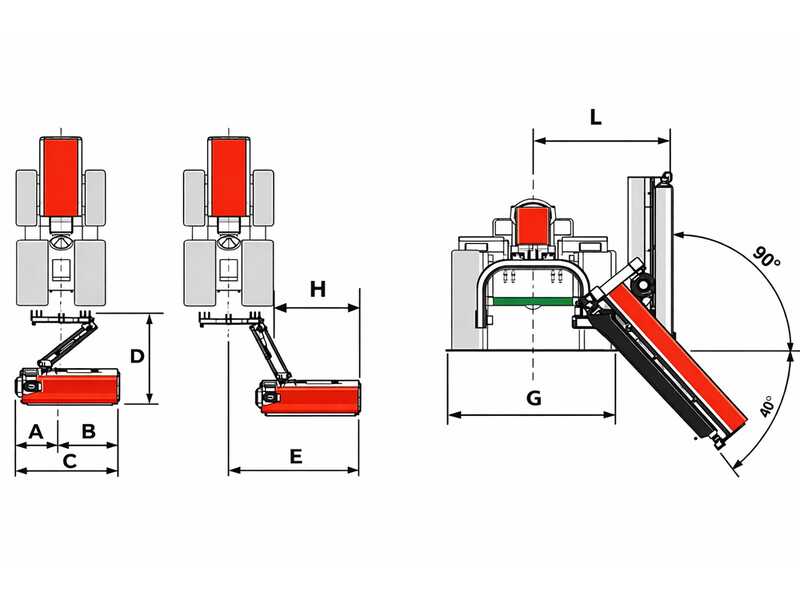

Side-shift adjustment diagram :

A : 90 cm
B : 137 cm
C : 227 cm
D : 170 cm
E : 296 cm
G : tractor width
H : E - 1/2 (G)
L : 177 cm

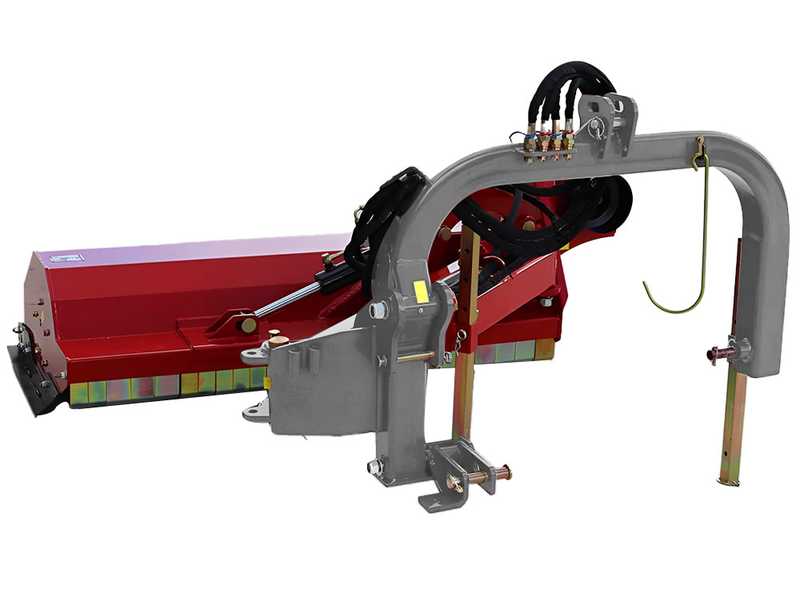

Stabilizer accessories - rear roller - 3 points linkage

Standard supplied rear roller with height adjustment with scraper.

Focus on the side steel support for the roller with holes for the height adjustment.

Standard supplied side support skids

Front protection flaps made of folded steel.

Lay foot.

3-point hitch with mobile support to amortize the soil's imperfections.

Recommendations for Use - Tractor-mounted Fixed Flail Mowers

To ensure correct operation, a longer service life and safe working conditions, it is essential to use the tractor-mounted flail mower in accordance with the instructions set out in the user manual and the machine’s technical specifications. Incorrect use may result in premature wear of components, reduced performance or damage not covered by the warranty.

Before starting work, always check that the tractor is compatible with the flail mower by verifying the required power, hitch type and intended operating conditions. Correct matching of the machine and the tractor ensures optimum performance and prevents the transmission from being overloaded.

Use the flail mower exclusively on suitable surfaces: the machine is designed for grass shredding, wild vegetation, plant residues and materials compatible with the machine’s category. Avoid contact with unintended objects such as stones, metal, plastic or other foreign bodies.
Adjust the working height correctly: maintaining an adequate distance from the ground reduces the impact on the cutting units and limits excessive stress on the machine’s structure.
Do not operate the machine where there are hidden obstacles or unsuitable ground conditions: ditches, stumps, exposed roots, loose stones or uneven ground can cause sudden impacts and damage to the cutting parts or transmission components.
Do not use the flail mower for operations other than shredding: the machine must not be used for earthmoving, ground levelling or other applications not specified by the manufacturer.
Always adjust the forward speed to suit the working conditions: excessive speed can reduce the quality of the shredding, increase vibrations and subject the machine to stresses greater than those for which it was designed.
Avoid using the machine on excessively damp material: wet grass or particularly damp vegetation can cause material to build up inside the machine, reducing its efficiency.
Do not force the tractor forward: if the rotor slows down, vibrations increase or cutting capacity decreases, speed must be reduced and the work adapted to the conditions of the ground and vegetation.
Check the condition of the cutting components regularly: worn, damaged or missing blades, hammers or other cutting elements can compromise the machine’s operation and increase vibrations during use.
Carry out periodic checks and routine maintenance: check that components are correctly tightened, inspect the condition of the transmission components and ensure the machine is generally clean to maintain its efficiency and safety.

Use of the power take-off (PTO):

The tractor’s power take-off (PTO ) must be used in accordance with the rotational speed specified by the flail mower manufacturer. An incorrect rotational speed may compromise the machine’s operation, causing overheating, accelerated wear or excessive stress on mechanical components.

When attaching and detaching the flail mower, the power take-off must always be disengaged and the tractor switched off. It is also necessary to check that the PTO shaft is correctly installed and has sufficient clearance to move freely while working.

Free items & Standard equipment

Standard Equipment

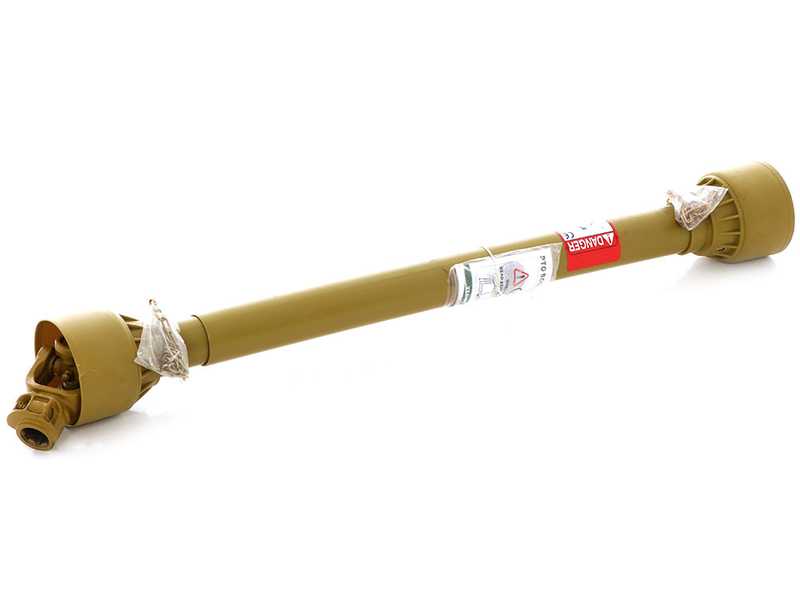

Shipped in original package with cardan shaft
