GeoTech-Pro GT-MR 76 - Ride-on Lawn Tractor - 432cc Engine - Electric Start

The mini rider tractor GeoTech-Pro GT-MR 76 is a powerful and versatile gardening tool, designed to offer superior performance in lawn care.

Equipped with a LONCIN 1P90F-1 petrol engine of 432cc, this model is ideal for those who need a robust and easy-to-manoeuvre machine, but with the capability to handle large areas of land.

Its mechanical transmission with 5 forward gears and one reverse ensures smooth and precise mobility.

The GT-MR 76 is equipped with a large 76 cm cutting deck, allowing work on medium to large surfaces quickly, reducing the number of necessary passes.

The cutting height adjustment system offers 6 positions, allowing easy adaptation to different terrain needs, with a range from 20 mm to 85 mm.

The tractor is also very versatile in terms of collection modes: it offers rear collection, side discharge, and mulching, meeting the needs of those who want a perfect lawn in every season.

Manoeuvrability is ensured by the wheels measuring 25 and 38 cm, which provide good grip on variable terrains.

The collector bag has a capacity of 170 litres, reducing the need for frequent emptying during work. The electric start with a 12V lead-acid battery makes engine ignition quick and effortless, while the compact design and comfortable seat contribute to making the operation more comfortable.

Distinctive Features:

• Powerful engine: LONCIN 432cc engine, ensuring high performance for long-lasting use.

• Mechanical transmission: Transmission with 5 forward gears and one reverse for precise control.

• Large cutting deck: 76 cm cut with height adjustment in 6 positions, suitable for different types of terrain.

• Spacious collection bag: 170-litre collection bag to reduce emptying times during work.

• Electric start: Starting system with 12V lead battery for quick ignition.

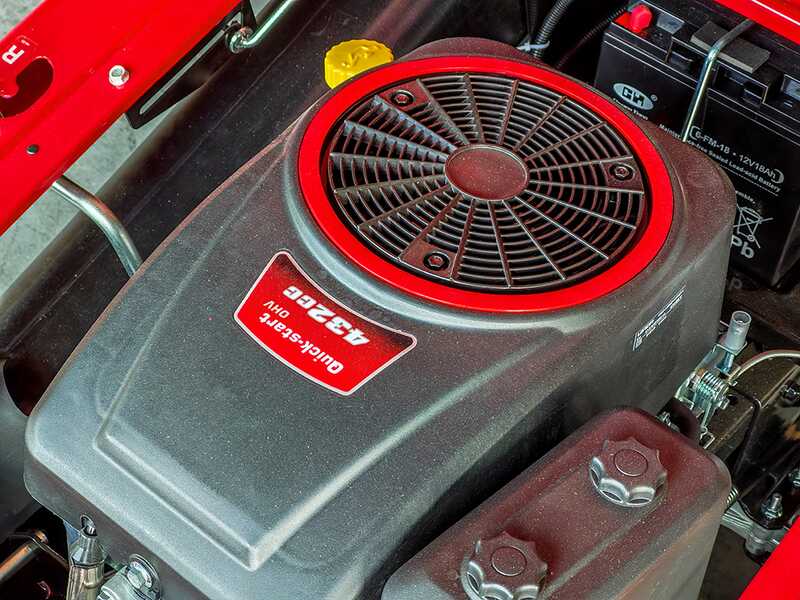

The 1P90F-1 engine is a 4-stroke petrol engine, air-cooled, with an aluminium cylinder.

It is an engine with a 432cc displacement and develops good power (15hp).

Machine equipped with electric start

WARNING!

The engine is SUPPLIED WITHOUT OIL.
Before starting, carefully read the instruction manual.

Air filter detail

Nominal Power: 16 HP
The more correct term would be “Commercial” Power, meaning the classic standard of power definition officially used until a few years ago by all the most renowned engine manufacturers.

* This data is still more widespread and advertised in the main commercial sales channels, although it is an increased data compared to the actual power.

Effective Power: 11.79 HP (at 3600 rpm)
Corresponds to the actual power expressed at the engine shaft. It is the one indicated as official in the manual or in the technical data of the engine manufacturer.

* This data can vary for the same engine model depending on the rotation speed that the equipment manufacturer has decided to make the engine deliver applied.

SIDE DISCHARGE:

Side discharge, for cutting grass without collecting (suitable for maximising cutting yield in the shortest time; with this system it is possible to cut grass even slightly higher than normal)

MULCHING:

Cutting system that shreds the cut grass leaving it on the lawn, pulverising it to the point that it will almost seem as if it has been collected. This eliminates the problem of its disposal (reducing effort and drastically shortening the time spent cutting) and also, as it decomposes, it will later turn into a nutrient for the lawn itself and into water (grass is made up of 80% water) thus ensuring a perfectly balanced biological cycle. However, it is useful to remember that, to ensure the absolute efficiency of the system, the lawn must still be irrigated, and the grass cut very often. Conversion from one system to another is very easy.

COLLECTION WITH BASKET:

The basket assembly is quite simple and can be done in a few minutes.

In case you want to return the rider to the side discharge or mulching configuration, it is not strictly necessary to disassemble the basket. It would be enough to just remove the connecting tube from the deck to the rear basket, leaving the latter still mounted even if unused. Operation feasible in just one minute.

170L collection basket.

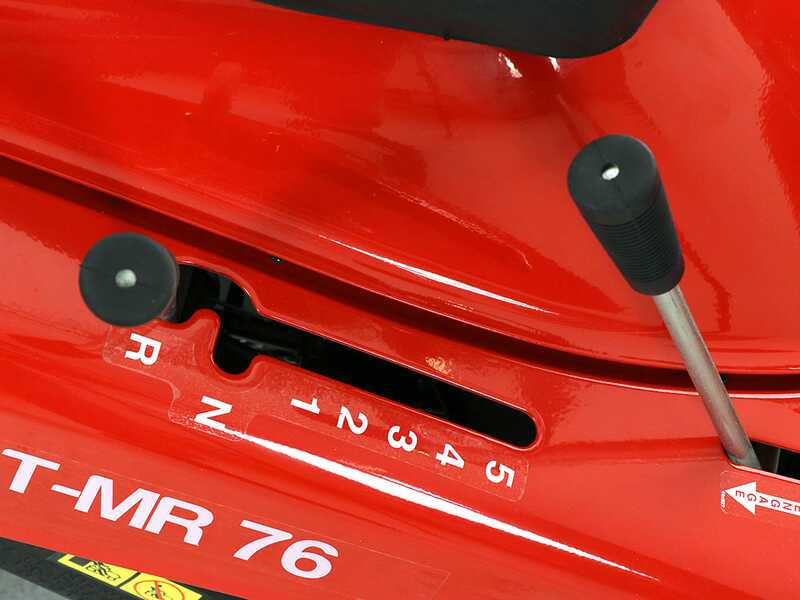

The mini rider GeoTech-Pro GT-MR 76 is equipped with a selector that allows setting between:

• forward motion with 5 different speeds
  • 1
  • 2
  • 3
  • 4
  • 5
• neutral (N)
• reverse motion (R)

Detail of the lever to adjust engine speed

Once one of the 5 gears is set, it is also possible to adjust its speed (reducing it) simply by dosing the pressure on the brake pedal (decelerating).

Releasing the pedal, the tractor automatically returns to the speed of the engaged gear.

Detail of the mechanical gear transmission

Forward speed: 1.5 - 8 km/h max

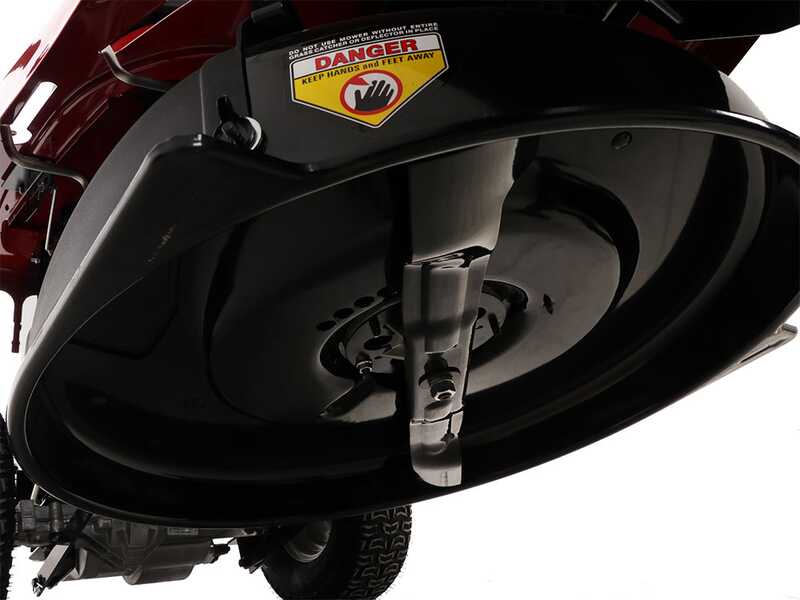

Features of the cutting apparatus of the GeoTech-Pro GT-MR 76:

Robust single-blade deck: effective cutting width 76 cm.

The tractor is equipped as standard with a universal blade.

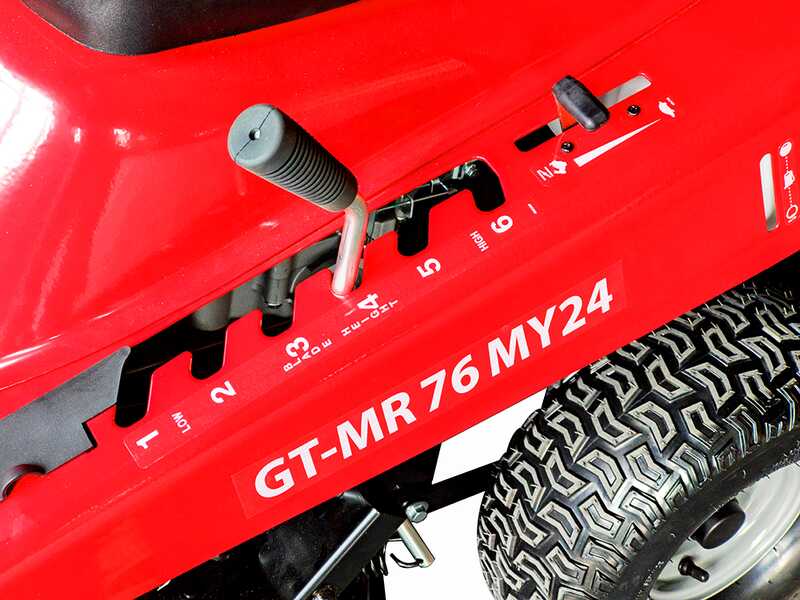

The cutting height is adjustable, via the appropriate lever, in 6 different sizes between 20 and 85 mm.

• 1
• 2
• 3
• 4
• 5
• 6

The activation of the rotation of the tractor's mowing blade is set with the appropriate lever.

Very simple and intuitive controls and adjustments.

After starting the engine, from the driver's seat it is indeed possible to access the gear engagement block, select the forward speed located under the steering wheel, operate the brake, and easily adjust the rotation and cutting height of the blades.

Activation block with key: electric engine start.

Blade engagement lever

Foot brake

Engine speed adjustment lever

Cutting height adjustment lever with 6 different heights between 20 and 85mm

Parking brake engagement

Forward gear engagement, reverse gear and neutral position.

Other features of the Mini rider tractor GeoTech-Pro GT-MR 76

• Tubeless tyres - large size: Ensure greater respect for the lawn and the best possible traction on a tractor
• Front wheels measuring 10 x 4.10-4
• Rear wheels measuring 15 x 6.00-6
• Easy and immediate access to the tank with fuel level indicator

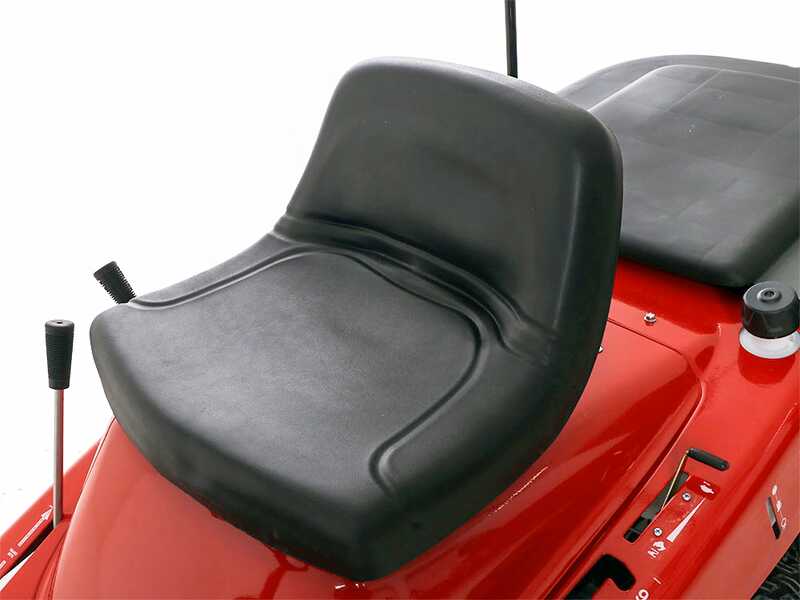

• Large comfort seat

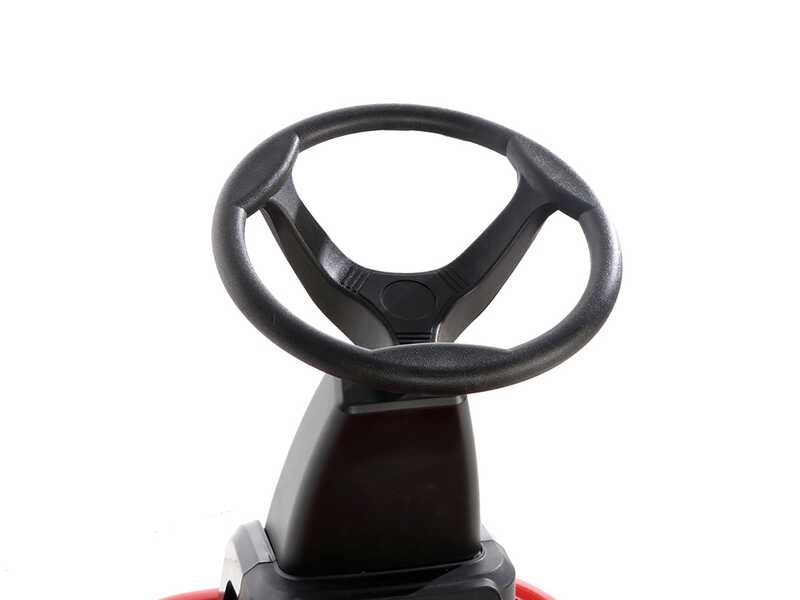

• Ergonomic steering wheel
• Electric start, with 12V lead battery
