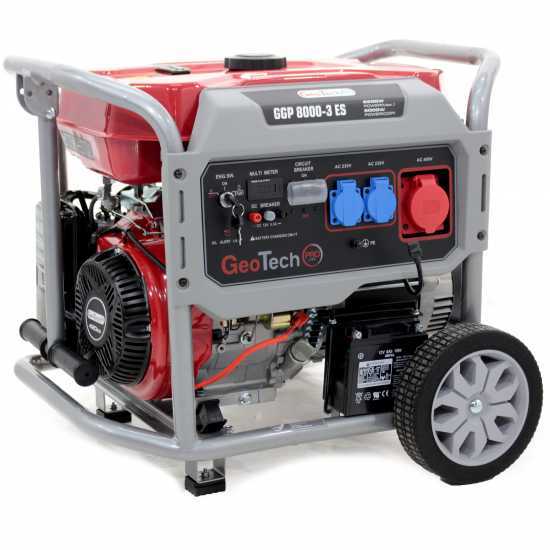

GeoTech Pro GGP 8000-3 ES - 6.5 kW Wheeled Power Generator with AVR - DC 6 kW Three-phase

GeoTech GGP 8000-3 ES three-phase petrol powered generator:

GG: "Gasoline" generator, petrol generator

P: ProLine

8000: Maximum power output (KVA)

3: three-phase power output

ES: Electric start

The unit provides 230V/400V power supply.

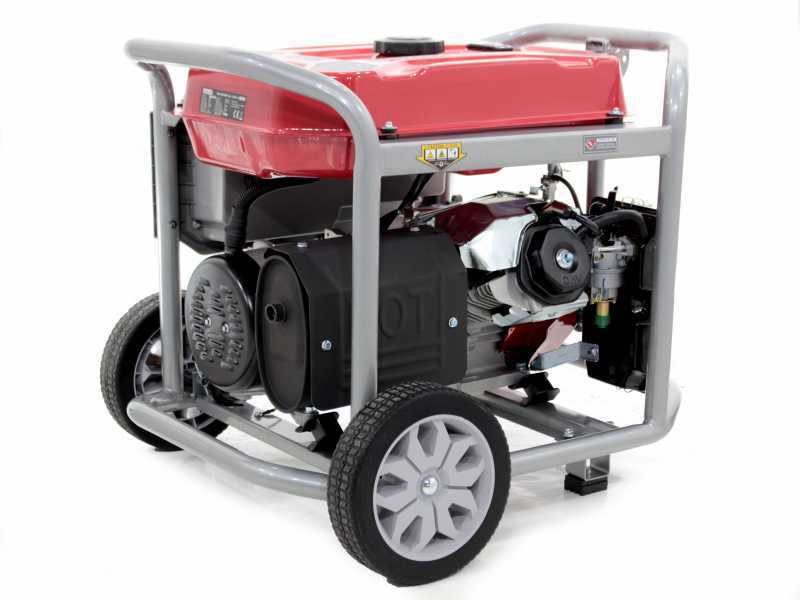

High-performing power generator, which is easy to carry and transport thanks to the folding handle and wheel kit it is equipped with. It is ideal in order to provide electric power wherever it is needed but there are no power outlets nearby. It is provided with 2 single-phase and 1 three-phase power outlets. (Wheels and handle provided on standard equipment and they are easy to assemble).

This power generator can also be used as portable unit without the wheel kit. You'll just have not to assemble the wheels and the handle, which are easy to connect to the generator.

The 25 L fuel tank capacity allows the generator running for a longer period of time.

The GGP 8000-3 ES is a 12 Hp petrol powered generator of 420 cc. It consists of aluminium alternator case and it is able to generate up to 6.5 Kw maximum power output.

Detail of the generator AVR card: it allows an automatic output voltage regulation maintaining it constant even in case of sudden changes in load.

WARNING: all these models of generators that do not belong to the PROFESSIONAL series (considering the product level evaluation used by our website) are not intended for more than 3-4 hours continuous work in order not to reduce the alternator durability as well as that of one of the other machine components due to the unit overheating or wear. As regards a home or intensive use of these generators, it is important to follow the indications mentioned above. In all these conditions, we highly recommend focusing the attention on the purchase of generators renowned as PROFESSIONAL by the product level classification made in our website.

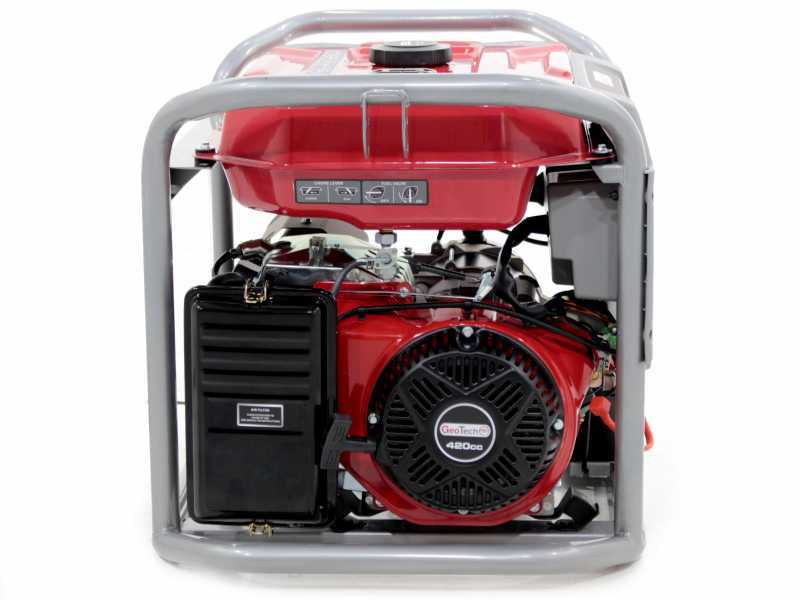

This GeoTech Pro single-phase generator can be also used without the wheel kit as a portable unit, which is designed to meet all the wide operator's requirements.

It is renowned for its reduced weight and for the ease of use guaranteed.

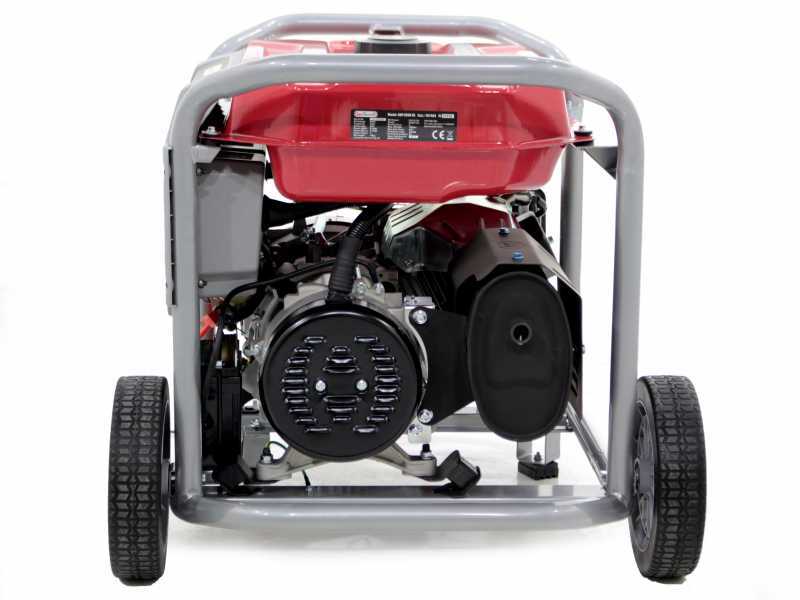

The GeoTech GGP 8000-3 ES generator alternator has a copper winding.

Maximum rated* three-phase power in emergency LTP service: 6.5 KW

Maximum rated* single-phase power in LTP emergency service: 2.1 KW

* in an emergency, the generator can deliver this power

Rated* three-phase power in continuous variable duty PRP: 6.0 KW

Rated* single-phase power in continuous variable duty PRP: 2.0 KW

* The latter is the figure to be taken into account as an actual and constant figure for the generator's output (it gives it unlimited hours)

The GeoTech power generator is equipped with an AVR card: an electronic device that automatically regulates the output voltage, making it constant as the load changes

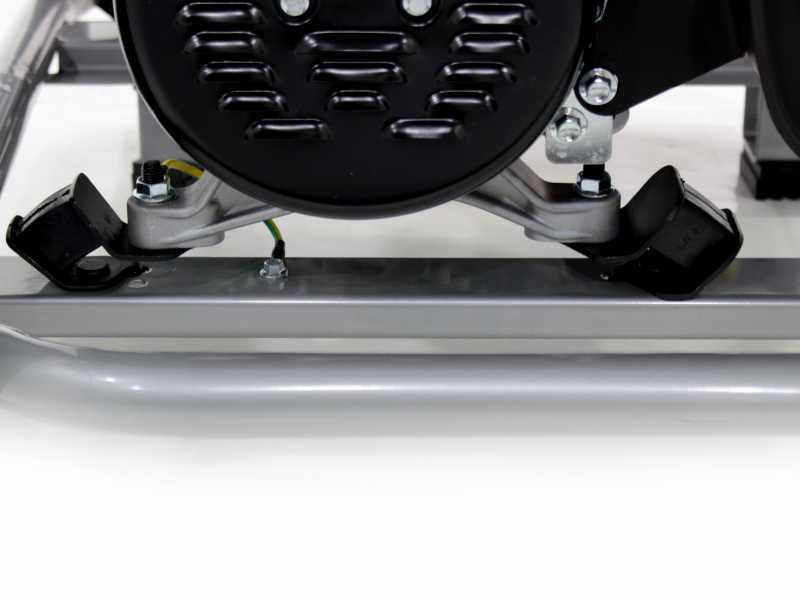

Detail of the robust rubber vibration dampers that secure the alternator to the frame.

Motor technical specifications:

Type: Single-cylinder four-stroke air-cooled petrol engine, OHV, horizontal shaft

Capacity: 420 cc

Power: 12 Hp

Fuel type: Petrol

Fuel tank capacity: 25 L

Oil tank capacity: 1.1 L

Start type: Electric key start

The generator is provided with 25 L metal tank with fuel shut off valve.

Focus on the engine air filter.

The generator AVR card (used to regulate the output voltage) allows to automatically regulate the gas rate and it is responsible for the engine acceleration in case of sudden changes in load.

OHV technology

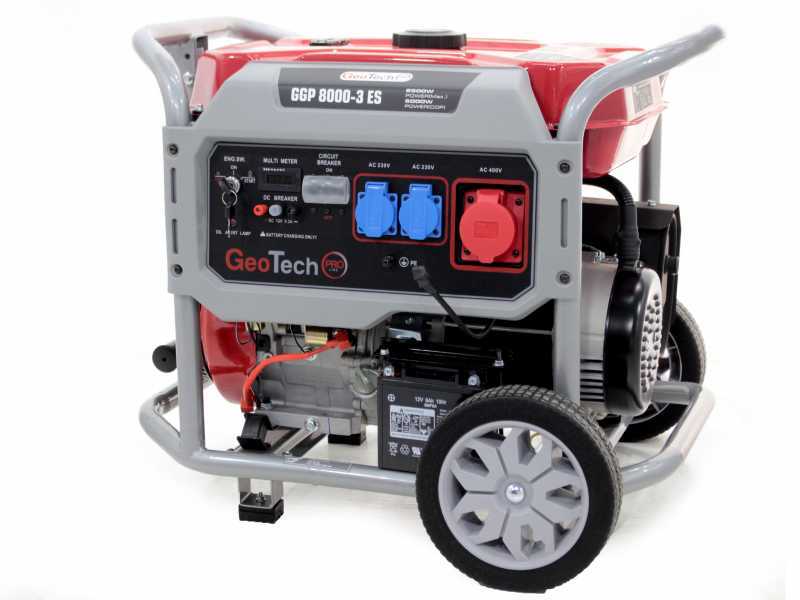

This generator control panel shows a number of different functions.

• V-A-F-P-T 5 functions Multi Meter digital panel:
  • Voltage
  • Amperage
  • Frequency
  • Power
  • Time (start time)

• 2 Schuko power outlets AC 230V.
• Three-phase AC 400V power outlet
• Earth grounding.
• Oil warning light: it has been specifically designed to avoid damaging the engine when the oil level drops too low. Whenever the engine is not running properly, the red oil warning light comes on before the oil drops below the safety level. On this occasion, the generator automatically stops.
• Circuit breaker
• The generator is also equipped with battery charger, suitable to power all the 12 volts batteries forcing electric current through it. WARNING: this battery charger does not allow powering all the 12 volts electronic devices since this is a standard battery charger.
• Electric key start

25 L High-capacity metal fuel tank: it allows the generator running for longer periods of time. It consists of a fuel level gauge, specifically used to check and inspect the level of fuel contained in the tank.

Focus on the anti-vibration rubber pads, specifically designed to prevent vibrations coming from the engine and the alternator.

Foldable handle for easy transport.

Large-sized rear wheels.

• Voltage: 230 volts
• Frequency: 50 Hz
• Power factor: 1
• Fuel tank capacity: 25 L
• Sound intensity: 97 dB(A)/7m

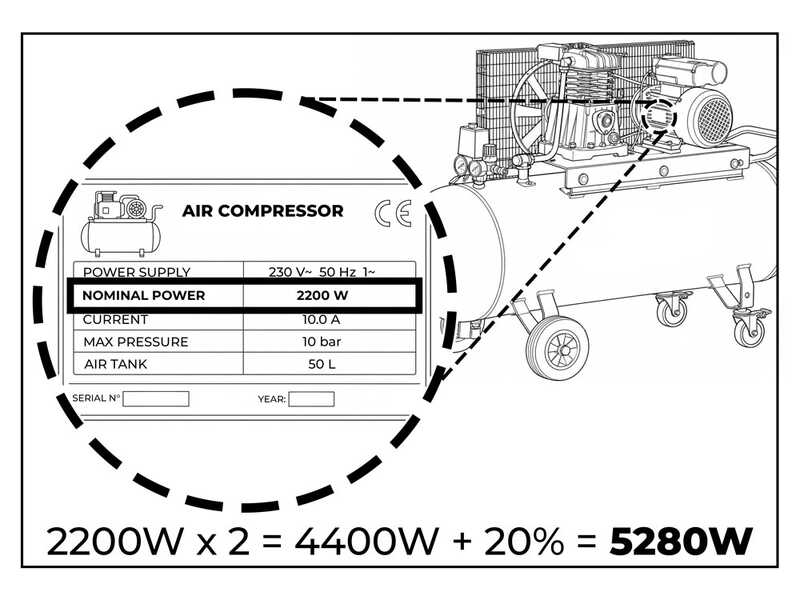

As regards the power needed referring to the use you will make of your generator, here below an extremely useful table to guide you among consumptions, starting coefficient and watt. Firstly, the highest-quality method is to identify which are the electric appliances we need to power with the generator and then perform a simple calculation to identify the necessary power that the generator must supply, as explained below.

Power required = Electric appliance consumption X Breakaway starting coefficient

The starting coefficient represents a fundamental feature for all the electric equipment as it indicates how much the consumption of the electric appliance increases. Therefore, it allows to concretely determine how many WATTs are necessary during the start-up operations.

Example: Air compressor ( 1500 Watt ) X Starting coefficient ( 2 ) = 3000 Watt

Hence, it is important to address your choice on a generator featuring equal or higher WATT-rated electric power than the result obtained from the calculation made.

( * ) Check the consumption of the electric appliance on the operator’s use and maintenance manual or on the plate attached to the machine.

WARNING! Purely indicative table. Thanks to the formula indicated above you can easily calculate the electric power that the generator has to supply in order and connect to the generator specific electric appliances and select the model of generator which best suits your needs.

• The generator can only be used to power individual electrical equipment (respecting the rated power in KW produced by the generator in relation to the absorption of the appliances during the starting phase that must be lower than the power supplied by the generator).

• The generator can be used to power household device in emergency conditions (no current service provided by the domestic household), exclusively on the models that are specifically provided with ATS (Automatic Transfer Switch) device (specifically designed for this purpose and provided with connecting systems to your household electrical power).
• The generator is NOT intended for PROFESSIONAL use. It means that it is exclusively designed for occasional use (infrequent use of the unit). The working hours must not exceed 3-4 of continuous running (which may lead to the alternator overheating or wear, especially to its internal components: alternator stator and rotor). Whether you’re looking for a generator for intensive use (once a week, for instance), the operator should address the choice to a different type generator specifically designed for a more intensive use. Indeed, you should focus the attention on PROFESSIONAL or even INDUSTRIAL quality-level generator (that is not provided with standard 3000 rev/min alternator as this specific model, but it is designed with professional alternator with low speed: 1500 rev/min – with liquid-cooled engine and alternator – in this case you’ll see that the unit specifications and price are much different from this model).

The generator is not designed to be installed in photovoltaic or solar energy systems for energy production nor for the recharging or maintenance of batteries of these specific or other electric systems. Indeed, it may damage seriously the generator on its internal components (alternator, engine and electrical component). Each photovoltaic system requires a generator for INDUSTRIAL use (not for domestic use as this present model), specifically designed and manufactured for this purpose. WE DO NOT PROVIDE WARRANTY on generators connected to photovoltaic systems, as this entails an IMPROPER USE OF THE UNIT.
