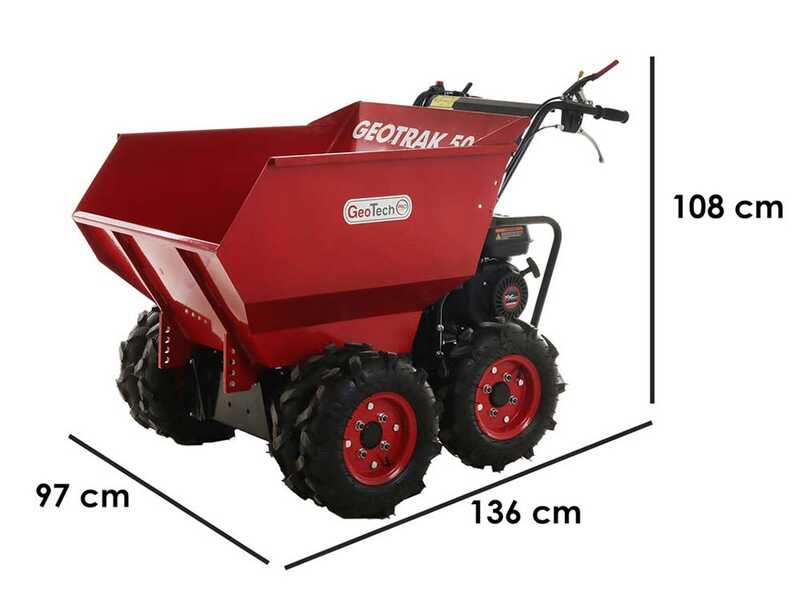

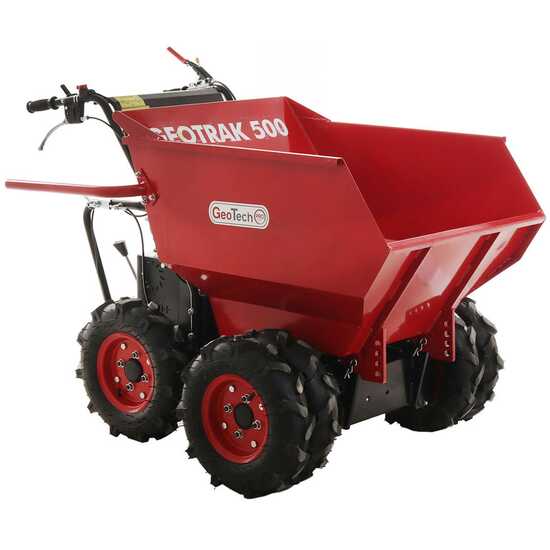

GeoTech-Pro GEOTRAK 500 - Motorised Wheelbarrow Dumper Bed 500Kg

GeotechPro GEOTRAK 500 Motorised Wheelbarrow is capable of transporting loads of 500 Kg, making it a tool useful in various fields from agriculture to livestock farming, construction, and gardening. It features a dumper bed with manual tipping.

Thanks to its self-propulsion on wheels (6 driving wheels) and the powerful Loncin engine, this motorised wheelbarrow is capable of transporting loads of 500 Kg, making it an indispensable tool for any type of transport.

The machine is equipped with the powerful Loncin G200F engine, capable of delivering:

• 6HP of power

The unique feature of this motorised wheelbarrow is its 6 driving wheels, all tractor model, which ensure excellent ground adherence even in more challenging conditions.

It can transport weight on a maximum downhill gradient of 6°, while uphill when empty it can handle gradients of 15°

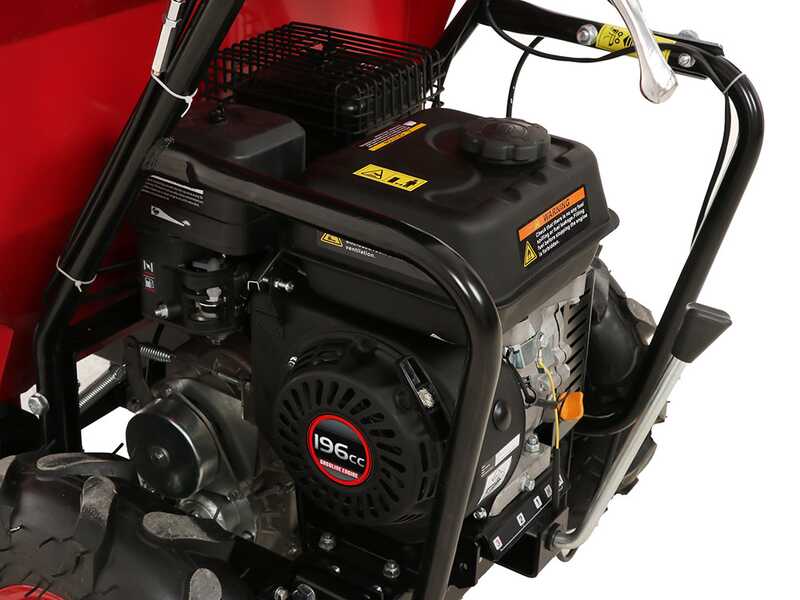

The Loncin G200F original 4-stroke petrol engine of the latest generation with a displacement of 196 cc and a nominal power of 6 HP is built with overhead valve "OHV" technology. This latest generation model with overhead valve technology is suitable for tasks requiring moderate power.

It also features a professional oil-bath connection multiplier between the engine and the pump

Characteristics:

• Engine type: Single-cylinder 4-stroke - OHV
• Nominal power: 6 HP
• Cylinder type: Cast iron
• Displacement: 196 cm³
• Max RPM: 3600 rpm
• Tank capacity: 3.1 Litres
• Euro V

Nominal Power: 6 HP
The most correct term would be "Commercial" Power, referring to the classic standard of power definition officially used until a few years ago by all major engine manufacturers.

* This data is still widely used and advertised in major sales channels, although it is an inflated figure compared to the actual power.

Effective Power: 5.5 HP
This corresponds to the real power expressed at the engine shaft. It is the one indicated as official in the engine manufacturer's manual or technical data.

* This data can vary for the same engine model depending on the rotation speed that the equipment manufacturer has decided to have the engine deliver.

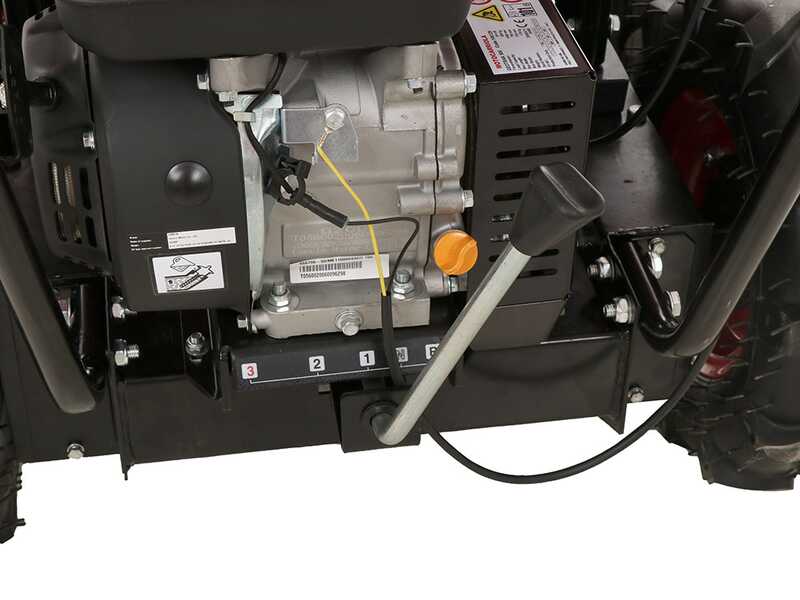

Gearbox: large size, undoubtedly the most reliable and robust on the market.
Yet very smooth and precise. Entirely Italian-made

Speeds:
3 forward gears
1 reverse gear

Parking Brakes:
attached to the gearbox, oversized internal expansion type, for greater stability and safety.
These activate automatically when the controls are released (leaving the machine in neutral, even on a steep slope, the machine remains perfectly locked)

Transmission:
Robust and durable, it allows steering by directly acting on the wheels, deactivating their rotation

The machine is supplied by the manufacturer with transmission oil at level. However, oil levels must ALWAYS be checked before starting as specified in the instruction and maintenance manual.

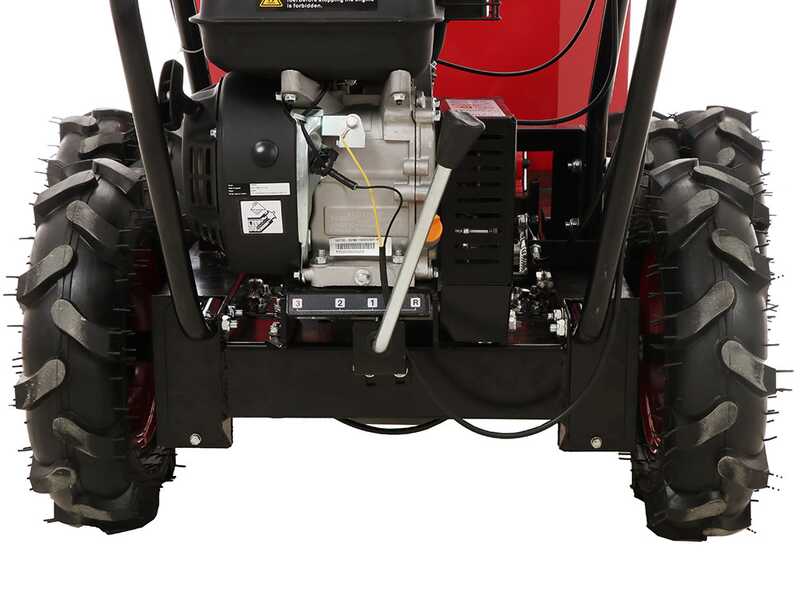

This motorised wheelbarrow is equipped with self-propulsion to facilitate the operator's work. It has 6 wheels, 4 positioned at the front and 2 at the rear. The wheels allow this motorised wheelbarrow to have greater adherence compared to other motorised wheelbarrows on the market.

With 6 driving wheels available, it will be very easy to move the motorised wheelbarrow even in tighter spaces while maintaining great ground adherence.

To turn, it will be necessary to press one of the two levers on the handlebar depending on the direction you need to turn.

High-strength steel bed, reinforced with tubular crossbars at the bottom, making it suitable for any load or stress. The motorised wheelbarrow has an effective capacity of 500 Kg, even on slopes.

The tipping operation of the bed is very simple, just press the lever on the right side of the machine. It will release the bed's safety and allow the operator to tip it with ease.

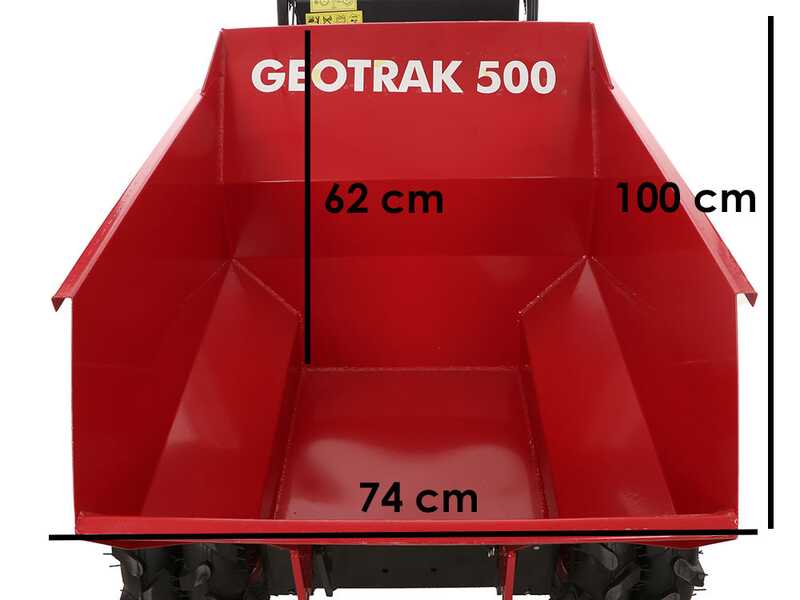

Bed dimensions: 1000x740x620 mm

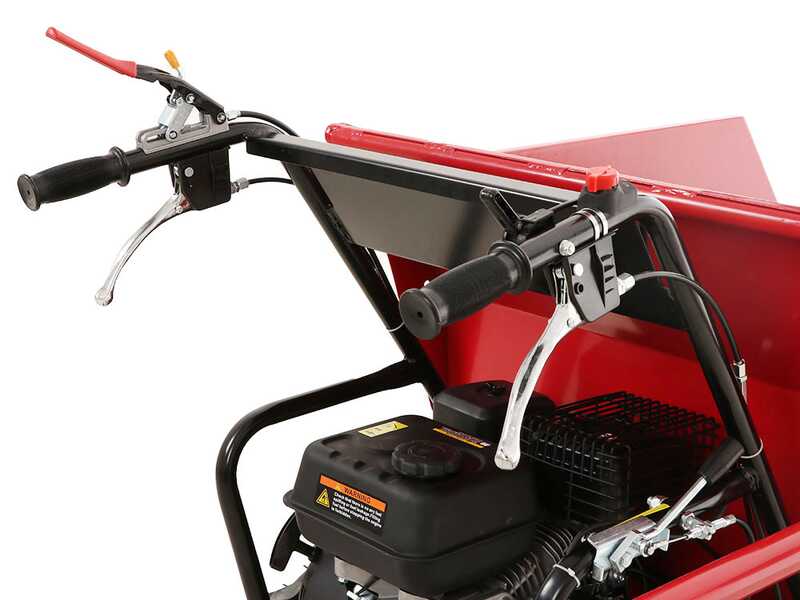

Controls: easy to operate and ergonomic, offering precision and controllability at work.

Large red activation lever.

The two lower levers are for steering, respectively to the right and left.

The steering is adjustable according to the control lever and allows easy movement. Partially pulling one or the other lever will also partially steer the relevant wheels, right or left.
This allows the motorised wheelbarrow to steer extremely easily, without causing abrupt movements.

Safety brake for immediate stop.

Bed release lever

Throttle control

Gear lever

Bed tipping handle
