GeoTech Pro ER 170 Power Harrow - 170 cm working width - 16 blades - light size

Description

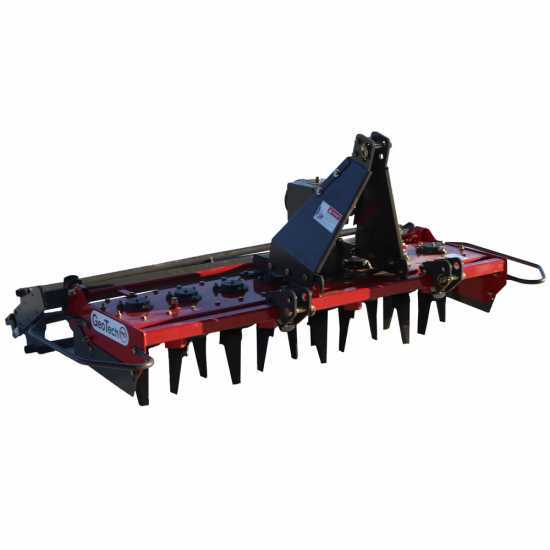

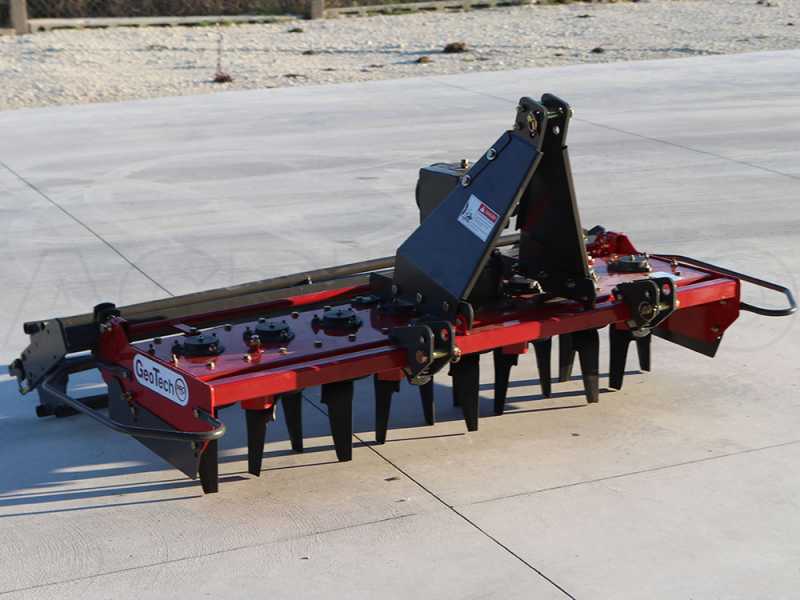

GeoTech Pro ER 170 rolling harrow

The GeoTech Pro ER 170 rolling harrow is an essential machine for soil refining.

Suitable to tractors from 40 - 50 HP with category 1 and 2 hitch. It is a sturdy machine equipped with multiple protections for a long-lasting and always performing use.

Indeed, it uses 16 knives on 8 independent engines covering 170 cm working area. They enable an excellent shredding of the clumps and make the LGX170 an excellent machine for the preparation of the seedbed.

Thanks to the rotating and upright movement with respect to the soil, the knives make the soil porous and extremely permeable.

Moreover, it is able to uproot the turf instead of cutting it, thus preventing it from growing for an extended period of time.

ATTENTION:

The worktop has no oil.

Before using the machine please add:

7 liters of extra-thick SAE 250 OIL

GeoTech Pro ER 170 Power Harrow - 170 cm working width - 16 blades - light size

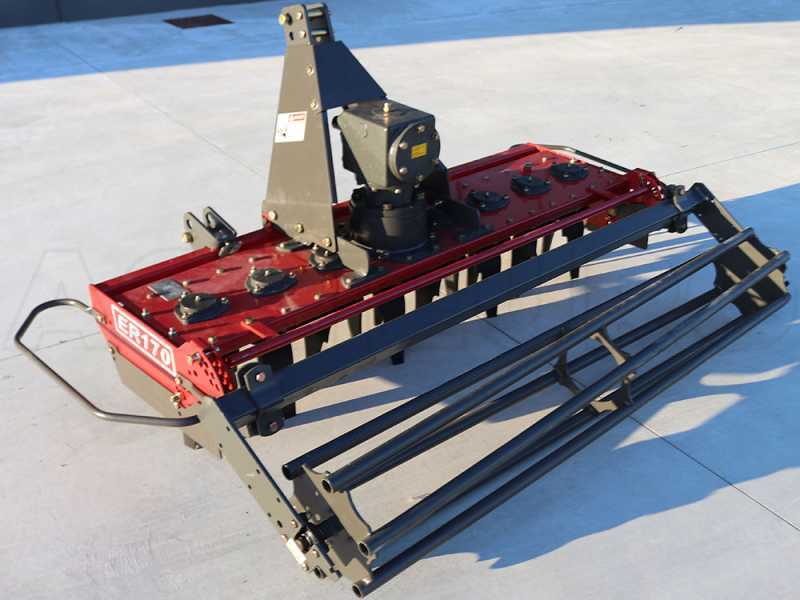

Technical features

Harrow technical features:

Outer dimension: 210 cm (with protection bar assembled)
Real working width: 170 cm
Weight: 330 kg
Indicated demand: 40 - 50 HP
No. of knives per rotor: 2
Number of knives: 16
Number of rotors: 8

ATTENTION:

The worktop has no oil.

Before using the machine please add:

7 liters of extra-thick SAE 250 OIL

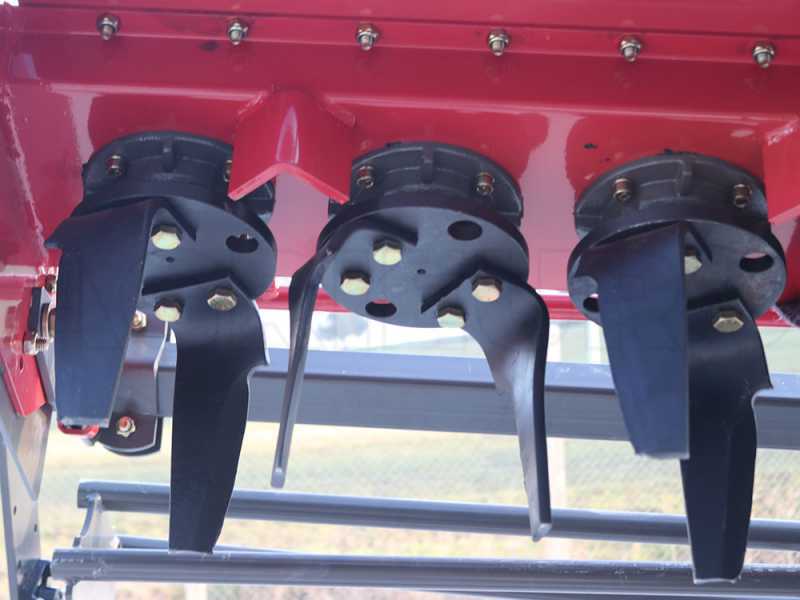

Knives and transmission

Steel knives:

no. 8 discs
2 knives each (16 in total)

Focus on the single greasing point of each rotor, each one with its own bearing.

Gearbox with cast iron reducer.

Transmission with gears in oil bath.

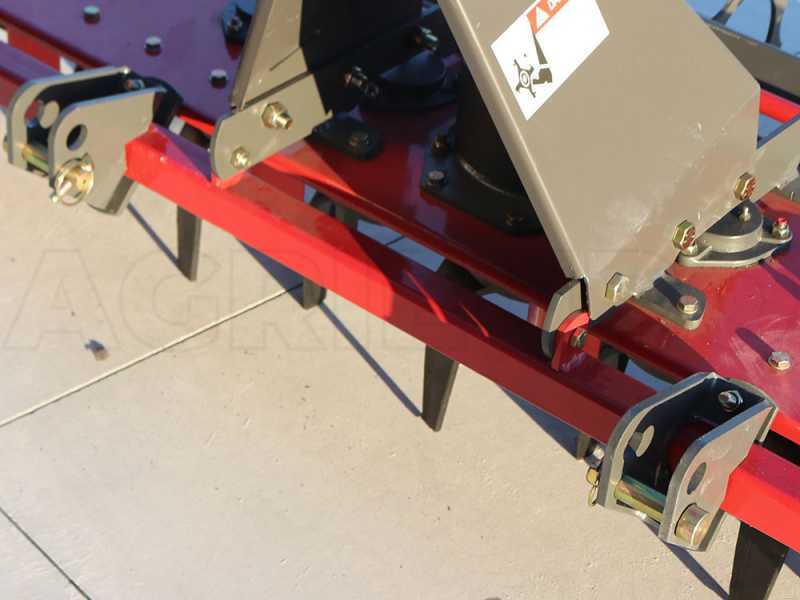

Roller side adjustment, refinement bar and 3 points hitch

The harrow is equipped with manual adjustment for the roller.

Focus on the adjusting pins.

The cage roller slightly compacts the just tilled soil by the blades by making it airy on more levels.

The adjustable side carters enable a uniform soil tilling by preventing the clumps from moving beyond the working surface but adapting to the imperfections of the area.

3-point hitch
