GeoTech Pro ER 130 Power Harrow - 130 cm working width - 12 blades - light size

Description

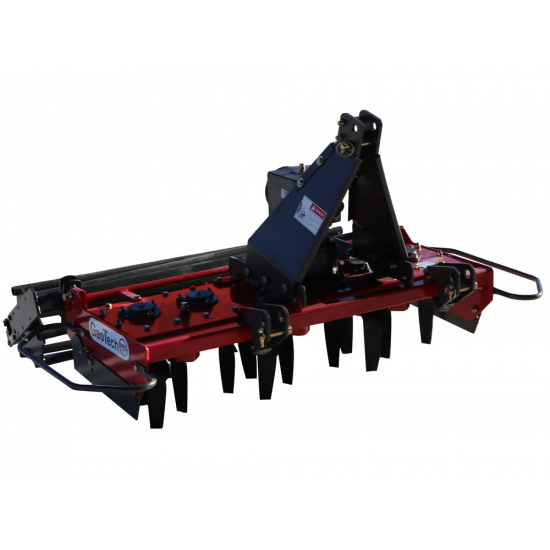

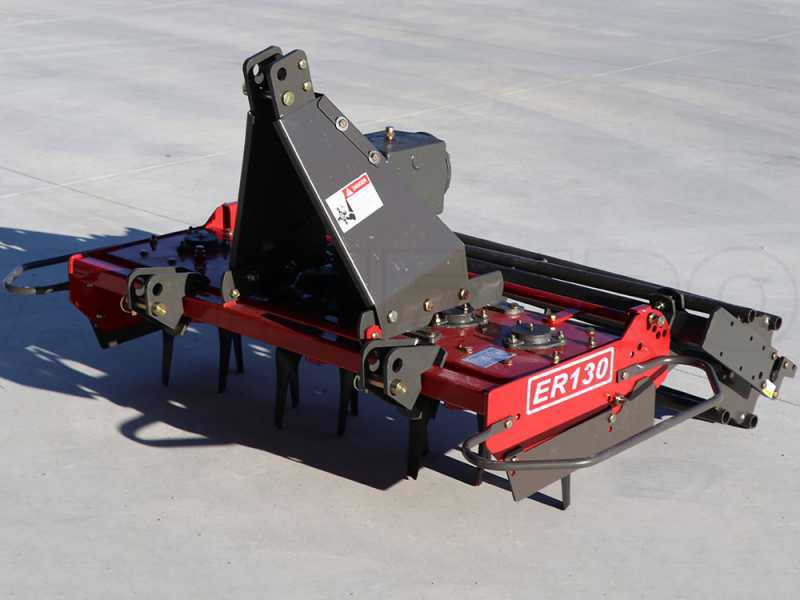

GeoTech Pro ER 130 rolling harrow

The GeoTech Pro ER 130 rolling harrow is an efficient and long lasting machine for the soil refining.

Suitable to tractors from 25 - 35 HP with category 1 and 2 hitch. It is a sturdy machine equipped with multiple protections for a long-lasting and always performing use.

Indeed, it uses 12 knives at once covering 130 cm working area. With an adjustable refinement bar they enable an enhanced grinding of clods and make the LGX130 an excellent tool for the preparation of the seedbed.

Thanks to the rotating and upright movement with respect to the soil, the knives make the soil porous and extremely permeable.

Moreover, it is able to uproot the turf instead of cutting it, thus preventing it from growing for an extended period of time.

ATTENTION:

The worktop has no oil.

Before using the machine please add:

5.4 liters of extra-thick SAE 250 OIL

GeoTech Pro ER 130 Power Harrow - 130 cm working width - 12 blades - light size

Technical features

Harrow technical features:

Outer dimension: 170 cm (with protection bar assembled)
Real working width: 130 cm
Weight: 280 kg
Indicated demand: 25 - 35 HP
No. of knives per rotor: 2
Number of knives: 12
Number of rotors: 6

ATTENTION:

The worktop has no oil.

Before using the machine please add:

5.4 liters of extra-thick SAE 250 OIL

Knives and transmission

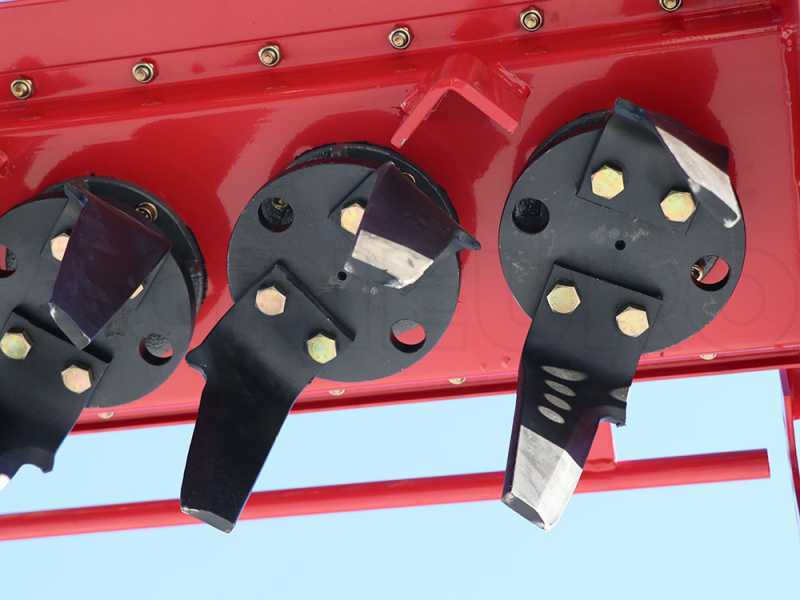

Steel knives:

no. 6 discs
2 knives each (12 in total)

Focus on the single greasing point of each rotor, each one with its own bearing.

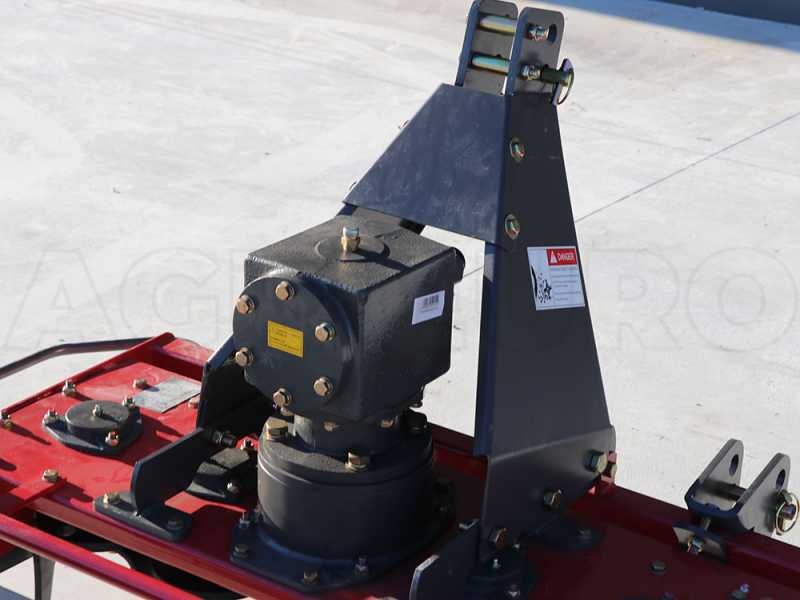

Gearbox with cast iron reducer.

Transmission with gears in oil bath.

Roller side adjustment, refinement bar and 3 points hitch

The harrow is equipped with manual adjustment for the roller.

Focus on the adjusting pins.

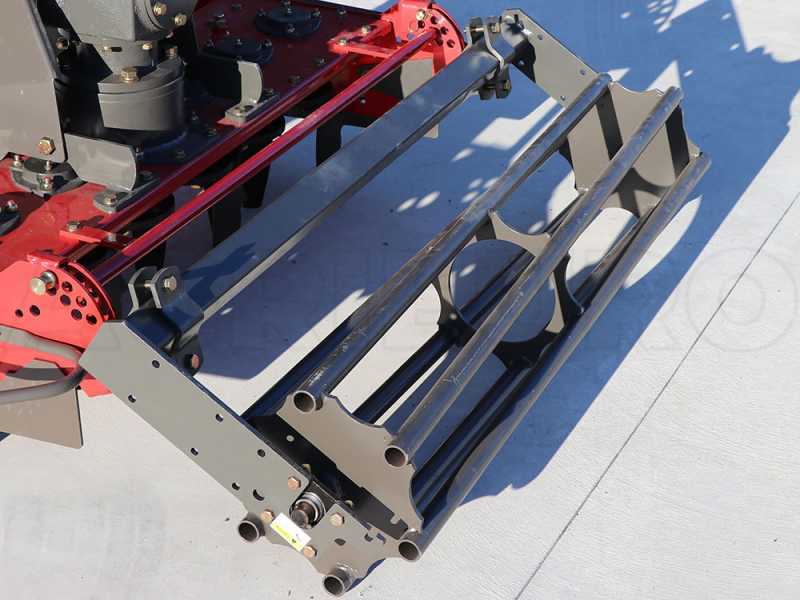

The cage roller slightly compacts the just tilled soil by the blades by making it airy on more levels.

The adjustable side carters enable a uniform soil tilling by preventing the clumps from moving beyond the working surface but adapting to the imperfections of the area.

3-point hitch
