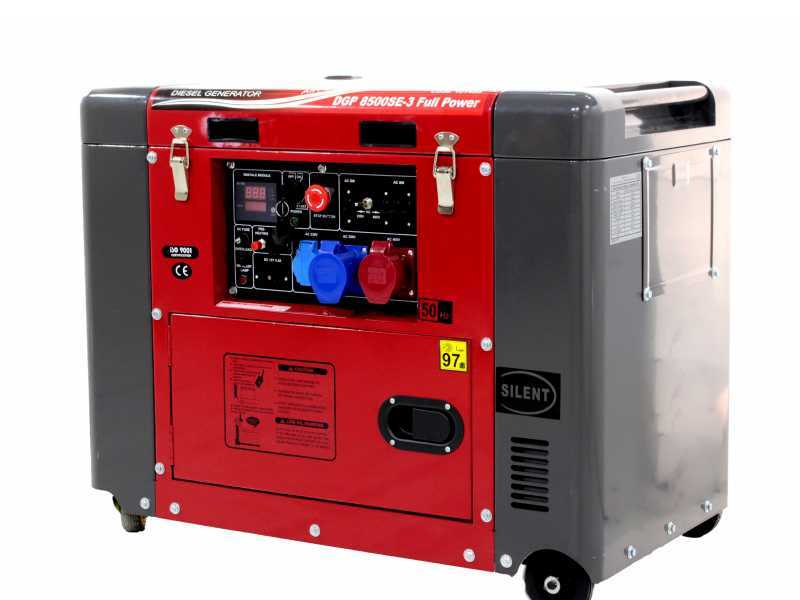

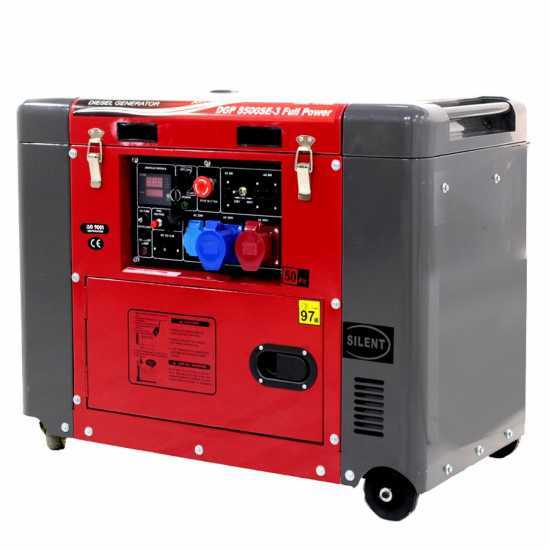

GeoTech Pro DGP8500SE-3 - 6 kW Wheeled Silenced Diesel Power Generator with AVR - DC 5.5 kW Full-Power

GeoTech Pro DGP 8500SE-3 three-phase silent diesel generator is a semi-professional product, intended for private use. It is specifically suitable to be installed in proximity to residential areas and public buildings thanks to the soundproofing enclosures and to its residential silencer.

GeoTech DGP 8500SE-3 is designed to generate three-phase electric power up to 6.0 kW Max power output.

GeoTech Pro diesel generator features a number of main characteristics. It is possible to describe these as follows:

• Electric key start.
• AVR card: it allows an automatic output voltage regulation always maintaining it constant even in case of sudden changes in load.
• 1x Schuko power outlet 16A
• 1x Single-phase industrial power outlet 32A
• 1x Three-phase industrial power outlet 16A

It is suitable for external ATS, which allows starting the unit automatically whenever essential supplies have to be maintained and there is no production of electric power.

The unit is equipped with new FULL-POWER system, which ensures the same single-phase and three-phase output power differently from the standard generators where the single-phase electric power is 1/3 lower compared to three-phase power output.

WARNING: all these models of generators that do not belong to the PROFESSIONAL series (considering the product level evaluation used by our website) are not intended for more than 3-4 hours continuous work in order not to reduce the alternator durability as well as that of one of the other machine components due to the unit overheating or wear. As regards a home or intensive use of these generators, it is important to follow the indications mentioned above. In all these conditions, we highly recommend focusing the attention on the purchase of generators renowned as PROFESSIONAL by the product level classification made in our website.

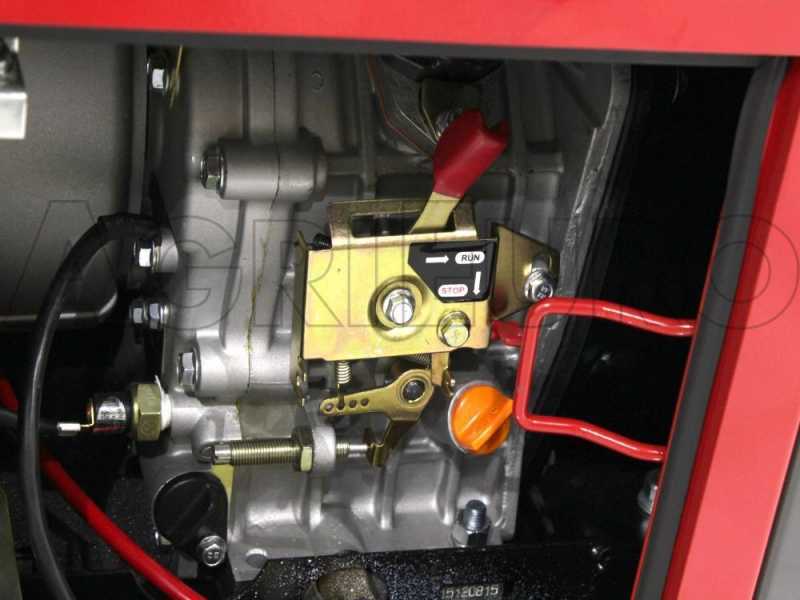

Diesel engine features of the GeoTech Pro generator:

HR192FC 4-stroke air-cooled engine 498 cc with electric key start.

Engine rated power: 10.9 Hp at 3000 rpm (8 kW)

Engine Max power: 11.6 Hp at 3600 rpm (8.5 kW)

Lubrication: 10W-40 oil, 1.65 L

Engine equipped with battery included

DGP 8500SE-3 is known to be a silent generator: indeed, all the noise emissions are considerably reduced with 97 dBA sound intensity.

This last feature allows using the unit in proximity to public buildings and residential areas.

Detail of the residential muffler

The engine is PROVIDED WITHOUT OIL.
Please carefully read the instructions manual before using it.

The alternator of this GeoTech Pro generator consists of a copper case.

Three-phase Max power output at 3600 rpm: 6.0 kW

Three-phase Max rated power at 3000 rpm : 5.5 kW

Max single-phase power output: 5.4 kW

Single-phase rated power : 4,95 kW

This unit is also equipped with AVR card that allows an automatic output voltage regulation, always maintaining it constant even in case of sudden changes in load.

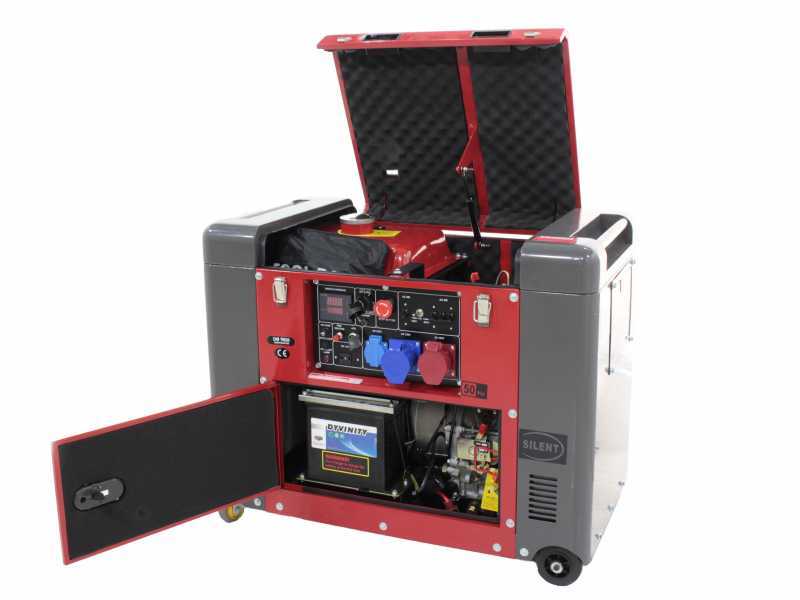

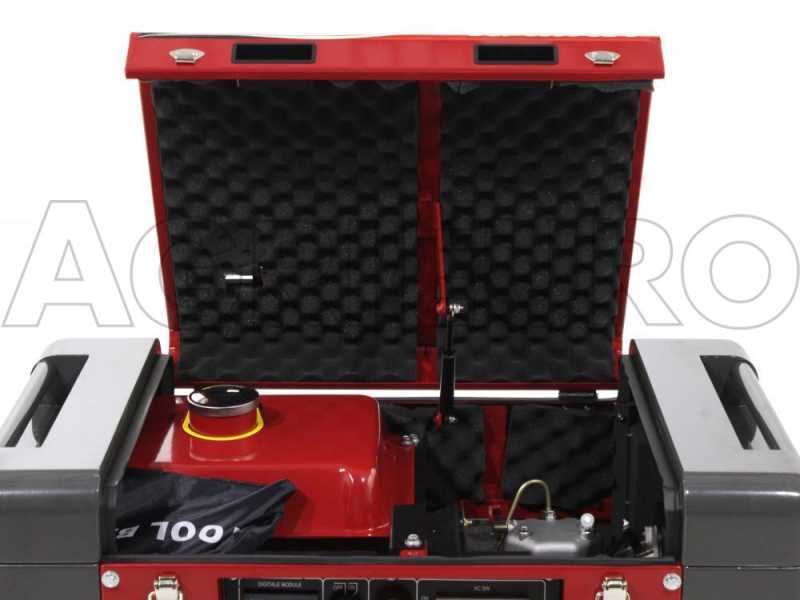

The generator door panel on top can be opened. This particular feature represents one of the main innovations that has been introduced by GeoTech Pro for this generator series.

It allows the access to the tank and it is also used to reach the engine upper part making easier in this way all the inspection and maintenance procedures compared to all the other models which do not feature this characteristic.

It is fully padded with soundproof materials.

This panel is also equipped with pneumatic piston which has been specifically designed to avoid the panel accidental shutting.

Detail of the generator soundproof coated material.

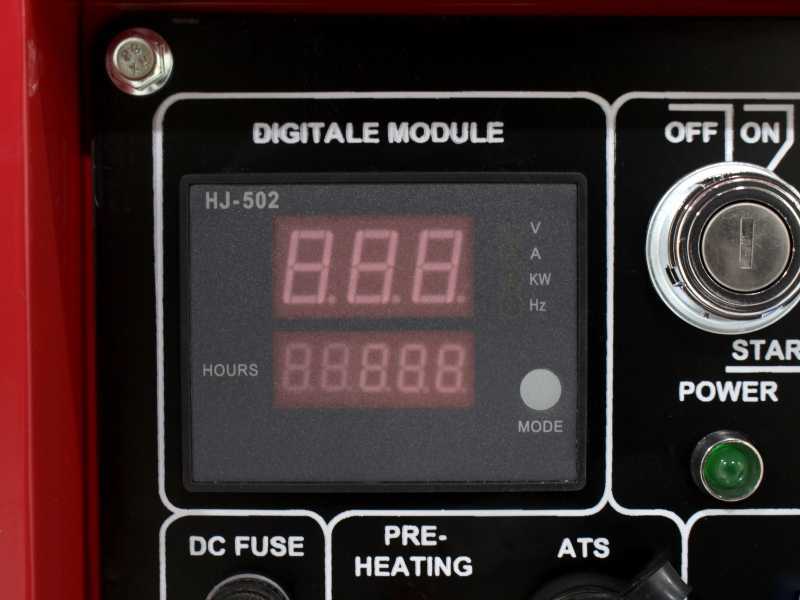

The control panel of this generator features a number of different functions.

• Engine electric key start.
• Digital voltmeter, which allows controlling and measuring the output voltage.
• Light indicators: power switch button and oil pressure warning light.
• Safety stop button: it acts as further switch button, which is able to shut off the electric power generated by the unit.
• Power switch button.
• The generator we are focusing on is also equipped with battery charger, suitable to power all the 12 volts batteries forcing electric current through it. WARNING: this battery charger does not allow powering all the 12 volts electronic device since we are dealing with a standard recharger.
• 1 Three-phase industrial power outlet 16 A.
• Single-phase power outlet 32A
• 1 Schuko power outlet 16 A.
• Detail of the earth grounded cable
• ATS socket due to the possibility to provide the unit with ATS connection.

The generator is also equipped with a high-capacity fuel tank made of steel, which allows the generator running for a long period of time. It consists of a fuel level gauge, specifically used to check and inspect the level of fuel contained in the tank.

It is also fitted with side handles, which allows its easy manoeuvring and transport.

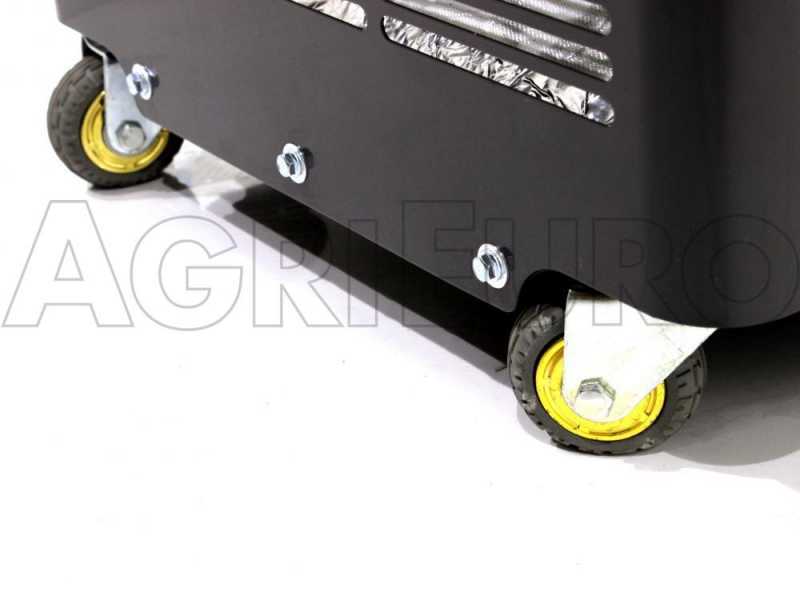

Detail of the 4 plastic wheels that are extremely sturdy and easily removable.

Battery door panel

As regards the power needed referring to the use you will make of your generator, here below an extremely useful table to guide you among consumptions, starting coefficient and watt. Firstly, the highest-quality method is to identify which are the electric appliances we need to power with the generator and then perform a simple calculation to identify the necessary power that the generator must supply, as explained below.

Power required = Electric appliance consumption X Breakaway starting coefficient

The starting coefficient represents a fundamental feature for all the electric equipment as it indicates how much the consumption of the electric appliance increases. Therefore, it allows to concretely determine how many WATTs are necessary during the start-up operations.

Example: Air compressor ( 1500 Watt ) X Starting coefficient ( 2 ) = 3000 Watt

Hence, it is important to address your choice on a generator featuring equal or higher WATT-rated electric power than the result obtained from the calculation made.

( * ) Check the consumption of the electric appliance on the operator’s use and maintenance manual or on the plate attached to the machine.

WARNING! Purely indicative table. Thanks to the formula indicated above you can easily calculate the electric power that the generator has to supply in order and connect to the generator specific electric appliances and select the model of generator which best suits your needs. We remind you that to operate electric equipment (computers, TVs and all the other electric appliances provided with electronic card) you need to focus the attention on inverter generators (which allows stabilizing the electric current supplied).
