Name: GeoTech Pro CFL160 - Tractor Flail Mower - Collecting Basket - Medium Series
Brand: GeoTech Pro
SKU: 103955
Price: 2732.53 EUR
Availability: InStock
Rating: 3.9 (10 reviews)

Description

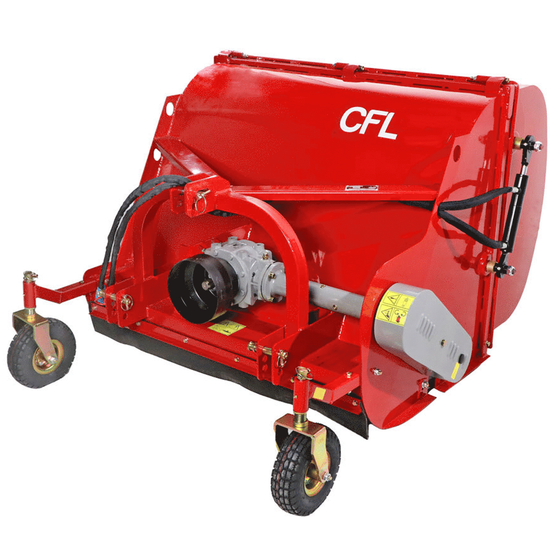

GeoTech Pro tractor mower model CFL 160

The GeoTech-Pro CFL 160 tractor mower with collector is designed for the maintenance of grassland, gardens, parks and urban areas. The large working width of 160 cm allows efficient cutting of grass and small pruning residues. The integrated collection system ensures a clean result, preventing the loss of cut material.

The first-class three-point hitch guarantees safe installation and compatibility with various tractors. The 3-belt drive ensures optimum power distribution, reducing component wear. The weight of 367 kg provides the necessary stability to operate on different surfaces, avoiding excessive vibrations.

The hydraulic body opening, supplied as standard, simplifies emptying operations, eliminating the need for manual intervention and ensuring greater safety. The cutting system consists of sharpened hammers, ideal for efficiently chopping up grass and plant residues.

Main features of the GeoTech-Pro CFL 160 tractor mower with collector:

Working width of 160 cm, ideal for medium to large surfaces.
Integrated rear collector for a clean cut without residues.
Hydraulic body opening for fast and effortless unloading.
Sharpened clubs for precise and effective cutting.
First-class three-point hitch, compatible with tractors of different power ratings.
3-belt drive for stable and reliable operation.

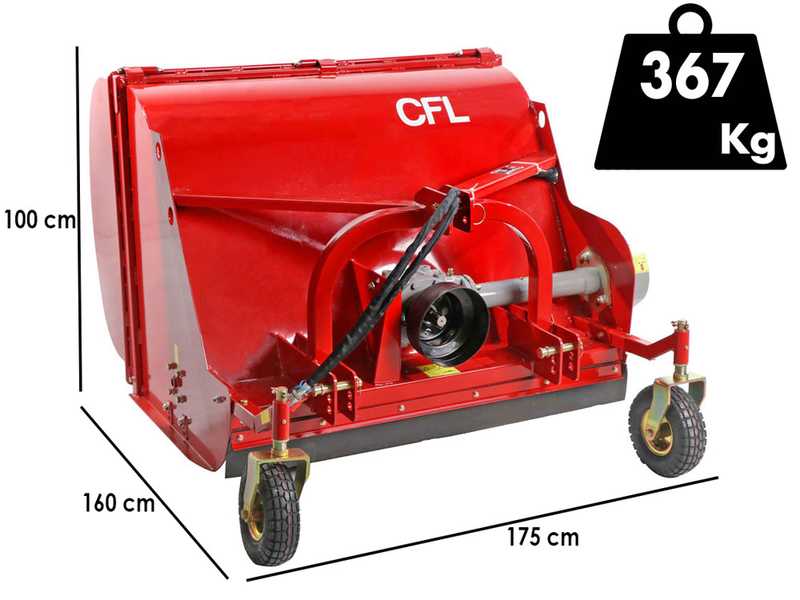

Weight of 367 kg, which guarantees robustness and strength.

Warning: the machine is shipped ready for use Once mounted all the parts, check the bolts tightening.
Please carefully read the instructions manual before starting the unit.

GeoTech Pro CFL160 - Tractor Flail Mower - Collecting Basket - Medium Series

Hammer and rotor cutting tools

No. of hammers fitted on standard equipment: 38

These hammers are mounted on a sturdy 12 mm diameter hardened steel bolt.

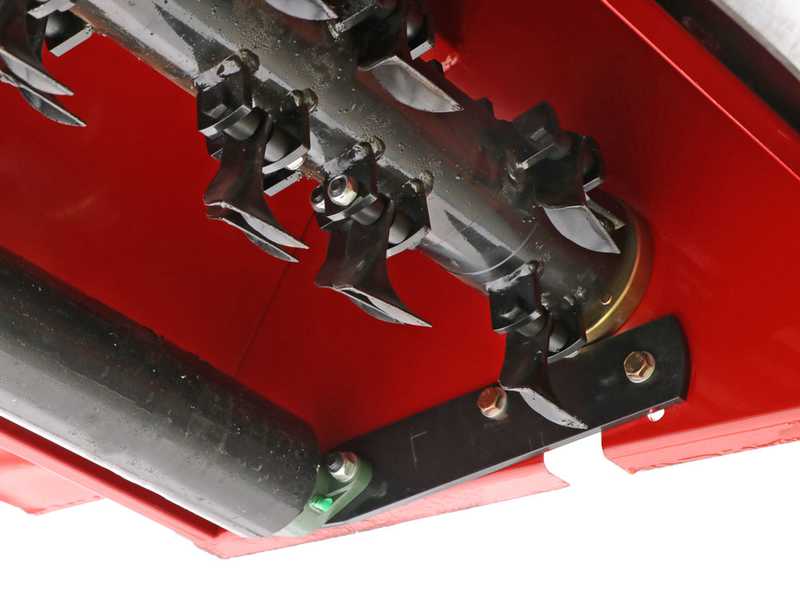

Close-up of the cutting clubs, mounted on the rotor.

Detail of the external rotor anchor with central cavity with grease nipple.

It finely shreds grass and twigs, while simultaneously rolling the turf.

The hammers ensures high-quality results in gardens, lawns and urban areas. The flail mower is connected to the 3-point hitch on the rear part of the tractor.

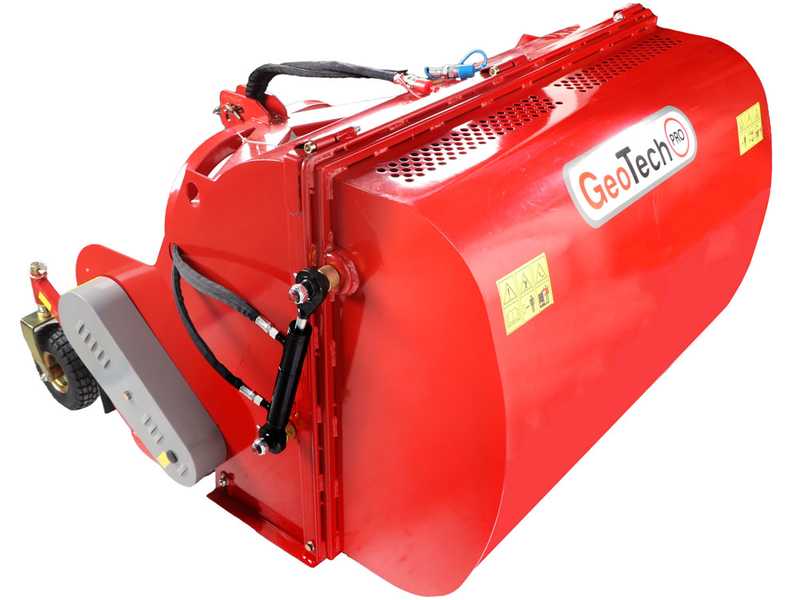

Reinforced collection basket

The practical collection basket of this flail mower allows the machine to operate without leaving any residue in the working area.

Operated entirely by a single piston hydraulic system, for comfortable and safe working.

The containment system is designed to capture all the excess tilled soil, unlike other models that release grass and small shrubs onto the ground.

Detail of the basket opening.

Detail of the multiple hinges connecting to the mower.

Lateral belt drive and gear reducer unit

Gearbox in oil bath.. The housing is made of cast iron, while the internal gears are made of hardened steel. Equipped with lubricated extension.

This machine is equipped with a freewheel device (or additional joint) built in the gearbox; this ensures a long service life of all the moving parts of the machine, preventing the kickback that would be caused by changing from 540 rpm to 0 rpm and allowing the rotor to turn freely until it stops.

3-belt side transmission (most tractor-mounted mowers in this weight category are equipped with normal 2-belt transmission).

Detail of side belt guard.

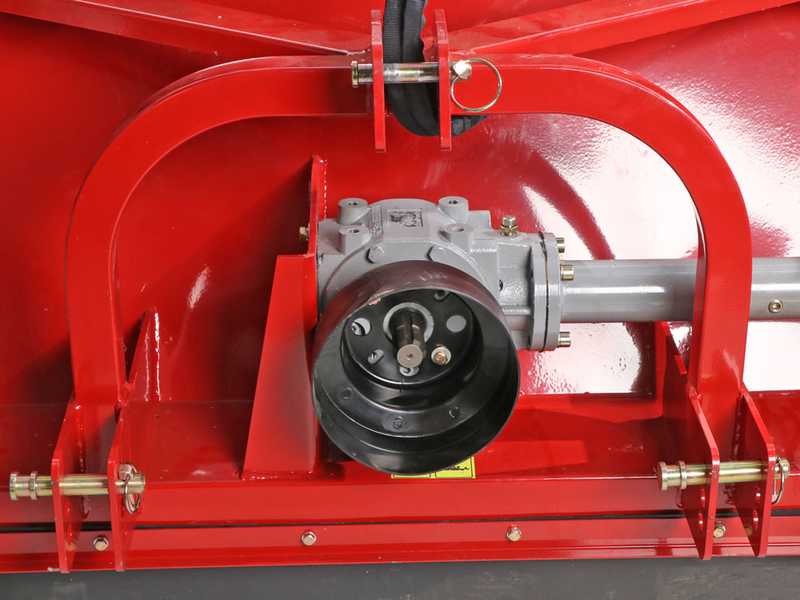

Detail of the gearbox:
1 - Oil level cap
2 - Oil drain cap
3 - SAE 80/90 oil filler cap and vent

Other features

Height-adjustable rear supporting roller provided on standard equipment.

Focus on the roller support provided with holes for adjusting its height. It is adjustable in height with 5 different positions.

3-point hitch (1st category) with universal standard power take-off (13/8 ‘Z6).

Front wheels

Recommendations for Use - Tractor-mounted Fixed Flail Mowers

To ensure correct operation, a longer service life and safe working conditions, it is essential to use the tractor-mounted flail mower in accordance with the instructions set out in the user manual and the machine’s technical specifications. Incorrect use may result in premature wear of components, reduced performance or damage not covered by the warranty.

Before starting work, always check that the tractor is compatible with the flail mower by verifying the required power, hitch type and intended operating conditions. Correct matching of the machine and the tractor ensures optimum performance and prevents the transmission from being overloaded.

Use the flail mower exclusively on suitable surfaces: the machine is designed for grass shredding, wild vegetation, plant residues and materials compatible with the machine’s category. Avoid contact with unintended objects such as stones, metal, plastic or other foreign bodies.
Adjust the working height correctly: maintaining an adequate distance from the ground reduces the impact on the cutting units and limits excessive stress on the machine’s structure.
Do not operate the machine where there are hidden obstacles or unsuitable ground conditions: ditches, stumps, exposed roots, loose stones or uneven ground can cause sudden impacts and damage to the cutting parts or transmission components.
Do not use the flail mower for operations other than shredding: the machine must not be used for earthmoving, ground levelling or other applications not specified by the manufacturer.
Always adjust the forward speed to suit the working conditions: excessive speed can reduce the quality of the shredding, increase vibrations and subject the machine to stresses greater than those for which it was designed.
Avoid using the machine on excessively damp material: wet grass or particularly damp vegetation can cause material to build up inside the machine, reducing its efficiency.
Do not force the tractor forward: if the rotor slows down, vibrations increase or cutting capacity decreases, speed must be reduced and the work adapted to the conditions of the ground and vegetation.
Check the condition of the cutting components regularly: worn, damaged or missing blades, hammers or other cutting elements can compromise the machine’s operation and increase vibrations during use.
Carry out periodic checks and routine maintenance: check that components are correctly tightened, inspect the condition of the transmission components and ensure the machine is generally clean to maintain its efficiency and safety.

Use of the power take-off (PTO):

The tractor’s power take-off (PTO ) must be used in accordance with the rotational speed specified by the flail mower manufacturer. An incorrect rotational speed may compromise the machine’s operation, causing overheating, accelerated wear or excessive stress on mechanical components.

When attaching and detaching the flail mower, the power take-off must always be disengaged and the tractor switched off. It is also necessary to check that the PTO shaft is correctly installed and has sufficient clearance to move freely while working.

Free items & Standard equipment

Free items included

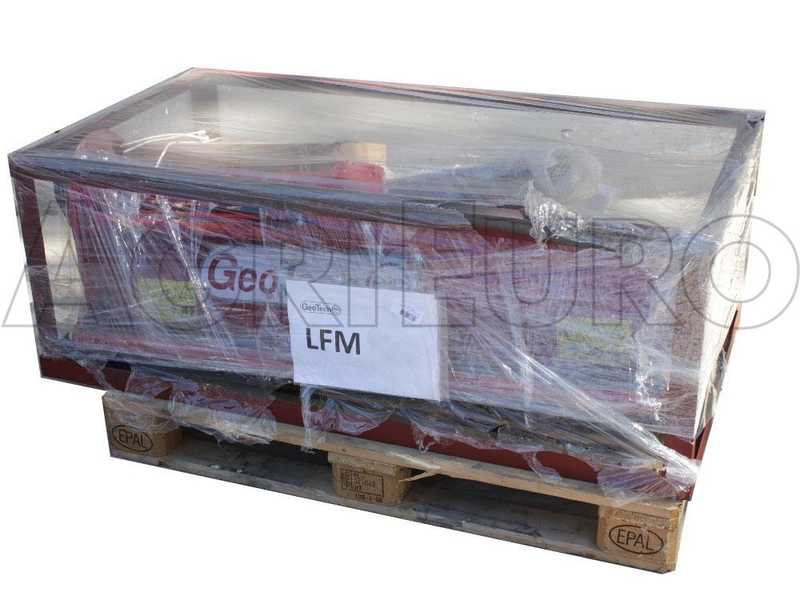

The flail mower is shipped partially assembled on a pallet (you’ll only have to assemble the 3-point hitch and a few other small components)

Cardan shaft included in the package.

Instruction and assembly booklet.
