GeoTech Pro CFL120 - Tractor mower - Grass catcher - Collector - Medium series

Questions & Answers (16)
ID: 103954

EAN: 9999237541039

MPN: CFL120

8,9/10
After-sales assistance & Spare parts
GeoTech Pro CFL120 - Tractor mower - Grass catcher - Collector - Medium series
+100 sold
Prompt Delivery
10 items in stock
Free Shipping
Estimated delivery: 16/04/2026 - 20/04/2026
Suggested price:
€ 2.930,49
€ 2.197,86
Vat included
Technical data
Tractor power
from 30 to 35 HP
Sturdiness/Series
Medium
Weight
323 Kg
Cutting width
120 cm
Standard cutting tools
Hammer flails
Collection bag
Supplied cargo box
Opening rear flap
yes
Hammer flail weight
0.3 Kg
Cardan shaft
Yes
Fixed hitch
yes
Product Features
Model
CFL120
Mulcher type
Mulcher with collector
Tractor power
from 30 to 35 HP
Sturdiness/Series
Medium
Shift
Fixed hitch
Fixed hitch
yes
Operating mode
3-point hitch category
First
Cardan shaft rotation
Clockwise
Manufacturing country
China
Transmission data
Integrated free wheel device
Yes
Side drive belts
3
Cutting data
Cutting width
120 cm
Wood diameter
Up to 20 mm
No. of blades
28
Standard cutting tools
Hammer flails
Hammer flail weight
0.3 Kg
Blades bolt diameter
12 mm
Cutting width
120 cm
Equipment
Collection bag
Supplied cargo box
Counter-blade
Single row
Hydraulic Piston for moving
Yes
Opening rear flap
yes
Rear support roller
Yes
Free gifts/extra features
Side skids
Yes
Cardan included
Yes
Cardan shaft
Yes
Instructions manual
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H)
140x160x100 cm
Net weight
323 Kg
Packaging
On pallet
Original packaging/s dimensions in cm (L x W x H)
140 x160x100 cm
Weight including packaging
340 Kg
Unloading with hydraulic tail lift
Yes
Assembly time
15 minutes
Add Accessories and get a discount
You're viewing:
Customers also viewed:
Description

GeoTech CFL 120 tractor flail mower

The GeoTech-Pro CFL 120 tractor mower with collector is designed for the maintenance of grassland, gardens, parks and urban areas. The large working width of 120 cm allows efficient cutting of grass and small pruning residues. The integrated collection system ensures a clean result, preventing the loss of cut material.

The first-class three-point hitch guarantees safe installation and compatibility with various tractors. The 3-belt drive ensures optimum power distribution, reducing component wear. The weight of 323 kg provides the necessary stability to operate on different surfaces, avoiding excessive vibrations.

The hydraulic body opening, supplied as standard, simplifies emptying operations, eliminating the need for manual intervention and ensuring greater safety. The cutting system consists of sharpened hammers, ideal for efficiently chopping up grass and plant residues.

Main features of the GeoTech-Pro CFL 120 tractor mower with collector:

  • Working width of 120 cm, ideal for medium to large surfaces.
  • Integrated rear collector for a clean cut without residues.
  • Hydraulic body opening for fast and effortless unloading.
  • Sharpened clubs for precise and effective cutting.
  • First-class three-point hitch, compatible with tractors of different power ratings.
  • 3-belt drive for stable and reliable operation.
  • Weight of 323 kg, which guarantees robustness and strength.

Warning: the machine is shipped ready for use Once mounted all the parts check the bolts tightening.
Please carefully read the instructions manual before starting the unit.

Cutting tools: hammer flails

No. of hammers fitted on standard equipment: 28

These hammers are mounted on a sturdy 12 mm diameter hardened steel bolt.

Close-up of the cutting clubs, mounted on the rotor.

Detail of the external rotor anchor with central cavity with grease nipple.

It finely shreds grass and twigs, while simultaneously rolling the turf.

The hammers ensure high-quality results in gardens, lawns and urban areas. The flail mower is connected to the 3-point hitch on the rear part of the tractor.

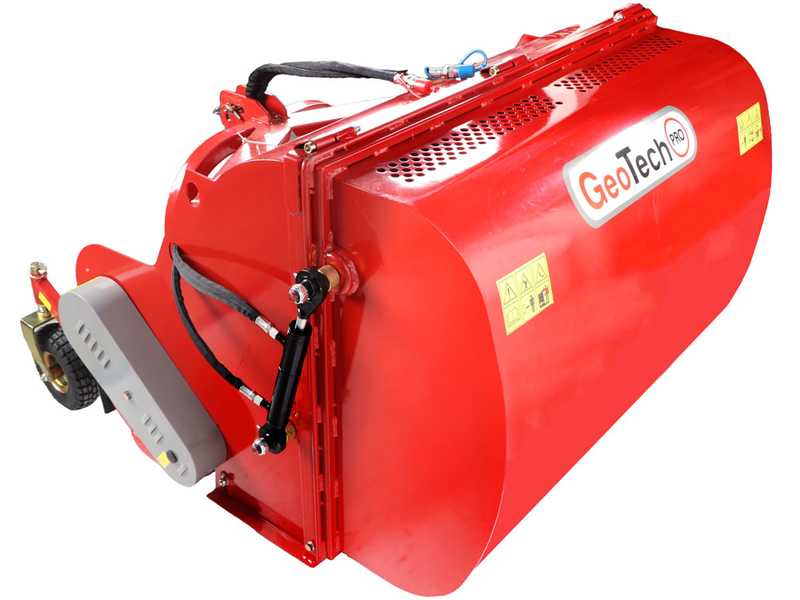

Reinforced collection basket

The practical collection basket of this flail mower allows the machine to operate without leaving any residue in the working area.

Operated entirely by a single piston hydraulic system, for comfortable and safe working.

The containment system is designed to capture all the excess tilled soil, unlike other models that release grass and small shrubs onto the ground.

Detail of the basket opening.

Detail of the multiple hinges connecting to the mower.

Side belt transmission and gearbox

Gearbox in oil bath.. The housing is made of cast iron, while the internal gears are made of hardened steel. Equipped with lubricated extension.

This machine is equipped with a freewheel device (or additional joint) built in the gearbox; this ensures a long service life of all the moving parts of the machine, preventing the kickback that would be caused by changing from 540 rpm to 0 rpm and allowing the rotor to turn freely until it stops.

3-belt side transmission (most tractor-mounted mowers in this weight category are equipped with normal 2-belt transmission).

Detail of side belt guard.

Detail of the gearbox:
1 - Oil level cap
2 - Oil drain cap
3 - SAE 80/90 oil filler cap and vent

Other features

Height-adjustable rear supporting roller provided on standard equipment.

Focus on the roller support provided with holes for adjusting its height. It is adjustable in height with 5 different positions.

3-point hitch (1st category) with universal standard power take-off (13/8 ‘Z6).

Front wheels

Free items & Standard equipment

Free items included

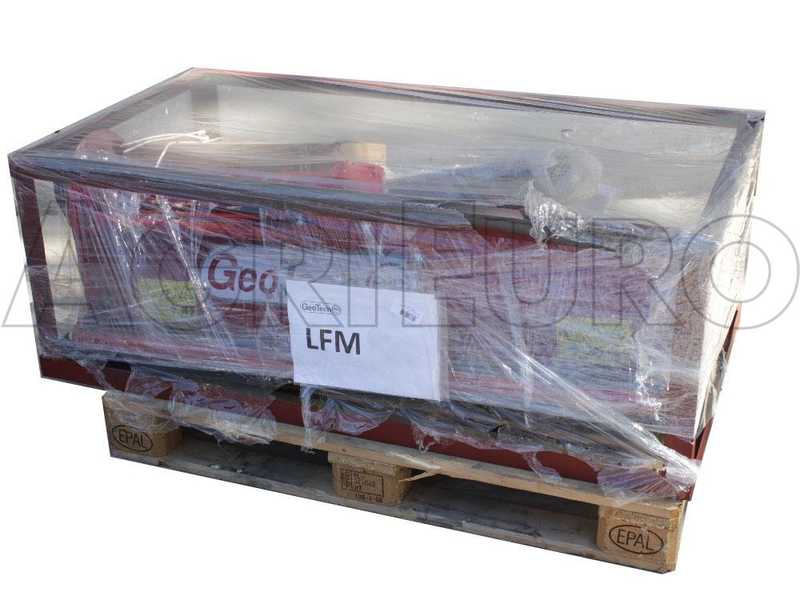

The flail mower is shipped partially assembled on pallet (you’ll only have to assemble the 3-point hitch and a few other small components)

Cardan shaft included in the package.

Instruction and assembly booklet.
