Name: GeoTech-Pro BACP50 - Belt-driven Electric Air Compressor - 10 - 3 Hp Motor - 50L - 10 bar
Brand: GeoTech-Pro
SKU: K600098
Price: 383.77 EUR
Availability: OutOfStock
Rating: 4.26 (27 reviews)

Description

Geotech-Pro BACP50-10-3 Air Compressor

Geotech BACP50-10-3 Air Compressor
Main features:

B = Belt (belt)

AC = Air Compressor

P = Geotech Pro Line

50 = 50 L tank

10 = 10 bar Maximum tank pressure

3 = 3.0 Hp Motor power

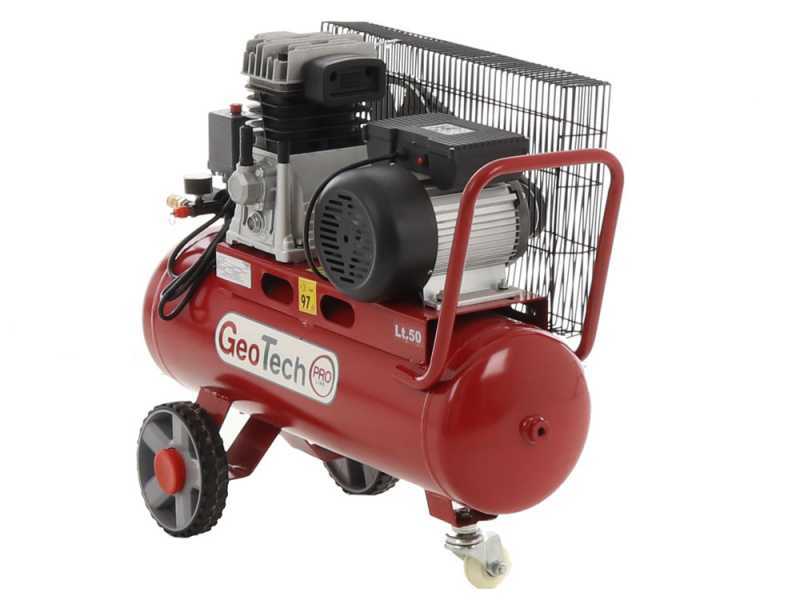

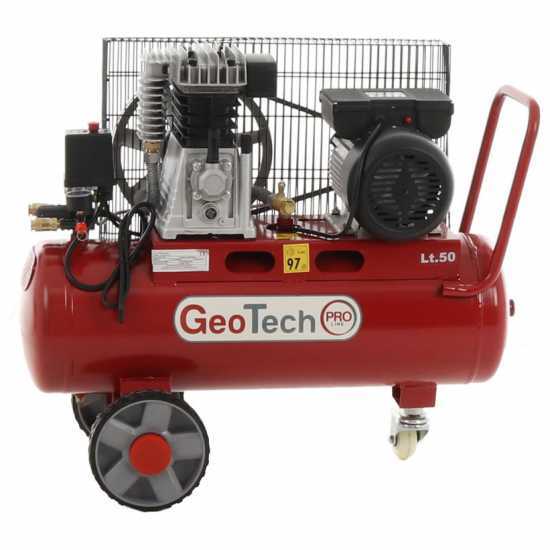

The GeoTech BACP50-10-3 air compressor is an efficient, belt-driven machine for hobby use.

Powered by a 3.0 Hp electric motor, this air compressor features a compressed air suction capacity of 200 L. It is capable of reaching a maximum pressure of 10 bar.

It comes with a large 50 L compressed air storage tank. The weight of the air compressor is about 45 Kg, but has both rear wheels and a pivoting front wheel that allows to easily transport the air compressor without lifting it. Also equipped with an upper handle that further facilitates transportation.

GeoTech-Pro BACP50 - Belt-driven Electric Air Compressor - 10 - 3 Hp Motor - 50L - 10 bar

Technical features

Air intake flow: 200 L/min

Pumping unit type: belt-driven

Pressure: 8 bar

Electric motor power: 3 Hp

Tank: 50 L

Overall dimensions:
- Width: 350 mm
- Height: 700 mm
- Length: 810 mm

Weight: 45 kg

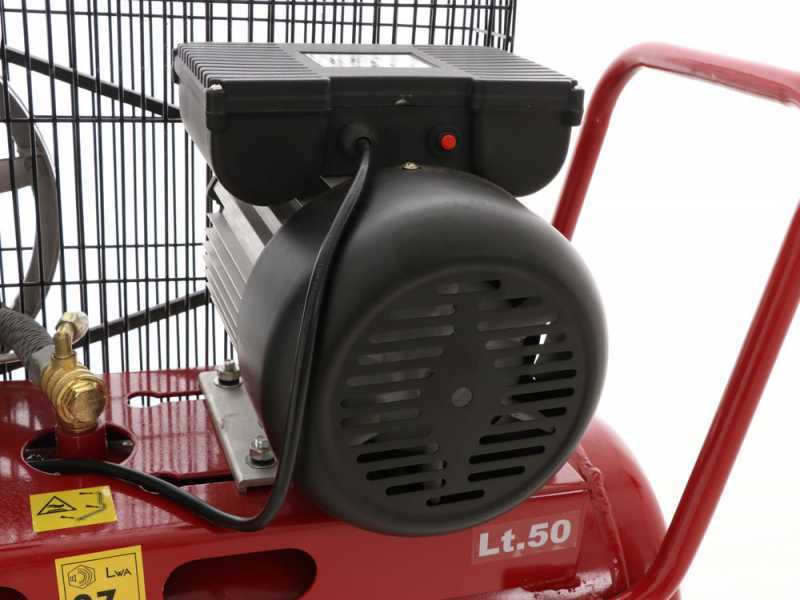

3 Hp single-phase electric induction motor

Power supply: 230 V

Power: 3 Hp
The induction motor is characterised by a very long service life and low maintenance requirements.

This motor is in fact brushless, the brushes being the main component subject to wear in electric motors. The absence of this component grants high durability to the motor.

This product is one of the best models for warranty, performance and reliability.

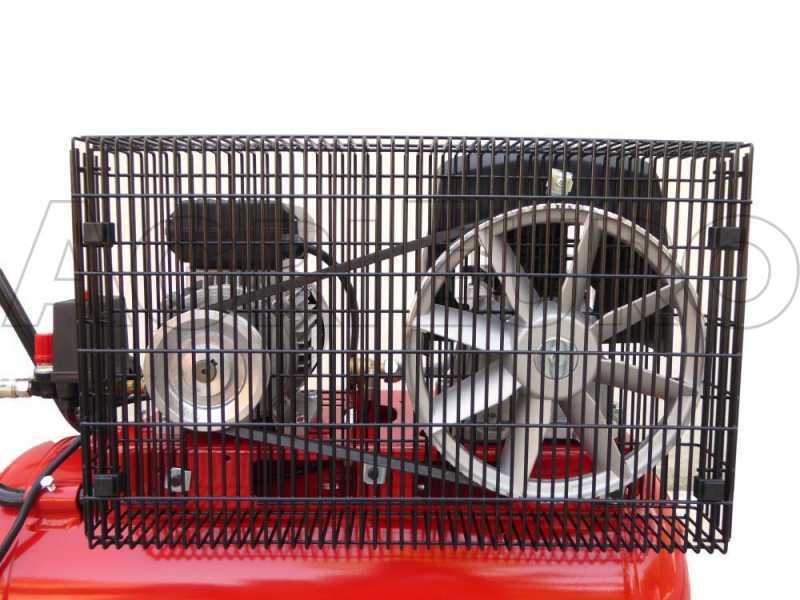

Belt drive

This air compressor features a belt drive.

The use of the belt, combined with an induction motor, contributes to the durability of this air compressor, drastically reducing the number of revolutions of the cylinder head, increasing its life and reducing wear.

The grid protection serves to prevent the drive belt and the transmission from being damaged by external objects that might hit it during operation. It also allows the status of the drive belt to be continuously checked.

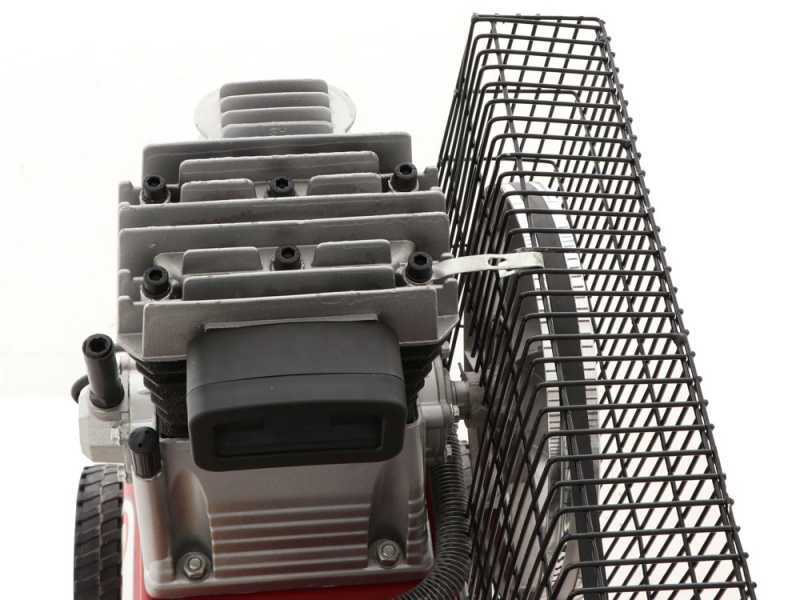

GeoTech cylinder head

Air intake flow: 200 L/min
Cylinder head type: with cast iron cylinders
Suction type: single-stage
Lubrication: oil
No. of revolutions: 2800 rpm

The degree of professionalism and more generally the life of the air compressor is largely determined by the number of revolutions per minute of the cylinder head.

The lower the rpm, the longer the life of the air compressor. The reduction ratio of the number of revolutions is obtained by the pulleys of different diameter that are fitted to the motor and to the cylinder head respectively.

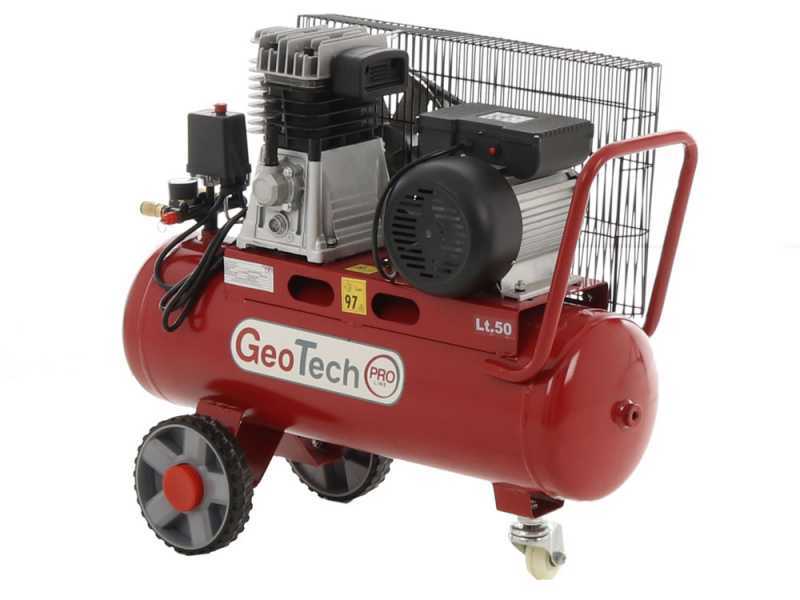

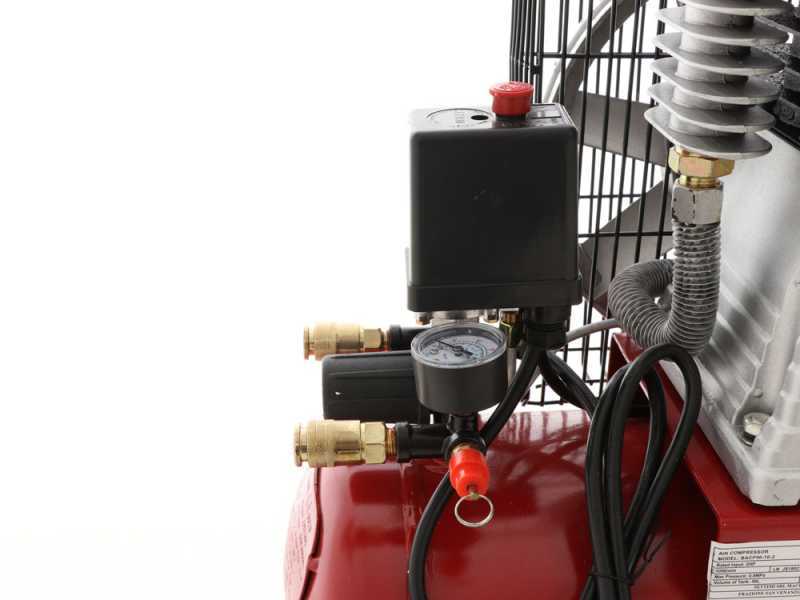

Controls and other features

This GeoTech air compressor features easy and user-friendly controls, which are divided into:

Power switch

Air pressure gauges

Air compressor female outlet fittings

Pressure adjusting knob

Handle for transportation

Transport is facilitated also thanks to the wheels

Free items & Standard equipment

1° GIFT: air compressor maintenance kit with oil bottle and joints

Maintenance kit provided on standard equipment includes:

Air compressor spare/replacing female output joint
Air compressor spare/replacing male output joint (replaceable on equipment with bayonet cap) or usable as spare joint
Quick joint to convert all the machineries fitted with standard bayonet cap. It allows easily connecting the units to hoses with female quick joint.
Quick joint for converting the female output joint supplied on the air compressor into the traditional bayonet cap (also allows the use of the standard hoses with bayonet system)
Repair/Junction fitting for Ø 8 hoses

Repair/Junction fitting for Ø 10 hoses

Lower tank discharge valve replacement air compressor

Teflon roll, ideal for the main maintenance operations

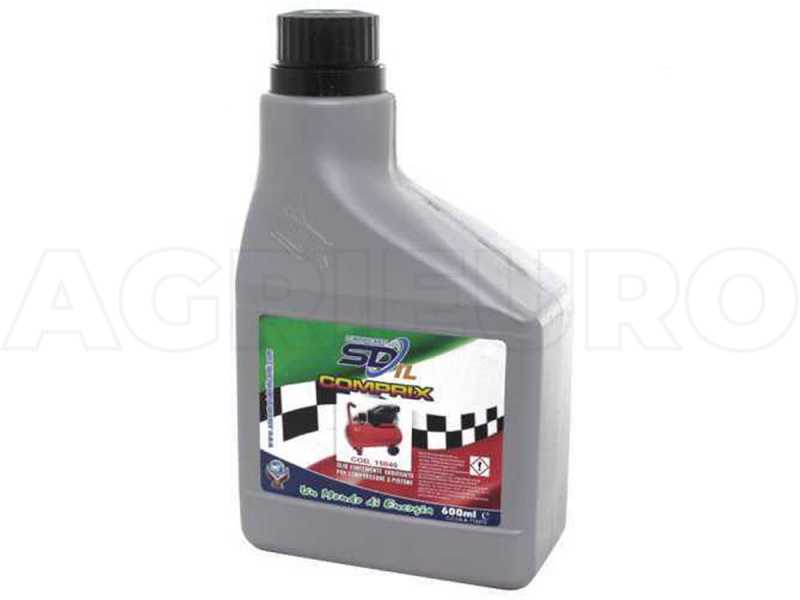

2° GIFT: 600 ml "COMPRIX” oil bottle

COMPLIMENTARY: 600 ml "COMPRIX” oil bottle, professional oil specifically designed for air compressor cylinder heads. Very useful for oil refill and first oil replacement (the air compressor is shipped already filled with oil).

Standard equipment

The air compressor is shipped in its original packaging.

Instructions manual included.
