HOME Workshop and Do-It-Yourself Electric Air Compressors Heavy-duty belt-driven air compressors (50-300 L) 50 Litre Belt-driven Air Compressors Single-phase 2 HP 50 L Belt Driven Air Compressors GeoTech-Pro BACP50-8-2

Geotech-Pro BACP50-8-2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 50 L - 8 bar

Hobby
Questions & Answers (2)
ID: K600092

EAN: 9999237542104

GeoTech-Pro
Catalogue GeoTech-Pro
8,9/10
After-sales assistance & Spare parts
45Pictures
4Videos
11Customer pics
Geotech-Pro BACP50-8-2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 50 L - 8 bar
Geotech-Pro BACP50-8-2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 50 L - 8 bar
Geotech-Pro BACP50-8-2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 50 L - 8 bar
Geotech-Pro BACP50-8-2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 50 L - 8 bar
Geotech-Pro BACP50-8-2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 50 L - 8 bar
Geotech-Pro BACP50-8-2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 50 L - 8 bar
+200 sold
Free gifts from AgriEuro
Bottle of 600 ml "COMPRIX" professional oilBottle of 600 ml "COMPRIX" professional oil
no. 8 compressor connectionsno. 8 compressor connections
Air compressor tank
50 L
Max. operating pressure
8 bar
Air intake flow
200 L/min
Cylinder head rpm
950 RPM
Lubrication
Oil
Cooling manifold
Yes
Pump type
Single-stage
Nominal power
2 HP
Operating mode
Single-phase 230 V
Transmission type
Belt
Product Features
Model:
BACP50-8-2
Air compressor type 2:
Belt-driven
Air compressor type:
Horizontal
Operating mode:
Single-phase 230 V
Operating mode:
Electric 230 V
Max. operating pressure:
8 bar
Number of tanks:
1
Air compressor tank:
50 L
Noise level:
97 dB(A)
Manufacturing country:
China
Motor data
Motor type:
Electric single-phase
Nominal power:
2 HP
Air compressors engine speed:
2800
Power supply:
220 V electric
Pump data
Pump brand:
Geotech-Pro
Model:
BACP50-8-2
Air intake flow:
200 L/min
Pump type:
Single-stage
Lubrication:
Oil
No. of cylinders:
1
Cooling manifold:
Yes
Manufacturing country:
China
Transmission data
Belt-driven:
✔
Transmission type:
Belt
Cylinder head rpm:
950 RPM
Equipment
No. of outlet couplings:
2
Front handle:
Yes
Free gifts/extra features
Wooden pallet (safe shipping):
Yes
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
81 x 35 x 70 cm
Net weight:
45 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
81 x 37 x 70 cm
Weight including packaging:
55 Kg
Assembly time:
5 minutes
Prompt Delivery
8 items in stock
Free Shipping
Estimated delivery: 13/06/2025 - 17/06/2025
Free returns (up to 30 days after receipt) *
Suggested price:
€ 410,75
€ 308,06
Vat included
5% off from the second item in your cart
Are you a business? Check out prices tailored to you!
You're viewing:
Customers also viewed:
Description

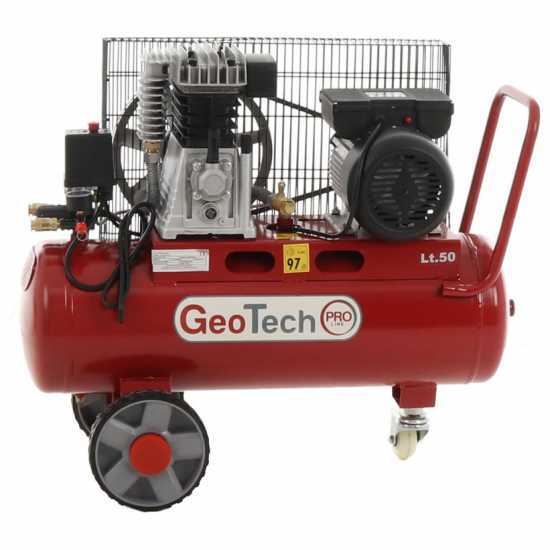

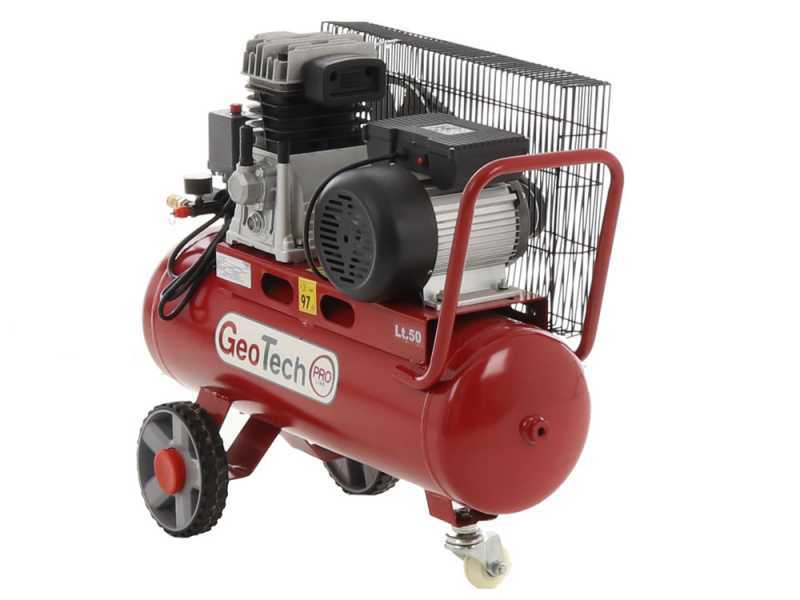

Geotech-Pro BACP50-8-2 Air Compressor

Geotech BACP50-8-2 Air Compressor - Main features:

B = Belt (belt)

AC = Air compressor

P = Geotech Pro Line

50 = 50 L tank

8 = Max. tank pressure 8 bar

2 = Motor power 2.0 HP

The GeoTech BACP50-8-2 air compressor is an efficient, belt-driven machine for hobby use.

Powered by a 2.0 HP electric motor, this air compressor has a compressed air suction capacity of 200 L. It’s capable of reaching a 8 bar Max pressure.

It features a large 50 liters compressed air storage tank. The weight of the compressor is about 45 Kg, but has both rear wheels and a pivoting front wheel that allows to transport the compressor without having to be lifted. There is also an upper handle that facilitates transportation even more.

Geotech-Pro BACP50-8-2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 50 L - 8 bar
Geotech-Pro BACP50-8-2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 50 L - 8 bar Geotech-Pro BACP50-8-2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 50 L - 8 bar Geotech-Pro BACP50-8-2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 50 L - 8 bar Geotech-Pro BACP50-8-2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 50 L - 8 bar Geotech-Pro BACP50-8-2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 50 L - 8 bar Geotech-Pro BACP50-8-2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 50 L - 8 bar Geotech-Pro BACP50-8-2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 50 L - 8 bar Geotech-Pro BACP50-8-2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 50 L - 8 bar Geotech-Pro BACP50-8-2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 50 L - 8 bar Geotech-Pro BACP50-8-2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 50 L - 8 bar Geotech-Pro BACP50-8-2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 50 L - 8 bar Geotech-Pro BACP50-8-2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 50 L - 8 bar

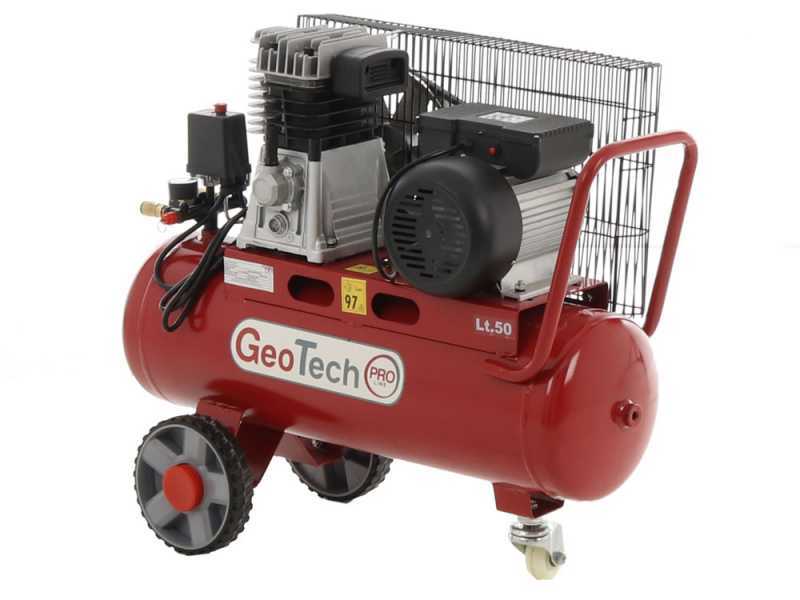

Technical features

Air intake flow: 200 L/min

Pump type: belt-driven

Air intake flow: 200 L/min

Pressure: 8 bar

Electric motor power: 2 HP

Tank : 50 L


Overall dimensions:
- Width: 35 cm
- Height: 70 cm
- Depth (or thickness): 81 cm

Weight: 45 kg

Geotech-Pro BACP50-8-2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 50 L - 8 bar
Geotech-Pro BACP50-8-2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 50 L - 8 bar Geotech-Pro BACP50-8-2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 50 L - 8 bar Geotech-Pro BACP50-8-2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 50 L - 8 bar Geotech-Pro BACP50-8-2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 50 L - 8 bar Geotech-Pro BACP50-8-2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 50 L - 8 bar

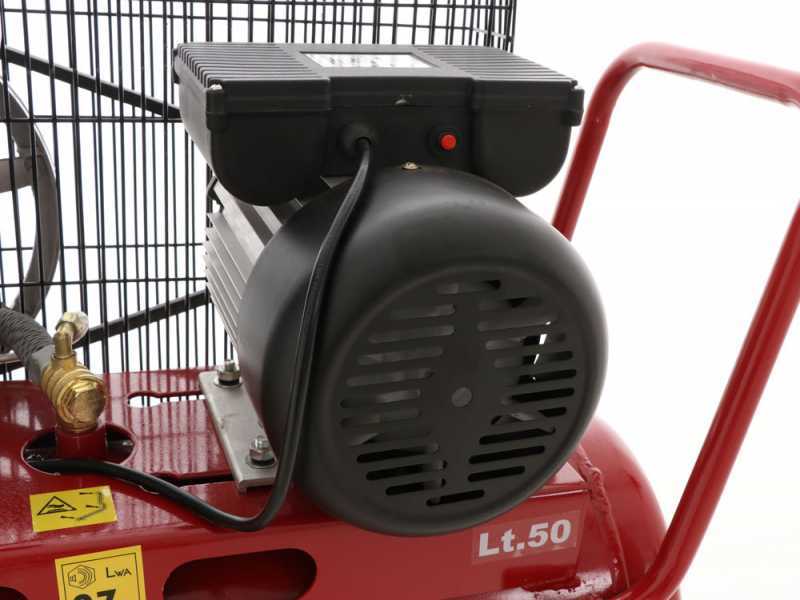

2 HP Single-phase Electric Induction Motor

Power supply: 230V

Power: 3HP
The induction motor is characterized by the high durability and the low need for maintenance.

This motor is in fact brushless, the brushes being the main component subject to wear in electric motors. The absence of this component gives the motor durability.

This product is one of the best models for warranty, performance and reliability.

Geotech-Pro BACP50-8-2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 50 L - 8 bar
Geotech-Pro BACP50-8-2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 50 L - 8 bar Geotech-Pro BACP50-8-2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 50 L - 8 bar Geotech-Pro BACP50-8-2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 50 L - 8 bar Geotech-Pro BACP50-8-2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 50 L - 8 bar Geotech-Pro BACP50-8-2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 50 L - 8 bar Geotech-Pro BACP50-8-2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 50 L - 8 bar Geotech-Pro BACP50-8-2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 50 L - 8 bar

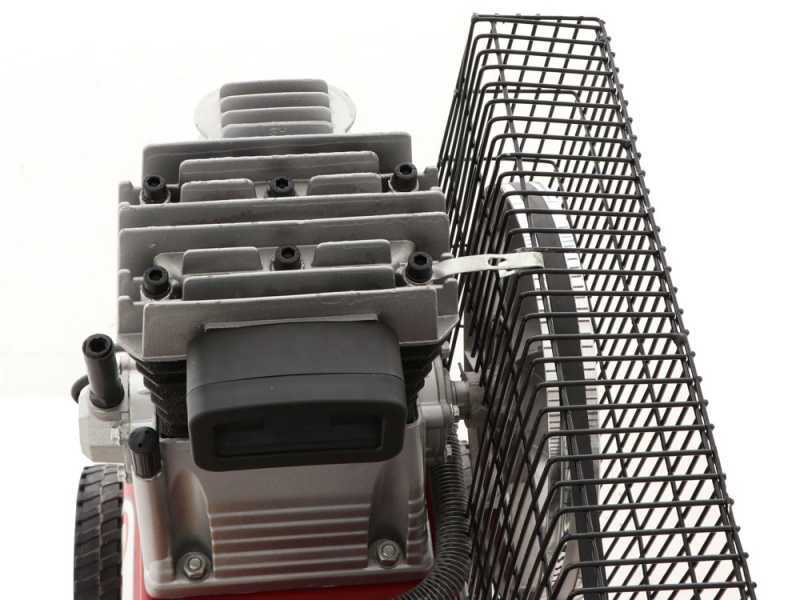

GeoTech Head unit

Air intake flow: 200 lt/min
Head type: with cast iron cylinders
Suction type:single-stage
Lubrication:oil
No. of revolutions: 2800 rpm

The degree of professionalism and more generally the life of the compressor is largely determined by the number of revolutions per minute of the head.

The lower the rpm, the longer the life of the compressor. The reduction ratio of the number of revolutions is obtained by the pulleys of different diameter that are assembled to the motor and to the head unit respectively.

Geotech-Pro BACP50-8-2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 50 L - 8 bar
Geotech-Pro BACP50-8-2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 50 L - 8 bar Geotech-Pro BACP50-8-2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 50 L - 8 bar Geotech-Pro BACP50-8-2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 50 L - 8 bar Geotech-Pro BACP50-8-2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 50 L - 8 bar

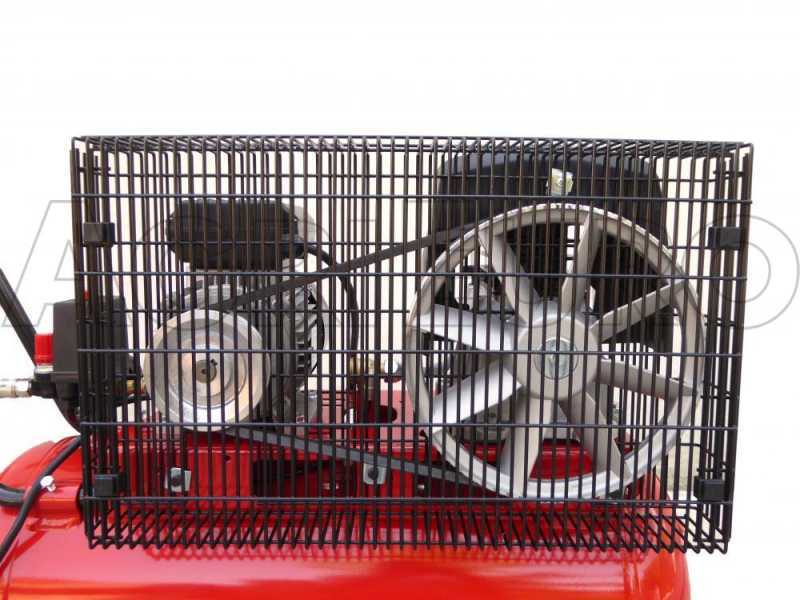

Belt drive

The belt drive characterizes these compressors.

The use of the belt, combined with an induction motor, contributes to the durability of this compressor, drastically reducing the number of revolutions of the head, increasing its life and reducing wear.

The protective grid is used to protect the belt and drive from any external objects that could damage it during operation. It also allows to always have under control the status of the belt.

Geotech-Pro BACP50-8-2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 50 L - 8 bar
Geotech-Pro BACP50-8-2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 50 L - 8 bar Geotech-Pro BACP50-8-2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 50 L - 8 bar Geotech-Pro BACP50-8-2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 50 L - 8 bar Geotech-Pro BACP50-8-2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 50 L - 8 bar Geotech-Pro BACP50-8-2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 50 L - 8 bar Geotech-Pro BACP50-8-2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 50 L - 8 bar

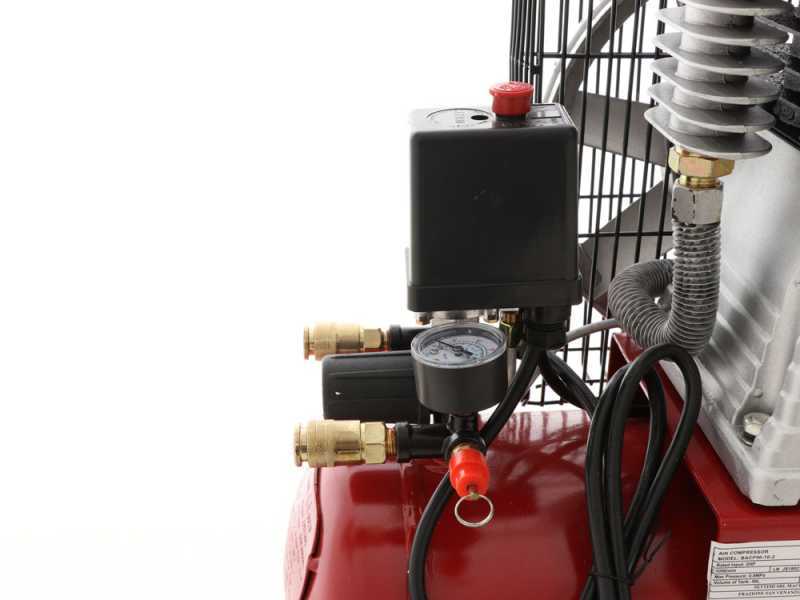

Controls and additional specifications

This GeoTech air compressor features easy and user-friendly controls, which are divided into:

Power switch

Air pressure gauges

Female outlet fittings

Pressure adjusting knob

Handle for transportation

Transport is facilitated also thanks to the wheels

Geotech-Pro BACP50-8-2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 50 L - 8 bar
Geotech-Pro BACP50-8-2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 50 L - 8 bar Geotech-Pro BACP50-8-2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 50 L - 8 bar Geotech-Pro BACP50-8-2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 50 L - 8 bar Geotech-Pro BACP50-8-2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 50 L - 8 bar Geotech-Pro BACP50-8-2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 50 L - 8 bar Geotech-Pro BACP50-8-2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 50 L - 8 bar Geotech-Pro BACP50-8-2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 50 L - 8 bar Geotech-Pro BACP50-8-2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 50 L - 8 bar Geotech-Pro BACP50-8-2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 50 L - 8 bar Geotech-Pro BACP50-8-2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 50 L - 8 bar
Free items & Standard equipment

1° GIFT: air compressor maintenance kit with oil bottle and joints

Maintenance kit provided on standard equipment includes:

  • Air compressor spare/replacing female output joint

  • Air compressor spare/replacing male output joint (replaceable on equipment with bayonet cap) or usable as spare joint

  • Quick joint to convert all the machineries fitted with standard bayonet cap. It allows easily connecting the units to hoses with female quick joint.

  • Quick joint for converting the female output joint supplied on the air compressor into the traditional bayonet cap (also allows the use of the standard hoses with bayonet system)

  • Repair/Junction fitting for Ø 8 hoses
  • Repair/Junction fitting for Ø 10 hoses
  • Lower tank discharge valve replacement air compressor
  • Teflon roll, ideal for the main maintenance operations
Geotech-Pro BACP50-8-2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 50 L - 8 bar
Geotech-Pro BACP50-8-2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 50 L - 8 bar Geotech-Pro BACP50-8-2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 50 L - 8 bar

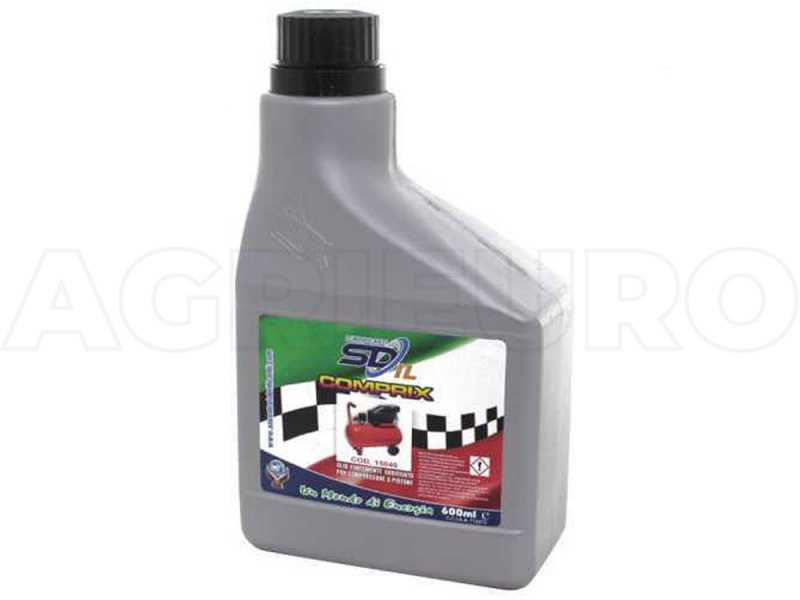

2° GIFT: 600 ml "COMPRIX” oil bottle

COMPLIMENTARY: 600 ml "COMPRIX” oil bottle, professional oil specifically designed for air compressor cylinder heads. Very useful for oil refill and first oil replacement (the air compressor is shipped already filled with oil).

Geotech-Pro BACP50-8-2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 50 L - 8 bar
Geotech-Pro BACP50-8-2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 50 L - 8 bar

Standard Equipment

The air compressor is shipped in its original packaging

Instruction manual included.

Geotech-Pro BACP50-8-2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 50 L - 8 bar
Geotech-Pro BACP50-8-2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 50 L - 8 bar Geotech-Pro BACP50-8-2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 50 L - 8 bar
