GeoTech Pro AMF-E 125 - Tractor-mounted side verge flail mower with Arm - light series

Questions & Answers (6)
ID: 105128

EAN: 8053435090575

MPN: AMF-E 125

8,9/10
After-sales assistance & Spare parts
GeoTech Pro AMF-E 125 - Tractor-mounted side verge flail mower with Arm - light series
+70 sold
Prompt Delivery
2 items in stock
Free Shipping
Estimated delivery: 02/12/2026 - 04/12/2026
Suggested price:
€ 3.186,00
€ 2.389,50
Vat included
Technical data
Tractor power
from 30 to 35 HP
Sturdiness/Series
Light
Weight
250 Kg
Cutting width
125 cm
Shift
Hydraulic
Standard cutting tools
Hammer flails
External gearbox
yes
Embankment shredder
yes
Hammer flail weight
0.4 Kg
Cardan shaft
Yes
Product Features
Model
AMF-E 125
Mulcher type
Side mulcher
Tractor power
from 30 to 35 HP
Sturdiness/Series
Light
Shift
Hydraulic
Embankment shredder
yes
Cardan shaft rotation
Clockwise
Manufacturing country
China
Transmission data
Integrated free wheel device
Yes
Side drive belts
3
Cutting data
Cutting width
125 cm
Wood diameter
Up to 30 mm
No. of blades
16
Standard cutting tools
Hammer flails
Hammer flail weight
0.4 Kg
Blades bolt diameter
16 mm
Cutting width
125 cm
Equipment
Counter-blade
Single row
Hydraulic Piston for moving
Yes
Rear support roller
Yes
Free gifts/extra features
Side skids
Yes
Cardan included
Yes
Cardan shaft
Yes
Instructions manual
Yes
Dimensions
Product dimensions in cm (L x W x H)
170x150x90 cm
Net weight
250 Kg
Packaging
On pallet
Original packaging/s dimensions in cm (L x W x H)
171x75x60 cm
Weight including packaging
280 Kg
Unloading with hydraulic tail lift
Yes
Assembly time
60 minutes
Add Accessories and get a discount
You're viewing:
Customers also viewed:
Description

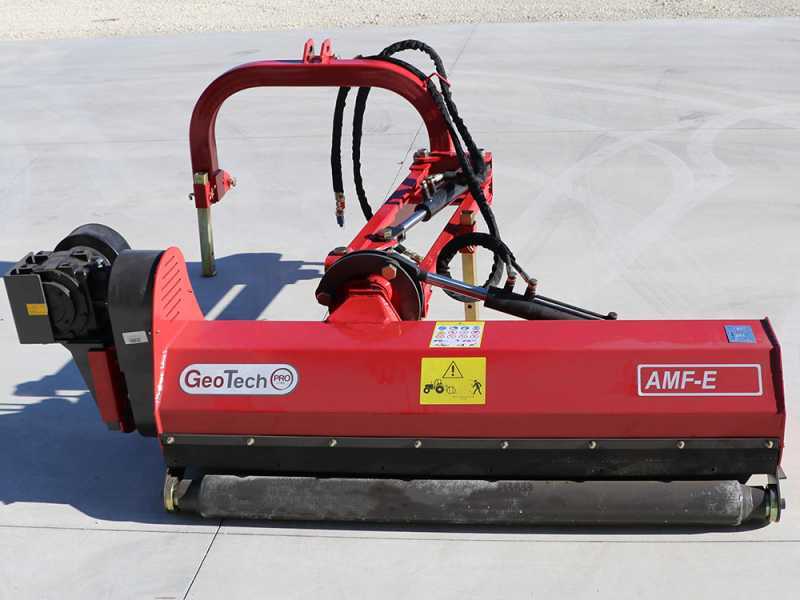

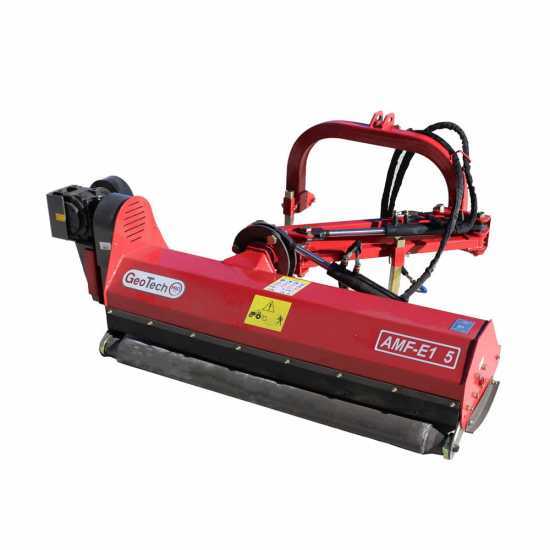

Side flail mower with arm for tractor

The GeoTech-Pro AMF-E 125 side flail mower of the light series is a machine with unlimited configurations for the maintenance of the green areas.

Suitable to small tractors, the pantograph arm and the compact design enable to work in any situation and to adapt to any request.

The transmission gearbox of this model is located outside; this enables a further movement towards outside, thus maintaining the cardan shaft in movement even in detached position and without too much effort.

This model represents the maximum level of flexibility of the flail mowers, in fact, the (totally hydraulic) movement is both horizontal and vertical.

It can be used to clean street edges, banks and moats where it is requested that the flail mower works sideways to the tractor or even in vertical for the hedge and bush cutting.

  • Ideal for municipal works, ditches, embankments and inclined lands in general.

The hydraulic side shift is carried out by two sturdy pistons and the side transmission is made by 3 belts.

TECHNICAL DETAILS (in summary):

  • Real working width: 120 cm
  • Real width occupied: 170 cm
  • Weight: 250 kg

STANDARD EQUIPMENT (in summary):

  • Universal 3 point hitch
  • Rear roller
  • Greasing points

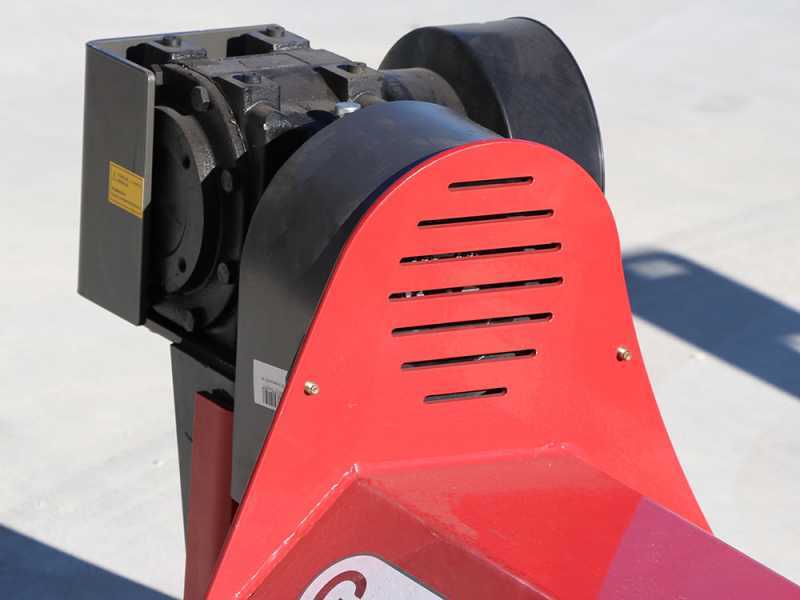

Side belt transmission and reduction gearbox group

Big size oil bath reduction gearbox group. The outer body is made of cast iron, while the inner gears are made of tempered steel.

Provided with caps for filling and for the level.

Side 3 big section belts transmission

Easy removable side belt protection carter

Focus on the side greaser on the transmission side, easy to access from a dedicated opening

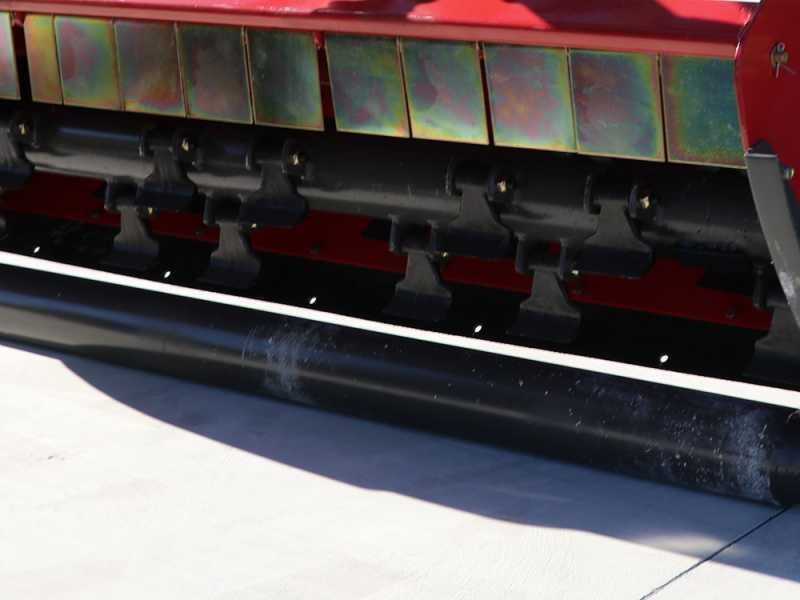

Cutting tools: hammer flails

No. of hammer flails on standard equipment: 16

(hammers), mounted on supports welded to the rotor.

Side support with internal fixing bearing in the hammer flail rotor.

Central cavity with greaser.

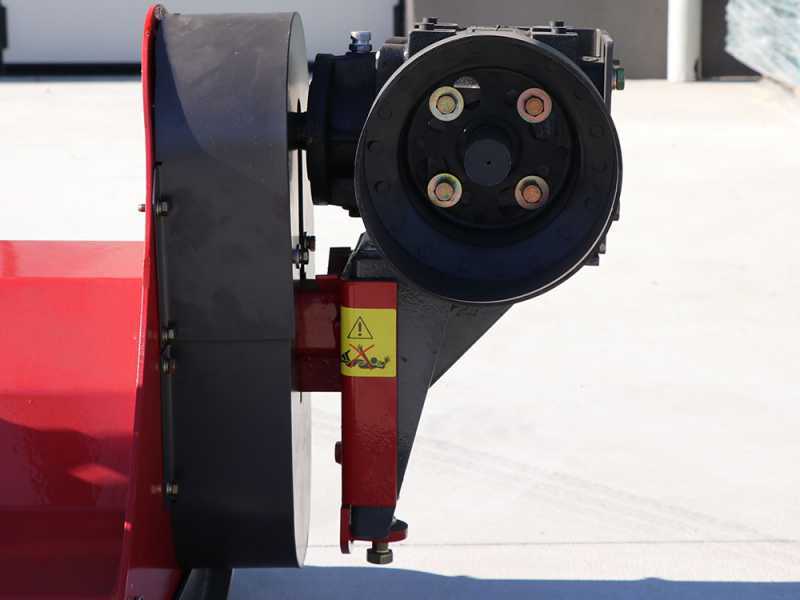

Rotor, reinforced hammer flails supports, side bearings

It finely chops grass and shoots.

Thanks to the high number for rotor rotations and the high number of hammer flails it reduces the wave effect of the turf and carries out an excellent chopping operation.

Thanks to the very sharpened hammer flails it is possible to obtain an excellent cutting operation on gardens, lawn and urban areas.

The flail mower has to be applied behind the 3 point linkage of the tractor.

Hydraulic side and vertical shift

Side and vertical movement actioned by means of 2 cylinders. Provided with four fast linkage tubes to be connected to the tractor’s hydraulic joints.

It is a very sturdy side shift system with flexible arms and rotation mechanisms on hardened steel bushings (Pcm).

Stabilizer accessories - rear roller - 3 points linkage

Standard supplied rear roller with height adjustment.

Focus on the side steel support for the roller with holes for the height adjustment.

Standard supplied side support skids

Front protection flaps made of folded steel.

Lay foot.

3-point hitch

Recommendations for Use - Tractor-mounted Fixed Flail Mowers

To ensure correct operation, a longer service life and safe working conditions, it is essential to use the tractor-mounted flail mower in accordance with the instructions set out in the user manual and the machine’s technical specifications. Incorrect use may result in premature wear of components, reduced performance or damage not covered by the warranty.

Before starting work, always check that the tractor is compatible with the flail mower by verifying the required power, hitch type and intended operating conditions. Correct matching of the machine and the tractor ensures optimum performance and prevents the transmission from being overloaded.

  • Use the flail mower exclusively on suitable surfaces: the machine is designed for grass shredding, wild vegetation, plant residues and materials compatible with the machine’s category. Avoid contact with unintended objects such as stones, metal, plastic or other foreign bodies.
  • Adjust the working height correctly: maintaining an adequate distance from the ground reduces the impact on the cutting units and limits excessive stress on the machine’s structure.
  • Do not operate the machine where there are hidden obstacles or unsuitable ground conditions: ditches, stumps, exposed roots, loose stones or uneven ground can cause sudden impacts and damage to the cutting parts or transmission components.
  • Do not use the flail mower for operations other than shredding: the machine must not be used for earthmoving, ground levelling or other applications not specified by the manufacturer.
  • Always adjust the forward speed to suit the working conditions: excessive speed can reduce the quality of the shredding, increase vibrations and subject the machine to stresses greater than those for which it was designed.
  • Avoid using the machine on excessively damp material: wet grass or particularly damp vegetation can cause material to build up inside the machine, reducing its efficiency.
  • Do not force the tractor forward: if the rotor slows down, vibrations increase or cutting capacity decreases, speed must be reduced and the work adapted to the conditions of the ground and vegetation.
  • Check the condition of the cutting components regularly: worn, damaged or missing blades, hammers or other cutting elements can compromise the machine’s operation and increase vibrations during use.
  • Carry out periodic checks and routine maintenance: check that components are correctly tightened, inspect the condition of the transmission components and ensure the machine is generally clean to maintain its efficiency and safety.

Use of the power take-off (PTO):

The tractor’s power take-off (PTO ) must be used in accordance with the rotational speed specified by the flail mower manufacturer. An incorrect rotational speed may compromise the machine’s operation, causing overheating, accelerated wear or excessive stress on mechanical components.

When attaching and detaching the flail mower, the power take-off must always be disengaged and the tractor switched off. It is also necessary to check that the PTO shaft is correctly installed and has sufficient clearance to move freely while working.

Free items & Standard equipment

Standard Equipment

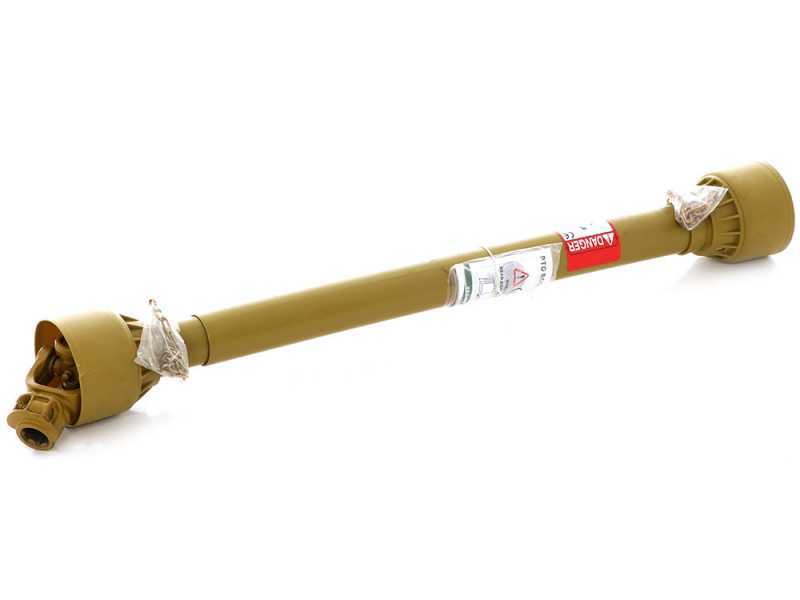

Shipped in original crate with cardan shaft
