Name: GeoTech Pro AKF110 - Side mulcher for tractor - Lightweight series
Brand: GeoTech Pro
SKU: 103941
Price: 2168.98 EUR
Availability: InStock
Rating: 3.83 (4 reviews)

Description

Side flail mower with arm for tractor

The GeoTech Pro AKF 110 side-mounted embankment mower is a lightweight series implement designed for efficiency and versatility in a variety of operating contexts. This model combines a competitive price/quality ratio with technical features ideal for use on sloping terrain, roadsides and ditches.

The lightweight yet robust design allows it to operate with low horsepower tractors while maintaining high levels of performance. The hydraulic boom displacement system offers dual flexibility: both horizontal and vertical movement. This configuration allows the mower to be used to work outside the tractor or in a vertical position, making it ideal for operations such as cleaning roadsides, embankments and cutting hedges or bushes.

The GeoTech Pro AKF 110 is distinguished by its three lateral belt drive system, which guarantees efficient power transfer and long service life. Hydraulic side-shift is controlled by two robust pistons, designed to with stand heavy-duty use.

Main features:

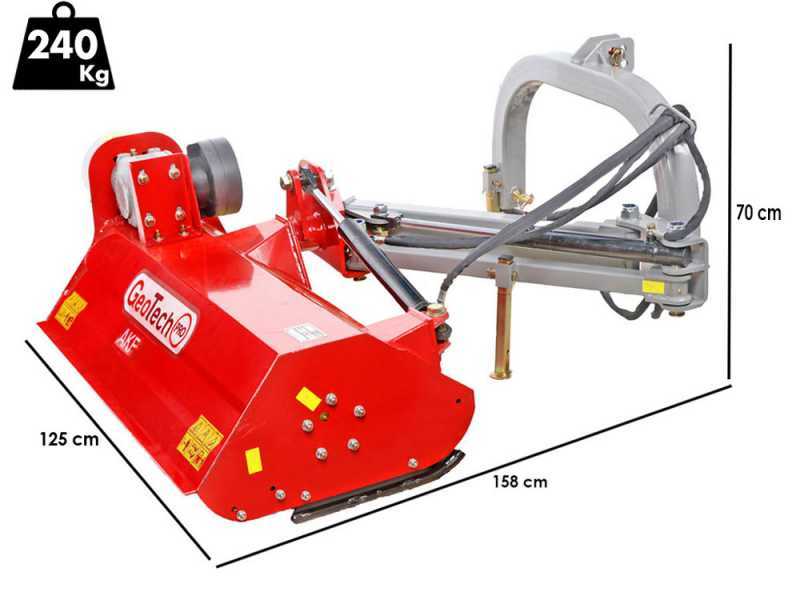

Working width: 110 cm, ideal for precision working in confined spaces.
Overall width: 125 cm, including side skids for greater stability.
Weight: 240 kg, optimum for balanced and easily manoeuvrable equipment.
Versatile use: for sloping ground, ditches roadsides, hedges and bushes.
Hydraulic movement: dual horizontal and vertical function for maximum flexibility.
Robust transmission: 3-belt system for long-lasting performance.

GeoTech Pro AKF110 - Side mulcher for tractor - Lightweight series

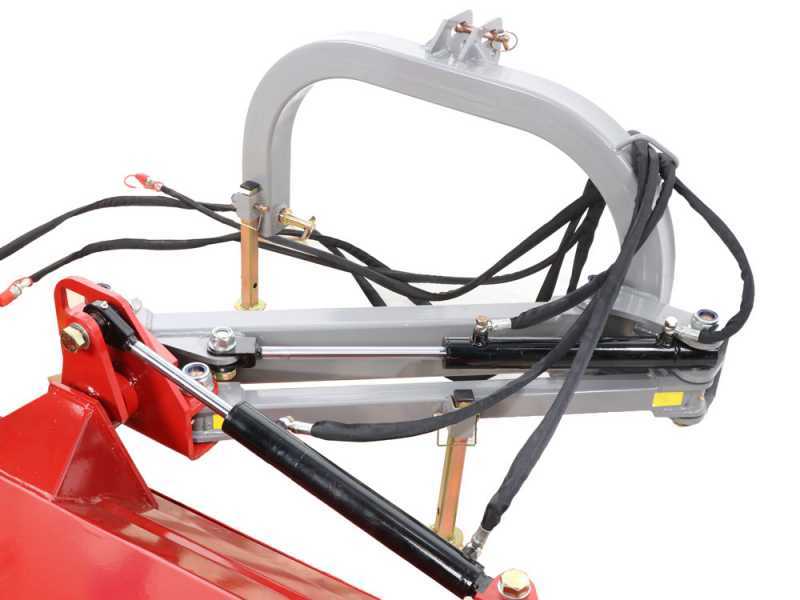

Hydraulic side and vertical shift

Hydraulic lateral and vertical movement is controlled by means of 2 pistons.

Equipped with 4 hoses that are connected to the hydraulic couplings on the tractor.

This is a very robust displacement system. It is structured on articulated arms

The mower can work up to 90° vertically upwards and -40° downwards.

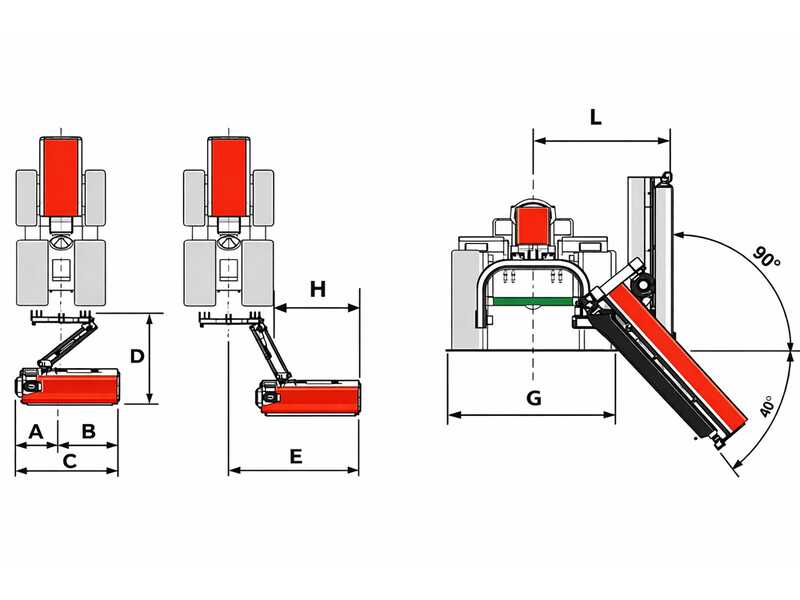

Side-shift adjustment diagram :

A : 67.7 cm
B : 54.3 cm
C : 122 cm
D : 158 cm
E : 166.3 cm
G : tractor width
H : E - 1/2 (G)
L : 135.7 cm

Cutting tools: hammer flails

No. of hammers fitted as standard: 18

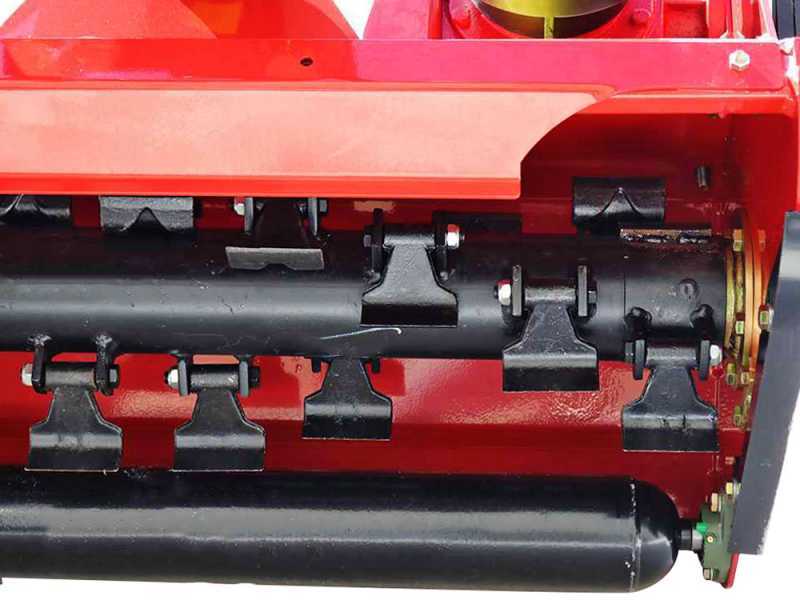

Close-up of the hammers (mallets), mounted on supports welded to the rotor, which reduce the wave effect of the turf and provide excellent shredding action.

Detail of the lateral support with internal fixing bearing of the knife rotor.

Detail of the rotor's external anchor plate, with central cavity with grease nipple

Figurative image of the double spiral rotor.

Side belt transmission and reduction gearbox group

Gearbox with gears in oil bath..

Large-section 3-belt side transmission with side belt guard, equipped with various ventilation openings (for regular cooling).

Detail of the side grease nipple on the transmission side, located in a convenient position, accessible through the dedicated window

The power take-off is the standard 1 3/8’ z6 type (suitable for all current and recently manufactured tractors): If you have a very old tractor, check that it is equipped with the same power take-off and with normal clockwise (right) rotation direction

OIL level INCLUDED

Stabilizer accessories - rear roller and side skids

Rear support roller supplied as standard.

Support feet.

Support skids.

Recommendations for Use - Tractor-mounted Fixed Flail Mowers

To ensure correct operation, a longer service life and safe working conditions, it is essential to use the tractor-mounted flail mower in accordance with the instructions set out in the user manual and the machine’s technical specifications. Incorrect use may result in premature wear of components, reduced performance or damage not covered by the warranty.

Before starting work, always check that the tractor is compatible with the flail mower by verifying the required power, hitch type and intended operating conditions. Correct matching of the machine and the tractor ensures optimum performance and prevents the transmission from being overloaded.

Use the flail mower exclusively on suitable surfaces: the machine is designed for grass shredding, wild vegetation, plant residues and materials compatible with the machine’s category. Avoid contact with unintended objects such as stones, metal, plastic or other foreign bodies.
Adjust the working height correctly: maintaining an adequate distance from the ground reduces the impact on the cutting units and limits excessive stress on the machine’s structure.
Do not operate the machine where there are hidden obstacles or unsuitable ground conditions: ditches, stumps, exposed roots, loose stones or uneven ground can cause sudden impacts and damage to the cutting parts or transmission components.
Do not use the flail mower for operations other than shredding: the machine must not be used for earthmoving, ground levelling or other applications not specified by the manufacturer.
Always adjust the forward speed to suit the working conditions: excessive speed can reduce the quality of the shredding, increase vibrations and subject the machine to stresses greater than those for which it was designed.
Avoid using the machine on excessively damp material: wet grass or particularly damp vegetation can cause material to build up inside the machine, reducing its efficiency.
Do not force the tractor forward: if the rotor slows down, vibrations increase or cutting capacity decreases, speed must be reduced and the work adapted to the conditions of the ground and vegetation.
Check the condition of the cutting components regularly: worn, damaged or missing blades, hammers or other cutting elements can compromise the machine’s operation and increase vibrations during use.
Carry out periodic checks and routine maintenance: check that components are correctly tightened, inspect the condition of the transmission components and ensure the machine is generally clean to maintain its efficiency and safety.

Use of the power take-off (PTO):

The tractor’s power take-off (PTO ) must be used in accordance with the rotational speed specified by the flail mower manufacturer. An incorrect rotational speed may compromise the machine’s operation, causing overheating, accelerated wear or excessive stress on mechanical components.

When attaching and detaching the flail mower, the power take-off must always be disengaged and the tractor switched off. It is also necessary to check that the PTO shaft is correctly installed and has sufficient clearance to move freely while working.

Free items & Standard equipment

Standard Equipment

The mower is supplied in its original cage with the Cardan shaft
