Name: GeoTech M510 MSWG-T680 TX Self-propelled Petrol Lawn Mower - Mulching Cutting System
Brand: GeoTech
SKU: K502977
Price: 355.56 EUR
Availability: InStock
Rating: 4.15 (114 reviews)

Description

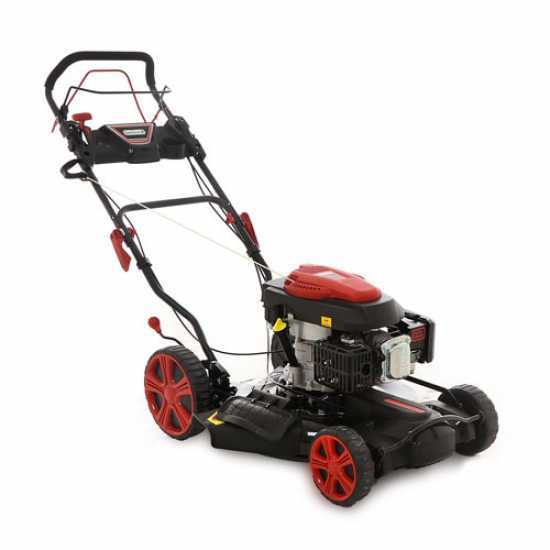

GeoTech M510 MSWG-T680 TX lawn mower

Main technical features of the GeoTech M50-160 MSW lawn mower: M510 MSWG-T680 TX

M = Steel housing specific for Mulching cutting system
510 = 510 mm = housing width
M = Mulching
S = Side discharge
W = High Wheels
G = Gear = Self-propelled
T680 = GeoTech T680 engine

The GeoTech M510 MSWG-T680 TX is a lawn mower equipped with a 50 cm cutting blade, specifically designed for mulching and side discharge cutting system.

It is a greatly appreciated product designed for the mulching cutting system and to mow medium-sized lawns.

The self-propelled system on the front wheels allows reducing Operator’s fatigue during use and optimise cutting efficiency.

It is powered by the 196 cc GeoTech Tx80 engine mounted on the large steel housing.

This lawn mower is equipped with a centralised cutting height adjustment system in 5 different positions from 25 mm to 75 mm.

This lawn mower is suitable for surfaces up to 1300 s.q. m.

GeoTech M510 MSWG-T680 TX Self-propelled Petrol Lawn Mower - Mulching Cutting System

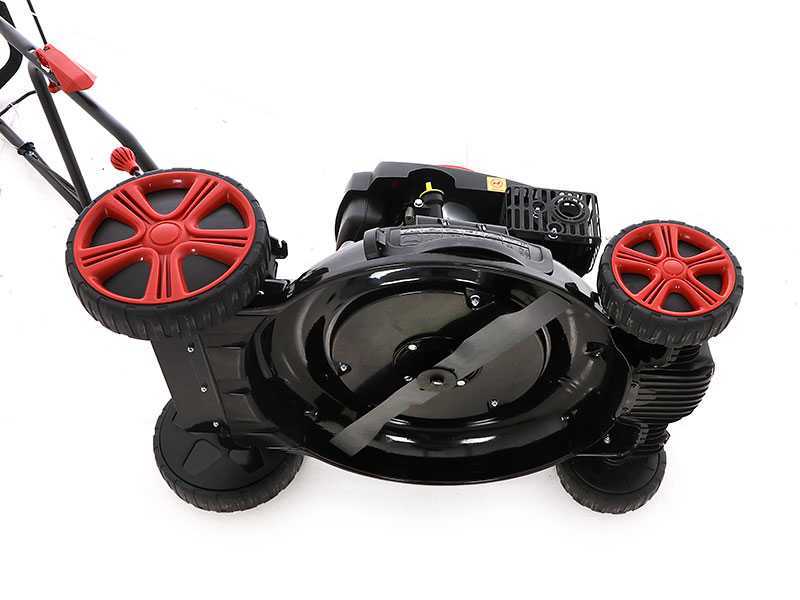

Steel housing and mulching blade

The anti-corrosion and anti-rust steel housing gives this machine a high strength combined with a great lightness.

The blade mounted on the lawn mower is made of universal hardened steel, suitable for mulching cutting system.

- Excellent quality mulching system, creating a flow of air that forces the grass fragments to fall back onto the blade cutting edge and be thrown up again, thus resulting in a very fine shredding (similar to a centrifuge effect)

- High-quality cut, thanks to the hardness of the blade steel and to the excellent sharpening.

Useful cutting width: 50 cm blade

Focus on the steel housing which guarantees a high strength and durability.

Focus on the blade

GeoTech 139 cc T475 engine

The T680 is an EURO V air cooled 4-stroke petrol engine with aluminium cylinder.

Petrol engine with 196 cc and that develops a high power.

It is provided with a 1.25 L grass collector, which ensures a good working autonomy thanks to the low power consumption.

T680 engine features:

Engine type: 4-Stroke, single cylinder

Cylinder type: Aluminium

Cooling system: Air-cooled

Nominal Power: 6.5 Hp @ 3000 rpm

Displacement: 196 cm³

Fuel: Petrol

Fuel: Petrol, OVH (overhead valve)

Focus on the engine filter

WARNING:

The engine is provided without oil. Check the oil level before the first starting.

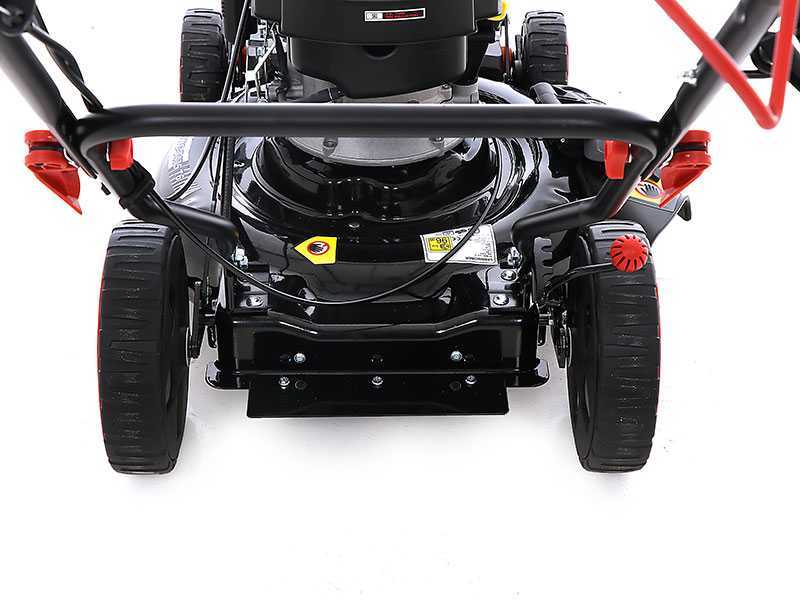

Cutting systems

MULCHING CUTTING SYSTEM: this system allows cutting grass without catching it inside the collector, and crushing the clippings into a fine powder before dropping them on the lawn.
As this cutting tool has been specifically designed for this type of cutting system it ensures higher performance then a multi-tool lawn mower.

WHAT IS MULCHING: This grass mowing system allows crushing grass clippings and dropping them on the ground. The resulting grass particles are so small, they will be barely noticeable on the lawn. This eliminates the problem of its disposal (reducing any effort and shortening the time-saving). Moreover, grass clippings will break down into nutrients and water for the lawn and will thus ensure a perfectly balanced biological cycle.

SIDE DISCHARGE CUTTING SYSTEM: the most traditional among the cutting systems. This system is recommended especially for those who have to cut over-grown grass, for which the mulching is no longer efficient.

MULCHING-SIDE DISCHARGE CONVERSION:

Enter the deflector and allow it to lower to engage the side discharge cutting system.

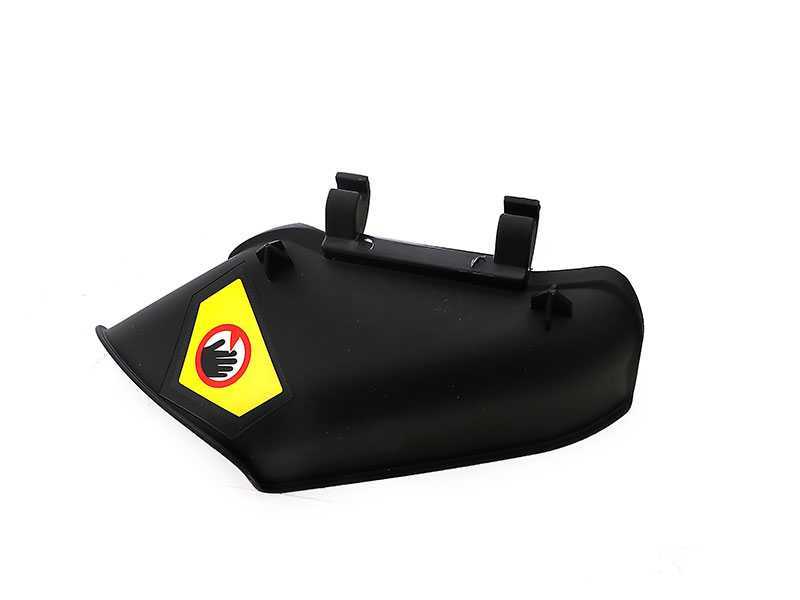

Focus on the closed side deflector.

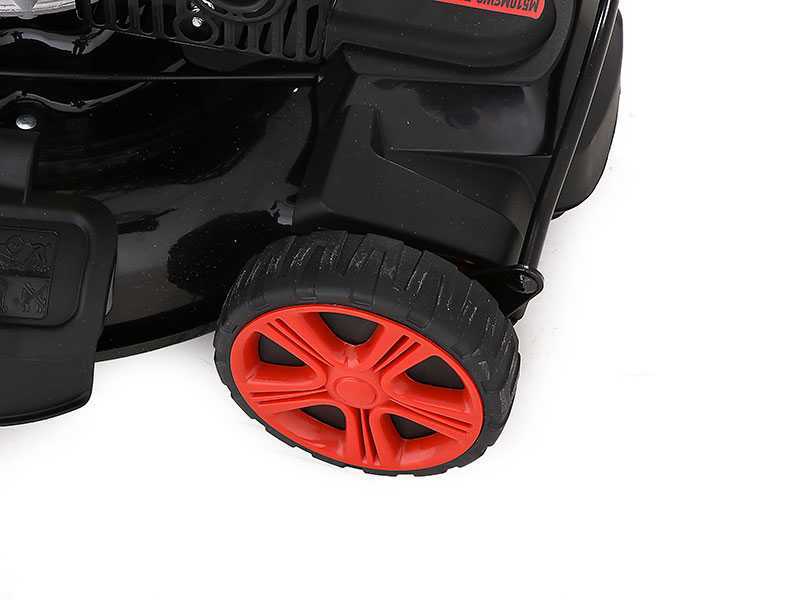

Cutting height adjustment system

The GeoTech lawn mower is equipped with 5 cutting height adjustments from 25 mm to 75 mm.

It is possible to adjust the cutting height by means the centralised lever placed behind one of the rear wheels of the lawn mower. This lever adjusts the height of all the 4 wheels at the same time.

Focus on the centralised cutting height adjustment system of the lawn mower.

Controls and adjustments

Easy and user-friendly controls on the handlebar.

Black blade engagement lever in front of the handlebar.

Advance activating lever, red lever behind the handlebar.

Adjustments available:

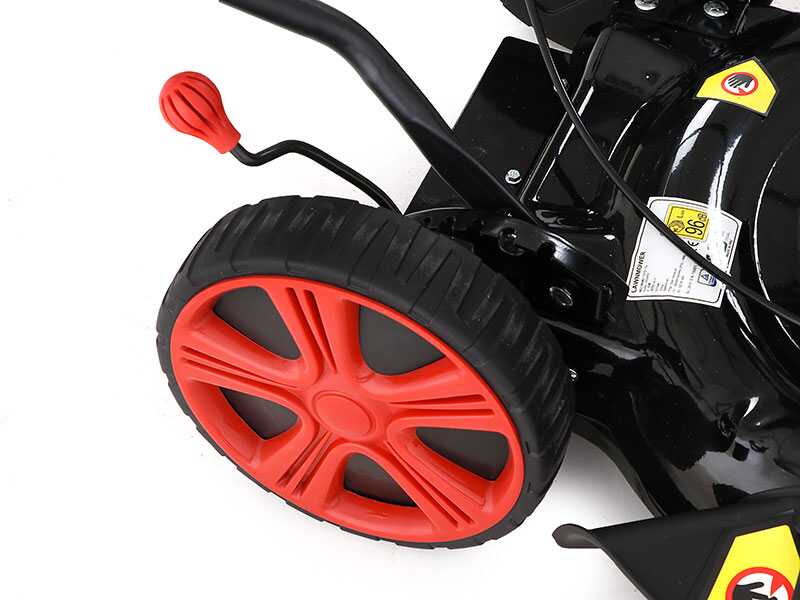

Focus on one cutting height adjustment (1 centralised lever)

Detachable handlebar for easy storing.

Speed adjustment lever.

Instructions for Use for Our Customers

The lawn mower is designed and intended exclusively for cutting grass in garden areas (and not on other types of terrain). The surface must be level, free from irregularities, stones, or other solid objects, and covered with maintained lawn grass (therefore, not uncultivated or spontaneous vegetation). Grass should be cut regularly and must not be allowed to grow beyond 25–30 cm, as most lawn mowers are no longer capable of cutting at this height. Slopes exceeding 15% (equivalent to 9°) must be avoided, except when using 4x4 models.

For heavier-duty tasks involving spontaneous vegetation, grass taller than the above-mentioned limits, or rougher surfaces than a garden, please consider alternative product categories such as Petrol Flail Mowers or Brush Cutters.

Furthermore, grass must only be cut when both the lawn and the underlying soil are completely dry. Mowing should be carried out exclusively in dry weather, well away from periods of rain or irrigation, and preferably in the afternoon, when the grass is no longer affected by morning humidity. Wet grass tends to bend under the blades, which reduces cutting efficiency, increases the risk of clogging inside the deck, and subjects the engine to excessive strain.

Recommendations for Use - Petrol Lawn Mowers

To ensure the safe, efficient use and durability of the petrol lawn mower, it is important to follow a few simple operating guidelines and to use the machine under suitable conditions. Correct use helps to maintain high performance of the engine, the cutting system and the mechanical components, reducing the risk of wear and tear or damage.

Before each use, it is advisable to carry out a general check of the machine, ensuring that all components are securely fastened, checking the condition of the blade, the engine oil level and the cleanliness of the air filter. The blade must always be intact and correctly balanced, as any deformation or damage can compromise the quality of the cut and cause abnormal vibrations.

Ground and grass conditions:

Before each use, remove any obstacles from the lawn, such as stones, branches, metal wires or other foreign objects that could come into contact with the cutting blade. Impacts with rigid objects can cause damage to the cutting blade, the cutting deck, the drive shaft or the transmission components.

Cutting height adjustment:

The cutting height must be adjusted according to the condition of the lawn and the height of grass. Avoid cutting too low or removing an excessive amount of grass in a single pass, as this can overload the engine, affect cutting performance and cause material to build-up inside the cutting unit.

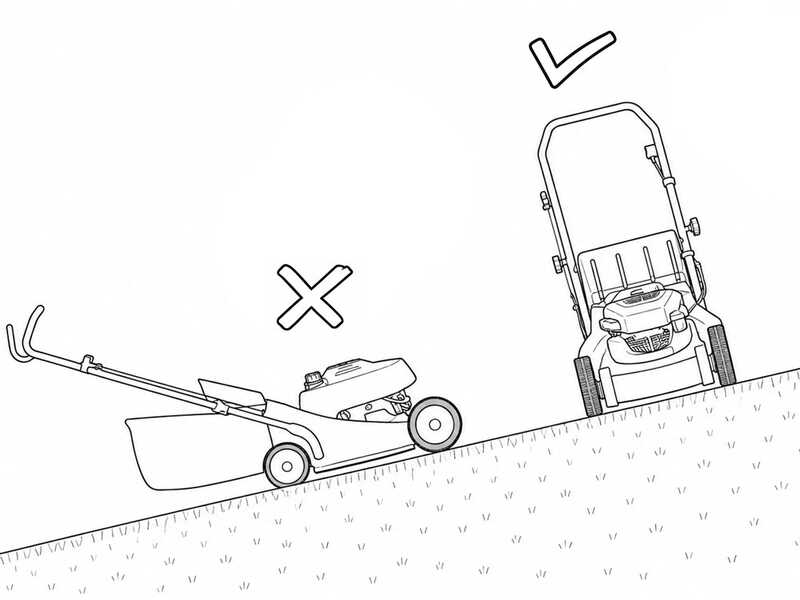

Use on sloping ground:

When working on sloping surfaces, always maintain a stable position and proceed in such a way as to ensure maximum control of the machine. Avoid using the machine on slopes steeper than the limits specified by the manufacturer, as this may increase the risk of losing control or the machine overturning.

Checks during use:

Do not use the lawn mower in case of excessive vibrations, unusual noises or irregular operation. These signs may indicate problems with the blade, the blade holder, the transmission system or other mechanical components.

Cleaning and maintenance:

Regular maintenance helps to maintain the lawn mower’s efficiency over time. After each use, it is advisable to clean the cutting deck by removing grass clippings and soil residues, check the condition of the cutting blade and periodically inspect the main components subject to wear and tear.

Fuel and storage:

Use only petrol that meets the engine’s specifications and store it in suitable containers. Using petrol that has deteriorated or been stored for a long time can cause starting difficulties, irregular engine operation and fuel system problems.

In the event of prolonged non-use, prepare the machine correctly for storage by following the manufacturer’s instructions. Store the lawn mower in a dry place, protected from the elements, avoiding conditions that could lead to corrosion of the metal components.
