GeoTech LHP80 Petrol Water Pump, 80 mm fittings - 3 inches, self-priming - 13 HP

Questions & Answers (2)
ID: K503374

EAN: 9999237538695

8,9/10
After-sales assistance & Spare parts
GeoTech LHP80 Petrol Water Pump, 80 mm fittings - 3 inches, self-priming - 13 HP
FREE
2 bottles of 1 L oil each2 bottles of 1 L oil each
Motor brand
Producer-manufactured
Motor Model
188F
Cubic capacity
389 cm³
Nominal power
13 HP
Power supply
Petrol
Water pump type
Self-priming
Pump material
Aluminium
Flow rate
666 L/min
Fittings diameter
80 mm
Max. head lift
70 m
High delivery head
Yes
Max. suction height
6 m
Aluminium fittings
Yes
Engine speed
3600 RPM
Product Features
Model:
LHP80
Power supply:
Petrol
Starting mode:
Recoil
Manufacturing country:
China
Motor data
Motor brand:
GeoTech
Motor Model:
188F
Cubic capacity:
389 cm³
No. of cylinders:
1
Nominal power:
13 HP
Fuel:
Petrol
Power supply:
Overhead valve OHV
Engine lubrication system:
Oil bath
Decompression system:
Automatic
Tank capacity:
3 L
Manufacturing country:
China
Pump data
Pump brand:
GeoTech
Water pump type:
Self-priming
Pump material:
Aluminium
Engine speed:
3600 RPM
Fittings diameter:
80 mm
Flow rate:
666 L/min
Max. head lift:
70 m
High delivery head:
Yes
Max. suction height:
6 m
Pair of fittings with ring nut:
Yes
Manufacturing country:
China
Equipment
Recoil start system (with rope):
Yes
Aluminium fittings:
Yes
Free gifts/extra features
Oil bottle:
Yes
Hose clamps:
Yes
Suction filter:
Yes
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
70x50x58 cm
Net weight:
44 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
67x50x58 cm
Gross weight (packaging included) :
42 Kg
Assembly time:
5 minutes
Prompt Delivery
12 items in stock
Free Shipping
Estimated delivery: 21/10/2024 - 23/10/2024
Suggested price:
€ 536,47
€ 509,67
VAT Included
You're viewing:
Customers also viewed:
Description

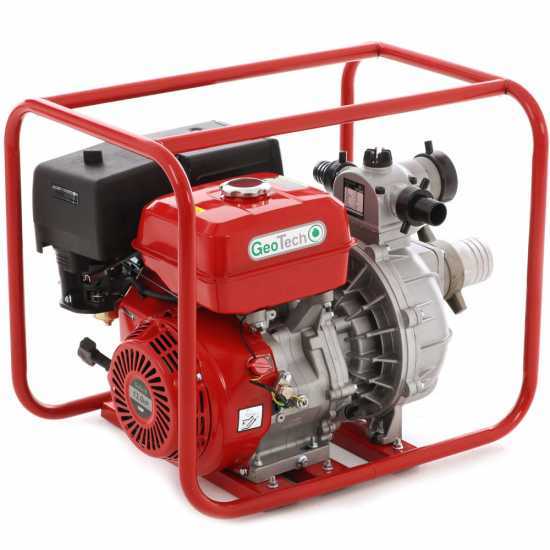

GeoTech LHP80 High-Head Lift Water Pump

GeoTech LHP80 water pump with high head lift is ideal for pumping water from any type of irrigation system through hose or sprinklers.

Thanks to the high head lift, it is perfect for irrigating from wells or rivers up to a maximum height difference of 70 m, with large fittings up to 8 cm!

Excellent value for money!

In particular, this product is very useful in the absence of electricity, or in the countryside when you need to extract water from a well, from a cistern or ponds and tanks that are difficult to reach, or even when you have to drain a cellar or a garage that has been flooded.

This model is an excellent compromise between power and size and it is easy to transport. It also comes with a sturdy wraparound frame made with high-strength tubular which protects it from unwanted shocks.

The pump is self-priming and you can start it by simply topping up the water through the dedicated cap in the pump body.

It is equipped with a powerful 389cc engine capable of delivering up to 13 Hp.

Items included: 2 40 mm PVC fittings,metal clamps and rubber gaskets for the fittings, as well as the suction filter.

WARNING:

  • The engine is provided without oil, remember to fill it before use with the bottles supplied on standard equipment
  • Do not operate the machine with a dry pump

These water pumps are suitable for transferring water (for example from a cistern to another) of for furrow irrigation in fields and gardens.
We do not guarantee the suitability for combined use with different types of sprinklers or irrigation systems, (as they require the contribution of a qualified technician and a number of calculations in terms of flow rate, head lift, pressure, hose diameters, valves, nozzles, and so on), and which may require more specific types of pumps for water systems.

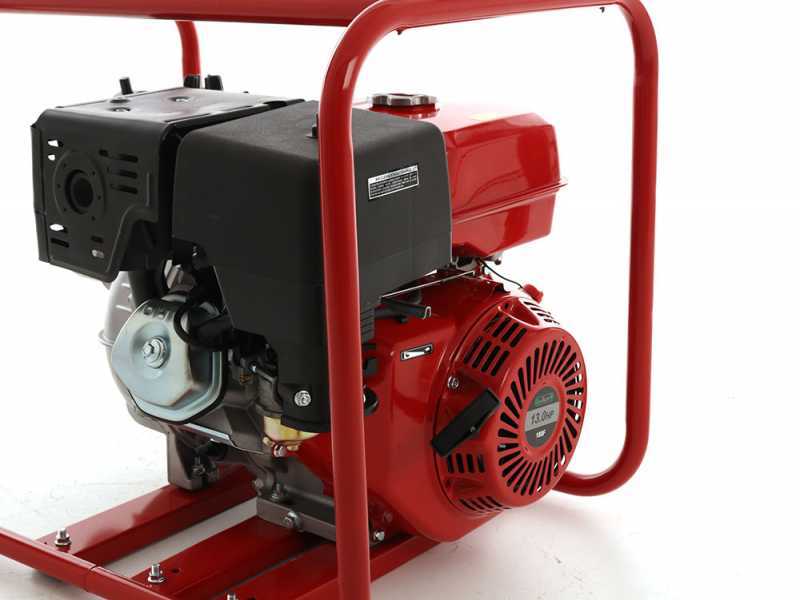

Engine Technical Features

Engine features:

Model: 188F
Type: 4-stroke, single-cylinder, forced-cooled, OHV
Cubic capacity: 389 cc
Power: 13 Hp
Fuel: petrol
Tank: 3 L

The engine features recoil start system and a metal tank with fuel shut-off valve.

Focus on the engine adjustment controls that adjust the air control and engine throttle.

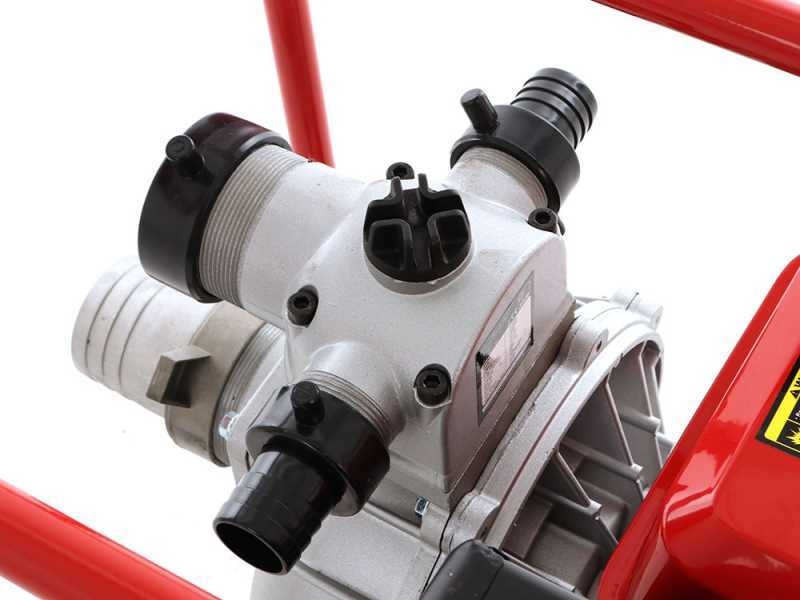

Water Pump Technical Features

The pump mounted on the LHP 80 is entirely made of cast aluminium alloy, which makes it very robust and lightweight at the same time, capable of withstanding prolonged pumping work.

Pump features:

Suction: 80 mm - 3 inches
Discharge: 65 mm - 3 inches (NOT included) + 2 x 38 mm - 1.5 inches
Maximum suction height: 7 m
Max. flow rate: 666 L/min
Max. head lift: 70 m

Focus on the 80 mm - 3 inch suction and discharge fittings

Shockproof frame, suitable for mounting and locking the wheels.

Focus on the pump-engine fitting

Focus on the storage caps, to keep the pump clean when not in use

Utilisations Options

  1. Single 65 mm delivery: The use of a single 65 mm hose allows direct connection to the 65 mm central delivery fitting. This configuration ensures a powerful and constant flow of water, ideal for applications requiring a high water flow rate

  2. 38 mm dual outlet: Using two smaller 38 mm hoses, a water distribution to two separate points can be achieved. Special plugs close off unused delivery outlets, ensuring that there is no loss of pressure and that the water is directed correctly.

WARNING:

To achieve maximum suction height, the use of a bottom valve is recommended

Free items & Standard equipment

Free Items Included

Complimentary:

2 bottles of 10W40 oil, specific for 4-stroke engines

Free Items Included

The pump is shipped in its original packaging, equipped with tools for assembly and maintenance, fittings, locking caps, metal clamps and 2 rubber gaskets for the fittings, as well as the suction filter.

Instructions manual included.
