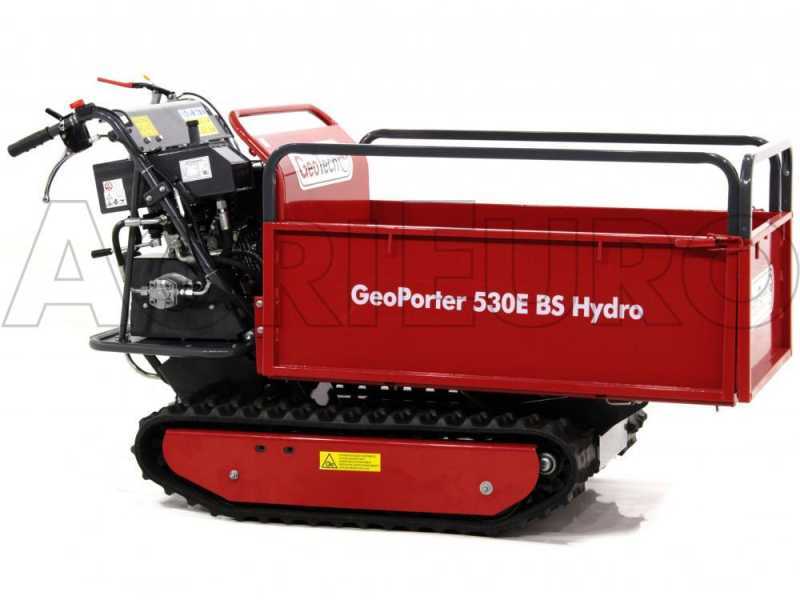

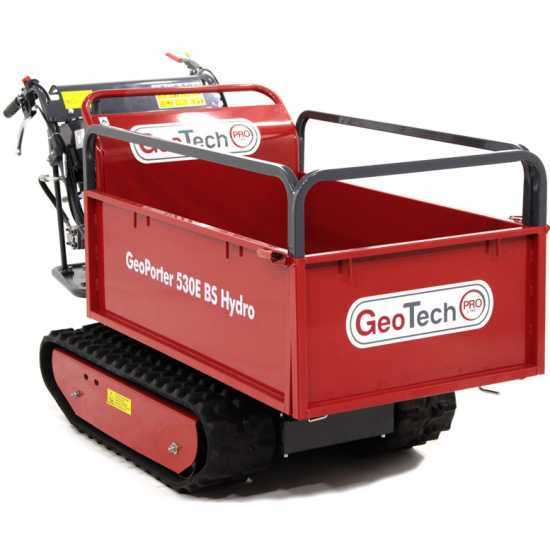

GeoTech GeoPorter 530E BS Hydro Motor Wheelbarrow - 10 HP - Hydraulic dumper skip - 500 Kg loading capacity

Tracked dumper with hydraulic tipping. Loading capacity: 500 kg.

As the machine is equipped with a track drive system and is powered by Briggs & Stratton 196 cc engine, this mini dumper is suitable for carrying loads up to 500 kg even on slopes. It is best suited to load different materials.

The tracked power barrow is equipped with heavy-duty Briggs & Stratton 1450 XR Professional Series engine, which allows reaching:

• 10 HP power output

Thanks to its sturdy frame made of steel and its transmission consisting of 3 forward + 1 reverse speeds, it is renowned to be a versatile and efficient machinery.

The hydraulic dumper tipping system ensures the highest levels in terms of comfortability while working resulting in no efforts for the Operator to raise the dumper once fully loaded.

Provided with extendable dumper, which allows highly increasing the tracked barrow loading capacity.

Thus, the additional detachable panels allow getting the highest levels of versatility while working.

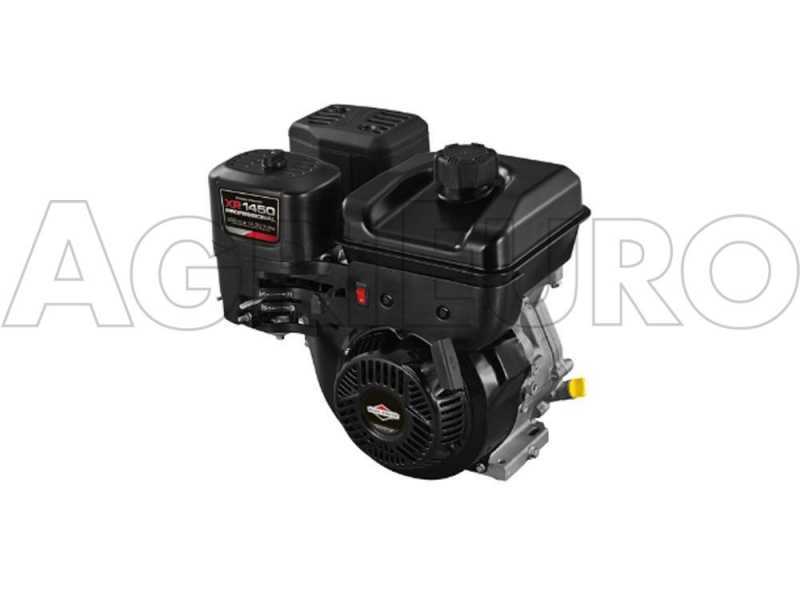

High performance Briggs & Stratton 1450 XR Professional Series engine intended for heavy-duty applications requiring high power, which is reached thanks to the 306 cc.

"Professional Series":

• High performance and extended running time: over 3 times longer durability compared to the one of the Briggs & Stratton CR Series engines.
• These engines are designed for intense working conditions.
• Forged crankshaft for engine, higher durability over time

Specifications:

Latest 4 stroke petrol powered engine with overhead vale "OHV" and automatic decompressor.

Recoil starter with self-priming petrol-powered system.

Motor NOT PROVIDED WITH OIL.
Read the instructions manual carefully before starting the unit.

Gross Power: 10 HP
The appropriate wording is actually “Power Rating” as it is the classic standard terminology for power. All the largest engine manufacturers have officially used this definition up until a few years ago.

* For the most part, this is still the information that all the main commercial and sales channels provide, even though it is higher than the net power output.

Gearbox: large-sized gearbox. Comfortable and user-friendly. Fully Italian manufactured product.

Speeds:
3 forward speeds

1 reverse speed

Breaking system:

They are connected to the transmission gear in order to ensure higher balance and safety. Release the controls to operate the brakes automatically (the machine will be kept totally blocked even on steep slopes and even in neutral).

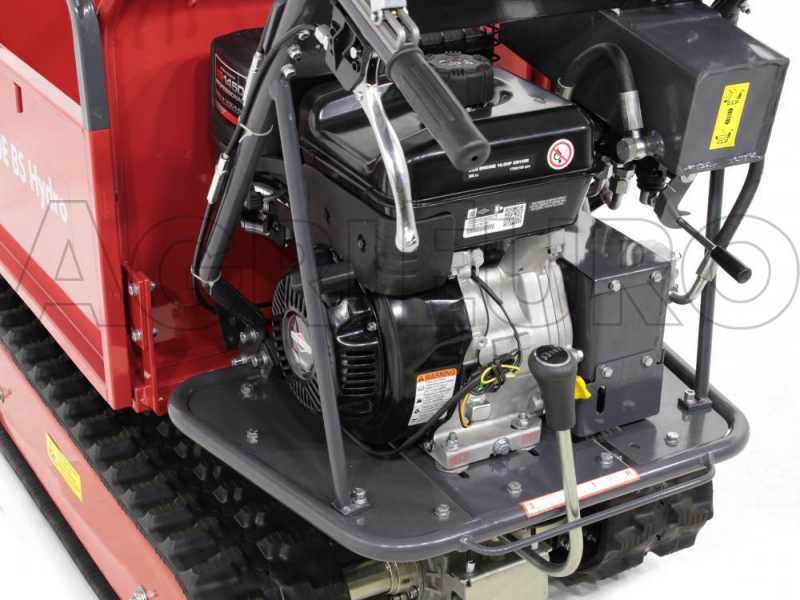

Transmission:
The sturdy and strong transmission allows managing the power steering interrupting the track rotation singularly.

The machine is supplied by the manufacturer with transmission oil level. Anyway, oil levels must ALWAYS be checked before operating the unit as specified in the instruction and maintenance manual.

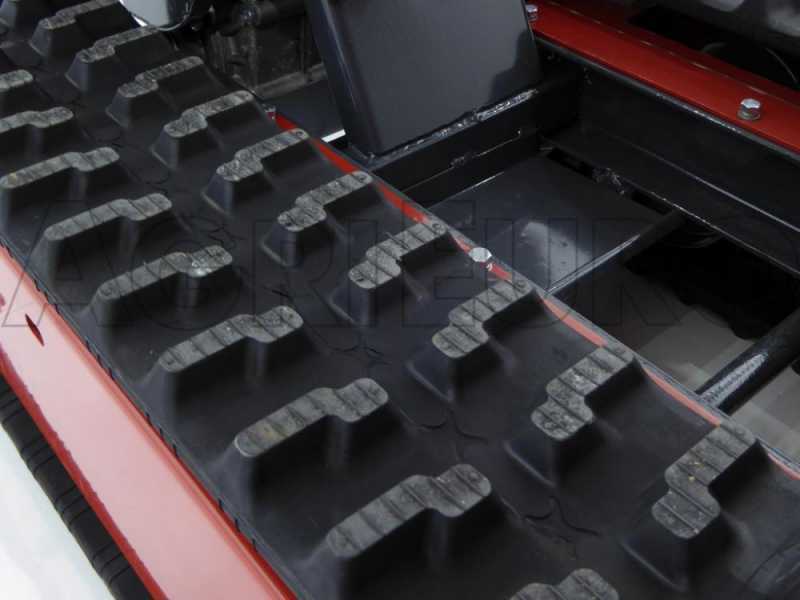

Their width and structure ensure extra-grip and balance on any type of ground. They are made of reinforced rubber, which ensures extra grip on any surface and steps.

The rear side of the track features a sharp upper angle, which allows moving the unit even on steps or any possible obstacles the power barrow may meet ahead.

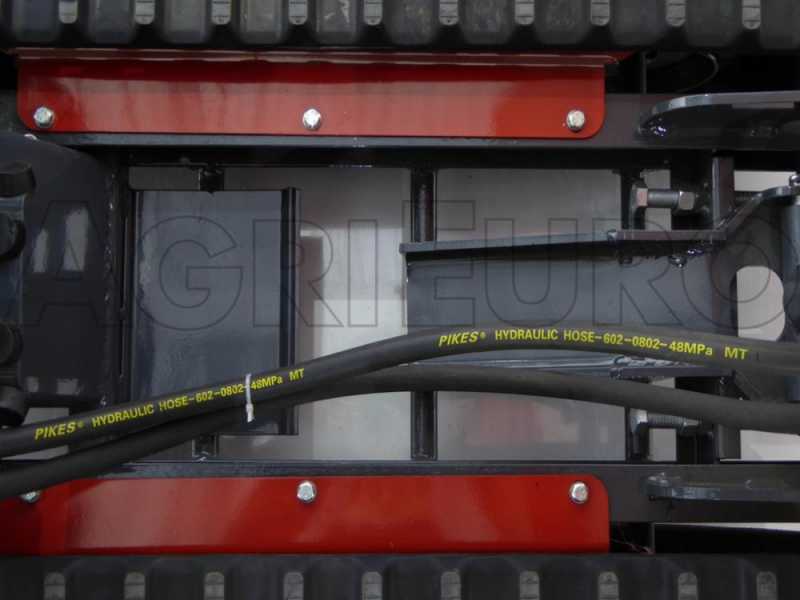

The sturdy frame with thick steel box-section prevents vibrations and noise. The low machine centre of gravity ensures a great balance while working. The engine and the transmission are easily accessible to apply maintenance operations.

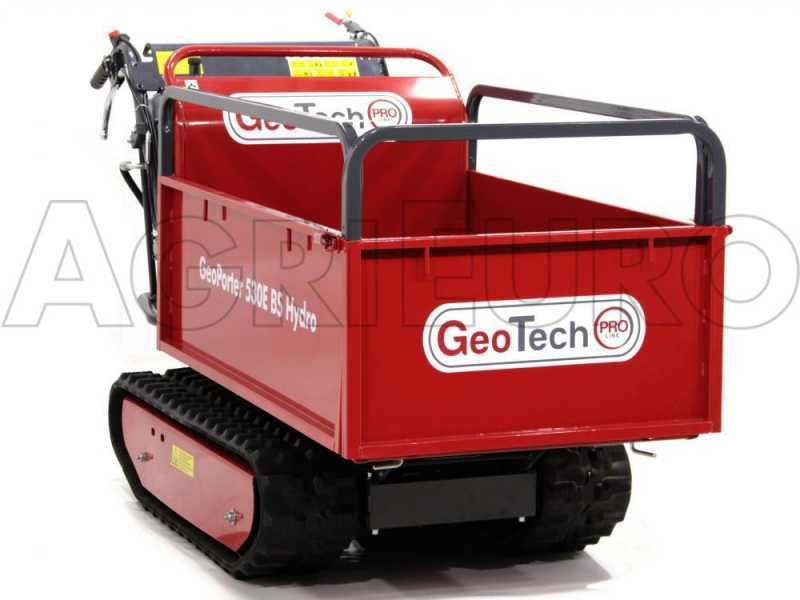

High-resistance steel skip, specifically reinforced with tubular steel construction on the underside of the machine. Its structure makes the unit suitable for carrying any load even in case of overstress. The loading platform is located at the minimal distance from the ground in order to enhance the loading/unloading operations.

The tracked power barrow is provided with a pneumatic cylinder which assists tipping system. Remove the ram to allow a complete tip over. This feature allows ensuring easier comfortability while working.

Increased the inside box volume by means of the extendable side panels. In addition to the standard threaded pin with handle on the underside of the skip, the machine is equipped with sturdy adjustable hinges as safety device that allows ensuring that the side panel will be totally locked.

Moreover, the machine is provided with extendable sides on standard kit. The extension sides can increase the loading capacity.

For example, you can use them to carry and load logs. Increase the load by means of the extension sides to optimize your work.

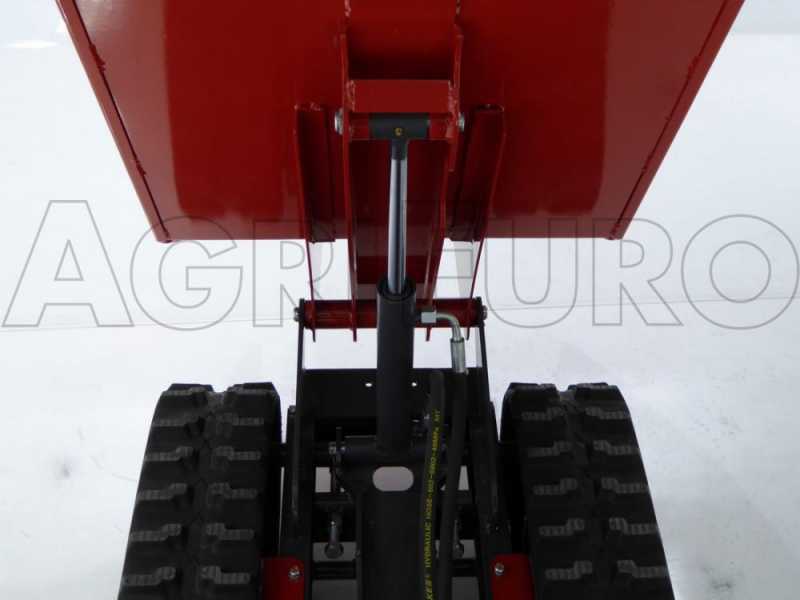

Heavy-duty hydraulic system consisting of:

- Oversized hydraulic pump

- Connector equipped with handy pump activation lever

- Sturdy hydraulic cylinder with safety valve, which features the function of blocking the skip in case of sudden pressure leaks.

- Max tipping angle: 80°

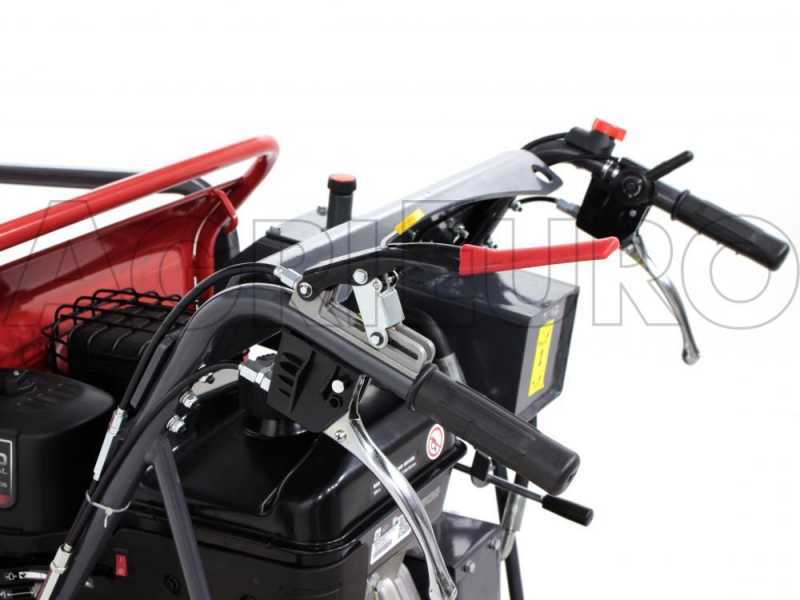

Controls: use-friendly and ergonomics, ensuring the highest-levels in terms of efficiency and control of the power barrow.

Large-sized red start lever.

Two steering triggers on the underside, on the right and the left respectively.

Possibility to control the steering by means of the control lever, which allows an easy manageability of the unit. By pulling one of the two levers partially, the track on that side will turn in that direction partially as well. Therefore, the Operator can steer the tracked power barrow very easily avoiding sudden and accidental motions.

Safety brake to immediately stop the machinery.

Throttle lever and power switch.
