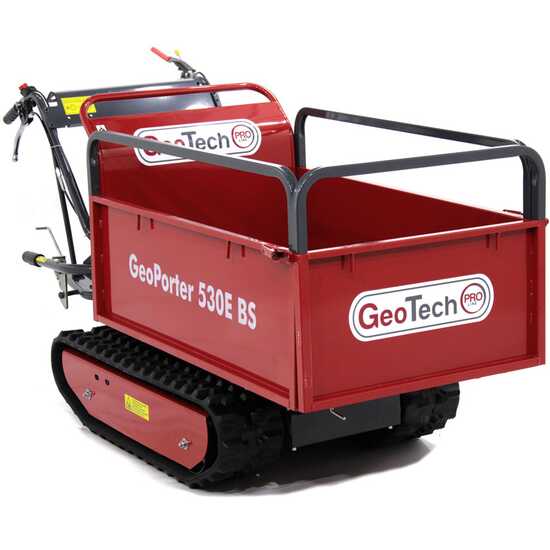

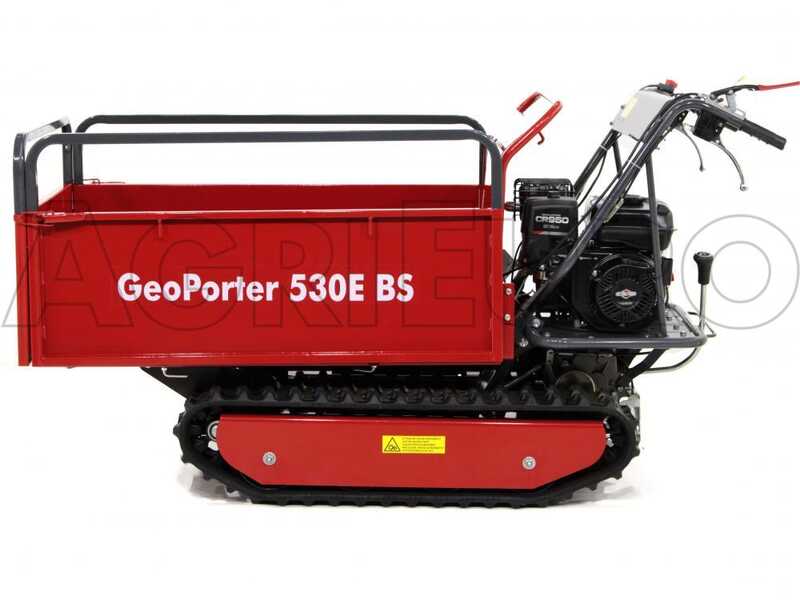

GeoTech GeoPorter 530E BS CR950 Tracked Power Barrow with Extendable Barrow - 500 kg Capacity

The tracked power barrow with extendable barrow with an actual capacity of 500 kg.

Thanks to its tracks and to the Briggs & Stratton engine this tracked power barrow is capable of carrying loads of 500 Kg also on sloping grounds, thus being an indispensable tool for each type of transport.

The robust steel frame and the gearbox with three forward and 1 back gear make this tracked power barrow versatile and efficient.

The Briggs & Stratton 950 Series engine that is attached to the tracked power barrow, ensures excellent longevity and reliability of the machine.

It is offering extensible tipping which allows to greatly increase the load carrying capacity of this tracked power barrow.

In addition, another great advantage is the addition of the removable sides, which allow to obtain an extraordinary versatility of work.

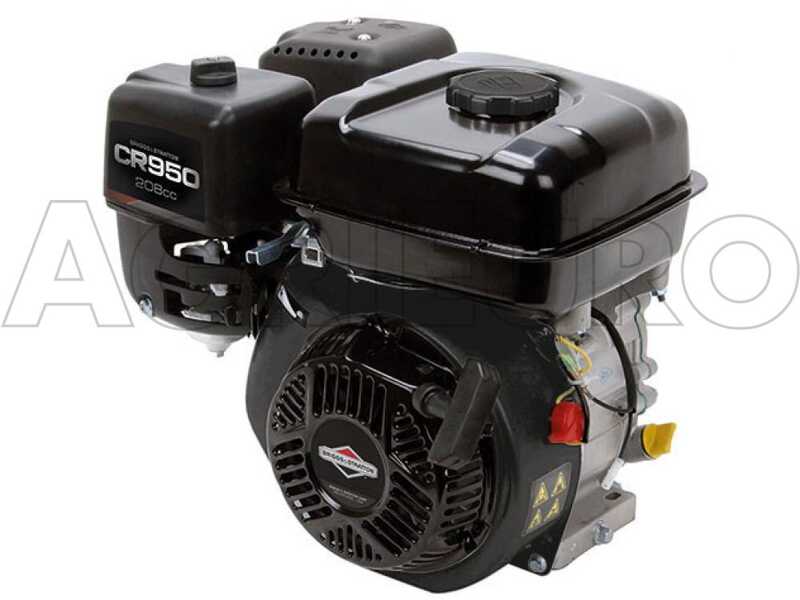

The Briggs & Stratton Series 950 engine guarantees high performances and it is suitable for works where high power is required achieved thanks to the high 208 cc displacement

Features:

Brand new 4-stroke engine (overhead valve shaft OHV - recoil ignition ).

Easy re-coil start thanks to the automatic fuel priming system.


The engine is PROVIDED WITHOUT OIL.
Make sure to carefully read the instructions manual before starting the unit.

Rated Power: 7 HP
The correct term would be "Commercial” Power, meaning the classic standard of definition of power officially used until a few years ago by all leading engine manufacturers.

* This figure is even more widespread and advertised in the leading commercial channels, although it is a matter that it is higher than the actual power.

Effective power: 4.70 HP (a rotation speed of 2600 rpm)
It corresponds to the real power expressed motor shaft. This is the power indicated as official in the manual or in the technical data of the motor manufacturer.

* This technical data may vary for the same engine model depending on the rotational speed supplied by the engine applied to the equipment.

Gearbox: Large, reliable and accurate.

Speed:
3 forward
1 reverse

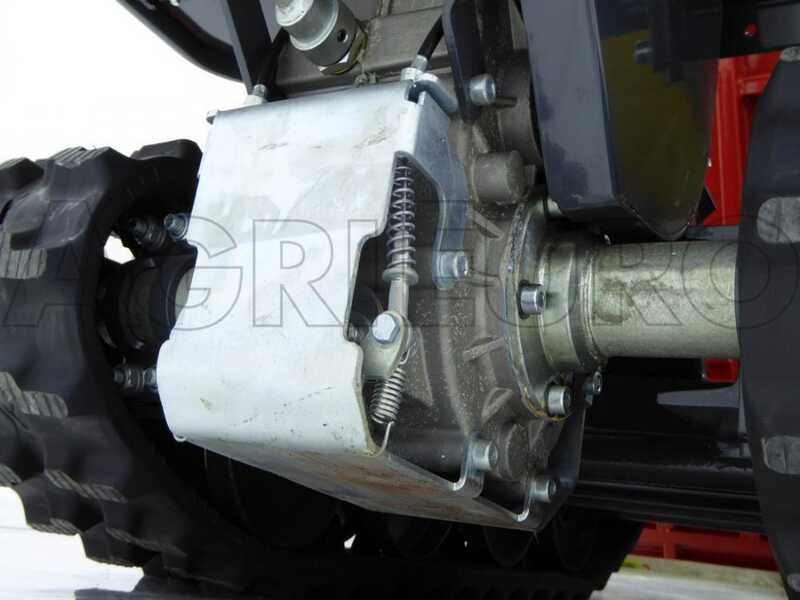

Parking brakes:
annexes to the gearbox, for greater stability and security.
These are automatically activated to release the command (leaving the car in neutral, even in strong gradient, the machine remains perfectly blocked)

Transmission:
Robust and resistant, it allows to manage the steering acting on the single track deactivating the rotation

The machine is supplied by the manufacturer with transmission oil level. Anyway, oil levels must ALWAYS be checked before operating the unit as specified in the instruction and maintenance manual.

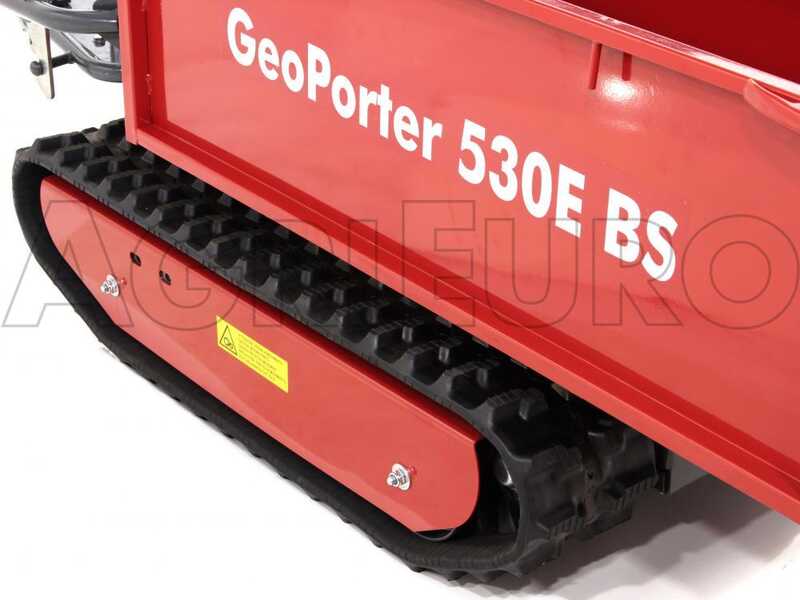

The width and profile of the tread guarantee perfect grip and stability on all types of terrain. Made of special reinforced rubber with excellent grip, they are able to tackle any type of surface or step.

The track at rear angle greater pointy "tank type" allowing him to climb easily even on stairs or other types of obstacles.

The robust frame with steel structure in high thickness which limits the vibrations and noise. The low center of gravity also ensures an optimal stability during the work the position of the engine and the transmission facilitates maintenance

Adjusting the track tension thanks to the tension springs.

Body in high-strength steel, is reinforced with tubular cross members in the lower part, which make it suitable for any load or stress. The loading floor is at the minimum distance from the ground to facilitate loading / unloading operations

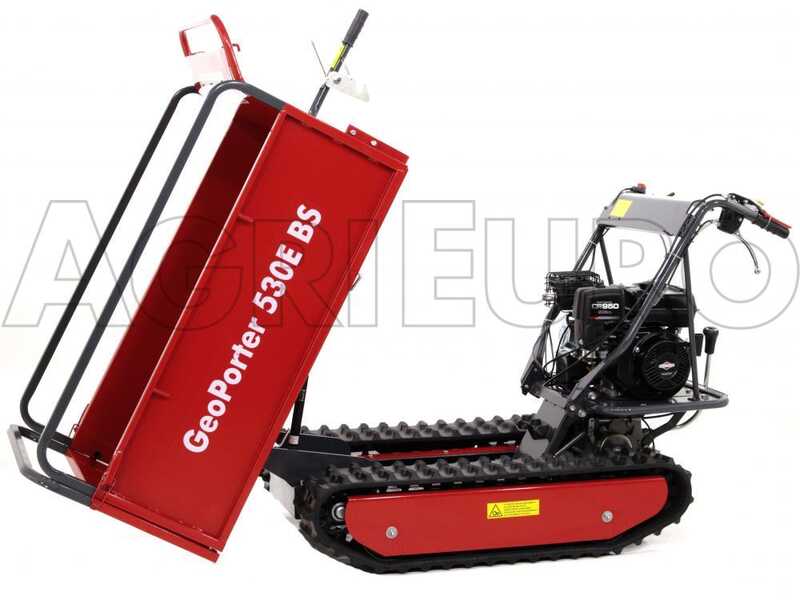

Mechanical tipping: manually activated with the appropriate rubberized release lever with spring, and facilitated (in case of heavy loads) from the long lifting tipping lever placed on the side.

To facilitate the tilting operation, discharging the weight of the operator, and to keep it in the tilted position the barrow, the tracked power barrow is provided with gas piston placed under the frame.
In this way all the work phases will be facilitated.

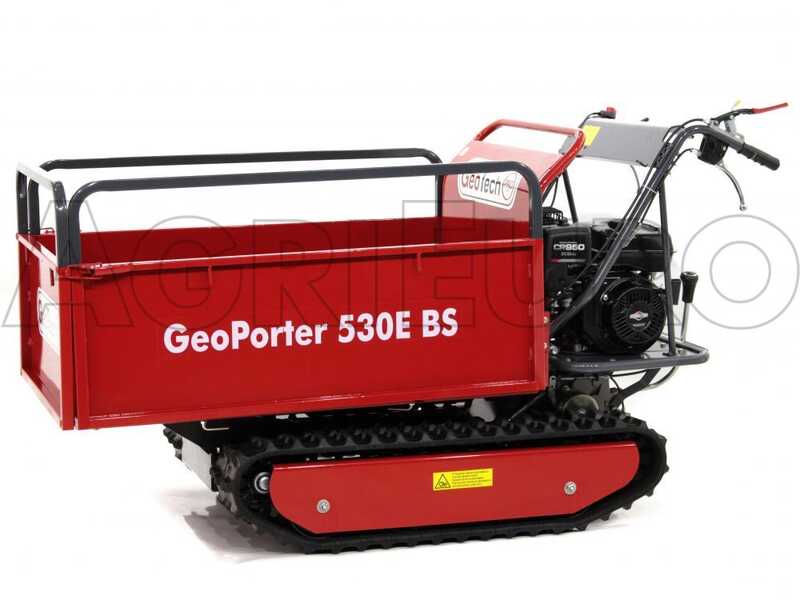

The load capacity can be increased significantly due to extensible shores.
In addition to classic wing nut screws placed under the barrow, the tracked power barrow is provided with sturdy hinges which ensure the banks to one another.

Another solution that allows to further increase the load capacity is the provision of removable overlays .

An example of use is for the transport and the loading of the wood.
Using the overlays you have the ability to increase the load greatly reducing the number of transport to be carried out for the job.

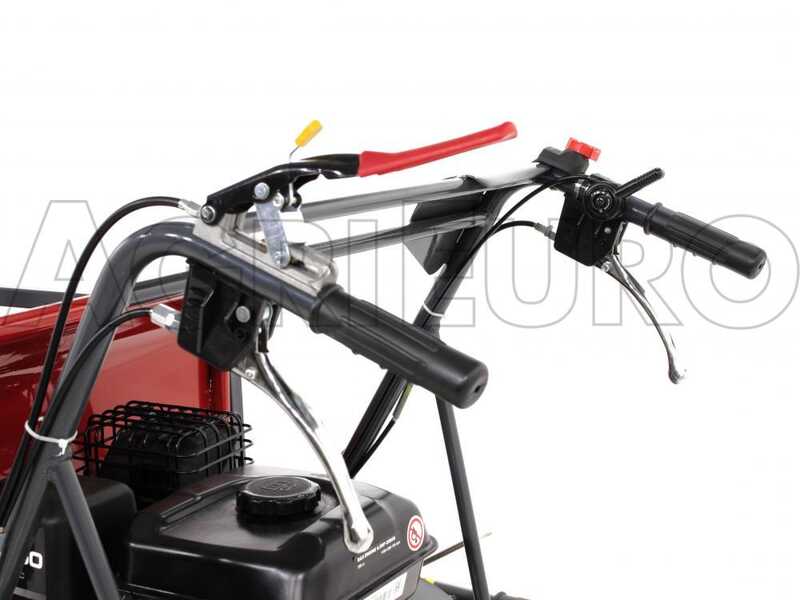

Control: easy to operate and ergonomic, they offer precision and controllability in the work

Large red lever for motion activation .

The two lower levers are for the steering, respectively right and left .

The steering is modulated as a function of the control lever and allows it to move smoothly. By partially pulling one or the other lever also the steering of the affected track, right or left, will be partial.
This allows the steering of the tracked power barrow in an extremely easy way, without causing any sudden movements.

Safety brake that allows the immediate arrest.

Accelerator lever and mains supply interruption switch.
