GeoTech ESB 2803 Roller - Electric garden shredder - With collector

Questions & Answers (16)
ID: 100696

EAN: 8053435091800

MPN: 100696

8,9/10
After-sales assistance & Spare parts
GeoTech ESB 2803 Roller - Electric garden shredder - With collector
+1000 sold
Operating mode
Single-phase 230 V
Nominal power
3.8 HP
Cutting Rotor Type
Roller
Max. Branch Diameter
45 mm
Wood Chip size
4 - 5 cm
Reverse
Collection system
Standard equipment
Nominal power (W)
2800 W
Weight
30 Kg
Product Features
Model:
ESB 2803 ROLLER
Operating mode:
Single-phase 230 V
Hydraulic self-dragging:
No
Anti-jam system:
Yes
Discharge chute:
Low
Collection system:
Standard equipment
Electric start:
No
Reverse:
Manufacturing country:
China
Motor data
Motor type:
Electric single-phase
Nominal power:
3.8 HP
Nominal power (W):
2800 W
Manufacturing country:
China
Transmission data
Transmission type:
Coaxial type direct
Cutting data
Body material:
Plastic
Max. Branch Diameter:
45 mm
Cutting Rotor Type:
Roller
Number of roller teeth:
8
Blade movement:
Rotating
Wood Chip size:
4 - 5 cm
Equipment
Collection bag:
Standard equipment
Front handle:
Yes
Rear wheels size:
180 mm
Branch pusher:
Yes
Start safety sensor:
Yes
Free gifts/extra features
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
50x58x98 cm
Net weight:
30 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
60x44x55 cm
Gross weight (packaging included) :
31 Kg
Assembly time:
15 minutes
Prompt Delivery
55 items in stock
Free Shipping
Estimated delivery: 30/10/2024 - 01/11/2024
€ 271,96
VAT Included

You're viewing:
Customers also viewed:
Description

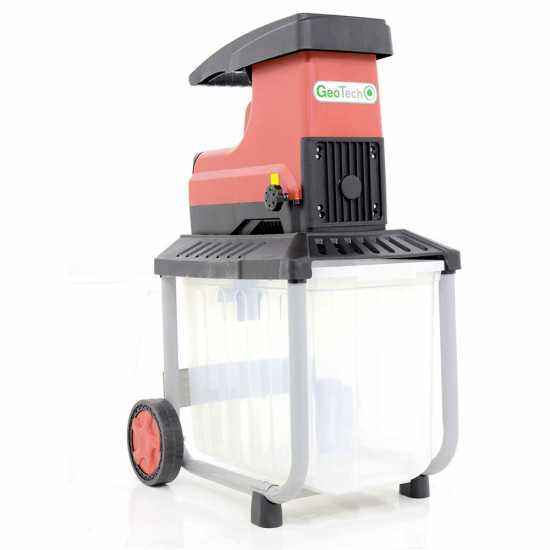

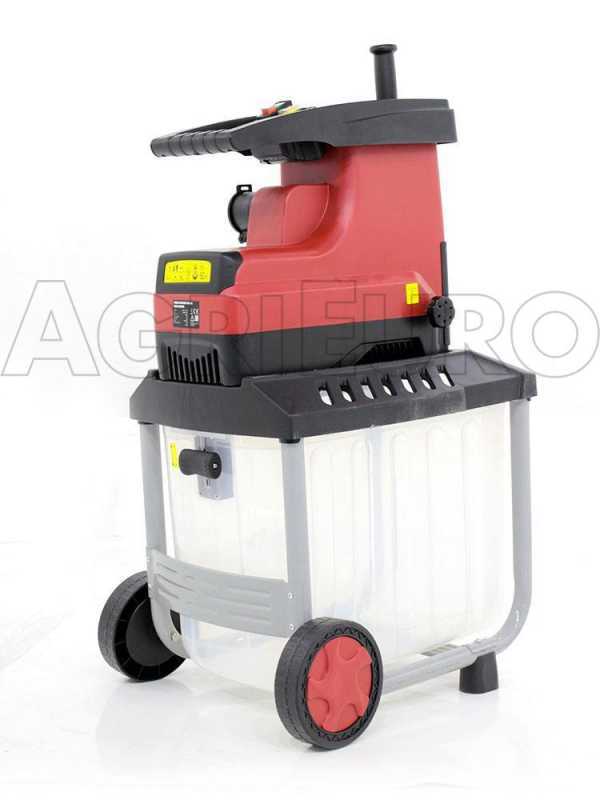

GeoTech ESB 2803 ROLLER garden shredder

GeoTech ESB 2803 ROLLER garden shredder overview:

E = Electric (equipped with an electric motor)
S = Shredder (wood chipper)
B = Basket (equipped with collector)
2800 = Motor power (2800W)
3 = model (series 3)
ROLLER = (model with roller cutting system)

Garden shredders allow reducing weeds and twigs in an easy to handle and suitable size for composting. Shredding operations also allow reducing the material decomposing time.

The wood chipper shreds and compacts wood in a very small space and the shredded material can be used to produce humus (compost) to keep your soil and plants healthy and reach in nutrients.

The GeoTech ESB 2803 ROLLER garden shredder is highly powerful and features a max. 45 mm cutting diameter.

Power cable not included.


Warning: Like all wood chippers and garden shredders, it is not suited for shredding grass, leaves, pine needles, etc. (it is intended to shred branches, but it can also grind leaves, needles and others)

Garden shredders intended use:
- The wood chipper must grind only green branches and not dried ones (which would limit its shredding capacity and lead to quick deterioration of the blades);
- The branches must be preferably long, smooth and not knobby (otherwise the cutting diameter would be reduced);
- The branch cutting diameter indicated is the maximum, so it is advised not to shred larger branches. In this case it would be better to purchase a shredder with a larger branch cutting diameter;
- The cutting diameter can vary according to the amounts of wood (e.g: oak, olive, plum and peach are hardwood and can reduce the cutting capacity of the wood chipper);

Roller shredding system (gear roller)

Shredding system with highly-sturdy steel gears running at low speed.
The material is shredded and crushed by a slowly rotating roller with sharp blades.
The mechanism draws the branches and coarsely chops them up.

Revolutions per minute: 44 rpm

This system ensures the following advantages:

  • Doubled productivity
  • Extremely reduced noise level
  • Great sturdiness and durability

This shredder is provided with self-feeding system, i.e. it draws the branches itself into the shredding chamber ensuring less effort to the Operator.

The main body is made of aluminium.

Controls

All the controls are placed in the upper part of the machine:

  • The left button is used to protect the machine from overload.
  • The central switch is used to switch the machine on/off.
  • The right switch is used for changing the direction of the roller in case of clogs.

Counter plate adjustment. The garden shredder is provided with a counter plate for adjusting the shredding in the most effect way. The knob operates a metal blade to draw the branch up to the roller. Focus on the mechanism.

Focus on the shredder fan.

Focus on the hopper from which it is possible to enter branches and twigs.

Wood chip collector and general features

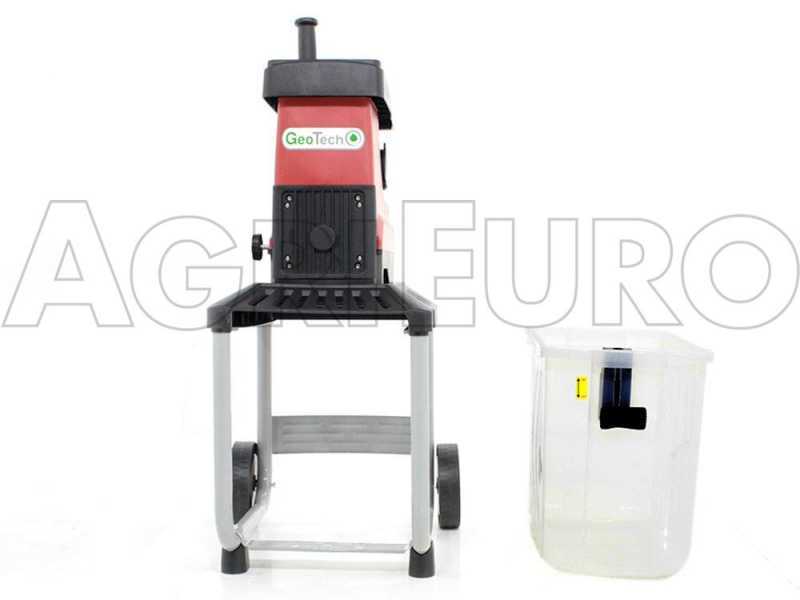

The wood chip collector is made of plastic and it is useful for collecting the shredded material and check the full level. Easy to empty. Equipped with an opening lever, it can be removed very easily on two guides.

Safety switch. It detects whether the collector is removed or not and engages the shredding system. Focus guides on the guides and locking device under the garden shredder.

Easy to transport thanks to the large wheels. They are 18 cm large.

Convenient front handle for easy transport.

Free items & Standard equipment

Free items included

The garden shredder is shipped in its original packaging.

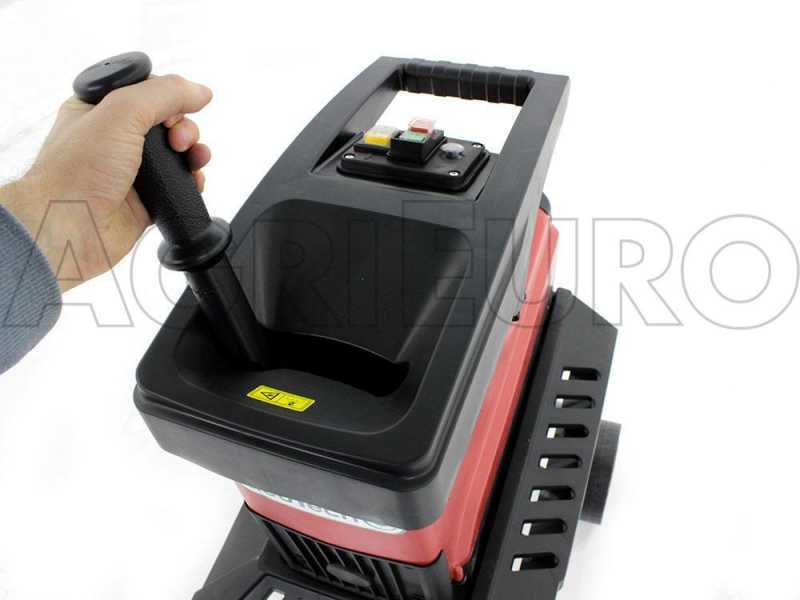

Instructions manual included in the package together with the plastic pusher accessory.

It helps the Operator to push branches and twigs.

55 L wood chips collector included. Focus on the collector locking device.

Warning: power cable not included
