GeoTech DL140 Tractor-mounted Grader Blade - 360° Rotation and Adjustable Arm

Questions & Answers (2)
ID: 102117

EAN: 8053435090261

8,9/10
After-sales assistance & Spare parts
GeoTech DL140 Tractor-mounted Grader Blade - 360° Rotation and Adjustable Arm
+100 sold
Technical data
Sturdiness/Series
Medium
Body material
Enamelled steel
Product Features
Model
DL140
Type
Lama livellatrice
Body material
Enamelled steel
Sturdiness/Series
Medium
Operating mode
Tractor-driven PTO
Fixed 3-point hitch
Yes
Manufacturing country
China
Free gifts/extra features
Instructions manual
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H)
140 x 110 x 100 cm
Net weight
140 Kg
Packaging
Original packaging on pallet
Original packaging/s dimensions in cm (L x W x H)
150 x 80 x 40 cm
Weight including packaging
150 Kg
Assembly time
30 minutes
Prompt Delivery
10 items in stock
Free Shipping
Estimated delivery: 12/08/2025 - 14/08/2025
Suggested price:
€ 875,20
€ 656,40
Vat included
You're viewing:
Customers also viewed:
Description

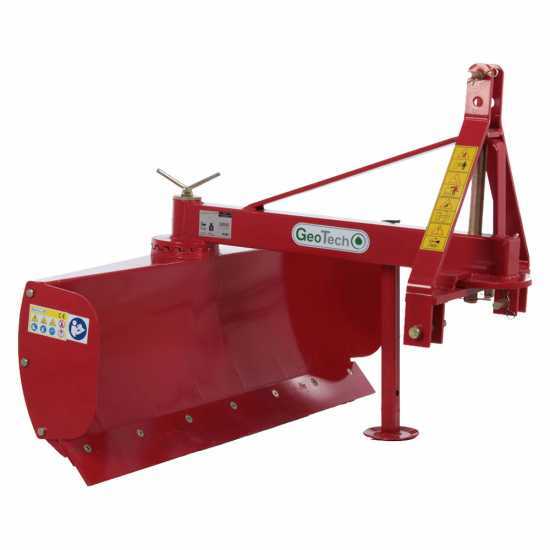

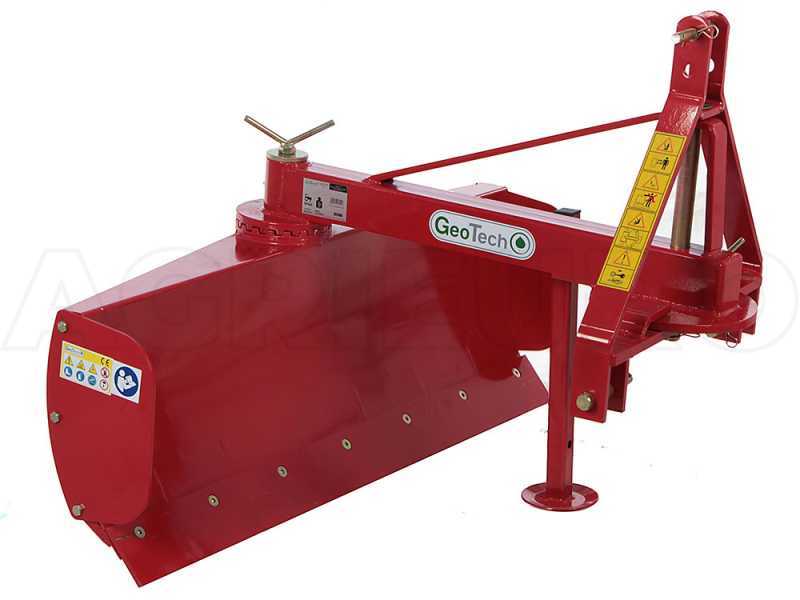

GeoTech DL140 tractor-mounted grader blade - 140 cm

The GeoTech tractor-mounted grader blade is designed for agricultural operations, grounds maintenance and gardening on different types of terrain, such as rice paddies, flood-irrigated areas, etc.

It is mainly designed for levelling bumps in the soil to avoid water stagnation and wasted irrigation, as well as recovering soil areas from ditches quickly and accurately. It is also useful for clearing snow in yards and large areas.

Equipped with a three-point hitch, the GeoTech rear levelling blade for tractors can suit the needs both of hobby or semi-professional users.

The blade can rotate 360° thanks to a screw system on serrated locking plates, allowing the soil to be moved sideways.

Finally, the grader blade also features a 5-position side shift, allowing the equipment to operate beyond the track of the tractor.

Main features:

  • Wear-resistant steel blade
  • 3-Point hitch Cat. 1&2
  • Removable end plates
  • Adjustable stand

3-Point hitch for tractors

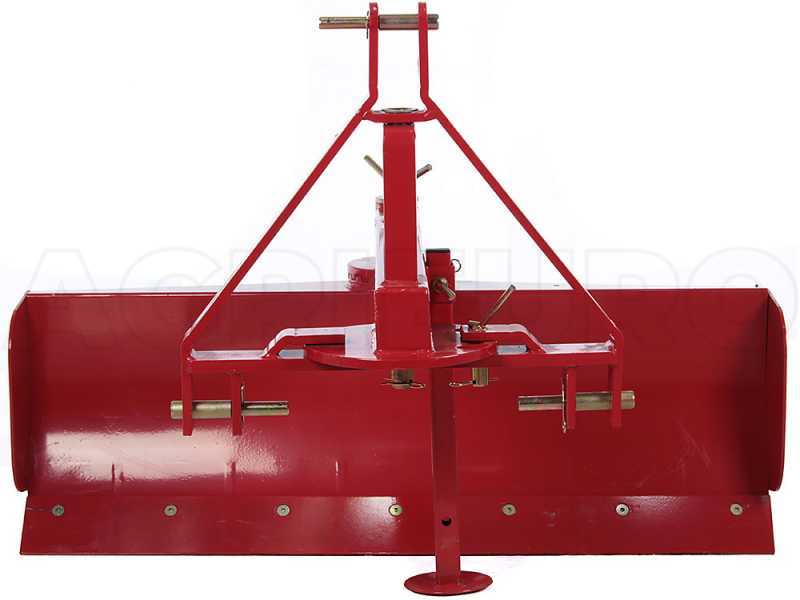

Adjustable frame angle and 360° rotating blade

The grader blade allows you to easily level the ground as the blade can rotate 360° thanks to a screw system on serrated locking plates and it is also possible to move the implement sideways thanks to a 5-position system, allowing the frame to pivot on one side or the other with a simple movement.

This last movement allows the grader blade to move out of the tractor track, enabling it to reach difficult areas such as ditches, walls or boundaries with plants.

Focus on the straight blade positioned behind and sideways to the tractor.

Other features

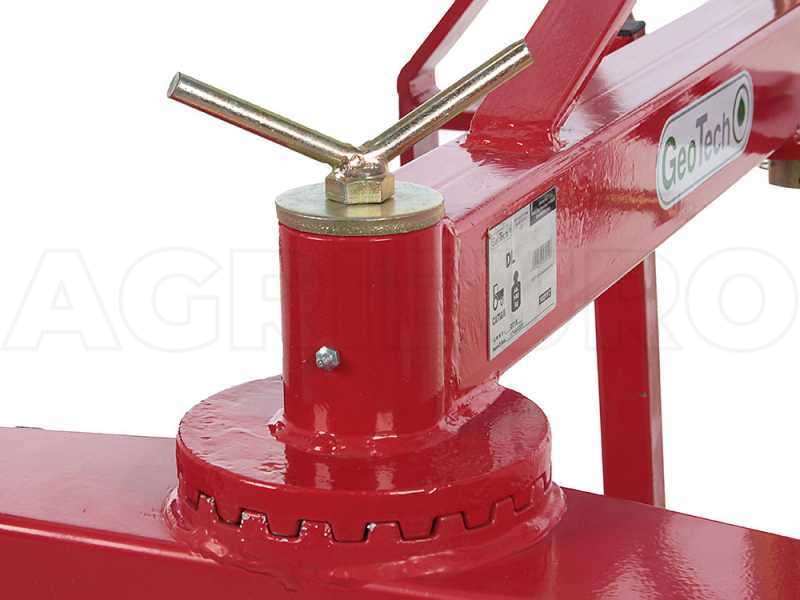

  • Screw system on serrated locking plates
  • Lock release screw of the serrated locking plates
  • Adjustable stand
  • Focus on the rear blade reinforcement
  • Wear-resistant steel blade
  • Removable end plates
  • Focus on the 5 positions adjustable by means the locking pin on the frame.
  • Frame pivot pin
  • Pivot pin grease nipple
Free items & Standard equipment

Standard equipment

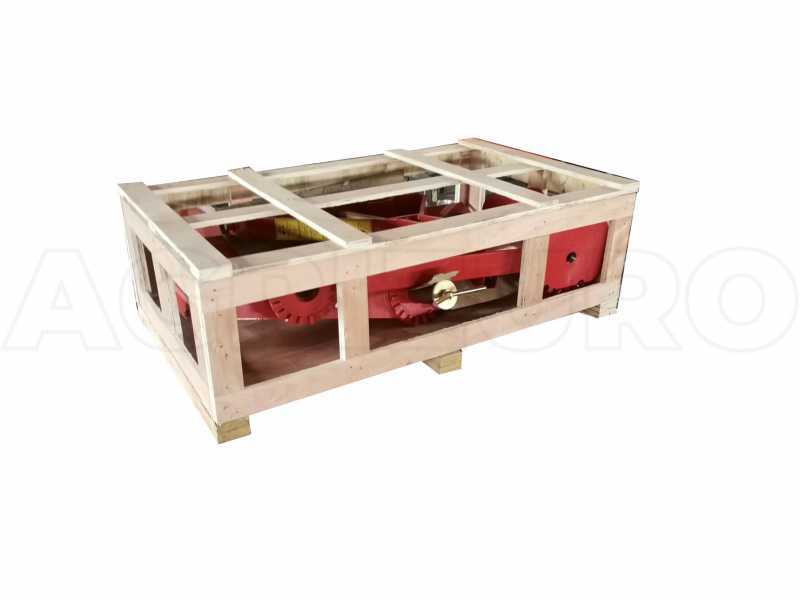

The grader blade is shipped in a protective wooden box.

The assembly is extremely easy and quick.
