Name: GeoTech AC50V-10-30VC - Vertical Wheeled Electric Air Compressor - 3 Hp Motor - 50 L compressed air
Brand: GeoTech
Price: 311.44 EUR
Availability: OutOfStock
Rating: 3.93 (41 reviews)

Description

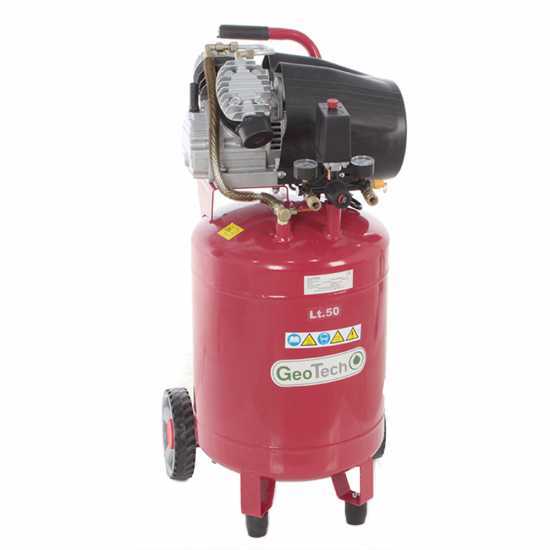

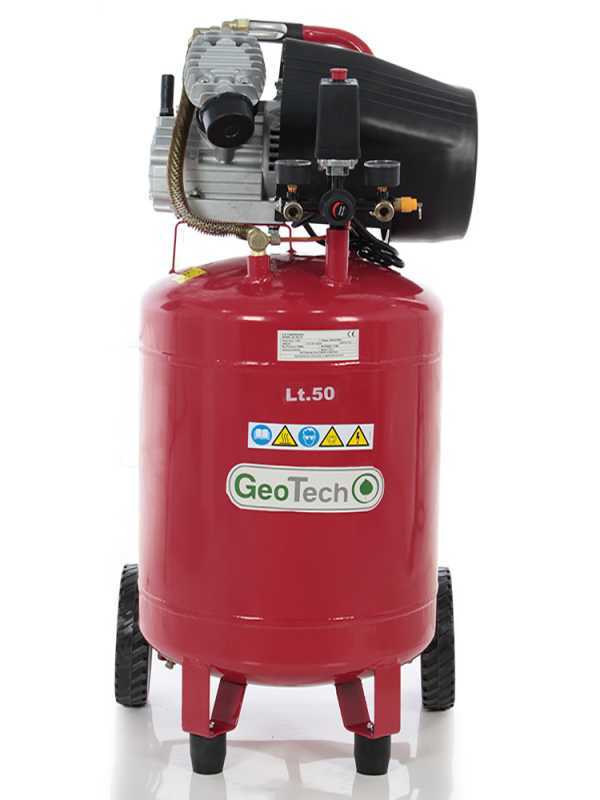

GeoTech AC50V-10-30VC Electric Air Compressor

AC50V-10-30VC Air Compressor
Main features:

AC (Air intake flow 330 L/min)

50 - Tank capacity in litres 50 L

V - Vertical tank

10 - Pressure 10 Bar

30 - 3 Hp Pumping unit

V - V-shaped twin-cylinder

C = Copper Adder

The GeoTech AC50V-10-30VC air compressor is regarded as a top-quality choice among hobbyists looking for a cost-effective, sturdy and high-performing equipment.

Thanks to its compact, vertically developed shape, it takes up little space, allowing it to be easily stored.

Powered by a 3 Hp electric motor, this air compressor features a compressed air suction capacity of 330 L/min. It is capable of reaching a maximum pressure of 10 bar.

It comes with a large-sized compressed air storage tank of 50 L. The air compressor weighs 38 Kg and can be easily transported thanks to its wheels and the upper handle.

Copper-coated motor housing.

GeoTech AC50V-10-30VC - Vertical Wheeled Electric Air Compressor - 3 Hp Motor - 50 L compressed air

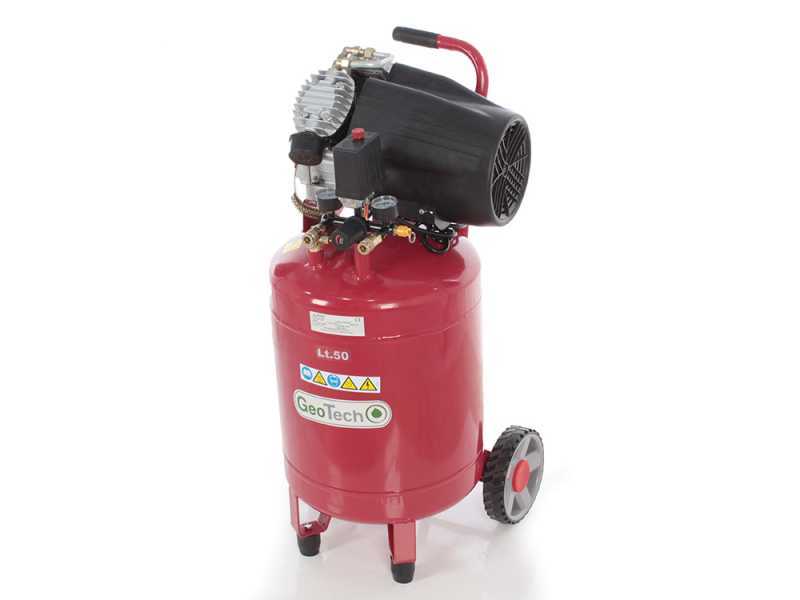

Technical features

Air intake flow: 330 L/min

Pumping unit type: coaxial

Pressure: 10 bar

Electric motor power: 3 Hp

Tank: 50 L

Overall dimensions:
- Width: 400 mm
- Height: 930 mm
- Depth (or thickness): 400 mm

Weight: 38 kg

The air compressor features a copper motor housing that makes it stand out from the economic ones, which are provided with aluminium coating.
This type of winding stands out to be more efficient, resulting in higher power featuring the same power requirements.

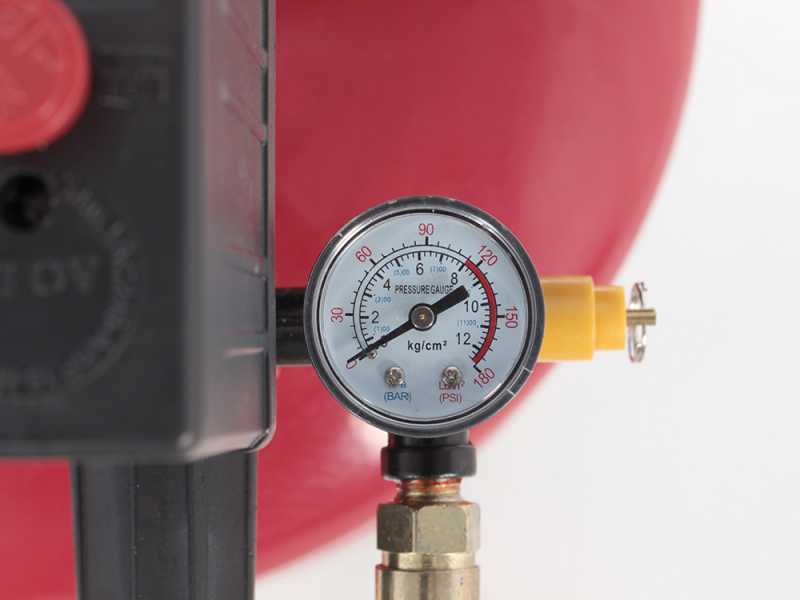

Controls

The GeoTech AC50V-10-30VC air compressor features easy and user-friendly controls, which are divided into:

Power switch

1 Output air pressure gauge

2 Output air pressure gauge

Air compressor female outlet fittings

Pressure adjusting knob

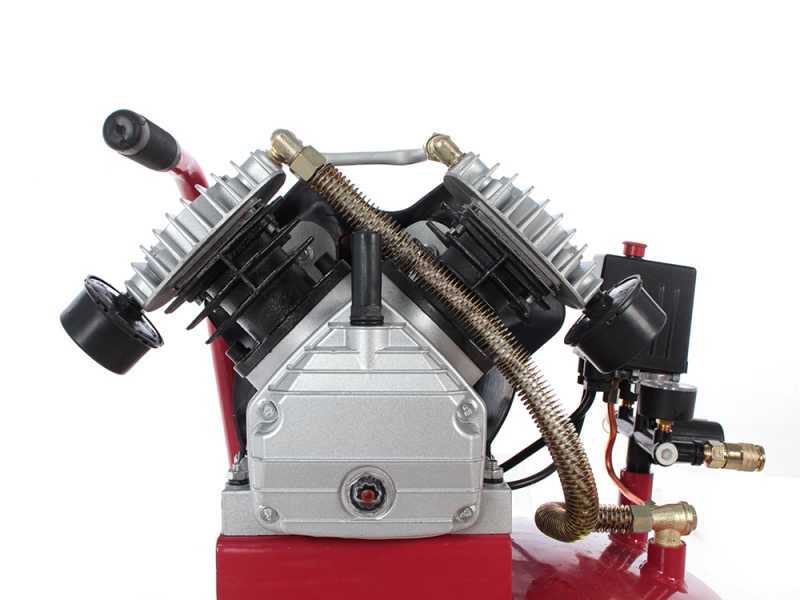

V-shaped cylinder head pumping unit

The pumping unit of the GeoTech AC50V-10-30VC air compressor stands out for the V-shaped double cylinder head.

This pumping unit makes it possible to increase the volume of air drawn in so you can refill the tank faster.

Other features

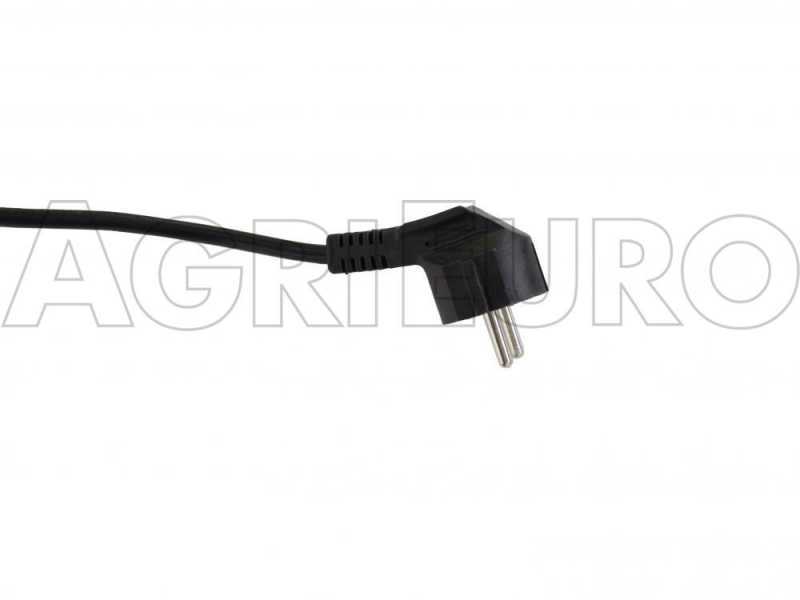

Schuko plug

Ergonomic lifting handle

Large sturdy plastic wheels

Anti-vibration rubber pads

Porthole for oil control

Free items & Standard equipment

1° GIFT: air compressor maintenance kit with oil bottle and joints

Maintenance kit provided on standard equipment includes:

Air compressor spare/replacing female output joint
Air compressor spare/replacing male output joint (replaceable on equipment with bayonet cap) or usable as spare joint
Quick joint to convert all the machineries fitted with standard bayonet cap. It allows easily connecting the units to hoses with female quick joint.
Quick joint for converting the female output joint supplied on the air compressor into the traditional bayonet cap (also allows the use of the standard hoses with bayonet system)
Repair/Junction fitting for Ø 8 hoses

Repair/Junction fitting for Ø 10 hoses

Lower tank discharge valve replacement air compressor

Teflon roll, ideal for the main maintenance operations

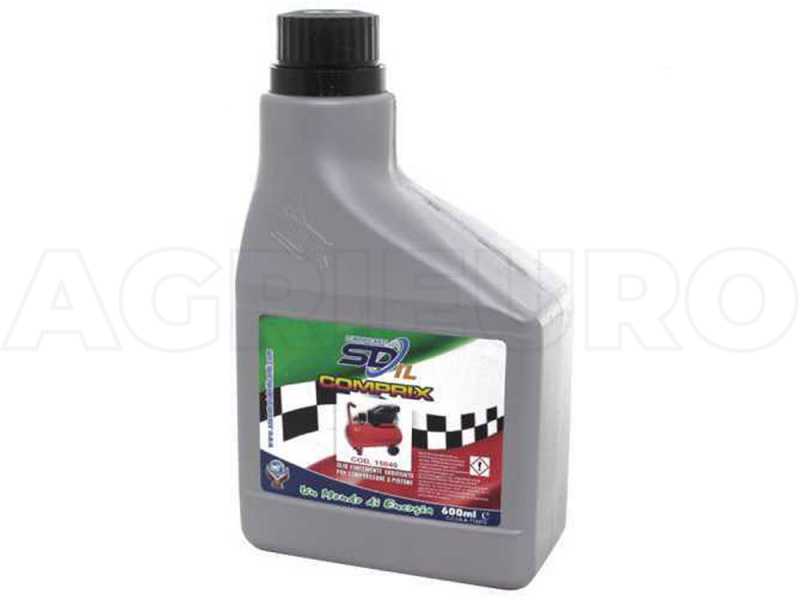

2° GIFT: 600 ml "COMPRIX” oil bottle

COMPLIMENTARY: 600 ml "COMPRIX” oil bottle, professional oil specifically designed for air compressor cylinder heads. Very useful for oil refill and first oil replacement (the air compressor is shipped already filled with oil).

Standard equipment

The air compressor is shipped in its original packaging.

Instructions manual included.
