Fini MK 102 N 50 2M - Belt-driven Electric Air Compressor - 2HP Motor - 50L

Questions & Answers (3)
ID: K501119

EAN: 8017750241661


Fini MK 102 N 50 2M - Belt-driven Electric Air Compressor - 2HP Motor - 50L
+100 sold
Bottle of 600 ml "COMPRIX" professional oilBottle of 600 ml "COMPRIX" professional oil
no. 8 compressor connectionsno. 8 compressor connections
Air compressor tank
50 L
Max. operating pressure
10 bar
Air intake flow
215 L/min
Cylinder head rpm
1375 RPM
Pump type
Nominal power
2 HP
Operating mode
Single-phase 230 V
Transmission type
Manufacturing country
Product Features
MK 102N-50-2M
Air compressor type 2:
Twin-cylinder belt-driven - single stage
Air compressor type:
Operating mode:
Single-phase 230 V
Operating mode:
Electric 230 V
Max. operating pressure:
10 bar
Number of tanks:
Tank capacity:
50 L
Air compressor tank:
50 L
Noise level:
80 dB(A)
Manufacturing country:
Motor data
Motor type:
Electric single-phase
Nominal power:
2 HP
Pump data
Pump brand:
Air intake flow:
215 L/min
Pump type:
No. of cylinders:
Cooling manifold:
Manufacturing country:
Transmission data
Transmission type:
Cylinder head rpm:
1375 RPM
Pulleys material:
Metal alloy
No. of outlet couplings:
Front handle:
Folding/removable handle/s:
Free gifts/extra features
Wooden pallet (safe shipping):
Instructions manual:
Dimensions and logistics
Product dimensions in cm (L x W x H):
87x40x70 cm
Net weight:
45 Kg
On pallet
Original packaging/s dimensions in cm (L x W x H):
87x40x70 cm
Gross weight (packaging included) :
45 Kg
Assembly time:
5 minutes
Prompt Delivery
6 items in stock
Free Shipping
Estimated delivery: 24/04/2024 - 26/04/2024
€ 552,32
VAT Included

You're viewing:
Customers also viewed:

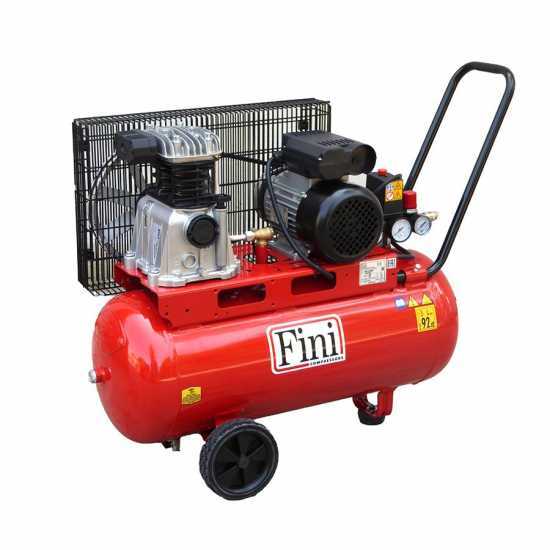

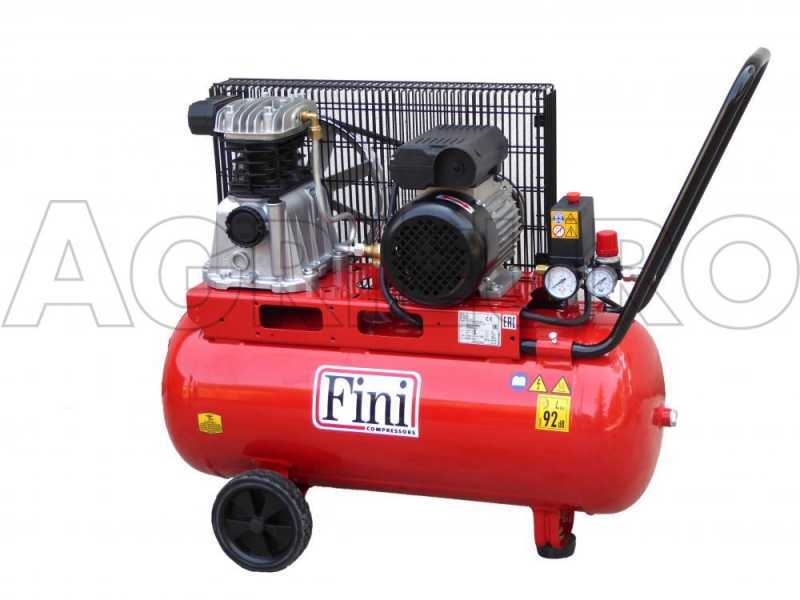

FINI ADVANCED MK 102 N 50 2M Electric Air Compressor

The FINI ADVANCED MK 102 N 50 2M air compressor is regarded as the best choice among hobbyists looking for a reliable, silent and high-performing equipment.

Powered by a 2 Hp electric motor, this air compressor features a compressed air suction capacity of 70 L/min. It is capable of reaching a maximum pressure of 10 bar.

Overload motor protection and manual reset. The air compressor comes with an electromechanical pressure switch, pressure reducer with pressure gauge and universal quick release valve.

It features a large-sized compressed air storage tank of 50 L.

It weighs 45 kg and can be easily transported thanks to the wheels and the upper handle.

FINI Compressors is a renowned brand which stands for high quality.

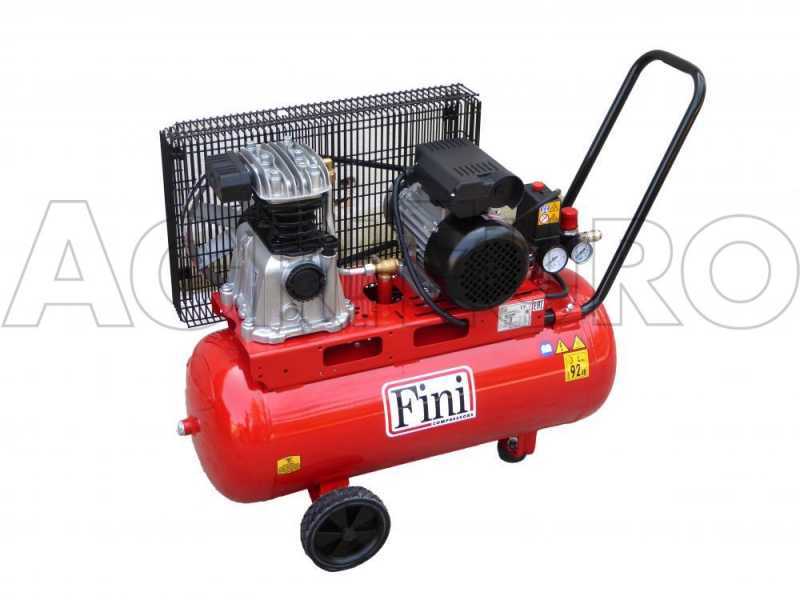

Technical features

Air intake flow: 215 L/min

Pump type: belt-driven

Pressure: 10 bar

Electric motor power: 2 Hp

Tank: 50 L

Overall dimensions:
- Width: 870 mm
- Height: 400 mm
- Depth (or thickness): 700 mm

Weight: 45 kg

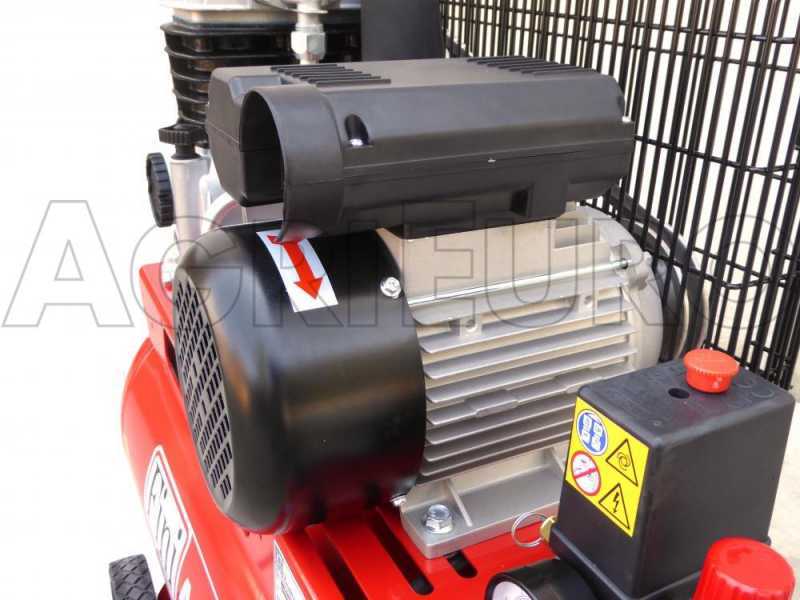

2 Hp single-phase electric induction motor

Power supply: 230V

Power: 2 Hp
The induction motor is characterised by a very long service life and low maintenance requirements.

In fact, this motor is brushless, the brushes being the main component subject to wear in electric motors. The absence of this component grants high durability to the motor.

It is a top product in terms of reliability, low noise, durability, energy efficiency and maintenance.

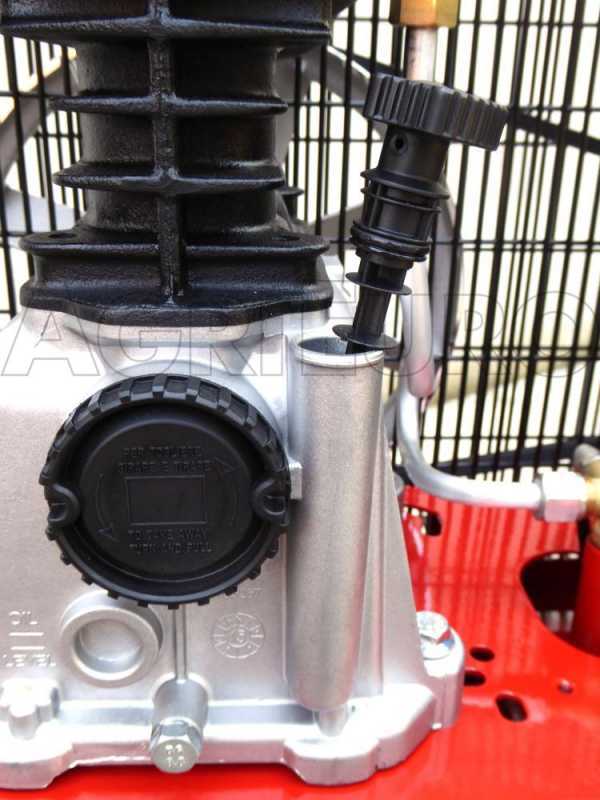

FINI MK 102 N cylinder head

Air intake flow: 215 L/min
Cylinder head type: twin-cylinder with cast iron cylinders
Suction type: single stage
Lubrication: oil
No. of revolutions: 1375 rpm

The degree of professionalism and more generally the life of the air compressor is largely determined by the number of revolutions per minute of the cylinder head.

The lower the rpm, the longer the life of the air compressor. The reduction ratio of the number of revolutions is obtained by the pulleys of different diameter that are fitted to the motor and to the cylinder head respectively.

Focus on the oil control dipstick

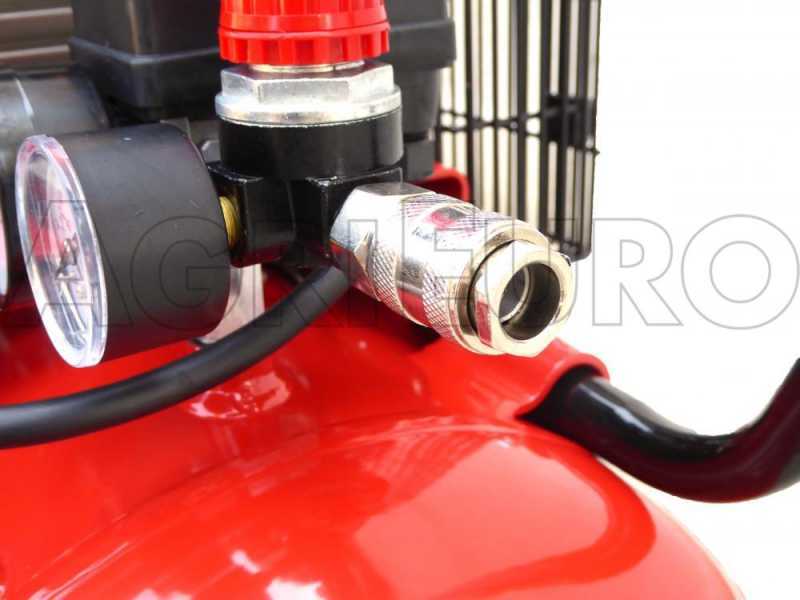

The Fini MK 102 N 50 air compressor features easy and user-friendly controls, which are divided into:

Power switch

Output air pressure gauge

Tank air pressure gauge

Air compressor female outlet fittings

Pressure adjusting knob

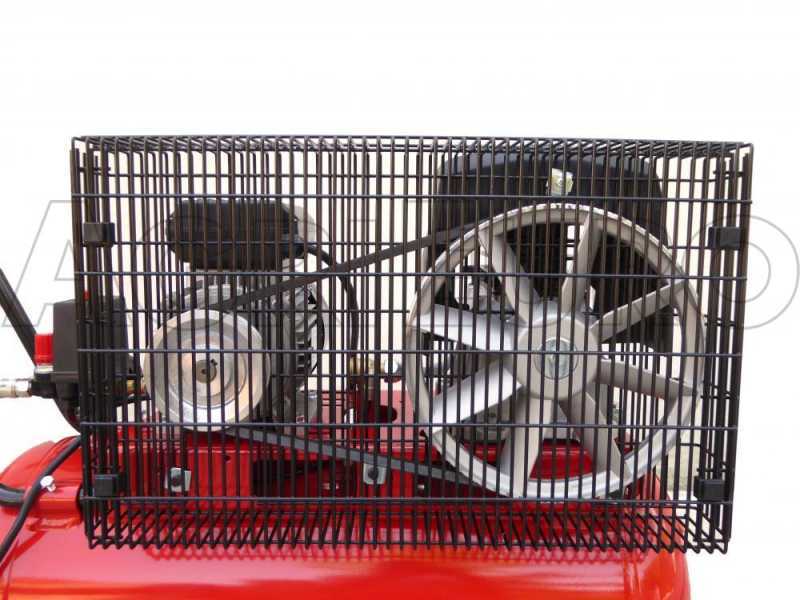

Belt drive

These FINI air compressors feature a belt drive.

The use of the belt, combined with an induction motor, contributes to the durability of this air compressor, drastically reducing the number of revolutions of the cylinder head, increasing its life and reducing wear.

The grid protection serves to prevent the drive belt and the transmission from being damaged by external objects that might hit it during operation. It also allows the status of the drive belt to be continuously checked.

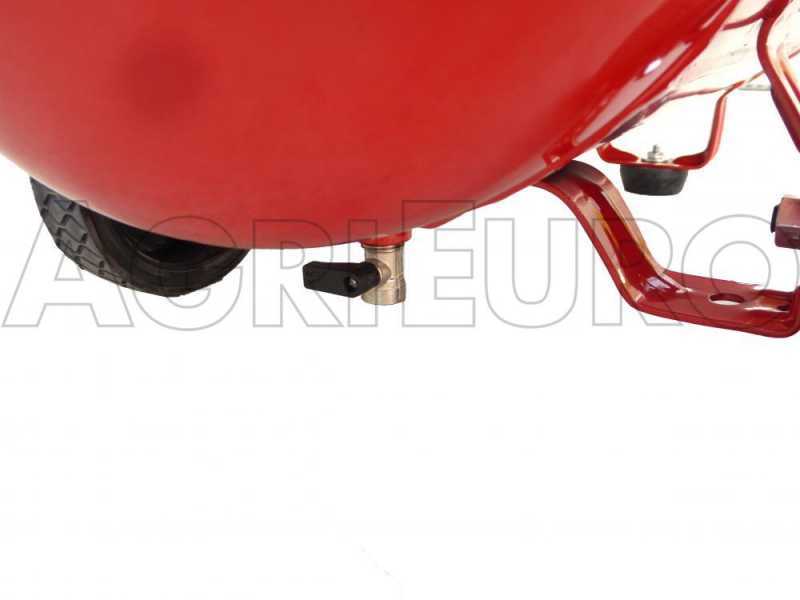

Other features

Schuko plug

Ergonomic handle

Large wheels in sturdy plastic
Anti-vibration support foot

Condensate drain valve

Free items & Standard equipment

1° GIFT: air compressor maintenance kit with oil bottle and joints

Maintenance kit provided on standard equipment includes:

  • Air compressor spare/replacing female output joint
  • Air compressor spare/replacing male output joint (replaceable on equipment with bayonet cap) or usable as spare joint

  • Quick joint to convert all the machineries fitted with standard bayonet cap. It allows easily connecting the units to hoses with female quick joint.

  • Quick joint for converting the female output joint supplied on the air compressor into the traditional bayonet cap (also allows the use of the standard hoses with bayonet system)

  • Repair/Junction fitting for Ø 8 hoses
  • Repair/Junction fitting for Ø 10 hoses
  • Lower tank discharge valve replacement air compressor
  • Teflon roll, ideal for the main maintenance operations

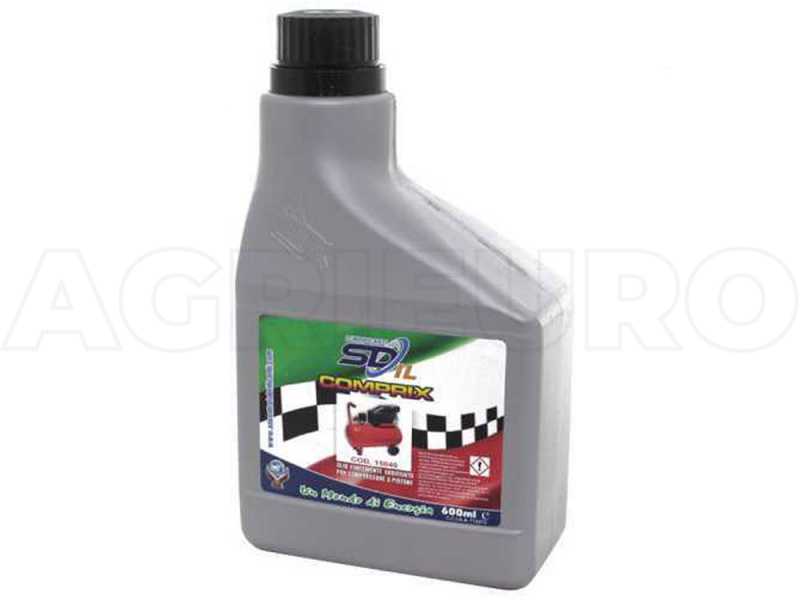

2° GIFT: 600 ml "COMPRIX” oil bottle

COMPLIMENTARY: 600 ml "COMPRIX” oil bottle, professional oil specifically designed for air compressor cylinder heads. Very useful for oil refill and first oil replacement (the air compressor is shipped already filled with oil).

Standard equipment

The air compressor is shipped in its original packaging.

Instructions manual included.
