FIMAR TC22TS Electric Meat Mincer - Body and Grinding Unit in Stainless Steel - Single-phase - 230V / 1.5 hp

FIMAR TC22TS Electric Meat Mincer - Body and Grinding Unit in Stainless Steel - Single-phase - 230V / 1.5 hp
Motor type
Induction
Forwar direction reverser
Yes
Activation
Single-phase
Effective power
1.5 HP
Certifications
CE professional
Meat mincer accessory
stainless steel - long
Stainless steel covering
Hourly output
250 Kg/h
Transmission type
gear transmission in oil bath
Hopper material
stainless steel
Manufacturing Country
Italy
FREE:
Free item: tarpaulin cover and storage
CUtting board with AgriEuro logo
FREE:
Free item: tarpaulin cover and storage
CUtting board with AgriEuro logo
€ 991,62
VAT Included
Prompt Delivery
1 item in stock
|
Free Shipping
You should receive it by 27/10/2021
ID: K602921

EAN: 9999991093799

MPN: TR22TSQ1I235M

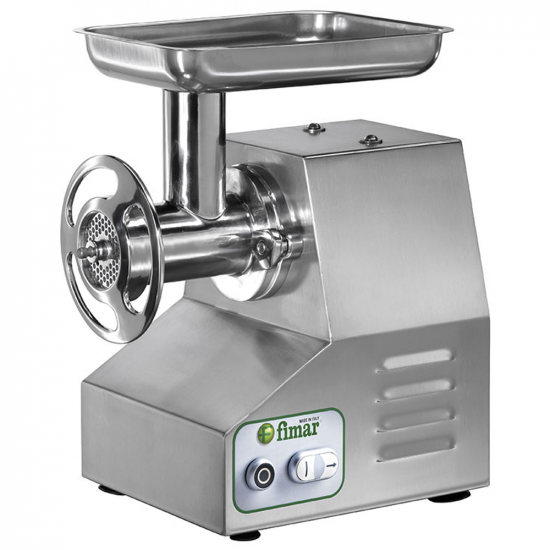

FIMAR TC22TS Electric Meat Mincer

The FIMAR TC22TS meat mincer is a machine designed for professional use in a restaurant or in a medium-large sized butcher shop.

REMOVABLE grinding unit in stainless steel that makes it possible to store it in the refrigerator or in the blast chiller without having to clean it after each use. This feature is in compliance with the HACCP hygiene standards.

This meat mincer is designed for a counter top use.

The hopper plate, the removable grinding unit and the food processing components are entirely built in AISI 304 stainless steel.

Simple and functional design This makes the machine pleasing to the eye and extremely easy to clean.

The hourly output is 250 Kg/h, this makes this meat mincer suitable for professional use.

Equipped with an 1100 W asynchronous single-phase induction electric motor powered at 230V.

The machine body is entirely made of stainless steel, this ensures high protection against external elements and a much higher ease of cleaning.

Pestle made of food-grade plastic

Italian manufactured and certified-quality product

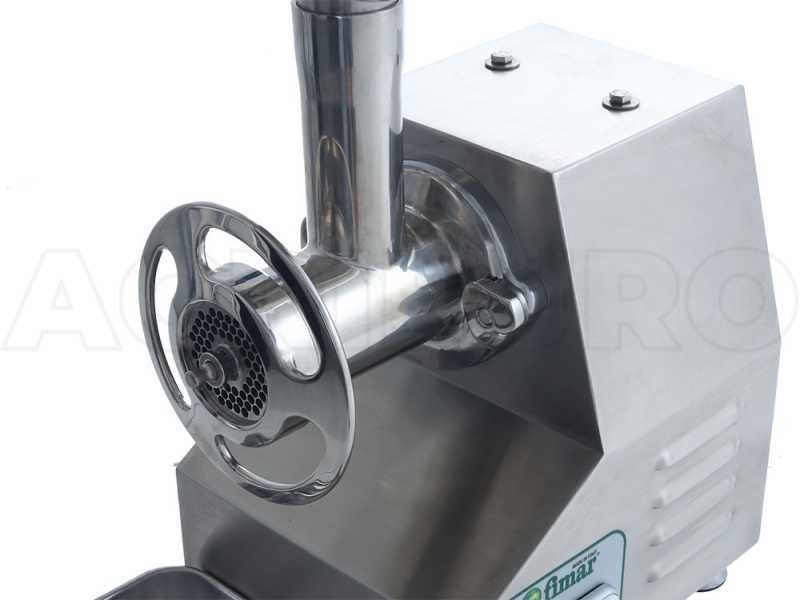

Removable grinding unit in stainless steel

This machine features a fully removable grinding unit.

Just unscrew the two knobs on the side of the grinding unit to detach it.

Thanks to this feature it will not be necessary to wash it every time, but it can be simply stored in the refrigerator or in the blast chiller. This characteristic is in compliance with HACCP hygiene standards.

The grinding unit is in AISI 304 stainless steel and it’s dishwasher safe.

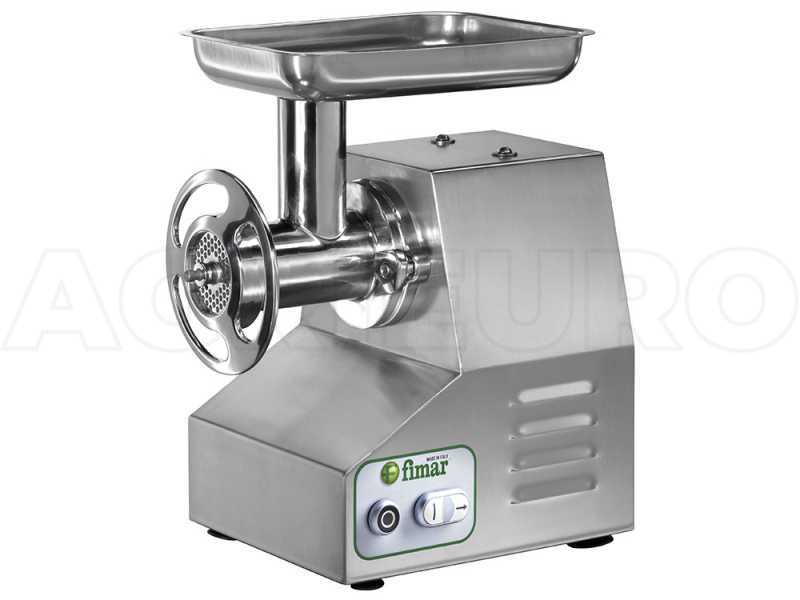

Heavy-duty Meat Mincer with CE certification

CE Professional meat grinders are designed to be used according to the needs of professional operators.

All CE professional-branded meat slicers are:

  • easy to wash and safe to work with.
  • Guaranteed by international patents and manufactured according to current CE standards.

All of our meat mincers with CE professional certification are recommended for restaurants, grocery shops with meat department, butcher shops and hotels.

The meat mincers with CE professional certification, compared to a meat grinder with a CE mark for domestic use, offer a more precise setting, greater safety for disassembly and superior handling.

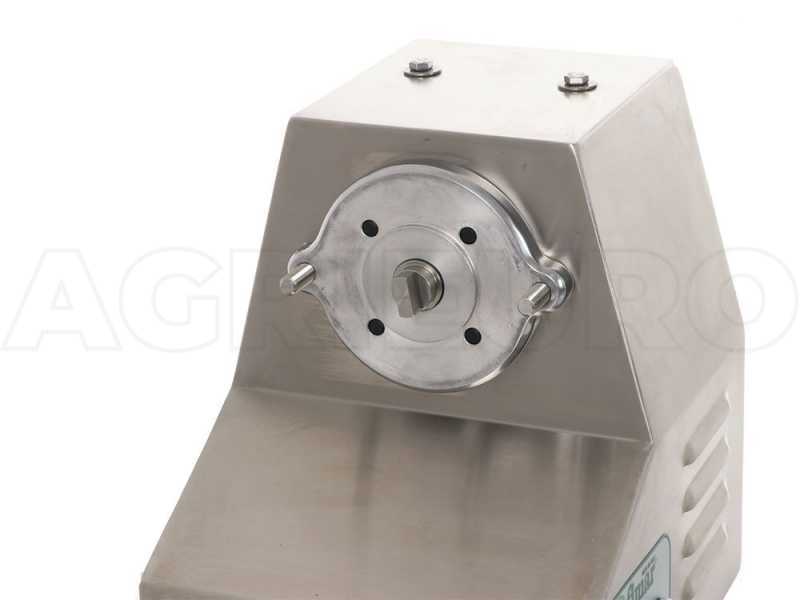

Motor and transmission - Machine body

This machine is equipped with a 1100 W asynchronous induction electric motor powered at 230 V.

The engine is completely protected by a stainless steel body.

The machine is equipped with reverse function. This allows to quickly release the grinding unit in case it jams

Gear transmission in oil bath, for maximum efficiency and resistance while working.

Operation is easy, safe and user-friendly thanks to the low voltage controls located at the base of the machine.

Equipped with anti-vibration rubber feet

All machine components are of high quality.

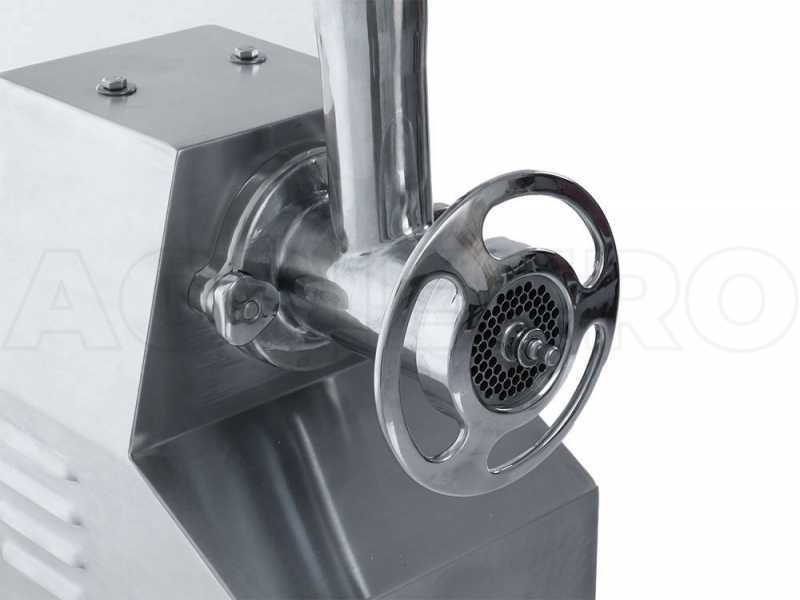

Meat mincer

The FIMAR TC22TS meat mincer casing is entirely made of stainless steel.

The removable grinding unit, together with the hopper plate, the cutting plate with Ø 6mm holes and the self-sharpening knife are entirely made in AISI 304 stainless steel.

The pestle is made of food-grade plastic.

The dimensions of the feed inlet are ø 52 mm

Thanks to the numerous die plates (sold separately) you can grind the meat with different grains.

Machine operation is extremely easy and intuitive.

Assembly tutorial of the FIMAR TC22TS Electric Meat Mincer
Product Features
Model:
TC22TS inox - 220V
Machine body material:
Stainless steel
Certifications:
CE professional
Power output:
1100 W
Activation:
Single-phase
Hourly output:
250 Kg/h
Die plate material:
acciao inox
Forwar direction reverser:
Yes
Manufacturing Country:
Italy
Stainless steel covering:
Motor data
Motor type:
induction motor
Motor type:
Induction
Effective power:
1.5 HP
Power supply:
220V power supply
Motor protection:
Manufacturing Country:
Italy
Transmission data
Transmission type:
gear transmission in oil bath
Speed reduction:
gears
Cutting data
Meat mincer accessory:
stainless steel - long
Accessory size:
No.22
No.22 Accessory:
Hopper material:
stainless steel
Knife material:
stainless steel
Free gifts/extra features
Instructions manual:
yes
Dimensions and logistics

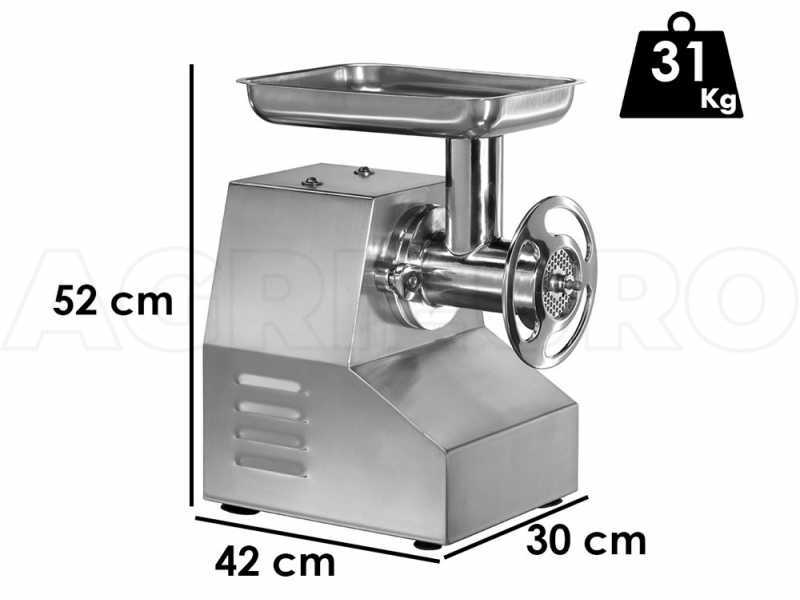

Product dimensions cm (LxWxH):
42x30x52 cm
Net weight:
31 Kg
Packaging:
Original packaging
Packaging dimensions cm (LxWxH):
57x42x68 cm
Gross weight (packaging incuded) :
40 Kg
Assembly time:
assembled

COMPLIMENTARY: professional protection and storage cover

Essential for protecting your machine when stored.

This cloth is fast and easy to apply; within seconds your machine is protected from dust and humidity.

Easy to fold and store inside its own box packaging with minimal space required!

FOR FREE: Cutting Board 25x15x1.5

Along with the product comes a practical sturdy cutting board made of solid beech wood, customized with the laser engraved AgriEuro logo.

Ideal for cutting any type of food and easy to clean.

Size: 25x15x1.5 cm

Weight: 390 g

Free items included

The machine is shipped in its original packaging

Included are:

Stainless steel hopper plate

Schuko socket 220V

pestle in pvc

Instructions for use
