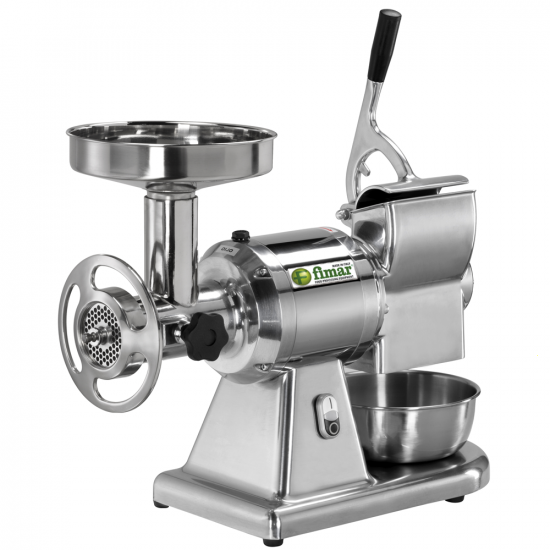

FIMAR TC22T Electric Meat Mincer - with Integrated Grater - Grinding Unit in Stainless Steel - Single-phase - 1.5HP/230V

Add a question
ID: K602990

EAN: 9999991094000

MPN: AB22T235M

FIMAR TC22T Electric Meat Mincer - with Integrated Grater - Grinding Unit in Stainless Steel - Single-phase - 1.5HP/230V
FREE
CUtting board with AgriEuro logoCUtting board with AgriEuro logo
Tarpaulin cover and storageTarpaulin cover and storage
Motor type
Induction
Operating mode
Single-phase 230 V
Rated power
1.5 Hp
Certifications
CE professional
Multi tool
2 in 1
Attachment dimensions
No.22
Accessory material
Stainless steel
Hourly output
250 Kg/h
Transmission type
Gears in oil-bath
Funnel material
Stainless steel
Manufacturing country
Italy
Product Features
Model:
TC22T inox
Cheese grater type:
Multi-purpose
Machine body material:
Aluminium
Certifications:
CE professional
Power output:
1100 W
Operating mode:
Single-phase 230 V
Hourly output:
250 Kg/h
Die plate material:
acciao inox
Multi tool:
2 in 1
Engine cover:
Without carter
Manufacturing country:
Italy
Motor data
Motor type:
Induction motor
Motor type:
Induction
Rated power:
1.5 Hp
Power supply:
220 V electric
Motor protection:
Manufacturing country:
Italy
Transmission data
Transmission type:
Gears in oil-bath
Gear unit type :
With gears
Cutting data
Accessory material:
Stainless steel
Attachment dimensions:
No.22
No.22 Accessory:
Funnel material:
Stainless steel
Blade material:
stainless steel
Free gifts/extra features
Instructions manual:
Yes
Dimensions and logistics

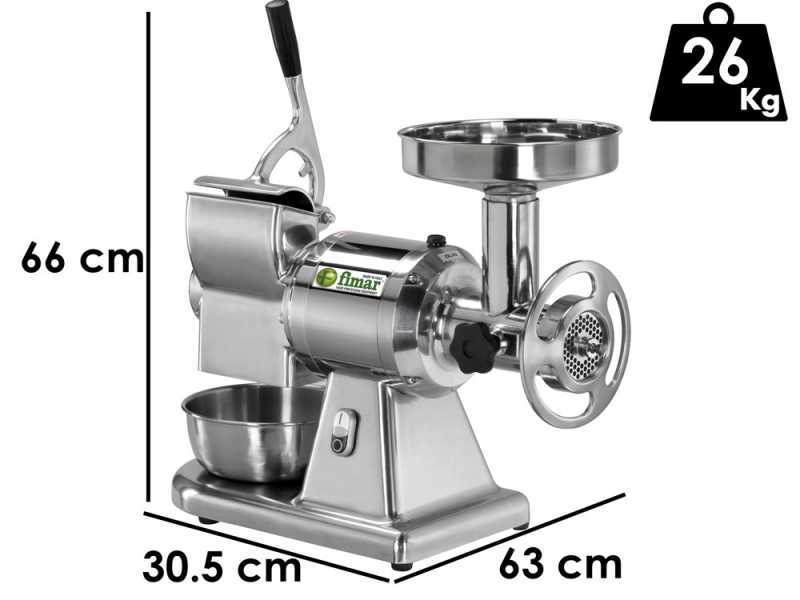

Product dimensions in cm (L x W x H):
63x30.5x66 cm
Net weight:
25 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
75x30x48 cm
Gross weight (packaging included) :
27 Kg
Assembly time:
Assembled
10 - 12 days from purchase
Free Shipping
€ 1.014,29
VAT Included
You're viewing:
Customers also viewed:
Description

FIMAR TC22T Electric Meat Mincer

The FIMAR TC22T combined meat mincer is the ideal product for any professional environment with an important need for minced meat and cheese/breadcrumbs.

Being a combined machine, it saves money and space as you don’t need two separate machines to perform these operations.

FIMAR TC22T electric meat mincer/grater. Designed for professional use in a medium-large sized butcher shop, it’s also perfectly suitable for supermarkets, hotels or restaurants.

The machine body is entirely built in polished die-cast aluminium, this ensures high protection against external elements.

The hopper plate, the removable grinding unit and the food processing components are entirely built in AISI 304 stainless steel.

The grater roller, like the grinding unit, is built in stainless steel, making it extremely resistant to corrosion originated by cheese grating.

The grater is equipped with a safety microswitch that stops the motion of the machine when the handle is raised, in accordance with the current safety standards dictated by the European community.

Equipped with an 1,100 W asynchronous single-phase induction electric motor powered at 230V.

The hourly output is 250 Kg/h, this makes this meat mincer suitable for professional use.

The hourly output of the grater is 40 Kg/h

This meat mincer is designed for a counter top use.

Its simple and functional design makes the machine pleasing to the eye and extremely easy to clean.

Fully removable grinding unit

Pestle made of food-grade plastic

Italian manufactured and certified-quality product

The removable grinding unit, once the knob on the side of the machine has been unscrewed, will allow you to remove the whole chamber of the auger (worm screw), knife and die plate.

The feeder tube that brings the meat from the funnel to this chamber will however remain attached to the machine body and will need to be cleaned separately unlike other machines that have a removable body.

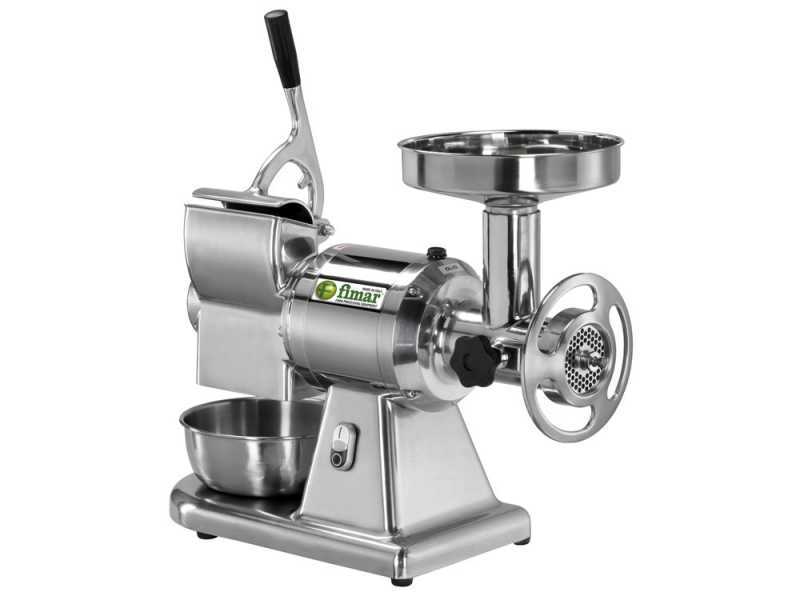

Heavy-duty Meat Mincer with CE certification

CE Professional meat grinders are designed to be used according to the needs of professional operators.

All CE professional-branded meat slicers are:

  • easy to wash and safe to work with.
  • Guaranteed by international patents and manufactured according to current CE standards.

All of our meat mincers with CE professional certification are recommended for restaurants, grocery shops with meat department, butcher shops and hotels.

The meat mincers with CE professional certification, compared to a meat grinder with a CE mark for domestic use, offer a more precise setting, greater safety for disassembly and superior handling.

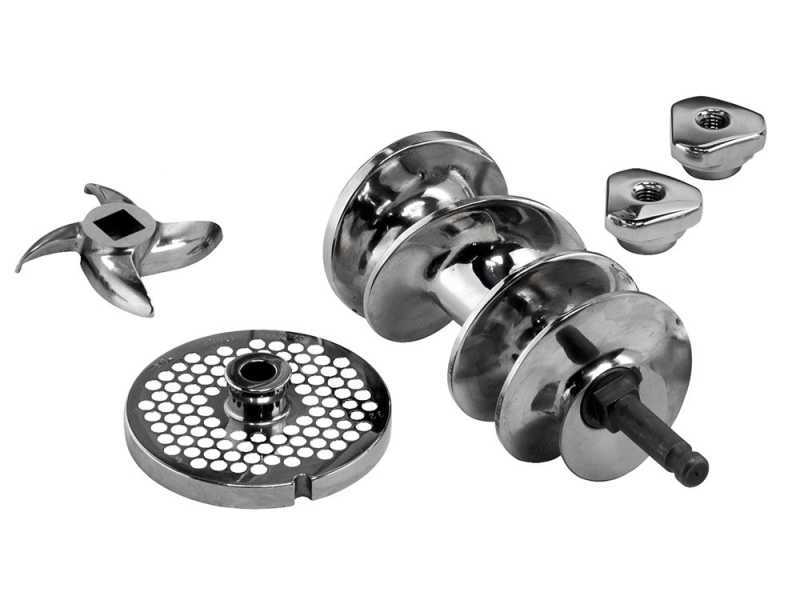

Removable grinding unit

This machine features a removable grinding unit.

Just unscrew the knob and take out the whole grinding unit.

This feature allows for a quick and fast cleaning of the machine.

The removable grinding unit, once the knob on the side of the machine has been unscrewed, will allow you to remove the whole chamber of the auger (worm screw), knife and die plate.

The feeder tube that brings the meat from the funnel to this chamber will however remain attached to the machine body and will need to be cleaned separately unlike other machines that have a removable body.

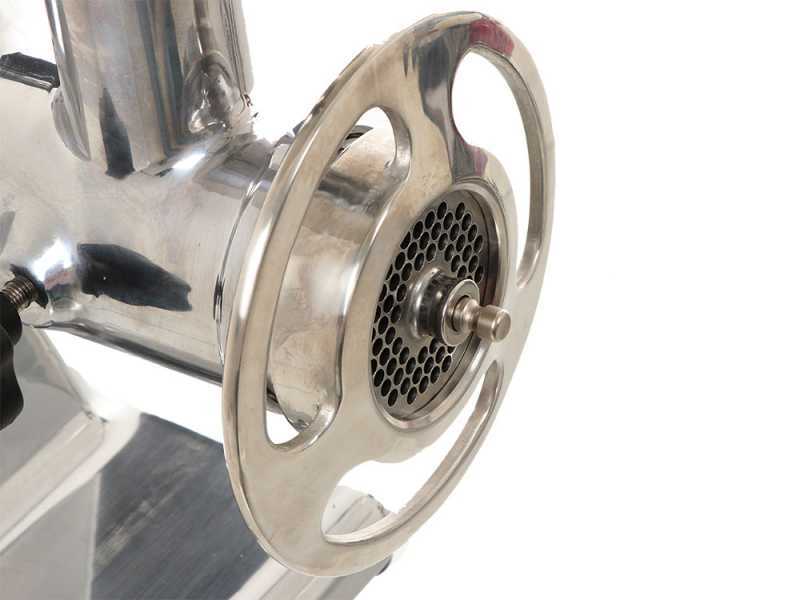

Meat mincer

The body of the TC22T meat mincer is completely made of polished die-cast aluminium.

The removable grinding unit with the hopper plate, the cutting plate with Ø 6mm holes and the self-sharpening knife, are completely in AISI 304 stainless steel.

The pestle is made of food-grade plastic.

The dimensions of the feed inlet are ø 52 mm

Thanks to the numerous die plates (sold separately) you can grind the meat with different grains.

Machine operation is extremely easy and intuitive.

Cheese grater

The built-in cheese grater is designed for food use and guarantees the processing of: hard cheese and dry bread.

Safety microswitch protected by the machine body

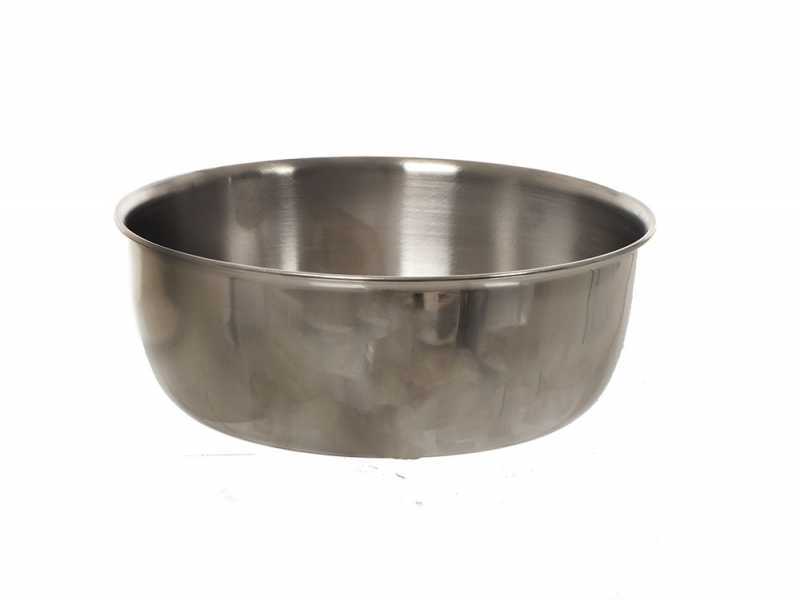

Grater collection bowl in stainless steel

Exhaust protection grid and interlock to the cheese load to avoid contact with the moving parts

The size of the hopper opening where the cheese goes is 14x7,5 cm.

The grater roller is in food-grade stainless steel

This machine is only suitable for hard cheeses (such as mature Parmesan). It is not suitable for soft cheeses (such as Emmental)

Motor and transmission - Machine body

This machine is equipped with a 1100 W asynchronous induction single-phase electric motor powered at 230 V.

The motor is completely covered by the machine body made in food-grade polished die-cast aluminium.

Gear transmission in oil bath, for maximum efficiency and resistance while working.

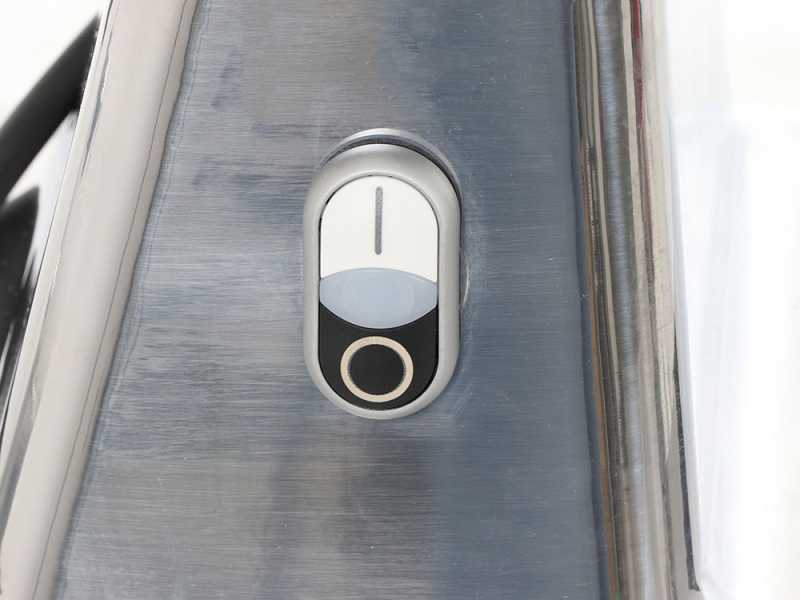

Operation is easy, safe and user-friendly thanks to the low voltage controls located at the base of the machine.

Equipped with anti-vibration rubber feet

All machine components are of high quality.

Free items & Standard equipment

COMPLIMENTARY: professional protection and storage cover cloth

Essential for protecting your machine when stored.

This cloth is fast and easy to apply; within seconds your machine is protected from dust and humidity.

Easy to fold and store inside its own box packaging with minimal space required!

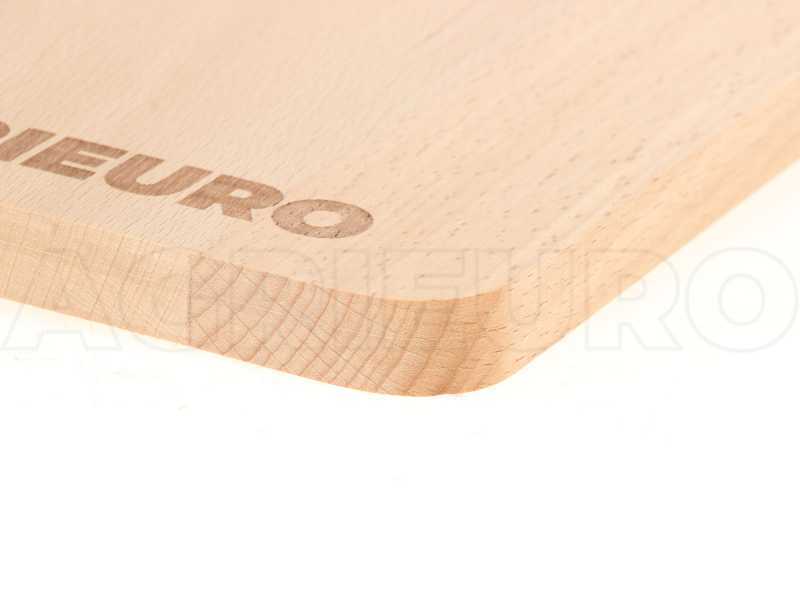

COMPLIMENTARY: 25x15x1.5 Chopping Board

Complimentary: a practical sturdy chopping board made of solid beech wood, customised with the laser engraved AgriEuro logo.

Ideal for cutting any type of food and easy to clean.

Dimensions: 25x15x1.5 cm

Weight: 390 g

Free items included

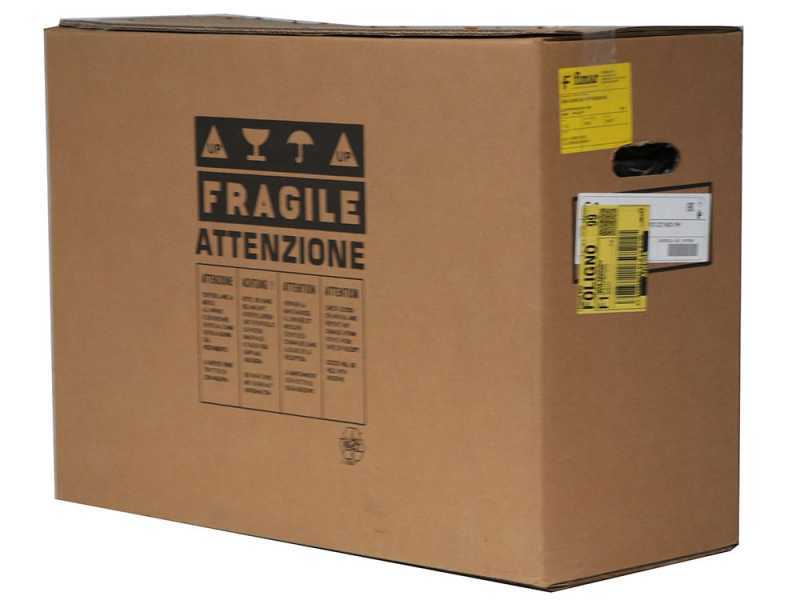

The machine is shipped in its original packaging

Included are:

brush for cleaning the grater

stainless steel bowl for grated cheese

Stainless steel hopper plate

Schuko socket for 230V single-phase current

pestle in pvc

Instructions for use
