FIMAR TC22SN Electric Meat Mincer - Body and Grinding Unit in Food-grade Aluminium - Three-phase - 400V / 1.5 hp

Add a question
ID: K602903

EAN: 9999991093713

MPN: TR22SNA405T

FIMAR TC22SN Electric Meat Mincer - Body and Grinding Unit in Food-grade Aluminium - Three-phase - 400V / 1.5 hp
FREE
CUtting board with AgriEuro logoCUtting board with AgriEuro logo
Tarpaulin cover and storageTarpaulin cover and storage
Motor type
Induction
Operating mode
Three-phase 400 V
Rated power
1.5 Hp
Certifications
CE professional
Attachment dimensions
No.22
Accessory material
Aluminium
Hourly output
250 Kg/h
Transmission type
Gears in oil-bath
Funnel material
Stainless steel
Manufacturing country
Italy
Product Features
Model:
TC22SN alluminio
Machine body material:
Aluminium
Certifications:
CE professional
Power output:
1100 W
Operating mode:
Three-phase 400 V
Hourly output:
250 Kg/h
Die plate material:
acciao inox
Engine cover:
Without carter
Manufacturing country:
Italy
Motor data
Motor type:
Induction motor
Motor type:
Induction
Rated power:
1.5 Hp
Power supply:
400 V electric
Motor protection:
Manufacturing country:
Italy
Transmission data
Transmission type:
Gears in oil-bath
Gear unit type :
With gears
Cutting data
Accessory material:
Aluminium
Attachment dimensions:
No.22
No.22 Accessory:
Funnel material:
Stainless steel
Blade material:
stainless steel
Free gifts/extra features
Instructions manual:
Yes
Dimensions and logistics

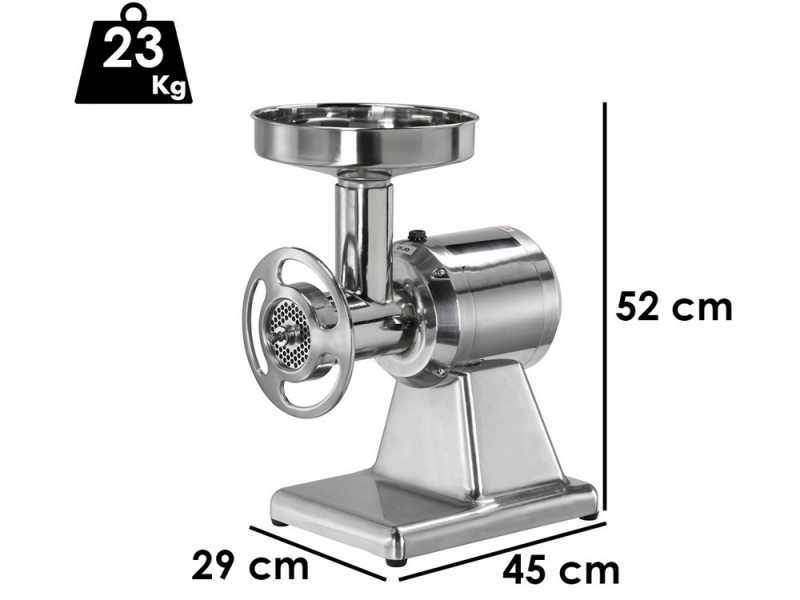

Product dimensions in cm (L x W x H):
45x29x52 cm
Net weight:
23 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
54x30x48 cm
Gross weight (packaging included) :
25 Kg
Assembly time:
Assembled
Prompt Delivery
2 items in stock
Free Shipping
Estimated delivery: 03/05/2024 - 07/05/2024
€ 689,70
VAT Included

You're viewing:
Customers also viewed:
Description

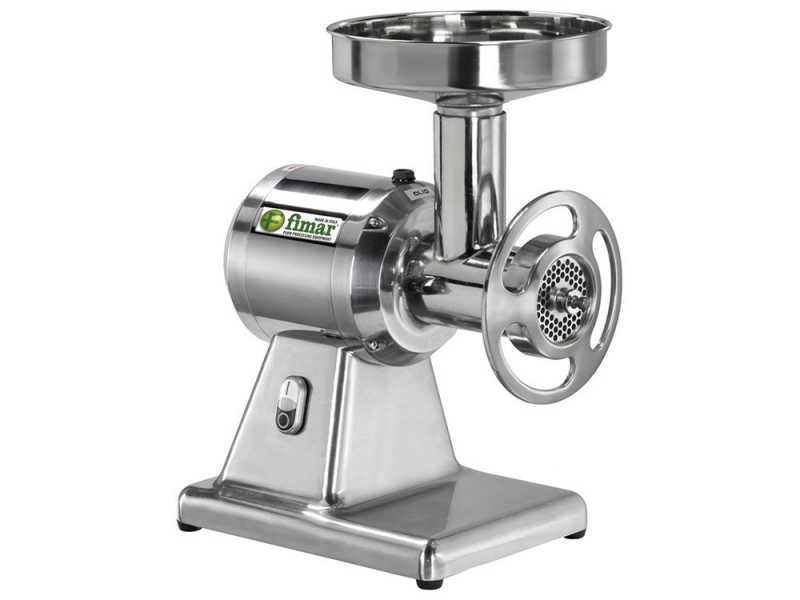

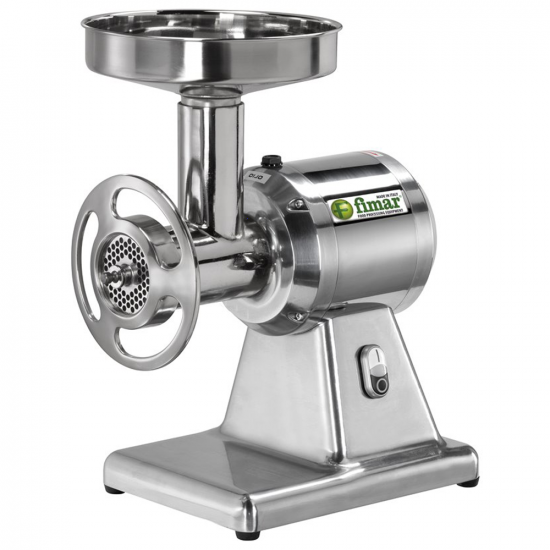

FIMAR TC22SN Electric Meat Mincer

FIMAR TC22SN electric meat mincer.

Hopper, self-sharpening knife and die plate in stainless steel.

Food-grade aluminium grinding unit.

Equipped with an 1100 W asynchronous induction electric motor powered at 400V.

The hourly output is ~250 Kg/h, this makes this meat mincer suitable for professional use.

This meat mincer is designed for a counter top use.

The machine body is entirely built in polished aluminium, this ensures high protection against external elements.

Its simple and functional design makes the machine pleasing to the eye and extremely easy to clean.

Fully removable grinding unit.

Pestle made of food-grade plastic

Italian manufactured and certified-quality product

The removable grinding unit, once the knob on the side of the machine has been unscrewed, will allow you to remove the whole chamber of the auger (worm screw), knife and die plate.

The feeder tube that brings the meat from the funnel to this chamber will however remain attached to the machine body and will need to be cleaned separately unlike other machines that have a removable body.

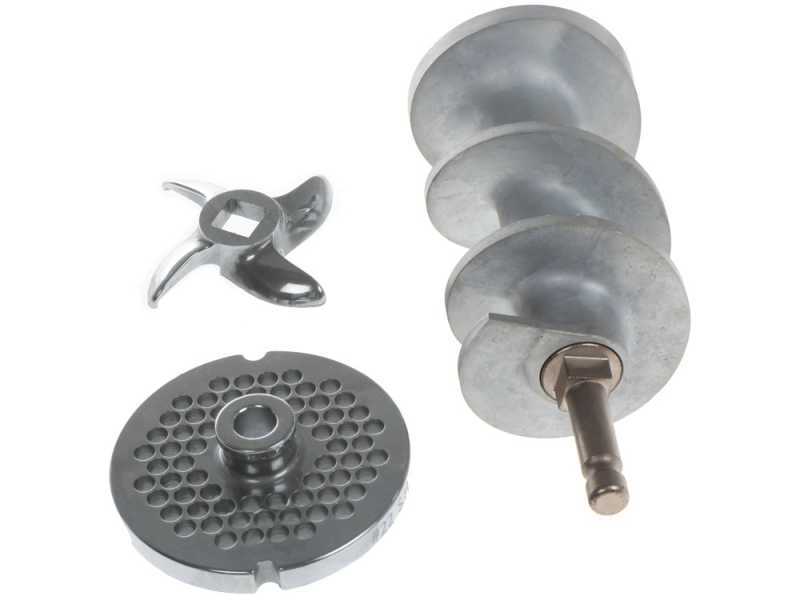

Removable grinding unit

This machine features a fully removable grinding unit.

Just unscrew the knob and take out the whole grinding unit.

This feature allows for a quick and fast cleaning of the machine.

The removable grinding unit, once the knob on the side of the machine has been unscrewed, will allow you to remove the whole chamber of the auger (worm screw), knife and die plate.

The feeder tube that brings the meat from the funnel to this chamber will however remain attached to the machine body and will need to be cleaned separately unlike other machines that have a removable body.

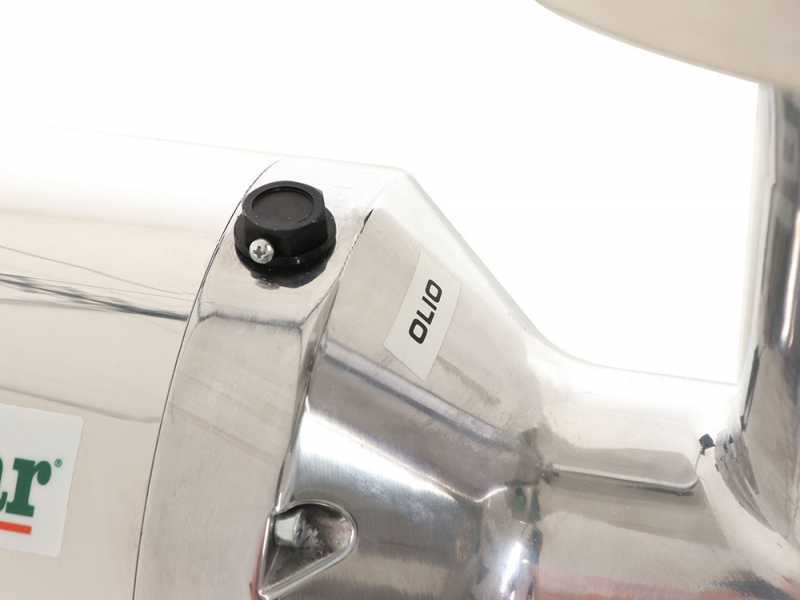

Motor and transmission - Machine body

This machine is equipped with a 1100 W asynchronous induction electric motor powered at 400 V.

The motor is completely covered by the machine body made in food-grade polished die-cast aluminium.

Gear transmission in oil bath, for maximum efficiency and resistance while working.

Operation is easy, safe and user-friendly thanks to the controls located at the base of the machine.

Equipped with anti-vibration rubber feet

All machine components are of high quality.

Meat mincer

The body of the TC22SN meat mincer is completely made of polished die-cast aluminium.

The removable grinding group is made of food-grade aluminium, while the hopper, the cutting plate with Ø 6mm holes and the self-sharpening knife are made in AISI 304 stainless steel.

The pestle is made of food-grade plastic.

The dimensions of the feed inlet are ø 52 mm

Thanks to the numerous die plates (sold separately) you can grind the meat with different grains.

Machine operation is extremely easy and intuitive.

Free items & Standard equipment

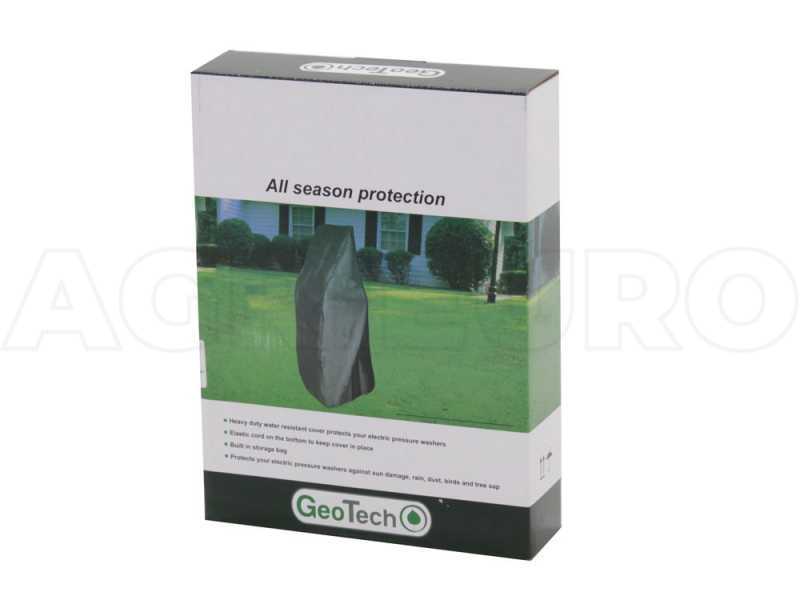

COMPLIMENTARY: professional protection and storage cover cloth

Essential for protecting your machine when stored.

This cloth is fast and easy to apply; within seconds your machine is protected from dust and humidity.

Easy to fold and store inside its own box packaging with minimal space required!

COMPLIMENTARY: 25x15x1.5 Chopping Board

Complimentary: a practical sturdy chopping board made of solid beech wood, customised with the laser engraved AgriEuro logo.

Ideal for cutting any type of food and easy to clean.

Dimensions: 25x15x1.5 cm

Weight: 390 g

Free items included

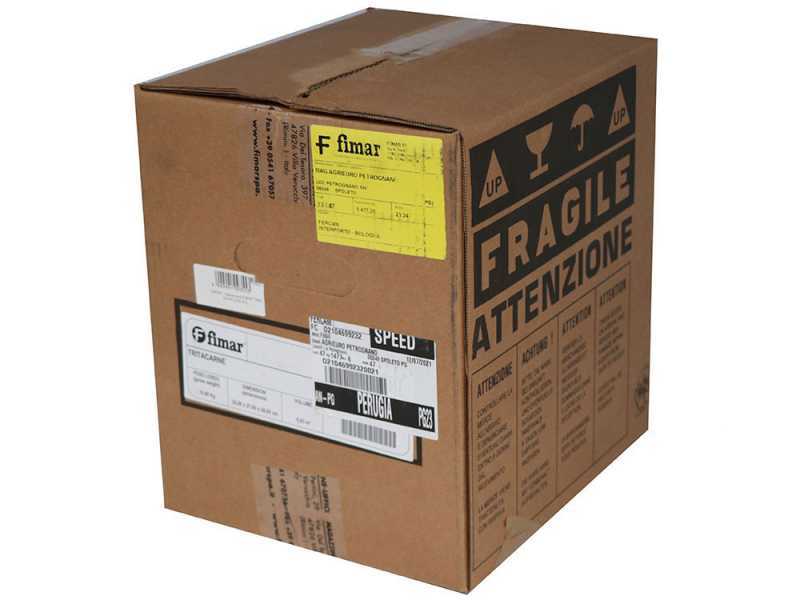

The machine is shipped in its original packaging

Included are:

Stainless steel hopper plate

CE socket for three-phase current

pestle in pvc

Instructions for use
