FIMAR TC22SN Electric Meat Mincer - Body and Grinding Unit in 304 AISI Stainless Steel - Single-phase - 230V / 1.5 hp

FIMAR TC22SN Electric Meat Mincer - Body and Grinding Unit in 304 AISI Stainless Steel - Single-phase - 230V / 1.5 hp
Motor type
Induction
Activation
Single-phase
Effective power
1.5 HP
Certifications
CE professional
Meat mincer accessory
stainless steel - long
Uncovered
Hourly output
250 Kg/h
Transmission type
gear transmission in oil bath
Hopper material
stainless steel
Manufacturing Country
Italy
FREE:
Free item: tarpaulin cover and storage
CUtting board with AgriEuro logo
FREE:
Free item: tarpaulin cover and storage
CUtting board with AgriEuro logo
€ 684,88
VAT Included
Out of stock
Notify me when available
|
Free Shipping
ID: K602904

EAN: 9999991093720

MPN: TR22SN235M

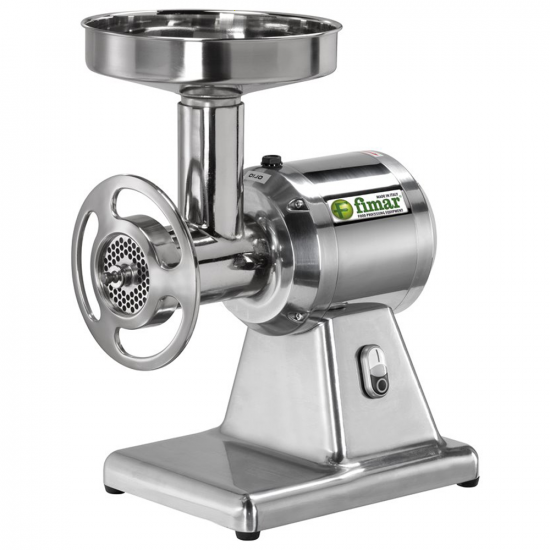

FIMAR TC22SN Electric Meat Mincer

FIMAR TC22SN electric meat mincer. Suitable for professional use in medium-large butcher shops.

The machine body is entirely built in polished aluminium, this ensures high protection against external elements.

The hopper plate, the removable grinding unit and the food processing components are entirely made in AISI 304 stainless steel.

Equipped with an 1100 W asynchronous single-phase induction electric motor powered at 230V.

The hourly output is ~250 Kg/h, this makes this meat mincer suitable for professional use.

This meat mincer is designed for a counter top use.

Its simple and functional design makes the machine pleasing to the eye and extremely easy to clean.

Fully removable grinding unit

Pestle made of food-grade plastic

Italian manufactured and certified-quality product

The removable grinding unit, once the knob on the side of the machine has been unscrewed, will allow you to remove the whole chamber of the auger (worm screw), knife and die plate.

The feeder tube that brings the meat from the funnel to this chamber will however remain attached to the machine body and will need to be cleaned separately unlike other machines that have a removable body.

Removable grinding unit

This machine features a fully removable grinding unit.

Just unscrew the knob and take out the whole grinding unit.

This feature allows for a quick and fast cleaning of the machine.

The removable grinding unit, once the knob on the side of the machine has been unscrewed, will allow you to remove the whole chamber of the auger (worm screw), knife and die plate.

The feeder tube that brings the meat from the funnel to this chamber will however remain attached to the machine body and will need to be cleaned separately unlike other machines that have a removable body.

Motor and transmission - Machine body

This machine is equipped with a 1100 W asynchronous induction single-phase electric motor powered at 230 V.

The motor is completely covered by the machine body made in food-grade polished die-cast aluminium.

Gear transmission in oil bath, for maximum efficiency and resistance while working.

Operation is easy, safe and user-friendly thanks to the controls located at the base of the machine.

Equipped with anti-vibration rubber feet

All machine components are of high quality.

Meat mincer

The body of the TC22SN meat mincer is completely made of polished die-cast aluminium.

The extractable grinding unit with the hopper plate, the cutting plate with Ø 6mm holes and the self-sharpening knife, are completely in AISI 304 stainless steel.

The pestle is made of food-grade plastic.

The dimensions of the feed inlet are ø 52 mm

Thanks to the numerous die plates (sold separately) you can grind the meat with different grains.

Machine operation is extremely easy and intuitive.

Assembly tutorial of the FIMAR TC22SN Electric Meat Mincer - Body and Grinding Unit in 304 AISI Stainless Steel - Single-phase - 230V / 1.5 hp
Product Features
Model:
TC22SN inox - 220V
Machine body material:
Aluminium
Certifications:
CE professional
Power output:
1100 W
Activation:
Single-phase
Hourly output:
250 Kg/h
Die plate material:
acciao inox
Manufacturing Country:
Italy
Motor data
Motor type:
induction motor
Motor type:
Induction
Effective power:
1.5 HP
Power supply:
220V power supply
Motor protection:
Manufacturing Country:
Italy
Transmission data
Transmission type:
gear transmission in oil bath
Speed reduction:
gears
Cutting data
Meat mincer accessory:
stainless steel - long
Accessory size:
No.22
No.22 Accessory:
Hopper material:
stainless steel
Knife material:
stainless steel
Free gifts/extra features
Instructions manual:
yes
Dimensions and logistics
Product dimensions cm (LxWxH):
45x29x52 cm
Net weight:
25 Kg
Packaging:
Original packaging
Packaging dimensions cm (LxWxH):
54x30x48 cm
Gross weight (packaging incuded) :
27 Kg
Assembly time:
assembled

COMPLIMENTARY: professional protection and storage cover

Essential for protecting your machine when stored.

This cloth is fast and easy to apply; within seconds your machine is protected from dust and humidity.

Easy to fold and store inside its own box packaging with minimal space required!

FOR FREE: Cutting Board 25x15x1.5

Along with the product comes a practical sturdy cutting board made of solid beech wood, customized with the laser engraved AgriEuro logo.

Ideal for cutting any type of food and easy to clean.

Size: 25x15x1.5 cm

Weight: 390 g

Free items included

The machine is shipped in its original packaging

Included are:

Stainless steel hopper plate

Schuko socket for 230V single-phase current

pestle in pvc

Instructions for use
