FIMAR TC22AE Electric Meat Mincer - with Integrated Grater - Removable Grinding Unit in Stainless Steel - Single-phase - 230 V / 1.5 hp

Add a question
ID: K603033

EAN: 9999991094024

MPN: AB22AEQ0I235M

8,1/10
After-sales assistance & Spare parts
FIMAR TC22AE Electric Meat Mincer - with Integrated Grater - Removable Grinding Unit in Stainless Steel - Single-phase - 230 V / 1.5 hp
Free gifts from AgriEuro
CUtting board with AgriEuro logoCUtting board with AgriEuro logo
Tarpaulin cover and storageTarpaulin cover and storage
Prompt Delivery
2 items in stock
Free Shipping
Estimated delivery: 13/04/2026 - 15/04/2026
€ 1.037,12
Vat included
Technical data
Motor type
Induction
Operating mode
Single-phase 230 V
Rated power
1.5 Hp
Certifications
CE professional
Multi tool
2 in 1
Attachment dimensions
No.22
Accessory material
Stainless steel
Engine cover
Without carter
Hourly output
250 Kg/h
Transmission type
Gears in oil-bath
Funnel material
Stainless steel
Manufacturing country
Italy
Product Features
Model
TC22AE inox
Cheese grater type
Multi-purpose
Machine body material
Aluminium
Certifications
CE professional
Power output
1100 W
Operating mode
Single-phase 230 V
Hourly output
250 Kg/h
Die plate material
acciao inox
Multi tool
2 in 1
Engine cover
Without carter
Manufacturing country
Italy
Motor data
Motor type
Induction
Rated power
1.5 Hp
Power supply
220 V electric
Motor protection
Manufacturing country
Italy
Transmission data
Transmission type
Gears in oil-bath
Gear unit type
With gears
Cutting data
Accessory material
Stainless steel
Attachment dimensions
No.22
No.22 Accessory
yes
Funnel material
Stainless steel
Blade material
stainless steel
Equipment
Anti-vibrating system
Yes
Free gifts/extra features
Instructions manual
Yes
Dimensions and logistics

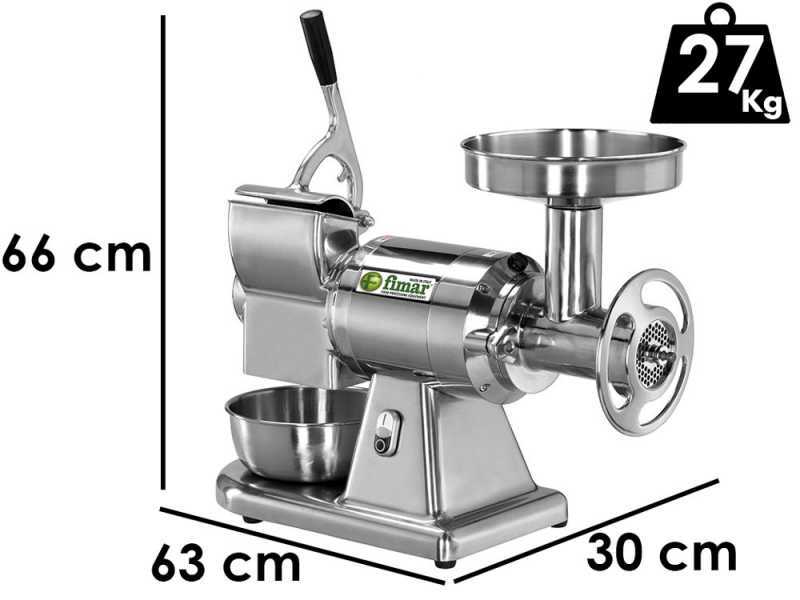

Product dimensions in cm (L x W x H)
63x30.5x66 cm
Net weight
27 Kg
Packaging
Original packaging
Original packaging/s dimensions in cm (L x W x H)
75x30x48 cm
Weight including packaging
30 Kg
Assembly time
5 minutes

Add Accessories and get a discount
You're viewing:
Customers also viewed:
Description

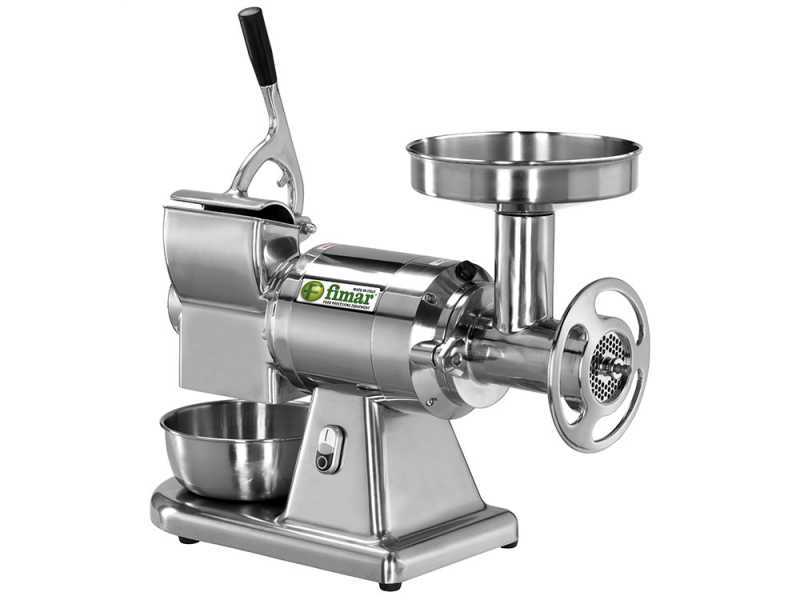

FIMAR TC22AE Electric Meat Mincer/Grater

The FIMAR TC22AE combined meat mincer is the ideal product for any professional environment with an important need for minced meat and cheese/breadcrumbs.

Being a combined machine, it saves money and space as you don’t need two separate machines to perform these operations.

Designed for professional use in a medium-large sized butcher shop, it’s also perfectly suitable for supermarkets, hotels or restaurants.

The machine body is entirely built in polished die-cast aluminium, this ensures high protection against external elements.

The hopper plate, the removable grinding unit and the food processing components are entirely built in AISI 304 stainless steel.

The grater roller, like the grinding unit, is built in stainless steel, making it extremely resistant to corrosion originated by cheese grating.

The grater is equipped with a safety microswitch that stops the motion of the machine when the handle is raised, in accordance with the current safety standards dictated by the European community.

Equipped with an 1,100 W asynchronous single-phase induction electric motor powered at 230V.

The hourly output is ~250 Kg/h, this makes this meat mincer suitable for professional use.

The hourly output of the grater is 40 Kg/h

This meat mincer is designed for a counter top use.

Its simple and functional design makes the machine pleasing to the eye and extremely easy to clean.

Fully removable grinding unit

Pestle made of food-grade plastic

Italian manufactured and certified-quality product

Heavy-duty Meat Mincer with CE certification

CE Professional meat mincers are designed to be used according to the needs of professional operators.

All CE professional-branded meat slicers are:

  • easy to wash and safe to work with.
  • Guaranteed by international patents and manufactured according to current CE standards.

All of our meat mincers with CE professional certification are recommended for restaurants, grocery shops with meat department, butcher shops and hotels.

The meat mincers with CE professional certification, compared to a meat grinder with a CE mark for domestic use, offer a more precise setting, greater safety for disassembly and superior handling.

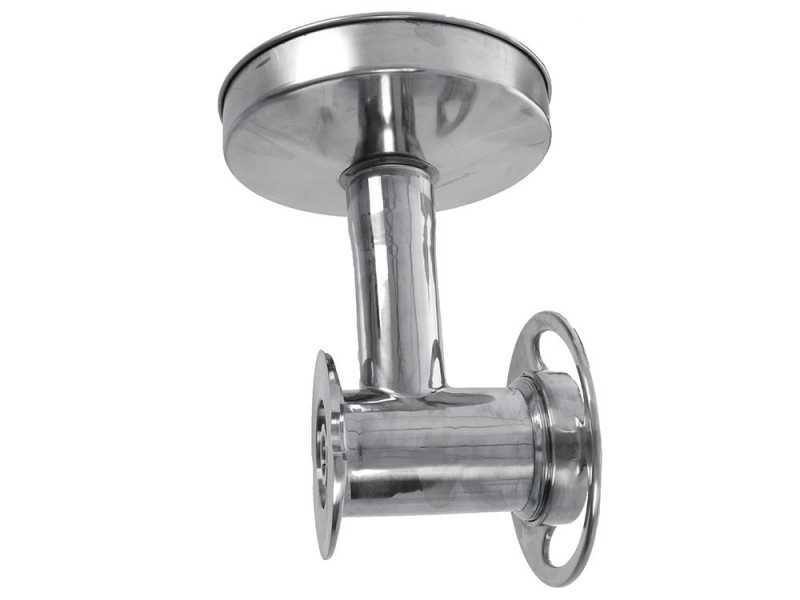

Removable grinding unit in stainless steel

This machine features a fully removable grinding unit.

Just unscrew the two knobs on the side of the grinding unit to detach it.

Thanks to this feature it will not be necessary to wash it every time, but it can be simply stored in the refrigerator or in the blast chiller. This characteristic is in compliance with HACCP hygiene standards.

The grinding unit is in AISI 304 stainless steel and it’s dishwasher safe.

Meat mincer

The body of the TC22AE meat mincer is completely made of polished die-cast aluminium.

The removable grinding unit with the hopper plate, the cutting plate with Ø 6mm holes and the self-sharpening blade, are entirely made in AISI 304 stainless steel.

The pestle is made of food-grade plastic.

The dimensions of the feed inlet are ø 52 mm

Thanks to the numerous die plates (sold separately) you can grind the meat with different grains.

Machine operation is extremely easy and intuitive.

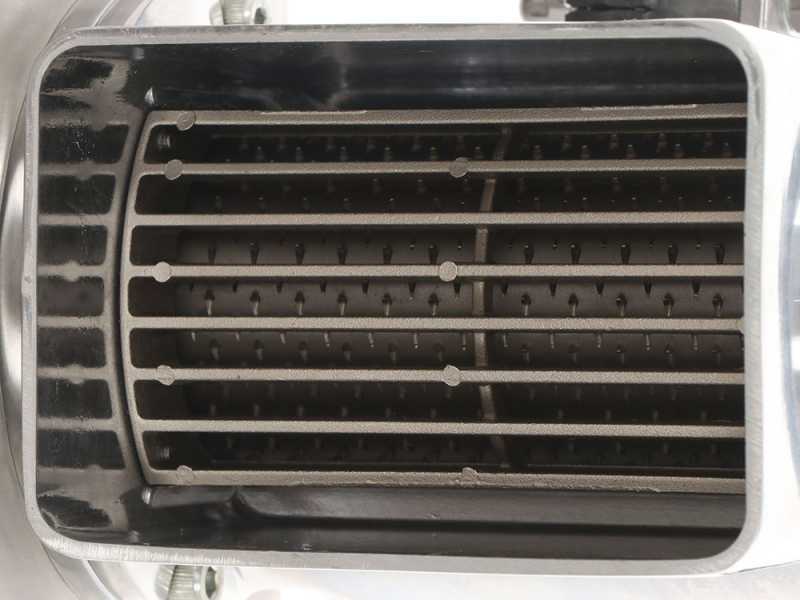

Cheese grater

The built-in cheese grater is designed for food use and guarantees the processing of: hard cheese and dry bread.

Safety microswitch protected by the machine body

Grater collection bowl in stainless steel

Exhaust protection grid and interlock to the cheese load to avoid contact with the moving parts

The size of the hopper opening where the cheese goes is 14x7,5 cm.

The grater roller is in food-grade stainless steel

This machine is only suitable for hard cheeses (such as mature Parmesan). It is not suitable for soft cheeses (such as Emmental)

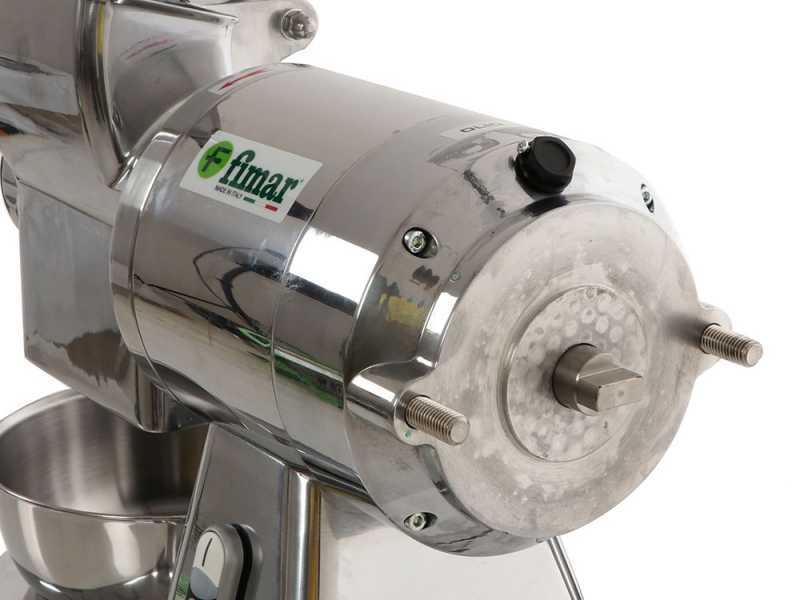

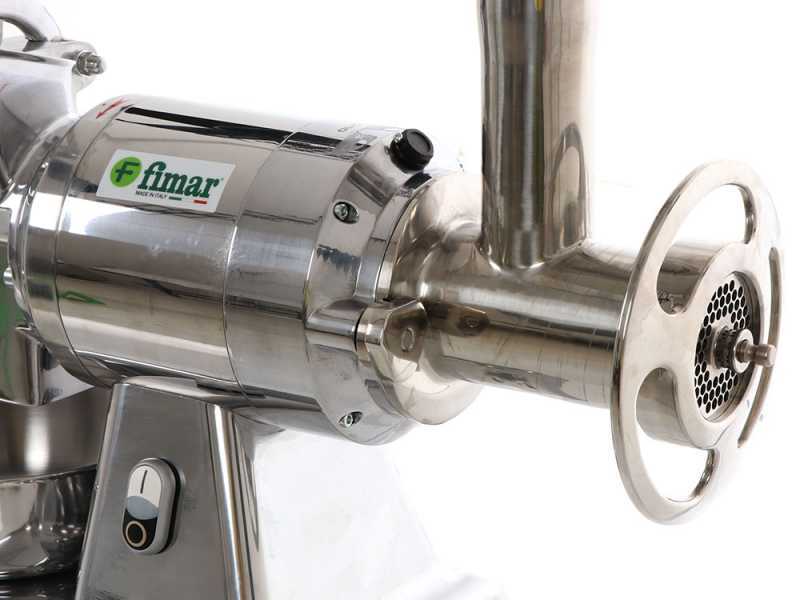

Motor and transmission - Machine body

This machine is equipped with a 1100 W asynchronous induction single-phase electric motor powered at 230 V.

The motor is completely covered by the machine body made in food-grade polished die-cast aluminium.

Gear transmission in oil bath, for maximum efficiency and resistance while working.

Operation is easy, safe and user-friendly thanks to the low voltage controls located at the base of the machine.

Equipped with anti-vibration rubber feet

All machine components are of high quality.

Free items & Standard equipment

COMPLIMENTARY: professional protection and storage cover cloth

Essential for protecting your machine when stored.

This cloth is fast and easy to apply; within seconds your machine is protected from dust and humidity.

Easy to fold and store inside its own box packaging with minimal space required!

COMPLIMENTARY: 25x15x1.5 Chopping Board

Complimentary: a practical, sturdy cutting board made of solid beech wood, customized with the laser-engraved AgriEuro logo.

Ideal to cut any type of food and easy to clean.

Dimensions: 25x15x1.5 cm

Weight: 390 g



Free items included

The machine is shipped in its original packaging

Included are:

brush for cleaning the grater

stainless steel bowl for grated cheese

Stainless steel hopper plate

Schuko socket for 230V single-phase current

pestle in pvc

Instructions for use
