Fiac Magnum XS88 - Silenced Electric Air Compressor

Add a question
ID: K601481

EAN: 8020119151204

MPN: 1129102957

7,1/10
After-sales assistance & Spare parts
Fiac Magnum XS88 - Silenced Electric Air Compressor
FREE
2 guns with container2 guns with container
2 compressor guns2 compressor guns
Spiral hose 5 metresSpiral hose 5 metres
no. 8 compressor connectionsno. 8 compressor connections
Air compressor tank
10 L
Max. operating pressure
9 bar
Air intake flow
140 L/min
Cylinder head rpm
1420 RPM
Lubrication
Oil-less
Pump type
Single-stage
Silenced
Yes
Nominal power
0.75 HP
Operating mode
Single-phase 230 V
Product Features
Model:
Magnum XS88
Air compressor type 2:
Oilless
Air compressor type:
Portable
Handheld:
Operating mode:
Single-phase 230 V
Max. operating pressure:
9 bar
Number of tanks:
1
Tank capacity:
10 L
Air compressor tank:
10 L
Noise level:
59 dBA
Manufacturing country:
China
Motor data
Motor type:
Electric single-phase
Nominal power:
0.75 HP
Silenced:
Yes
Power supply:
220 V electric
Manufacturing country:
China
Pump data
Pump brand:
Fiac
Air intake flow:
140 L/min
Pump type:
Single-stage
Lubrication:
Oil-less
No. of cylinders:
1
Cooling manifold:
No
Manufacturing country:
China
Transmission data
Transmission type:
Coaxial type direct
Cylinder head rpm:
1420 RPM
Equipment
No. of outlet couplings:
1
Rear wheels size:
190 mm
Rubber-coated soft grip:
Yes
Lifting handle:
No
Free gifts/extra features
Wooden pallet (safe shipping):
Yes
Quick reduction coupling:
Yes
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
38x33x64 cm
Net weight:
25 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
41x34,5x65 cm
Weight including packaging:
27 Kg
Assembly time:
Assembled
Prompt Delivery
3 items in stock
Free Shipping
Estimated delivery: 09/05/2025 - 13/05/2025
Suggested price:
€ 399,75
€ 375,49
Vat included
You're viewing:
Customers also viewed:
Description

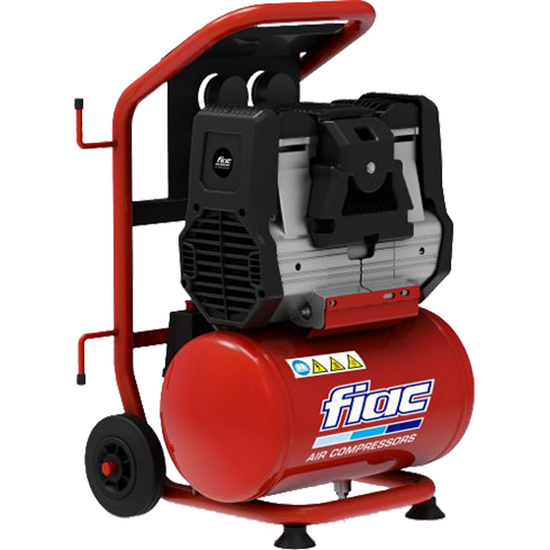

FIAC Magnum XS88 Electric Air Compressor

The Fiac Magnum XS88 electric air compressor belongs to the Fiac XS series. This new range of air compressors has been designed primarily to reduce the constant noise caused by running these types of machines. The operation of these air compressors is completely oil-free, which allows for easy and limited maintenance.

Equipped with a silenced piston, the noise level produced is only 59 db.

In addition to being super silent, the air compressor is capable of delivering a maximum power of 0.75 Hp and can reach a maximum pressure of 9 bar. It features a compressed air suction capacity of 140 L/min.

The made in Italy design of the pumping unit guarantees safety, comfort and high performance: the XS series reaches 9 bar of pressure, allowing the use of professional tools despite the small size of the air compressor.

Ideal for a variety of applications, the FIAC XS series comes in a wide range of power ratings, and, in addition, the direct oil-free unit provides consistent airflow with minimal maintenance required.

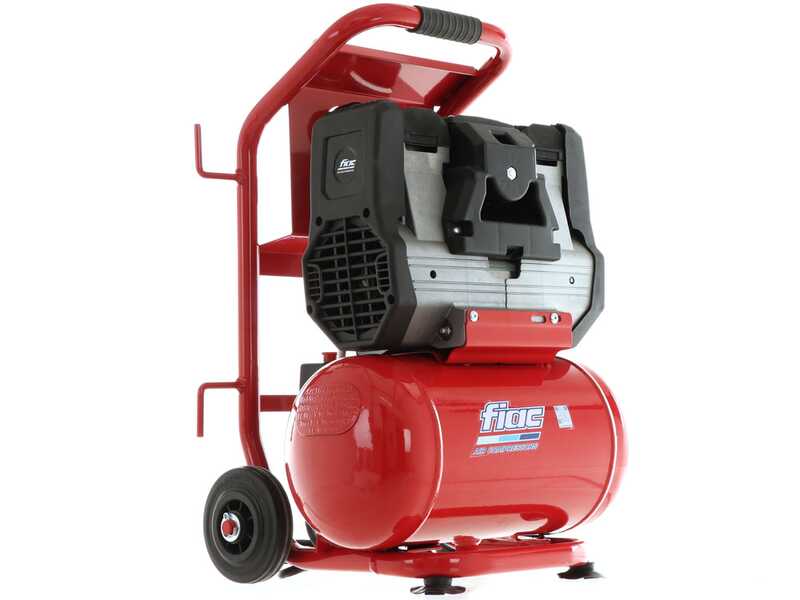

Technical features

This air compressor represents a high standard in the electric air compressor industry. The noise emissions produced are only 59 dB. Designed to overcome the issue related to the noise emissions while operated in working areas. This range of air compressors stands out on the market for the low noise level.

Main features:

  • Pumping unit type: Coaxial - Oilless
  • Air intake flow: 140 L/min
  • Pressure: 9 bar
  • Electric motors power: 0.75 Hp
  • Tank: 10 L

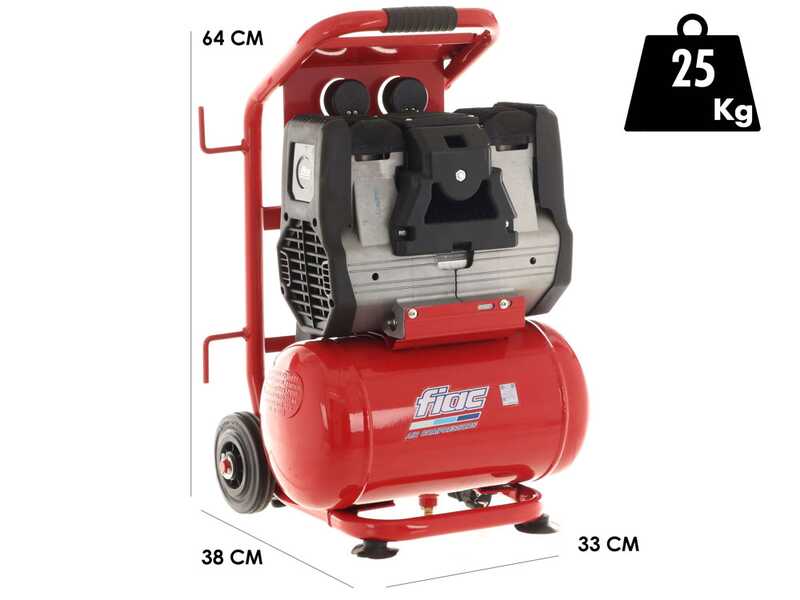

Dimensions:

  • Length: 380 mm
  • Height: 640 mm
  • Depth (or thickness): 330 mm
  • Weight: 24.5 kg

The two rear wheels and the handle allow the operator to use it in any environment, and it can be safely stored in any corner of the garage.

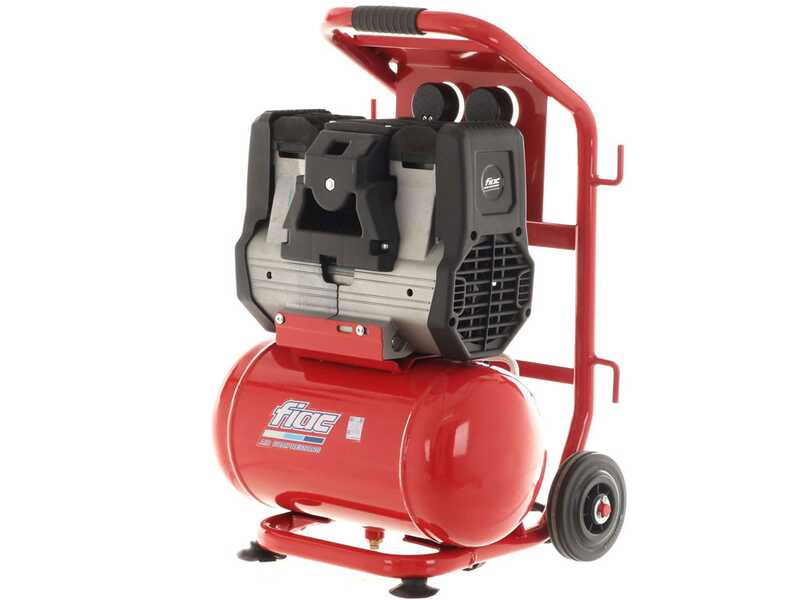

Controls and other features

Easy and user-friendly controls, which are divided into:

Power switch and the control panel in which there are:

  1. Output air pressure gauge and tank air pressure gauge
  2. Air compressor female outlet fitting
  3. Pressure adjusting knob

This air compressor is also equipped with:

  • Side hose holder: allows to work in perfect order;
  • Condensate drain valve: protects the valves, pipes and cylinders against condensate formation through an automatic drain of the air tank;
  • Schuko plug: it is the common name for an AC plug and socket system.
Free items & Standard equipment

GeoTech accessories kit for air compressor - 5 tools

This extensive air compressor accessory kit includes:

- Tire inflating gun with
integrated pressure gauge

- Wash gun

- Air blowing gun

- Air brushing gun

- Coiled air hose

COMPLIMENTARY: Oilless Air Compressor Maintenance Kit

Maintenance kit provided on standard equipment includes:

  • Air compressor spare/replacing female output joint
  • Air compressor spare/replacing male output joint (replaceable on equipment with bayonet cap) or usable as spare joint

  • Quick joint to convert all the machineries fitted with standard bayonet coupling. It allows easily connecting the units to hoses with female quick joint.

  • Quick male joint for converting the female output joint supplied on the air compressor into the traditional bayonet cap (it also allows the use of the standard hoses with bayonet system)

  • Repair/Junction fitting for Ø 8 hoses
  • Repair/Junction fitting for Ø 10 hoses
  • Lower tank discharge valve replacement air compressor
  • Teflon roll, ideal for the main maintenance operations

Standard equipment

The air compressor is shipped in its original packaging.

Instructions manual included.
