Fiac Light Silver LS 4-200 10 400/50 CE - Screw compressor

Add a question
ID: 110820

EAN: 8024900724486

MPN: 4116000756

7,1/10
After-sales assistance & Spare parts
Fiac Light Silver LS 4-200 10 400/50 CE - Screw compressor
Special offer
Air compressor tank
200 L
Max. operating pressure
10 bar
Air intake flow
352 L/min
Pumping unit
Screw
Cylinder head rpm
3563 RPM
Silenced
Yes
Nominal power
4.5 HP
Operating mode
Three-phase 400 V
Manufacturing country
Italy
Product Features
Model:
Light Silver LS 4-200 10 400/50 CE
Air compressor type 2:
Screw
Air compressor type:
Horizontal
Operating mode:
Three-phase 400 V
Operating mode:
Electric 400V
Max. operating pressure:
10 bar
Number of tanks:
1
Air compressor tank:
200 L
Manufacturing country:
Italy
Motor data
Motor type:
Electric three-phase
Nominal power:
4.5 HP
Silenced:
Yes
Pump data
Pump brand:
Fiac
Air intake flow:
352 L/min
Pumping unit:
Screw
Transmission data
Screw:
Cylinder head rpm:
3563 RPM
Equipment
No. of outlet couplings:
1
Free gifts/extra features
Wooden pallet (safe shipping):
Yes
Dimensions and logistics

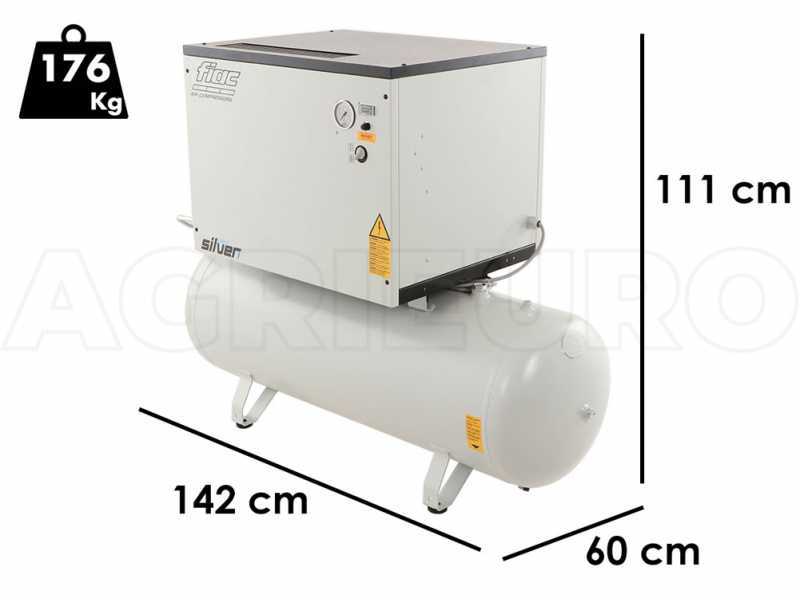

Product dimensions in cm (L x W x H):
142x62x111 cm
Net weight:
176 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
206x82.4x157 cm
Gross weight (packaging included) :
230 Kg
Assembly time:
5 minutes
Prompt Delivery
2 items in stock
Free Shipping
Estimated delivery: 21/11/2024 - 25/11/2024
Lowest price:
€ 3.634,49
-8 %
€ 3.342,06
VAT Included
You're viewing:
Customers also viewed:
Description

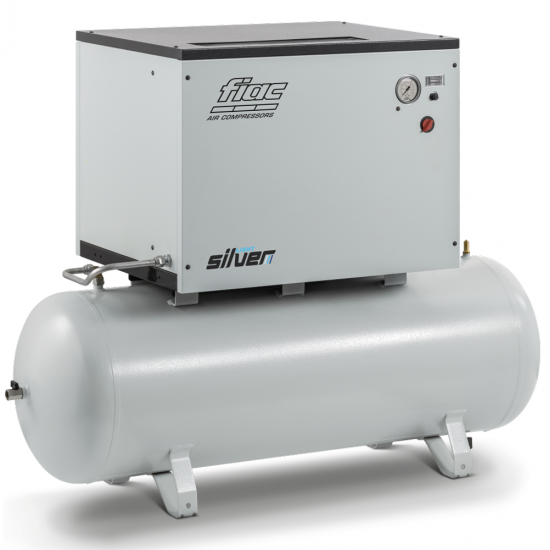

Fiac Light Silver LS 4-200 10 400/50 CE Screw Compressor

The Fiac Light Silver LS 4-200 10 400/50 CE screw compressor is part of the latest generation of Fiac screw compressors. It offers better performance and greater reliability than classic piston compressors. It is also lighter and less bulky.

The compressor operation can be summarized as follows:

  • The gas passes through a suction line created between the two rotors.
  • The rotation of the screws stops the input suction and the air is pushed towards the delivery output.
  • The screws are made in such a way as to progressively reduce the space between the rotors and the stator and this allows for an increase in pressure.
  • The last step of the operation concerns the expulsion of air from the discharge of the pump unit.

It can produce 352 L of air per hour. It has a nominal capacity of 3.36 kW (4.5 HP) and it can produce a maximum pressure of 10 bar.

The air produced can reach up to 444 L per minute at a maximum pressure of 8 bar.

Models with screw technology are designed for heavy-duty, continuous use, such as in business or industrial sectors. Due to their continuous and uninterrupted productivity, they are suitable for use in machine shops, industries, and many others.

It features a tank with a 200 L capacity.

Unlike the classic piston compressor, these machines are also extremely silent, the screw technology makes it possible to maintain a very low sound emission level. In addition, the maintenance of this machine has been greatly simplified to allow the user to perform it in a few simple steps.

Screw compressors are perfect for those who need an uninterrupted production of compressed air on a long term basis.

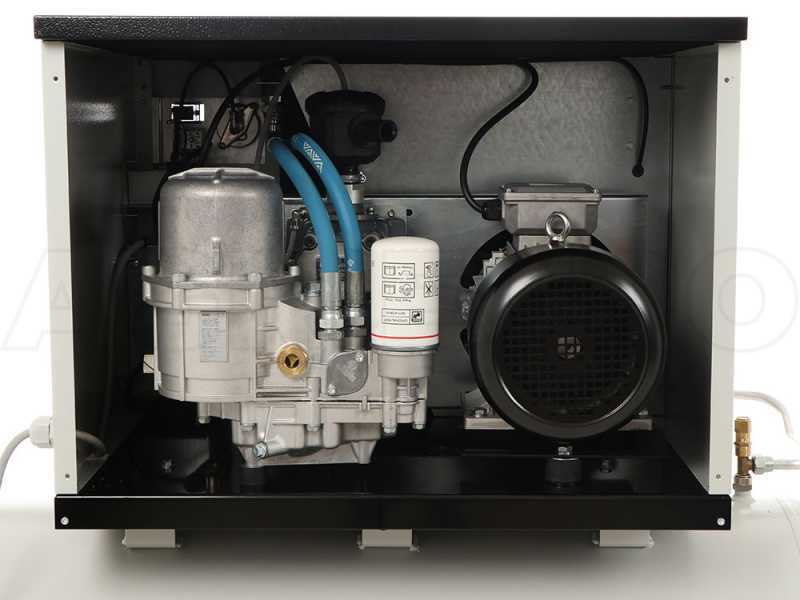

Main features of the screw unit

The screw compressors are particularly suitable for those environments that require a higher air flow rate and for prolonged use. Unlike piston models, they do not require a rest period, but only an initial phase during which the compressor must reach a suitable temperature to be able to deliver the maximum pressure and flow rate.

The motor performs fewer starts, thus reducing wear and increasing its service life.

The new line of screw compressors of the Light Silver range ensures high efficiency and reliability. The components subject to wear have been reduced to allow maintenance to be carried out in total autonomy and avoid unnecessary interventions that could damage the machine.

Furthermore, these models consume much less oil than piston models, thus reducing both costs and the number of maintenance operations.

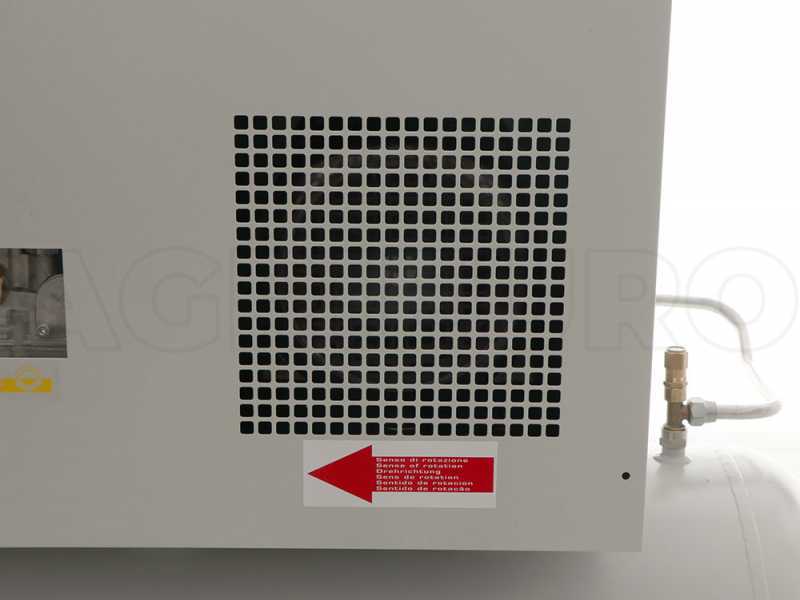

There is an independent axial electric fan installed on the side of the machine.

The screw unit and the electric motor are fixed on an anti-vibration base which eliminates the transmission of vibrations to the structure of the compressor, so as to greatly reduce noise and mechanical stress on the fixed parts of the machine.

The frame is made of reinforced sheet metal with ribs. High density washable sound absorbing panels are installed on the sides.

Motor technical specifications

The air compressor features a three-phase electric motor. The induction motor is characterized by very long life and low maintenance requirements. In fact, this motor is brushless, the brushes being the main component subject to wear in electric motors. The absence of this component gives the motor durability. It is a top-quality product in terms of reliability, low noise, durability, energy efficiency and maintenance.

  • Model: Pro IE1
  • Type: Three-phase electric
  • Voltage: 400V
  • Power: 4.5 HP
  • Frequency: 50 HZ

It is possible to adjust the tensioning of the drive belt thanks to a plate placed under the motor sliding on guides.

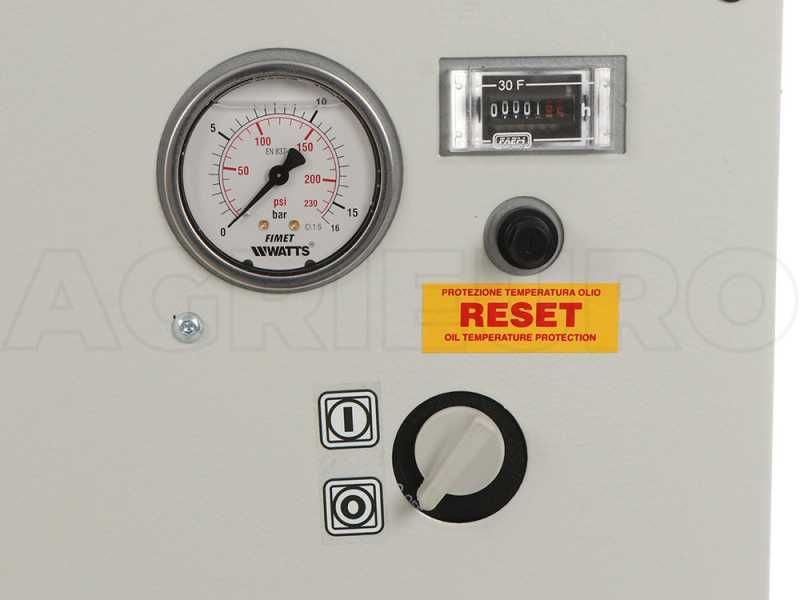

Controls and adjustments

The control panel is very simple and intuitive. You can find:

Power switch

Reset button

Barometer

Hour meter

Focus on the air outlet

Additional features

Other motor features include:

Porthole for oil level control

Rubber pads

Three-phase cable

Free items & Standard equipment

Free items included

The air compressor is shipped in its original packaging

Instructions manual is included in the packaging.

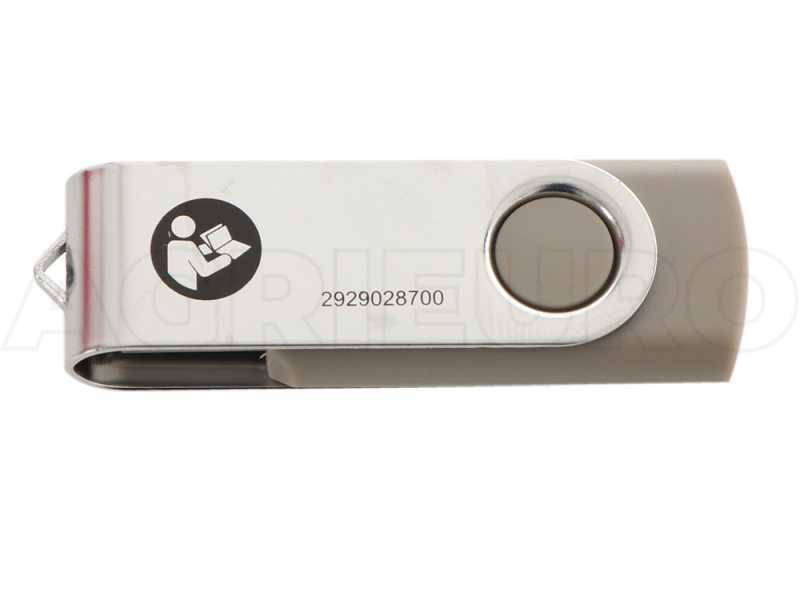

USB port with manual in digital version
