HOME Workshop and Do-It-Yourself Electric Air Compressors Small Portable Air Compressors Portable Oilless Mini Air Compressors with Tank FIAC CUBY 6/1110

FIAC CUBY 6/1110 Compact Portable Air Compressor - 6 L Tank - 1,5 Hp Oilless Motor

Hobby
Add a question
ID: K601184

EAN: 8020119152003

MPN: 1129981039

35Pictures
1Videos
FIAC CUBY 6/1110 Compact Portable Air Compressor - 6 L Tank - 1,5 Hp Oilless Motor
FIAC CUBY 6/1110 Compact Portable Air Compressor - 6 L Tank - 1,5 Hp Oilless Motor
FIAC CUBY 6/1110 Compact Portable Air Compressor - 6 L Tank - 1,5 Hp Oilless Motor
FIAC CUBY 6/1110 Compact Portable Air Compressor - 6 L Tank - 1,5 Hp Oilless Motor
FIAC CUBY 6/1110 Compact Portable Air Compressor - 6 L Tank - 1,5 Hp Oilless Motor
FIAC CUBY 6/1110 Compact Portable Air Compressor - 6 L Tank - 1,5 Hp Oilless Motor
FREE
2 compressor guns2 compressor guns
Spiral hose 5 metresSpiral hose 5 metres
no. 8 compressor connectionsno. 8 compressor connections
Air compressor tank
6 L
Max. operating pressure
8 bar
Air intake flow
180 L/min
Cylinder head rpm
3450 RPM
Lubrication
Oil-less
Pump type
Single-stage
Nominal power
1.5 HP
Operating mode
Single-phase 230 V
Product Features
Model:
CUBY 6/1110
Air compressor type 2:
Oilless
Air compressor type:
Portable
Handheld:
✔
Operating mode:
Single-phase 230 V
Max. operating pressure:
8 bar
Number of tanks:
1
Tank capacity:
6 L
Air compressor tank:
6 L
Noise level:
97 LwA
Manufacturing country:
China
Motor data
Motor type:
Electric single-phase
Nominal power:
1.5 HP
Power supply:
220 V electric
Pump data
Pump brand:
Fiac
Air intake flow:
180 L/min
Pump type:
Single-stage
Lubrication:
Oil-less
No. of cylinders:
1
Cooling manifold:
No
Transmission data
Transmission type:
Coaxial type direct
Cylinder head rpm:
3450 RPM
Equipment
Anti-vibrating system:
Yes
No. of outlet couplings:
1
Lifting handle:
Yes
Free gifts/extra features
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
36x35x30 cm
Net weight:
9.4 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
39.5x37.5x34 cm
Gross weight (packaging included) :
10.5 Kg
Assembly time:
Assembled
Prompt Delivery
1 item in stock
Free Shipping
Estimated delivery: 24/05/2024 - 28/05/2024
Free returns (up to 30 days after receipt) *
€ 165,63
VAT Included
5% off from the second item in your cart
Are you a business? Check out prices tailored to you!

You're viewing:
Customers also viewed:
Description

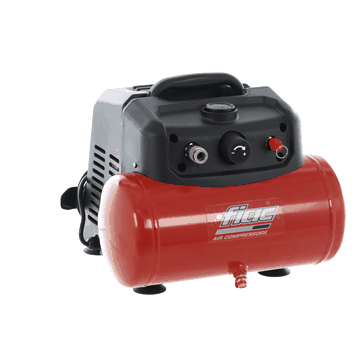

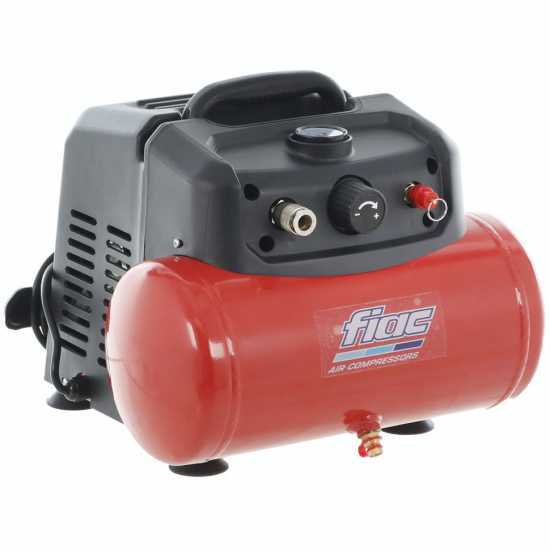

FIAC CUBY 6/1110 Electric Air Compressor

The FIAC CUBY 6/1110 oilless air compressor is a compact medium-powered machine suitable for a variety of applications, such as:

  • Air blowing
  • Inflation
  • Air brushing
  • Nailing - Stapling
  • Spraying treatments
  • Painting

Provided with a 6 L compressed air storage tank. The air compressor weighs 9.4 Kg and can be easily transported thanks to the ergonomic upper handle.

Powered by a 1.5 Hp electric motor, this air compressor has a compressed air suction capacity of 160 L. It is capable of reaching a maximum pressure of 8 bar.


Maintenance operations are also reduced, as no control or topping up of lubricating oil is required, as well as the transportability of these air compressor, since there is no risk of oil leakage even when the air compressor is laid down on its side, for example to load it into the trunk of a car.

FIAC CUBY 6/1110 Compact Portable Air Compressor - 6 L Tank - 1,5 Hp Oilless Motor
FIAC CUBY 6/1110 Compact Portable Air Compressor - 6 L Tank - 1,5 Hp Oilless Motor FIAC CUBY 6/1110 Compact Portable Air Compressor - 6 L Tank - 1,5 Hp Oilless Motor FIAC CUBY 6/1110 Compact Portable Air Compressor - 6 L Tank - 1,5 Hp Oilless Motor FIAC CUBY 6/1110 Compact Portable Air Compressor - 6 L Tank - 1,5 Hp Oilless Motor FIAC CUBY 6/1110 Compact Portable Air Compressor - 6 L Tank - 1,5 Hp Oilless Motor FIAC CUBY 6/1110 Compact Portable Air Compressor - 6 L Tank - 1,5 Hp Oilless Motor FIAC CUBY 6/1110 Compact Portable Air Compressor - 6 L Tank - 1,5 Hp Oilless Motor FIAC CUBY 6/1110 Compact Portable Air Compressor - 6 L Tank - 1,5 Hp Oilless Motor FIAC CUBY 6/1110 Compact Portable Air Compressor - 6 L Tank - 1,5 Hp Oilless Motor FIAC CUBY 6/1110 Compact Portable Air Compressor - 6 L Tank - 1,5 Hp Oilless Motor FIAC CUBY 6/1110 Compact Portable Air Compressor - 6 L Tank - 1,5 Hp Oilless Motor FIAC CUBY 6/1110 Compact Portable Air Compressor - 6 L Tank - 1,5 Hp Oilless Motor FIAC CUBY 6/1110 Compact Portable Air Compressor - 6 L Tank - 1,5 Hp Oilless Motor FIAC CUBY 6/1110 Compact Portable Air Compressor - 6 L Tank - 1,5 Hp Oilless Motor FIAC CUBY 6/1110 Compact Portable Air Compressor - 6 L Tank - 1,5 Hp Oilless Motor FIAC CUBY 6/1110 Compact Portable Air Compressor - 6 L Tank - 1,5 Hp Oilless Motor

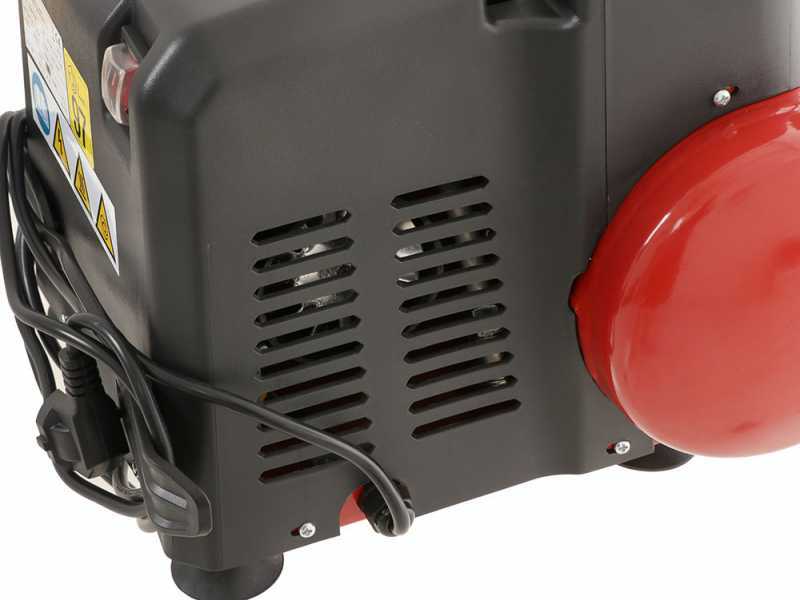

Technical features

Air intake flow: 160 L/min

Pumping unit type: coaxial

Pressure: 8 bar

Electric motor power: 1.5 Hp

Tank: 6 L

Dimensions:
- Length: 360 mm

Width: 350 mm

- Height: 300 mm

Weight: 9.4 Kg

FIAC CUBY 6/1110 Compact Portable Air Compressor - 6 L Tank - 1,5 Hp Oilless Motor
FIAC CUBY 6/1110 Compact Portable Air Compressor - 6 L Tank - 1,5 Hp Oilless Motor FIAC CUBY 6/1110 Compact Portable Air Compressor - 6 L Tank - 1,5 Hp Oilless Motor FIAC CUBY 6/1110 Compact Portable Air Compressor - 6 L Tank - 1,5 Hp Oilless Motor FIAC CUBY 6/1110 Compact Portable Air Compressor - 6 L Tank - 1,5 Hp Oilless Motor FIAC CUBY 6/1110 Compact Portable Air Compressor - 6 L Tank - 1,5 Hp Oilless Motor

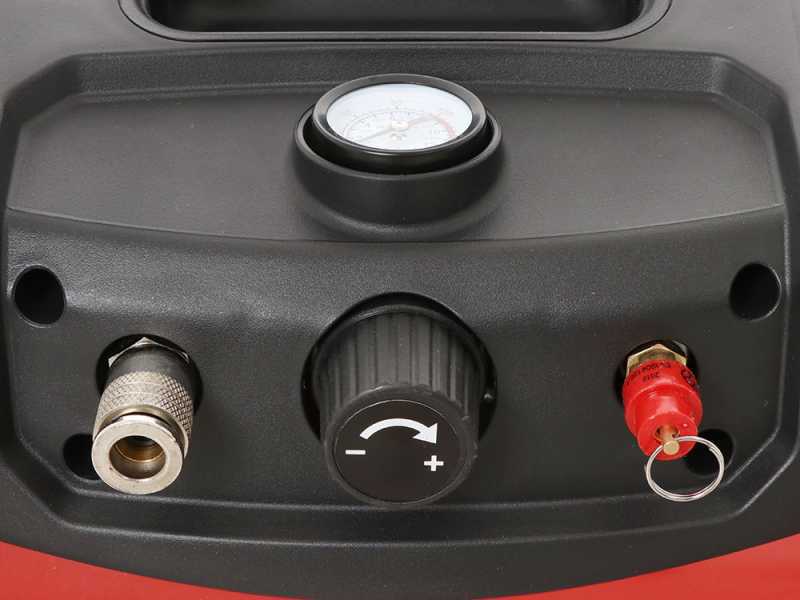

Controls

The Fiac CUBY 6/1110 air compressor features easy and user-friendly controls, which are divided into:

Output air pressure gauge

Power switch

Female outlet fitting

Pressure adjusting knob

FIAC CUBY 6/1110 Compact Portable Air Compressor - 6 L Tank - 1,5 Hp Oilless Motor
FIAC CUBY 6/1110 Compact Portable Air Compressor - 6 L Tank - 1,5 Hp Oilless Motor FIAC CUBY 6/1110 Compact Portable Air Compressor - 6 L Tank - 1,5 Hp Oilless Motor FIAC CUBY 6/1110 Compact Portable Air Compressor - 6 L Tank - 1,5 Hp Oilless Motor FIAC CUBY 6/1110 Compact Portable Air Compressor - 6 L Tank - 1,5 Hp Oilless Motor FIAC CUBY 6/1110 Compact Portable Air Compressor - 6 L Tank - 1,5 Hp Oilless Motor FIAC CUBY 6/1110 Compact Portable Air Compressor - 6 L Tank - 1,5 Hp Oilless Motor

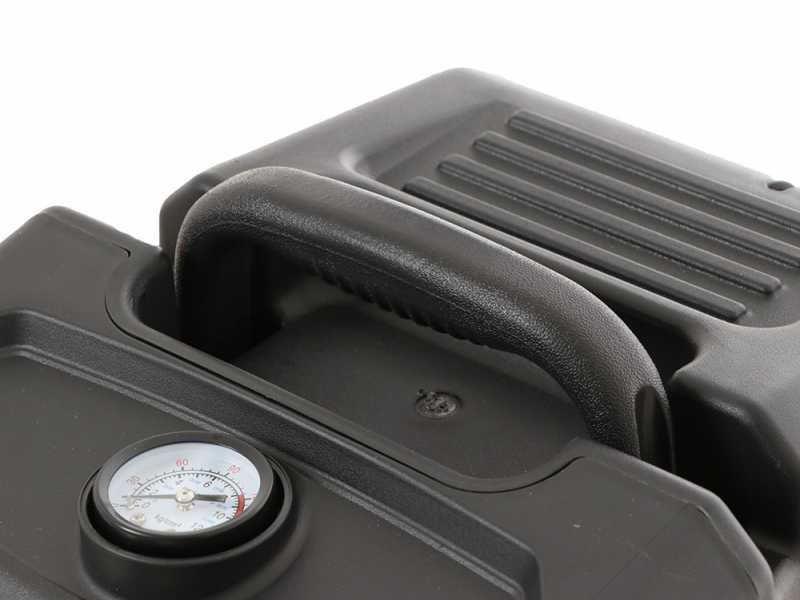

Other features

Schuko plug

Ergonomic lifting handle

Anti-vibration rubber pads

Condensate drain valve

FIAC CUBY 6/1110 Compact Portable Air Compressor - 6 L Tank - 1,5 Hp Oilless Motor
FIAC CUBY 6/1110 Compact Portable Air Compressor - 6 L Tank - 1,5 Hp Oilless Motor FIAC CUBY 6/1110 Compact Portable Air Compressor - 6 L Tank - 1,5 Hp Oilless Motor FIAC CUBY 6/1110 Compact Portable Air Compressor - 6 L Tank - 1,5 Hp Oilless Motor FIAC CUBY 6/1110 Compact Portable Air Compressor - 6 L Tank - 1,5 Hp Oilless Motor FIAC CUBY 6/1110 Compact Portable Air Compressor - 6 L Tank - 1,5 Hp Oilless Motor FIAC CUBY 6/1110 Compact Portable Air Compressor - 6 L Tank - 1,5 Hp Oilless Motor FIAC CUBY 6/1110 Compact Portable Air Compressor - 6 L Tank - 1,5 Hp Oilless Motor
Free items & Standard equipment

COMPLIMENTARY: GeoTech accessories kit for air compressors - 3 tools

This extensive air compressor accessories kit includes:

- Tyre inflating gun with
integrated pressure gauge

- Air blowing gun

- Coiled air hose

FIAC CUBY 6/1110 Compact Portable Air Compressor - 6 L Tank - 1,5 Hp Oilless Motor
FIAC CUBY 6/1110 Compact Portable Air Compressor - 6 L Tank - 1,5 Hp Oilless Motor FIAC CUBY 6/1110 Compact Portable Air Compressor - 6 L Tank - 1,5 Hp Oilless Motor FIAC CUBY 6/1110 Compact Portable Air Compressor - 6 L Tank - 1,5 Hp Oilless Motor FIAC CUBY 6/1110 Compact Portable Air Compressor - 6 L Tank - 1,5 Hp Oilless Motor

COMPLIMENTARY: Oilless Air Compressor Maintenance Kit

Maintenance kit provided on standard equipment includes:

  • Air compressor spare/replacing female output joint

  • Air compressor spare/replacing male output joint (replaceable on equipment with bayonet cap) or usable as spare joint

  • Quick joint to convert all the machineries fitted with standard bayonet coupling. It allows easily connecting the units to hoses with female quick joint.

  • Quick male joint for converting the female output joint supplied on the air compressor into the traditional bayonet cap (it also allows the use of the standard hoses with bayonet system)

  • Repair/Junction fitting for Ø 8 hoses
  • Repair/Junction fitting for Ø 10 hoses
  • Lower tank discharge valve replacement air compressor
  • Teflon roll, ideal for the main maintenance operations
FIAC CUBY 6/1110 Compact Portable Air Compressor - 6 L Tank - 1,5 Hp Oilless Motor
FIAC CUBY 6/1110 Compact Portable Air Compressor - 6 L Tank - 1,5 Hp Oilless Motor FIAC CUBY 6/1110 Compact Portable Air Compressor - 6 L Tank - 1,5 Hp Oilless Motor FIAC CUBY 6/1110 Compact Portable Air Compressor - 6 L Tank - 1,5 Hp Oilless Motor FIAC CUBY 6/1110 Compact Portable Air Compressor - 6 L Tank - 1,5 Hp Oilless Motor

Standard equipment

The air compressor is shipped in its original packaging.

Instructions manual included.

FIAC CUBY 6/1110 Compact Portable Air Compressor - 6 L Tank - 1,5 Hp Oilless Motor
FIAC CUBY 6/1110 Compact Portable Air Compressor - 6 L Tank - 1,5 Hp Oilless Motor FIAC CUBY 6/1110 Compact Portable Air Compressor - 6 L Tank - 1,5 Hp Oilless Motor
