Fiac Compact V230/50 - Wall-mounted air compressor

Add a question
ID: K606699

EAN: 8024900719406

MPN: 4116000651

7,1/10
After-sales assistance & Spare parts
Fiac Compact V230/50 - Wall-mounted air compressor
FREE
no. 8 compressor connectionsno. 8 compressor connections
Max. operating pressure
8 bar
Air intake flow
160 L/min
Cylinder head rpm
3450 RPM
Lubrication
Oil-less
Pump type
Single-stage
Nominal power
1.5 HP
Operating mode
Single-phase 230 V
Wall-mounted
Product Features
Model:
COMPACT V230/50
Air compressor type 2:
Coaxial -oilless
Air compressor type:
Wall-mounted
Wall-mounted:
Operating mode:
Single-phase 230 V
Max. operating pressure:
8 bar
Manufacturing country:
China
Motor data
Motor type:
Electric single-phase
Nominal power:
1.5 HP
Silenced:
No
Air compressors engine speed:
2450
Pump data
Pump brand:
FIAC
Air intake flow:
160 L/min
Pump type:
Single-stage
Lubrication:
Oil-less
No. of cylinders:
1
Transmission data
Transmission type:
Coaxial type direct
Cylinder head rpm:
3450 RPM
Equipment
No. of outlet couplings:
1
Lifting handle:
No
Free gifts/extra features
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
30x22x29 cm
Net weight:
6 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
33x23x38 cm
Gross weight (packaging included) :
7.6 Kg
Assembly time:
Assembled
Arriving on 04/04/25
Free Shipping
Estimated delivery: 10/04/2025 - 16/04/2025
€ 176,66
Vat included

You're viewing:
Customers also viewed:
Description

FIAC COMPACT V230/50 wall compressor

The FIAC COMPACT is a tankless compressed air compressor that combines a compact and innovative design with new technological efficiency.

Equipped with an internal 7- metre hose reel, it allows you to work in a comfortable situation while keeping your work station tidy. Once installed, the product can rotate 180°, allowing you to reach even the most awkward places more comfortably.

Wall installation is very simple and intuitive thanks to the included stops and bracket.

The compressor is immediately ready for use thanks to the power button on the front.

In addition to the convenient hose reel, the compressor is also equipped with a holder for conveniently storing the gun.

It mounts an electric motor with a power of 1.5 HP, has a compressed air suction capacity of 160 litres of air per minute, and can express a maximum pressure of 8 bar.

It weighs 6 kg and has no air storage tank.

Maintenance operations are also reduced, as no checking or topping up of lubricating oil is required and the transportability of these compressors it also reduces, as there is no possibility of oil spillage even if the compressor is laid on its side, I.E to load into the boot of a car.

FIAC is a multinational company founded in Italy, with production sites all over the world, and a market leader in the production of compressors.

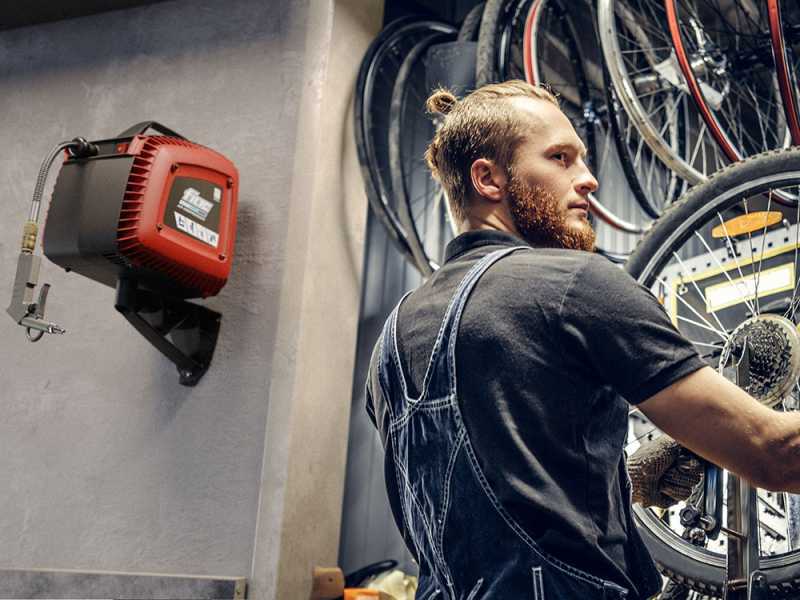

Wall-mounted installation

The main and innovative feature of this new FIAC compressor is that it can be installed directly on a wall, thus allowing for better stability and greater ease of use.

Once installed, the product has the ability to rotate 180°, allowing it to reach even the most awkward places more comfortably.

It is also equipped with a quick hose reel that allows the hose to be stores quickly and efficiently.

Hose length 7 m.

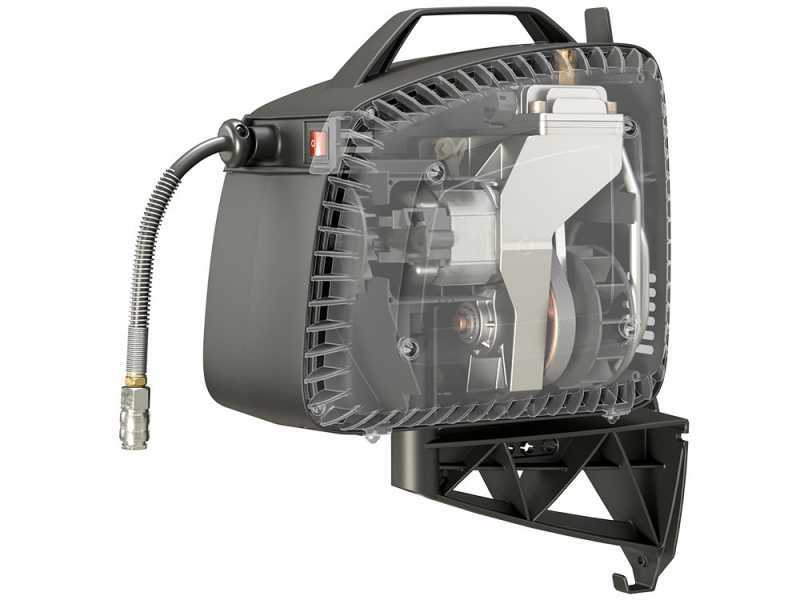

Details of support for wall mounting

Technical specifications

Below are the main specifications and technical features of the FIAC COMPACT:

  • Pumped suction air: 160 lt/min.
  • Pumping type: coaxial
  • Suction air litres: 160 lt/min
  • Pressure: 8 bar
  • Electric motor power: 1.5 HP

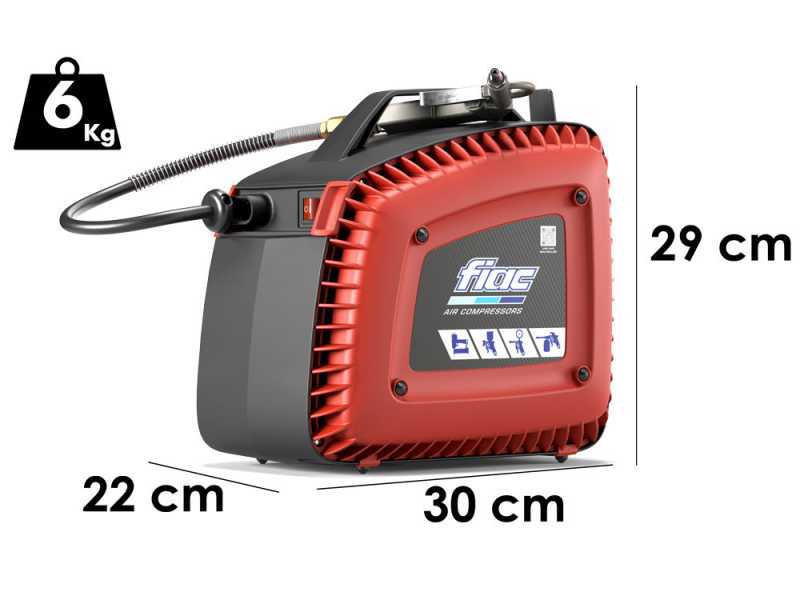

Dimensions:

  • Length : 300 mm
  • Width : 220 mm
  • Height : 290 mm
  • Weight : 6 Kg

Other features include:

Cable reel stop

Female compresser air connection

Ignition switch

Blow gun



Free items & Standard equipment

COMPLIMENTARY: Oilless Air Compressor Maintenance Kit

Maintenance kit provided on standard equipment includes:

  • Air compressor spare/replacing female output joint
  • Air compressor spare/replacing male output joint (replaceable on equipment with bayonet cap) or usable as spare joint

  • Quick joint to convert all the machineries fitted with standard bayonet coupling. It allows easily connecting the units to hoses with female quick joint.

  • Quick male joint for converting the female output joint supplied on the air compressor into the traditional bayonet cap (it also allows the use of the standard hoses with bayonet system)

  • Repair/Junction fitting for Ø 8 hoses
  • Repair/Junction fitting for Ø 10 hoses
  • Lower tank discharge valve replacement air compressor
  • Teflon roll, ideal for the main maintenance operations

Free items included

The compressor is supplied in its original packaging.

Instruction manual included in the package.

Included in delivery:

  • Blow gun included
  • Wall mounting bracket
  • Wall Stop
