Name: Eurosystems Z8 - 7 HP Petrol Garden Tiller - Loncin TM 70 OHV Engine
Brand: Eurosystems
SKU: K501919
Price: 978.61 EUR
Availability: InStock

Description

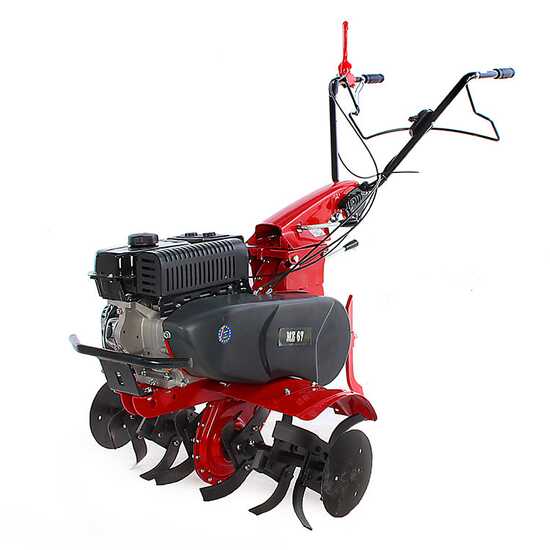

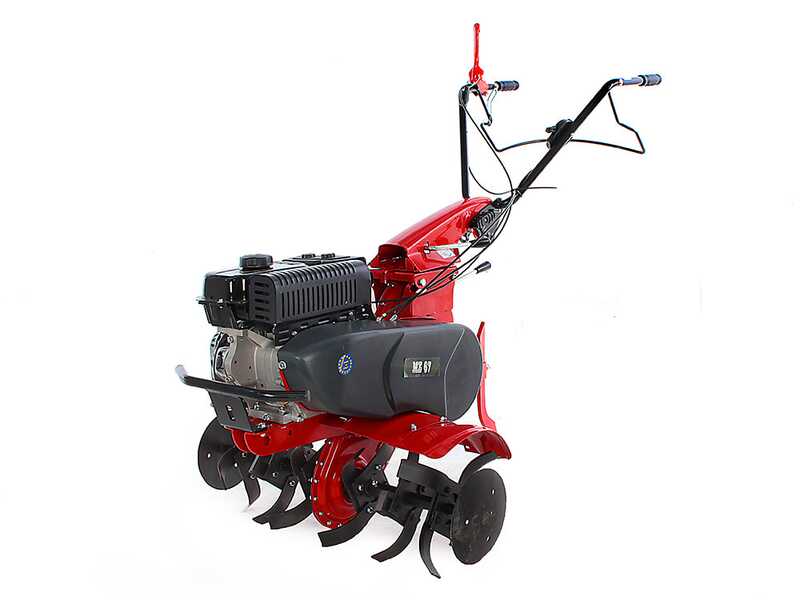

Eurosystems Z8 TM 70 Garden Tiller

It is a medium-sized garden tiller for domestic use equipped with Loncin petrol engine with OHV technology, exceptionally effective in low to medium intensity agricultural work and for tilling work on medium-sized areas.

It mounts a top quality engine: The Loncin TM 70 with OHV technology.

Versatile, sturdy and powerful, perfect for quickly preparing the seedbed by breaking the top crust of the soil and making it finely crushed and well-ventilated, soft and ready for cultivation. On medium-compact soils, the tines mounted on this garden tiller work deeply into the ground in a easy, quick and comfortable way.

The sturdy mechanics, power and elasticity of the engine allows for a hobby use on medium-sized surfaces, even on untilled soils.

COMPLIMENTARY:

2 600 ml oil bottles

Eurosystems Z8 - 7 HP Petrol Garden Tiller - Loncin TM 70 OHV Engine

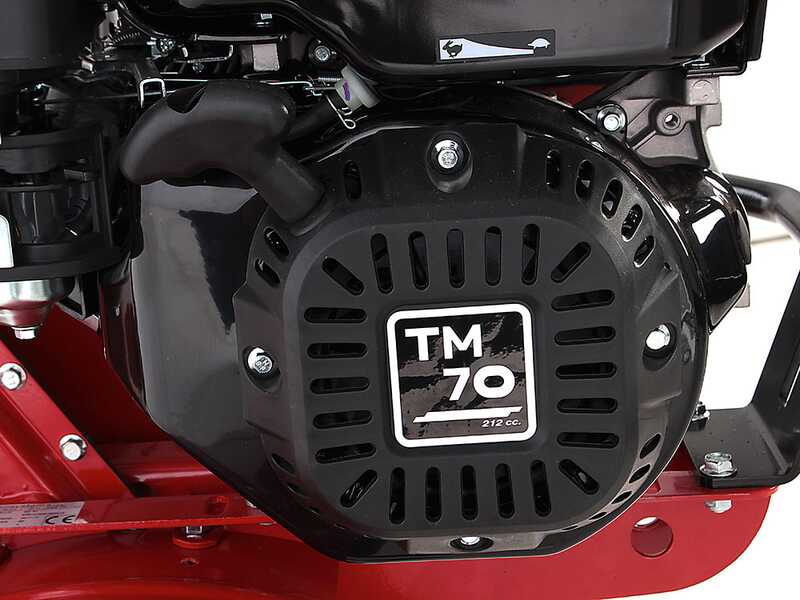

Loncin TM 70 engine

The Loncin TM 70 engine is professional, powerful and features the latest generation overhead valve OHV technology.

Features:

Engine type:

4-stroke, single cylinder

Cylinder type:

Aluminium

Cubic capacity:

212 cm³

Power

7 Hp

Tank capacity:

3.1 L

Consumption:

1.7 L/h 3600 rpm

Max. rpm:

3600

Nominal Power: 7 Hp
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Rated power: 5.5 Hp
It refers to the real power of the engine. This is the power indicated as official in the engine instructions manual.

* This technical feature may vary from an engine model to another according to the rotation speed provided by the manufacturer.

The engine is PROVIDED WITHOUT OIL.
Please carefully read the instruction manual before starting the unit.

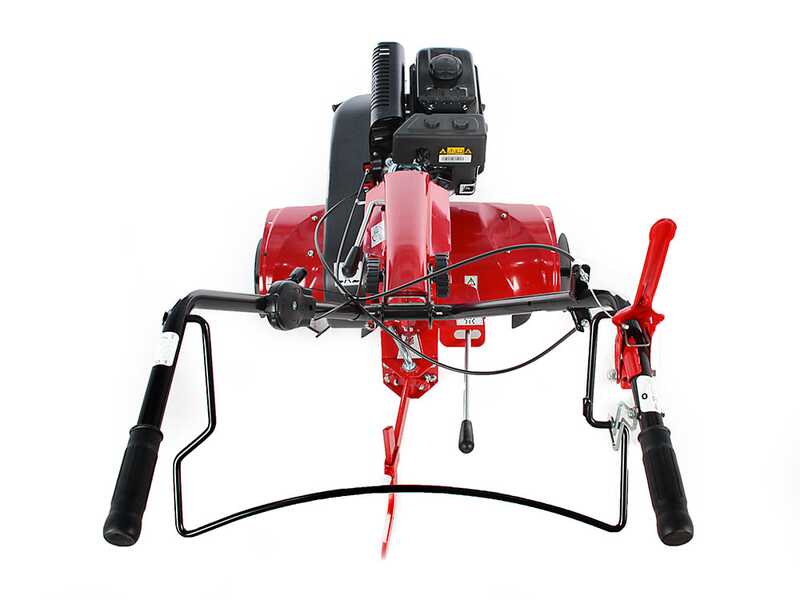

2+1 Gearbox and controls

The gearbox is equipped with 2 forward and 1 reverse gears, which can be engaged by means of the proper lever located between the steering handles.

Focus on the steering handles where all the main controls of the machine are located.

Red lever: it is the clutch lever that drives the tines and the machine’s movement.

Focus on the throttle lever.

The steering handles are height adjustable thanks to the special lever.

Side adjustment of the steering handles by means of the lever placed on the left.

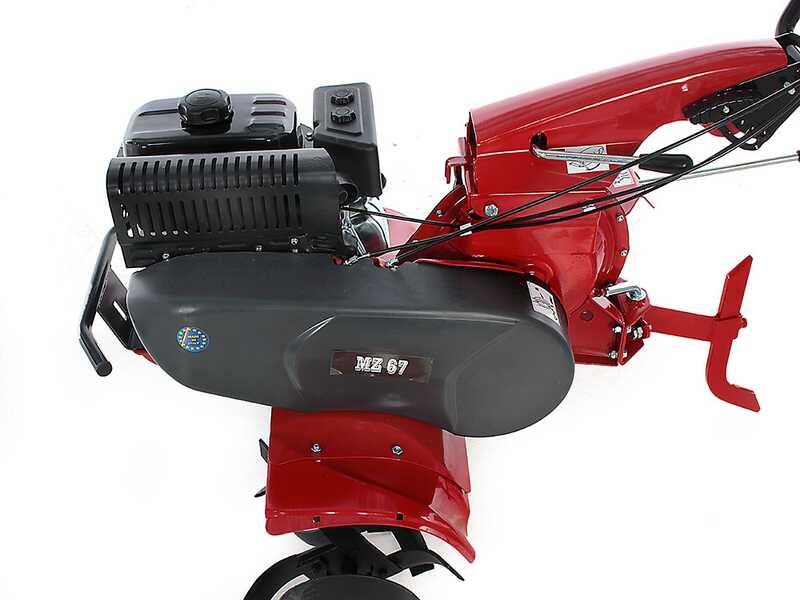

Forward gear, transmission and side belt drive

Gears: 2 forward gears + 1 reverse gear engaged through the lever located next the the steering handles.

Sturdy central chain drive in oil bath.

Side belt transmission protected by a sturdy openable housing.

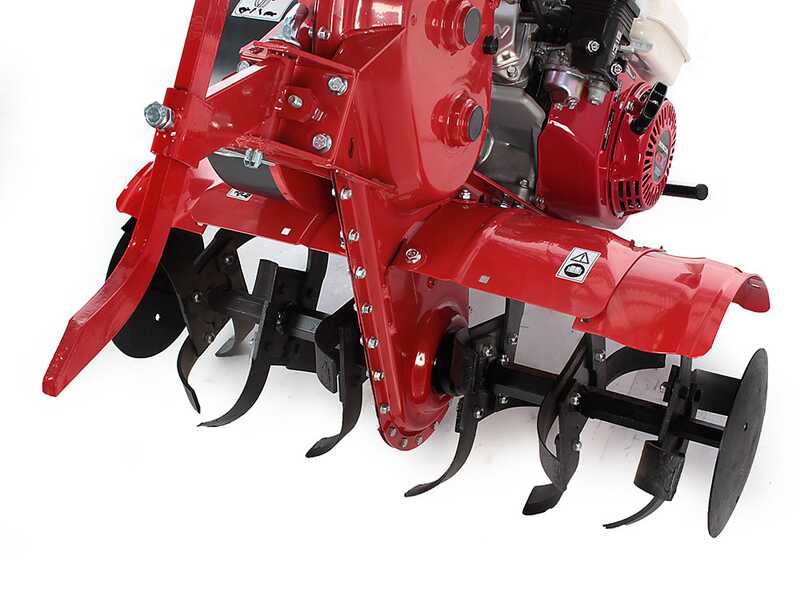

Tine with adjustable cutting width

Tine: 60 cm, with 4 rows of rotary hoes + side crop protection discs.
Easily adjustable to 50 cm with a short operation.

It can be also extended to 72 cm using the additional tine accessory supplied. By mounting both side crop protection discs, the working width is increased to 82 cm.

The working width adjustment can be carried out very easily: just insert or remove the most external element and place the crop protection disc.

The side protections are fixed by means of shaft locking pins and nut and bolt.

Other features

Focus on the rear reinforced stake which can be adjusted in height.

Sturdy front protection bumper.

Tine accessory (for 72 cm tine) supplied.

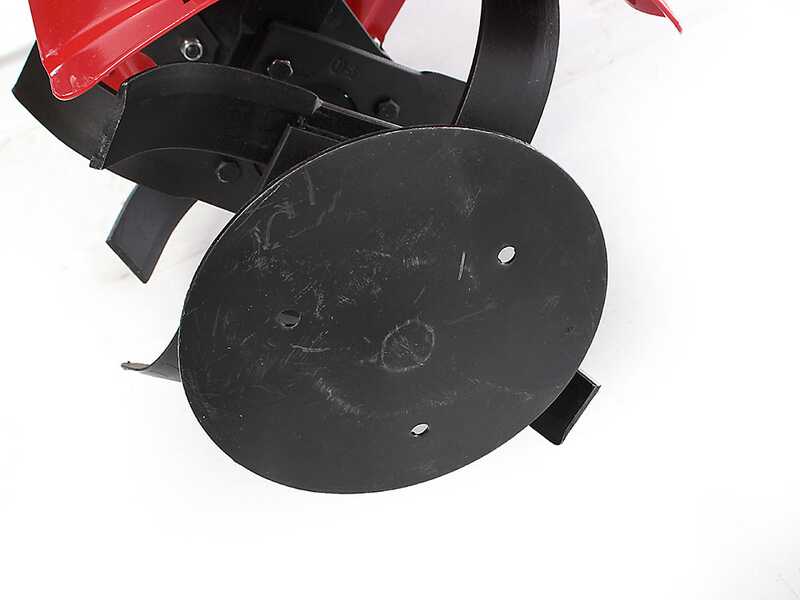

Focus on the crop protection discs with transfer wheels attachment.

Front transport wheel (to be purchased separately): to move around the machine, with the engine switched off, avoiding damage to delicate surfaces and floors. Optimal, for instance, to store the garden tiller. The wheel adjustment operation is extremely quick and easy.Simply pull it out and turn it to the left to fix it in the raised position.

Free items & Standard equipment

1° GIFT: Engine spare parts and maintenance kit

COMPLIMENTARY:

The set includes:

No. 1 GeoTech spark plug

No. 01 professional joint spark plug wrench specific for riding-on mowers, flail mowers and lawn mowers heavy-duty engines.

No. 01 Spare elliptical pleated paper air filter with sponge cover

No. 01 round foam air filter for engines with oil bath filter unit

WARNING: This kit can’t be used for other brands or models on the market. We don’t provide different kit from the ones offered on our website. We do not guarantee that this kit is valid on products not purchased on our website

2° GIFT: 600 ml Bottles of Engine Oil

COMPLIMENTARY: two 600 ml sae 15W 40 oil bottles. Specific lubricant for 4-stroke gardening machinery with up to 10 Hp of power. Good cleansing and dispersion.

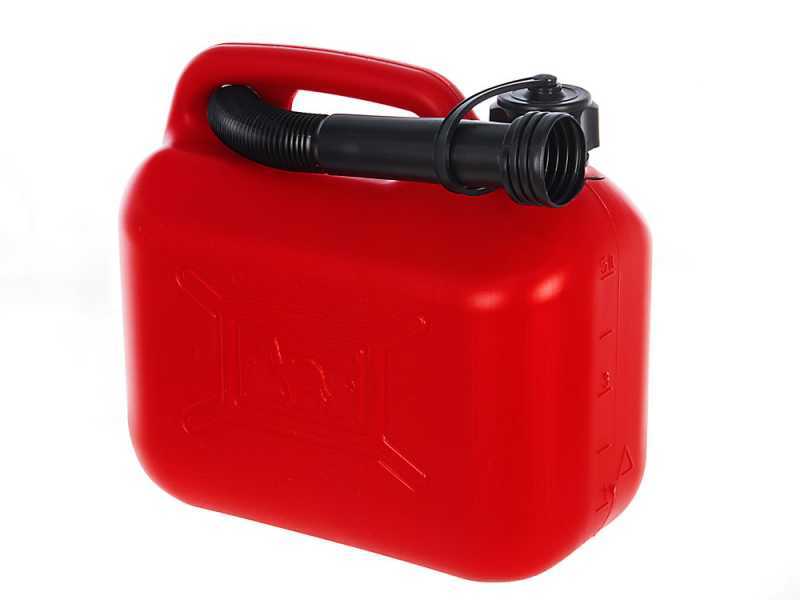

COMPLIMENTARY: Heavy-duty 5L Plastic Fuel Tank With Flexible Pouring Spout

Fuel tank: capacity 5 L

Professional ONU approved tank, made of certified plastic material.

With sealing cap equipped with comfortable anti-fall clamp.

Flexible pouring spout equipped with independent assembling sealing ring.
It allows a simple fuel dosage without the risk of spilling it.

The insides are made of exceptionally thick plastic, which makes these tanks especially sturdy and anti-drilling.

Furthermore, the plastic is red so as not to allow the penetration of light, ensuring the optimal fuel conservation.

Focus on the carrying handle and housing for the flexible pouring spout

WARNING: petrol and mixture tend to lose their characteristics and to deteriorate quickly when in contact with light. For this reason, traditional transparent tanks are strongly discouraged for these fuels (as well as for poor security reasons)

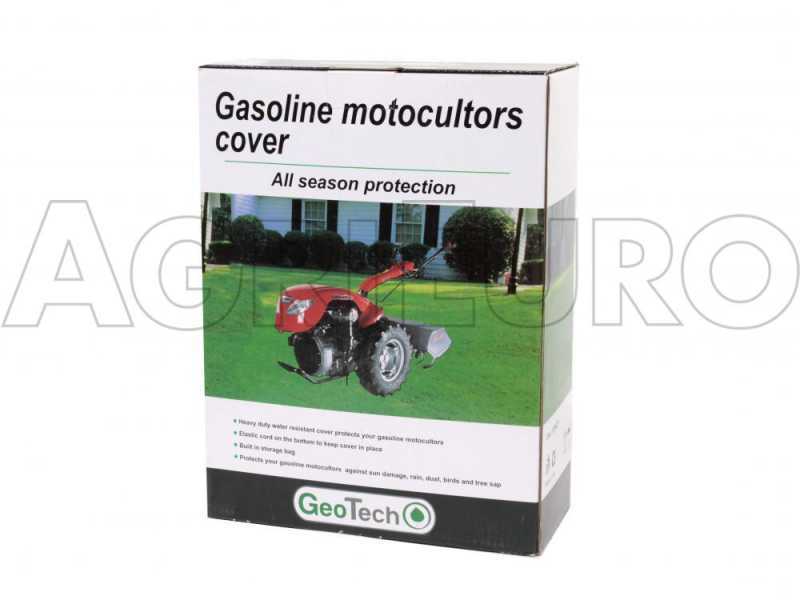

COMPLIMENTARY: Tarpaulin cover for lawn mowers

Essential for protecting your machine when stored.

This cloth is fast and easy to apply; within seconds your machine is protected from dust and moisture.

The cloth measuring 185 cm long by 80 cm wide by 105 cm in height.

Equipped with elastic on the lower edge to perfectly adhere to the bottom shape of the machine.

Easy to fold and store in its package, requiring minimal space!
