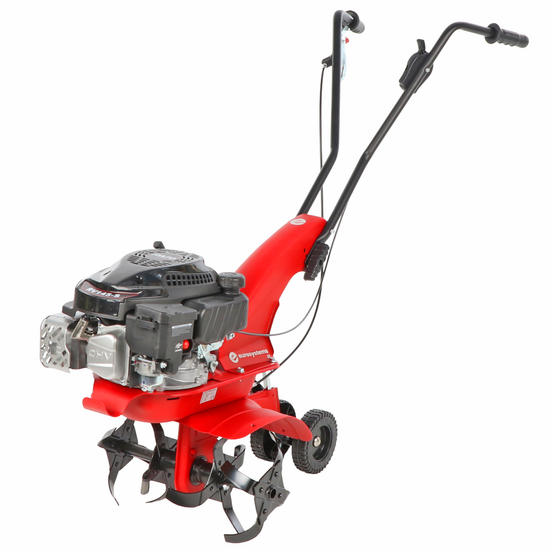

Name: Eurosystems Z2 - Petrol Tiller - Rato RV145
Brand: Eurosystems
SKU: K610064
Price: 521.76 EUR
Availability: InStock

Description

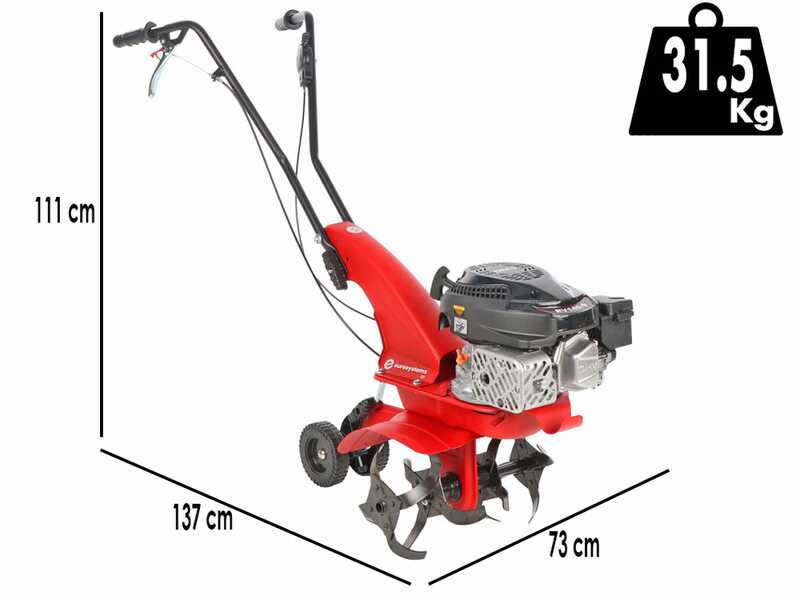

Eurosystems Z2 Single-Speed Tiller

The Eurosystems Z2 tiller is a compact and lightweight machine, designed for tilling work in gardens and small plots. The modern design, featuring a red body and black components, highlights a functional structure with robust and well-integrated components. The 145 cc Rato RV145 petrol engine provides a power output of 2.6 kW, offering good performance for hobby and semi-professional use. The recoil start is quick and reliable. The 0.5-litre tank ensures adequate autonomy for medium-duration work.

The transmission unit consists of an oil-bath worm gear and belt, a configuration that ensures wear resistance and low maintenance. The clutch is belt-driven, ideal for smooth and progressive power transmission. The gearbox includes one forward gear (FG) for tilling and an optional reverse gear (RG), useful for manoeuvring in tight spaces.

The handlebar, or steering handle, is height-adjustable to suit the operator, improving ergonomics during use. The control levers are equipped with an integrated safety system that prevents accidental activation. The tilling tool includes 16 riveted steel blades, with a diameter of 26 cm and a working width of 40 cm, rotating at 120 rpm for effective action on the soil.

The tiller is equipped with a rear spur, double transport wheels, and a sheet metal protection cover for operator safety.

Distinctive Features:

145 cc Rato RV145 Engine: petrol-powered, 2.6 kW power, recoil start.
Robust Transmission: oil-bath worm gear with belt, ideal for long-lasting use.
16-Blade Tiller: tool with 120 rpm, 40 cm width, 26 cm diameter.
Adjustable Handlebar: vertical steering handle adaptable to the operator's height.
Safety and Transport: levers with integrated safety, wheels, and sheet metal cover.

Eurosystems Z2 - Petrol Tiller - Rato RV145

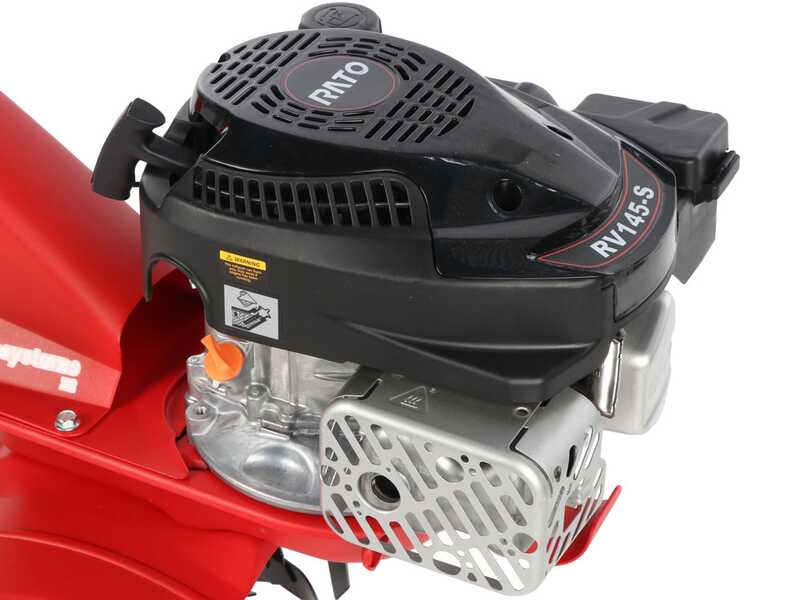

Rato RV145 OHV Engine

The Rato RV145 OHV engine is high-performance, suitable for tasks requiring high reliability and longevity.

Features:

Engine Type

Single-cylinder 4-stroke - OHV

Cylinder Type

Aluminium

Displacement

145 cm³

Fuel

Petrol

Max RPM

3600 rpm

Starting

Recoil
4-stroke petrol engine with overhead valve shaft "OHV" and automatic decompressor start.

Equipped with a primer for starting

Today, the vast majority of agricultural and gardening equipment on the market is equipped with unbranded (or unknown brand) engines made in China.

The engine is SUPPLIED WITHOUT OIL.
Before starting, carefully read the instruction manual.

Nominal Power: 3.5 HP
The most correct term would be "Commercial" Power, referring to the classic standard power definition officially used until a few years ago by all the most renowned engine manufacturers.

* This data is still the most widespread and advertised in the main commercial sales channels, although it is an increased figure compared to the actual power.

Effective Power: 3.35 HP (at a rotation speed of 3600 rpm)
Corresponds to the actual power expressed at the engine shaft. It is the one indicated as official in the manual or in the technical data of the engine manufacturer.

* This data can vary for the same engine model based on the rotation speed that the equipment manufacturer has decided to have the applied engine deliver.

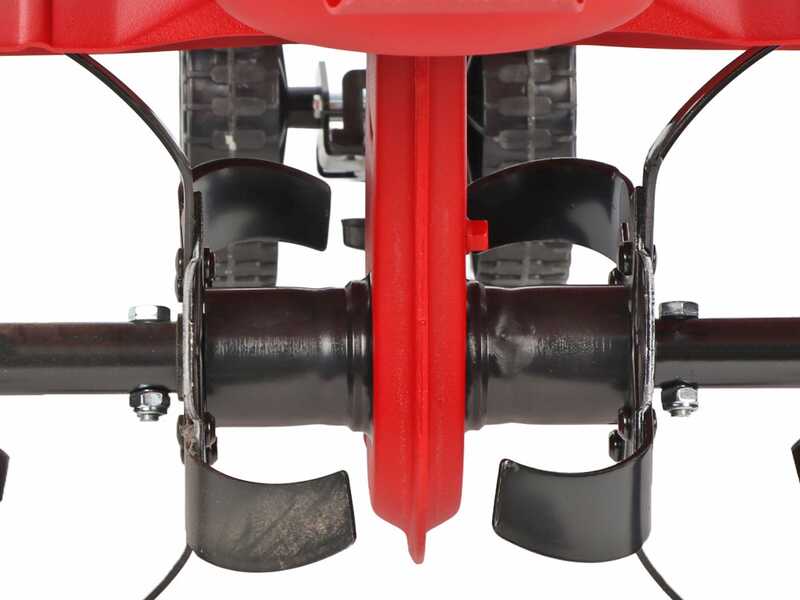

40 cm Tiller and Transmission

40 cm Tiller with 4 rows of blades.

Sturdy central transmission with oil-bath worm gear

The belt, protected by a robust casing.

The conversion of the rear transfer wheel to spur is quick and practical.

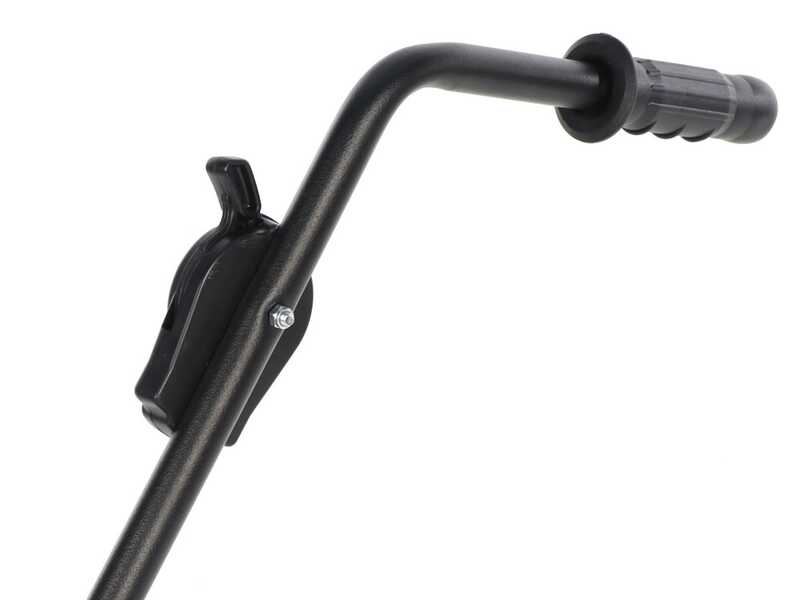

Controls and Handle

The controls of the tiller are practical and efficient.

The advancement of the tiller is controlled via the lower lever equipped with a safety system.

The machine is equipped with a throttle lever.

The steering handles are height-adjustable through a specific system.

Free items & Standard equipment

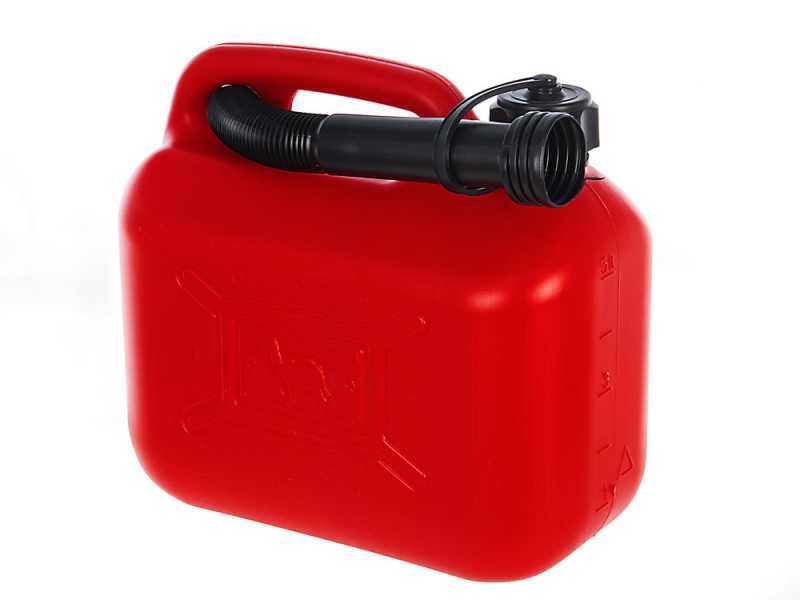

COMPLIMENTARY: Heavy-duty 5L Plastic Fuel Tank With Flexible Pouring Spout

Fuel tank: capacity 5 L

Professional ONU approved tank, made of certified plastic material.

With sealing cap equipped with comfortable anti-fall clamp.

Flexible pouring spout equipped with independent assembling sealing ring.
It allows a simple fuel dosage without the risk of spilling it.

The insides are made of exceptionally thick plastic, which makes these tanks especially sturdy and anti-drilling.

Furthermore, the plastic is red so as not to allow the penetration of light, ensuring the optimal fuel conservation.

Focus on the carrying handle and housing for the flexible pouring spout

WARNING: petrol and mixture tend to lose their characteristics and to deteriorate quickly when in contact with light. For this reason, traditional transparent tanks are strongly discouraged for these fuels (as well as for poor security reasons)

1° GIFT: Spare parts and Maintenance kit for B&S engines - 450E-500E Series - Safety equipment

COMPLIMENTARY: Spare parts set and accessories for the maintenance of the following BRIGGS&STRATTON engines.

450E series
500E series

WARNING: This kit is not suitable for other brands or models on market. We do not provide different kits from the ones offered on our website.

The service set for power tools includes:

Professional spark plug for the engine.
Multi tool spark plug wrench. Specific for lawn mowers - rough cut mowers - scythe mowers - etc.
Engine air filter.
Specific syringe for oil suction.
Waste oil collection bottle for easy waste oil disposal.
Funnel oil draining and refilling.

2° GIFT: Protection Kit

PROTECTION KIT - SAFETY EQUIPMENT

Protective earmuffs to work with maximum comfort
Hearing protection must be the right one for any working situation. In this case, the earmuffs supplied are specifically designed to protect the operator from the noise of the machine.

Protective goggles that can be used as an alternative to the visor mask.
Protective mask goggles in polycarbonate with CE certificate,equipped with anti-fog and anti-scratch panoramic screen. The ventilation is ensured thanks to the holes made on the frame to avoid obfuscation and to improve comfort of use.

Agrieuro headscarf 100% cotton

Cotton gloves with rubber waves, for greater comfort and a secure and stable grip on the equipment

3° GIFT: OIL

COMPLIMENTARY: two sae 15 W 40 600 ml oil bottles. Specific lubricant for 4-stroke engine gardening machinery with up to 10 Hp of power. Good cleansing and dispersion.
