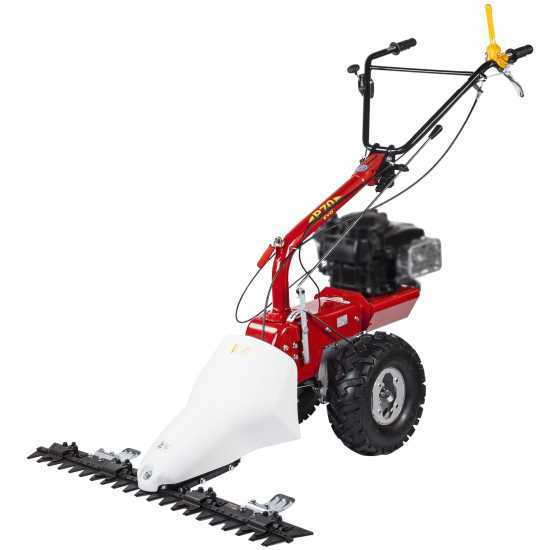

Eurosystems P70 EVO - Multifunctional twin-blade mower - B&S 850E I/C

Questions & Answers (2)
ID: K502135

EAN: 8025004011663

MPN: 986600000

8,9/10
After-sales assistance & Spare parts
Eurosystems P70 EVO - Multifunctional twin-blade mower - B&S 850E I/C
Special offer
+200 sold
Free gifts from AgriEuro
2 bottles of 600 ml engine oil each2 bottles of 600 ml engine oil each
Replacement spark plug kitReplacement spark plug kit
Oil engine replacement kitOil engine replacement kit
Protection kit: gloves, googles, ear defenders, Agrieuro headscarf for free!Protection kit: gloves, googles, ear defenders, Agrieuro headscarf for free!
Blade sharpenerBlade sharpener
Free gift: fuel jerrycan 5 ltFree gift: fuel jerrycan 5 lt
Technical data
Blade movement
Double-blade
Cutting width
107 cm
Recommended operating area
10000 s.q. m.
Gears
3+2
Motor brand
Briggs&Stratton
Cubic capacity
190 cm³
Nominal power
6.5 HP
Motor Model
850E I/C
Transmission type
Belt and gears
Motor/blade drive
Intermediate belt drive
Multifunctional
Sì
Manufacturing country
Italy
Product Features
Model
TM 70 EVO RB
Body material
Enamelled steel
Operating mode
Spark ignition
Multifunctional
Sì
Recommended operating area
10000 s.q. m.
Starting mode
Recoil
Manufacturing country
Italy
Motor data
Motor brand
Briggs & Stratton
Motor Model
850E I/C
Motor type
4-stroke
Cubic capacity
190 cm³
No. of cylinders
Single-cylinder
Nominal power
6.5 HP
Fuel
Petrol
Power supply
Overhead valve OHV
Engine lubrication system
Oil bath
Decompression system
Automatic
Tank capacity
1.5 L
Motor/blade drive
Intermediate belt drive
Manufacturing country
USA
Transmission data
Transmission type
Belt and gears
Gearbox
In oil bath
No. of forward speeds
3
No. of reverse speeds
2
Gears
3+2
Forward speed
1,08 km/h - 2,51 km/h - 3,47 km/h
Reverse speed
1,07 km/h - 2,07 km/h
Operating mode
Gear lever
Cutting data
No. of blades
2
Blade movement
Double-blade
Swinging blades unit
Yes
N° of chopper blades
42
Blade engagement
Lever on the handle
Cutting adjustment
2 adjustable sleds
Max. cutting height
60 mm
Min. cutting height
20 mm
Cutting width
107 cm
Equipment
Flail mower cutting deck
On request
Milling cutter accessory
Optional
Sickle bar accessory
Included as standard
Furrower accessory
On request
Front brush accessory
On request
Snow plough + snow chains accessory
On request
Wheel barrow accessory
On request
Snow blower accessory
On request
Leaf blower - garden vacuum accessory
On request
CE Accident prevention system
Yes
Recoil start system (with rope)
Yes
Rear wheels size
15 x 6.00 - 6
Height-adjustable handle
Yes
Side-adjustable handle
Yes
Reversible steering handles
Yes
Folding/removable handle/s
Yes
Free gifts/extra features
Engine oil bottle for free
2
Bar cover
Yes
Maintenance tool kit
Yes
Instructions manual
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H)
150x110x120 cm
Net weight
80 Kg
Packaging
On pallet
Original packaging/s dimensions in cm (L x W x H)
115x60x110 cm
Weight including packaging
90 Kg
Unloading with hydraulic tail lift
Yes
Assembly time
60 minutes
Prompt Delivery
43 items in stock
Free Shipping
Estimated delivery: 10/09/2025 - 12/09/2025
Lowest price:
€ 2.035,99
-5 %
€ 1.934,19
Vat included

Add Accessories and get a discount
You're viewing:
Customers also viewed:
Description

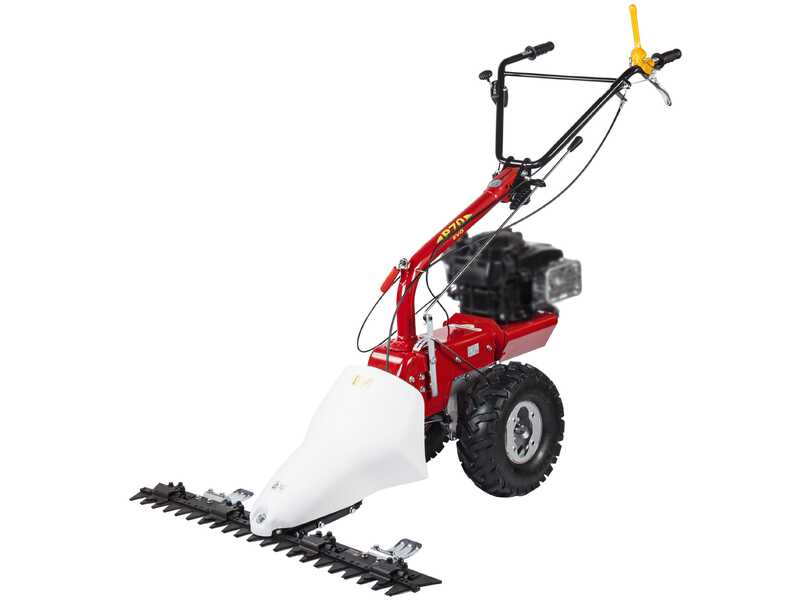

Eurosystems B & S P70 scythe mower - sickle bar cutting unit

This innovating self-propelled scythe mower moves thanks to a set of large drive wheels. The drive wheels feature tractor tread tyres. The wheels are connected to an oil-lubricated gear transmission unit and they are driven by a 5-speed gear shifting system (3 forward speeds and 2 reverse speeds).

The 107 cm sickle bar is included in the price. The sickle bar features a dual-blade cutting action. The lower blade and the upper blade move in different directions.

This feature makes Eurosystems power scythes stand out compared to other traditional scythe mowers on the market, which feature a single-blade cutting action (only the upper blade moves, while the lower blade is fixed).

The sickle bar is activated by a belt drive which makes it more durable thanks to the belt slipping effect. Suitable for chopping very tall and thick weeds. The pieces of grass can be re-used as food for livestock.

The sickle bar cutting system cuts grass at the base without crushing it. The resulting grass pieces are intact.

This self-propelled petrol power scythe can work on all kinds of terrain (on gentle slopes and uneven surfaces).

Optional accessories

Sweeper brush for:

- yards
- all kinds of green areas
- roads
- squares

Snowplough for squares, small driveways, yards and so on.

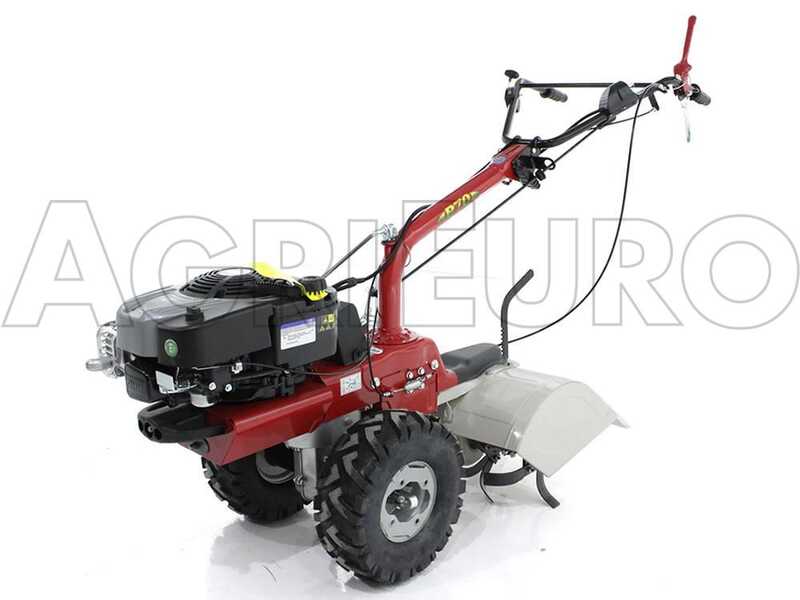

Tiller / cultivator for small parcels of soft terrain without rocks and stones.

Rough cut mower blade deck for thick grass and overgrown weeds.

Leaf vacuum for dry leaves on squares, driveways, yards and so on.

Snow blower for large amounts of snow on roads, driveways, squares and so on. Featuring a chute that drops the removed snow to the side.

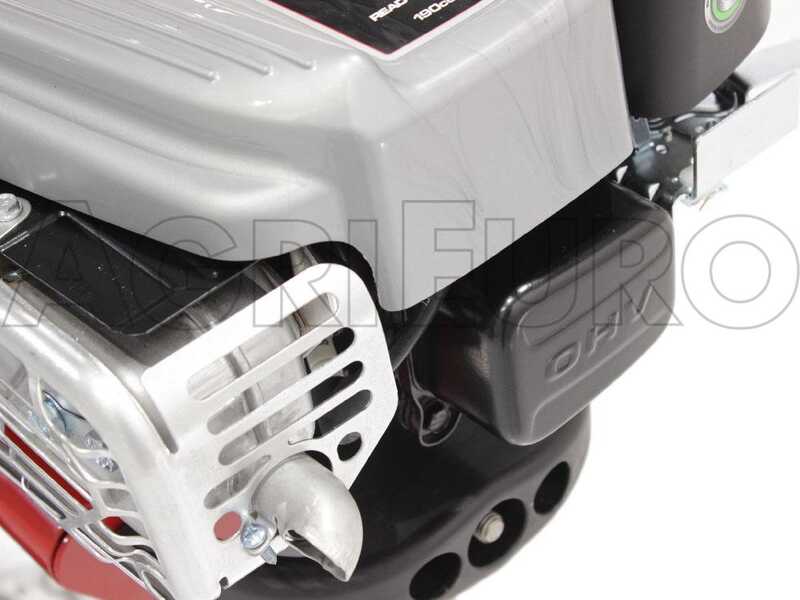

Briggs&Stratton 850E engine

The Briggs & Stratton 850 E engine offers high-level performances, reliability and durability. Large engine capacity: 190 cc


Specifications:

Engine type
4-stroke single cylinder
Cylinder type
Aluminium
Cylinder displacement
190 cm³
Fuel
Petrol
Max rpm
3600 rpm
Activation
Manual



The 850 E engine series was designed for high-level perfomances and it is the best engine series for this kind of agriculture equipment.

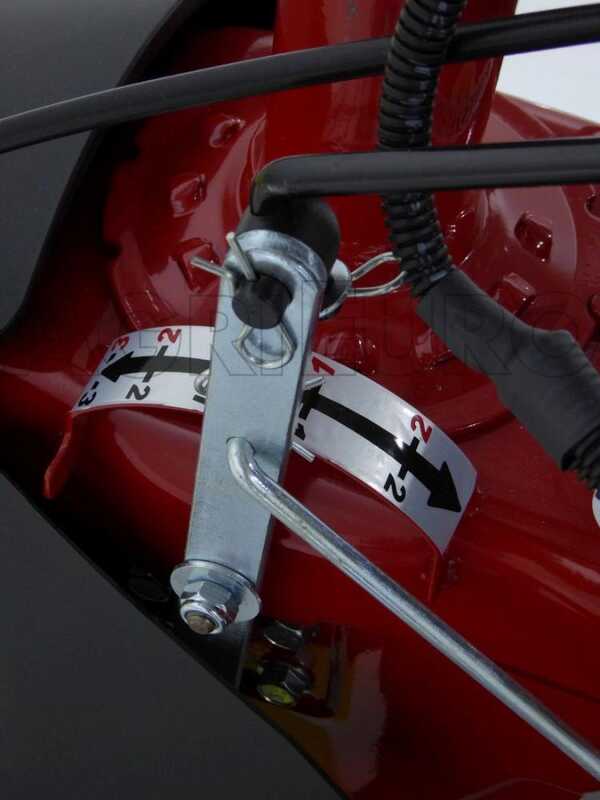

5 speeds (3+2) and oil-bath gears transmission

Featuring a 5 speeds gear shifting system:

- 3 forward speeds
- 2 reverse speeds

The operator can select the desired speed by pulling the lever below the handle bars.

Central transmission: aluminium case and oil-lubricated steel gears. Very sturdy and reliable.

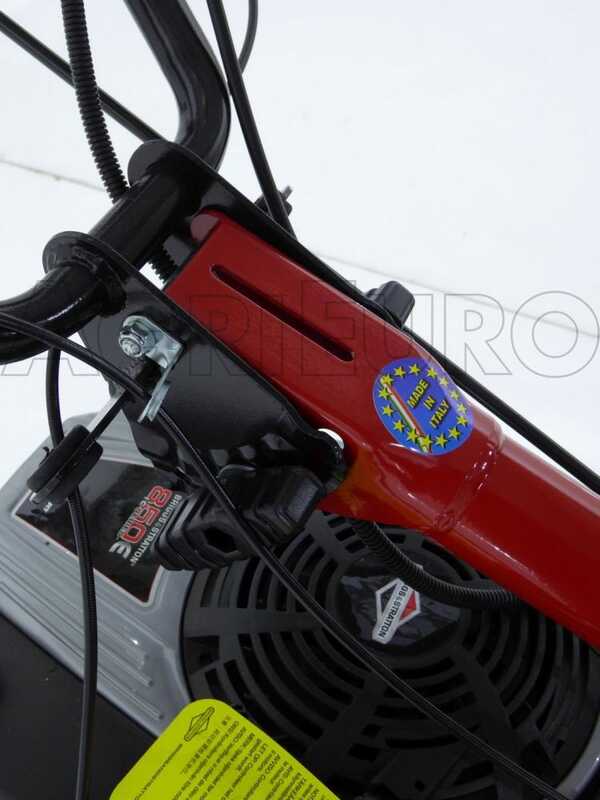

Steering bars and controls

Focus on a detail of the steering bars (handlebars). All the main controls are placed in this area.

The lower black knob lever is the gearstick.

The red lever engages or disengages the cutting unit.

The silver lever engages or disengages the forward or reverse gear (depending on which one the operartor is using).

Focus on a detail of the handlebar height-adjustment system.

The steering bars are reversible. The operator can also adjust the steering bars angle.

Focus on a detail of the steering bars fixing and rotation system and dedicated lever.

Throttle control

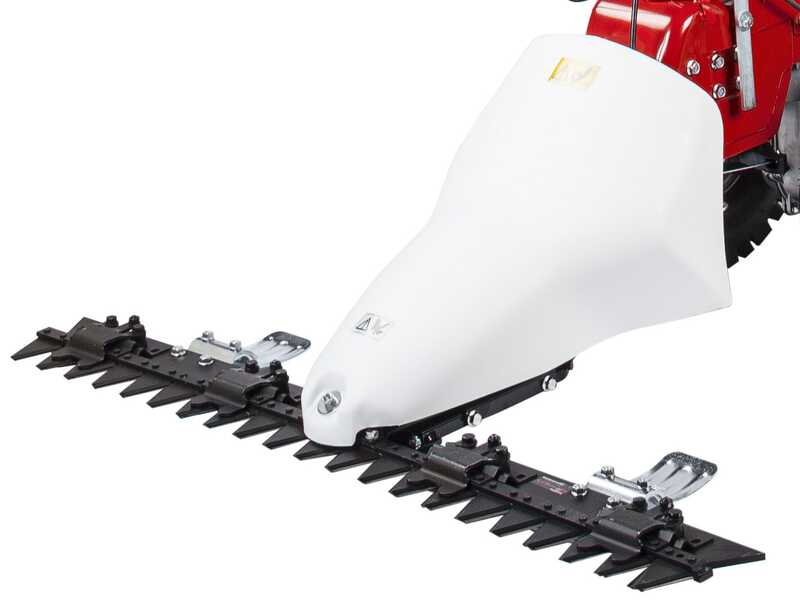

107 cm sickle bar

Sickle bar cutting width: 107 cm

The DUAL-BLADECUTTING ACTION is a special feature which makes Eurosystems power scythe models stand out compared to other traditional models on the market. The dual action cutting system features an upper blade and a lower blade that move simultaneously in opposite directions. By contrast, the single blade cutting system features a moving upper blade and a fixed lower blade (counterblade).

The cutting system consists of high-resistance BUSATIS steel upper and lower blades.

DUAL-BLADE SYSTEM ADVANTAGES:

- higher effectiveness cuts on tall, bushy and thick grass

- higher effectiveness on very short, thin and soft grass

- Better cutting quality

- Cleaner cuts

- Faster cutting action

- ZERO VIBRATIONS

The sickle bar features a protective plastic guard.

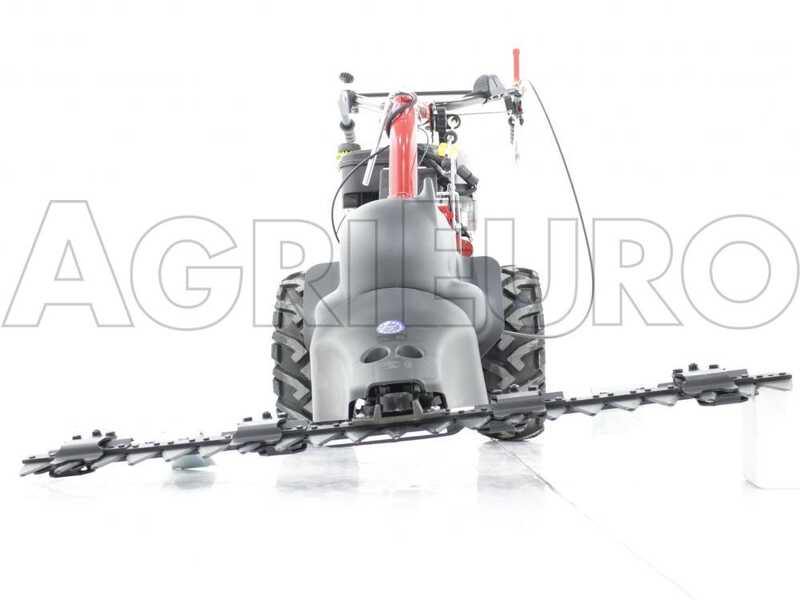

Swinging sickle bar

SWINGING sickle bar

The swinging cutter bar rotates around its own axis, which connects it to the machine body. This enables the self-propelled petrol scythe mower to work on all kinds of terrains, uneven surfaces and challenging areas.

Final Belt drive between the sickle bar and the machine. The transmission unit is protected by the black shield you can see to the right.

This feature reduces the machine wear process and increases its durability. The belt can slip in case of shocks, thus preventing damage to the machine parts. However, we suggest you avoid collision with obstacles and using the power scythe on rocky surfaces.

Because the machine is equipped with a belt drive transmission system, the blade features an engage/disengage lever (upper red lever). This innovating machine allows engaging the blade only when necessary, so it can be disengaged when the operator doesn't need to use the blade.

The machine can be moved around on its drive wheels while the blade is disengaged.

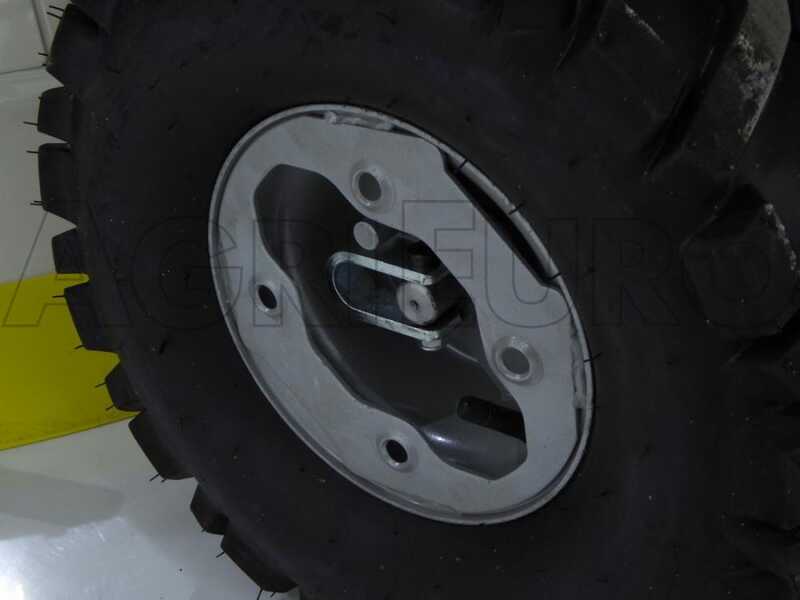

Tractor drive wheels

Large pneumatic wheels with tractor profile tyres: 15" x 6.00 – 6

The wheels feature a blocking system that can be engaged or disengaged by releasing the fixing support. When blocking the wheels, they lose traction and go idle.

Free items & Standard equipment

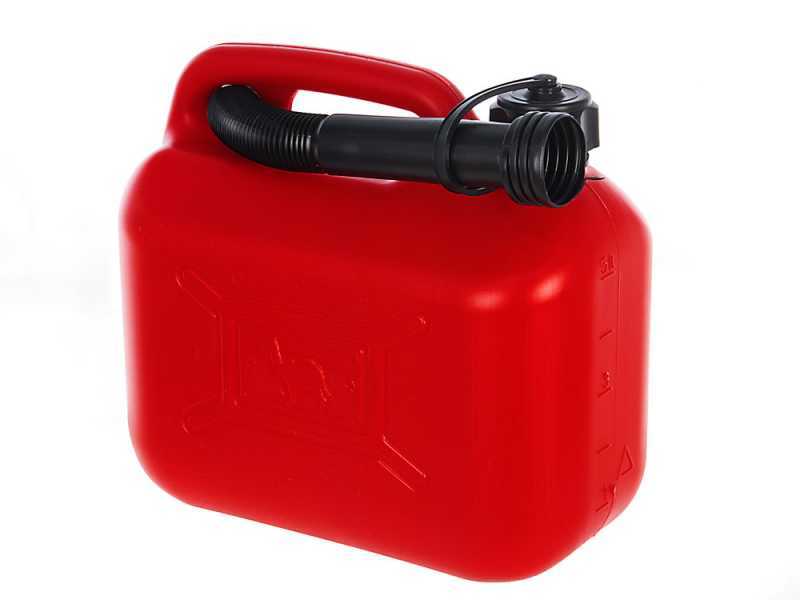

COMPLIMENTARY: Heavy-duty 5L Plastic Fuel Tank With Flexible Pouring Spout

Fuel tank: capacity 5 L

Professional ONU approved tank, made of certified plastic material.

With sealing cap equipped with comfortable anti-fall clamp.

Flexible pouring spout equipped with independent assembling sealing ring.
It allows a simple fuel dosage without the risk of spilling it.

The insides are made of exceptionally thick plastic, which makes these tanks especially sturdy and anti-drilling.

Furthermore, the plastic is red so as not to allow the penetration of light, ensuring the optimal fuel conservation.

Focus on the carrying handle and housing for the flexible pouring spout

WARNING: petrol and mixture tend to lose their characteristics and to deteriorate quickly when in contact with light. For this reason, traditional transparent tanks are strongly discouraged for these fuels (as well as for poor security reasons)

1° GIFT: spare parts, accessories and maintenance kit for B&S 190/223 cc OHV engine

Spare parts and maintenance kit for the following BRIGGS & STRATTON engines:

  • 875 Series
  • 850 Series
  • 825 Series
  • 1000 Series

WARNING: this set is not suitable for other brands or models on market. We do not provide different kits from the ones offered on our website.

The kit includes:

  • Professional spark plug for the engine.
  • Multi tool spark plug wrench. Specific for lawn mowers - rough cut mowers - scythe mowers - etc.
  • Specific syringe for engine oil suction.
  • Waste oil collection bottle for easy waste oil disposal.
  • Funnel for oil draining and refilling.

2° GIFT: protection kit

PROTECTION KIT - SAFETY EQUIPMENT

Protective earmuffs to work with maximum comfort
Ear protection must be performed correctly in every working condition. In this case, the earmuffs provided on standard kit are specifically designed to protect the operator against the noise coming from the brush cutter.

Protective goggles that can be used as an alternative to the visor mask.
Protective mask goggles in polycarbonate with CE certificate,equipped with anti-fog and anti-scratch panoramic screen. The ventilation is ensured thanks to the holes made on the frame to avoid obfuscation and to improve comfort of use.

Agrieuro headscarf 100% cotton

Cotton gloves with rubber waves, for greater comfort and a secure and stable grip on the equipment

3° GIFT: 1 L oil bottles

FOR FREE: 2x 1 L sae 10W 40 bottles. Specific lubricant for 4-stroke engine-powered gardening machinery featuring up to 10 Hp. Good cleansing and dispersion.

4° GIFT: sharpener for lawn mower blades

The sharpener allows you to sharpen the blades of your lawn mower in a few minutes.

It is very easy to use since it is only necessary to attach it to your screwdriver / drill and then it will be ready to use.

Thanks to its small size, you won’t even need to remove the blade from the lawn mower, thus ensuring an even faster maintenance.

Gifts

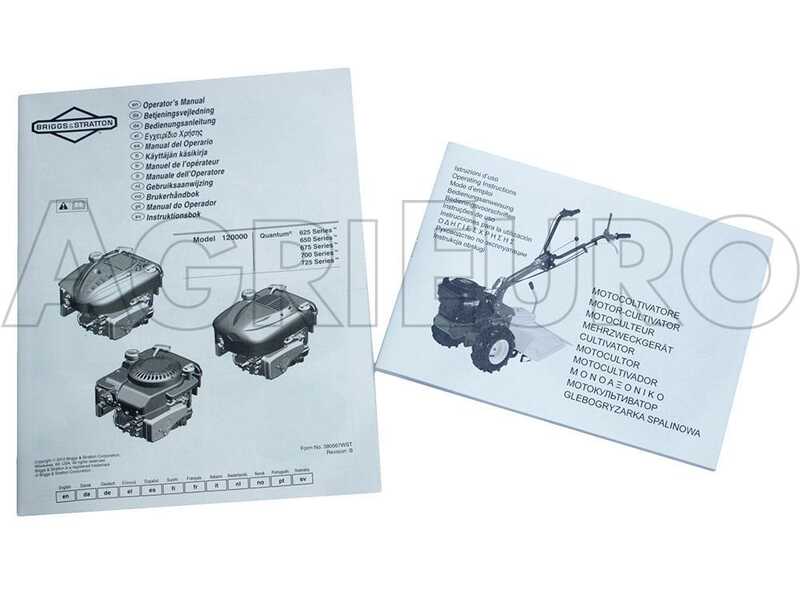

The machine will be shipped in its original packaging along with the instructions manual.

WARNING: The engine does not contain oil when supplied. Add oil to the proper oil fill level before starting the engine for the first time.
