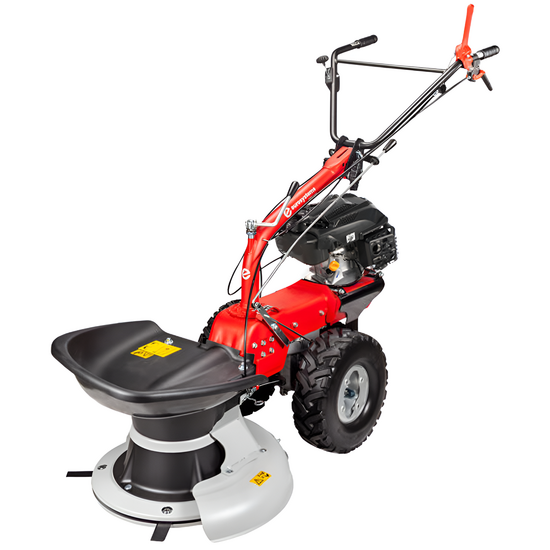

Eurosystems P70 EVO - Multifunctional Rotary Mower - Rato RV200

Add a question
ID: K610156

EAN: 8025004011694

MPN: 00986600700

8,9/10
After-sales assistance & Spare parts
Eurosystems P70 EVO - Multifunctional Rotary Mower - Rato RV200
Free gifts from AgriEuro
2 bottles of 600 ml engine oil each2 bottles of 600 ml engine oil each
Replacement sprak plugReplacement sprak plug
Heavy-duty spark plug wrenchHeavy-duty spark plug wrench
Protection kit: gloves, googles, ear defenders, Agrieuro headscarf for free!Protection kit: gloves, googles, ear defenders, Agrieuro headscarf for free!
Free gift: fuel jerrycan 5 ltFree gift: fuel jerrycan 5 lt
Rotating blades
Cutting width
64 cm
Recommended operating area
6700 s.q. m.
Gear shifting system
Mechanical gearbox
Gears
3+2
Motor brand
Rato
Cubic capacity
200 cm³
Nominal power
6.5 HP
Motor Model
RV200
Transmission type
Belt and gears
Motor/blade drive
Intermediate belt drive
Multi tool (additional accessories available)
Yes
Manufacturing country
Italy
Product Features
Model:
P70 EVO - Rato RV200
Body material:
Enamelled steel
Operating mode:
Spark ignition
Self-propelling:
Self-propelled
Recommended operating area:
6700 s.q. m.
Starting mode:
Recoil
Manufacturing country:
Italy
Motor data
Motor brand:
Rato
Motor Model:
RV200
Motor type:
4-stroke
Cubic capacity:
200 cm³
No. of cylinders:
Single-cylinder
Nominal power:
6.5 HP
Fuel:
Petrol
Power supply:
Overhead valve OHV
Engine lubrication system:
Oil bath
Decompression system:
Automatic
Tank capacity:
1 L
Motor/blade drive:
Intermediate belt drive
Manufacturing country:
China
Transmission data
Gear shifting system:
Mechanical gearbox
Transmission type:
Belt and gears
Gearbox:
In oil bath
No. of forward speeds:
2
No. of reverse speeds:
2
Gears:
3+2
Forward speed:
3,5 – 2,5 – 1,1 Km/h
Reverse speed:
2,1 – 1,1 Km/h
Operating mode:
Gear lever
Cutting data
Blade movement:
Rotating
Rotating blades:
N° of chopper blades:
4
Blade engagement:
Lever on the handle
Cutting width:
64 cm
Equipment
Multi tool (additional accessories available):
Yes
Flail mower cutting deck:
On request
Milling cutter accessory:
Optional
Sickle bar accessory:
On request
Furrower accessory:
On request
Front brush accessory:
On request
Snow plough + snow chains accessory:
On request
Wheel barrow accessory:
On request
Snow blower accessory:
On request
Leaf blower - garden vacuum accessory:
On request
CE Accident prevention system:
Yes
Recoil start system (with rope):
Yes
Rear wheels size:
15 x 6.00 - 6
Height-adjustable handle:
Yes
Side-adjustable handle:
Yes
Reversible steering handles:
Yes
Folding/removable handle/s:
Yes
Free gifts/extra features
Engine oil bottle for free:
2
Maintenance tool kit:
Yes
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
155x70x127 cm
Net weight:
73 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
89x58.5x63 cm
Assembly time:
60 minutes
Out of stock
Free Shipping
€ 1.718,96
Vat included

You're viewing:
Customers also viewed:
Description

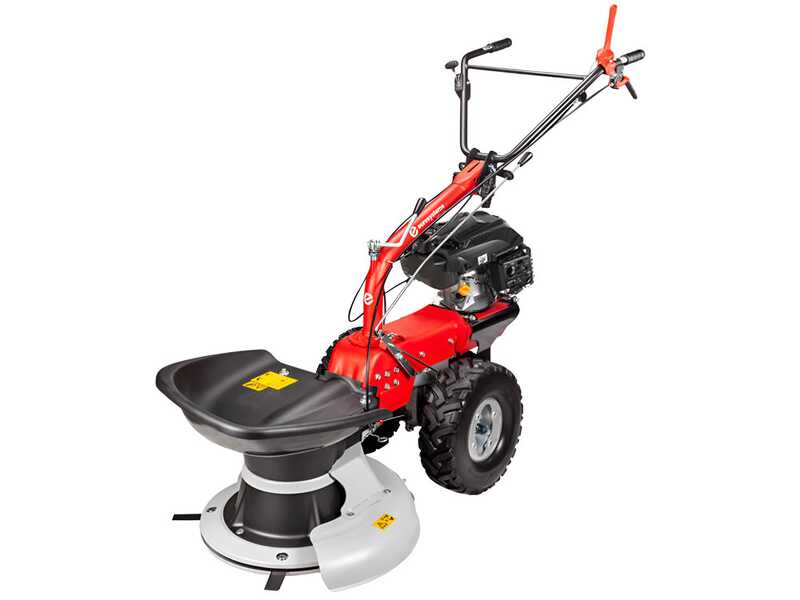

Rotary Mower Rato RV200

The Eurosystems P70 EVO rotary mower represents a robust and efficient technical solution for mowing grass on uneven, uncultivated, or fallow land. Its use is ideal both in agricultural settings and for maintaining greenery in complex rural environments. This model adopts a rotary cutting system with 4 pivoting double-bladed knives, made of hardened steel. The configuration allows for a clean and effective cut even on dense and resistant vegetation, minimizing vibrations and wear.

The mowing unit has a working width of 64 cm and a fixed cutting height of 3.6 cm. The double-blade rotary mechanism reduces grass accumulation and increases work fluidity. This makes the Eurosystems P70 EVO rotary mower particularly suitable for working on slopes, roadside verges, abandoned green areas, and in general where other devices encounter operational difficulties.

The sheet metal frame structure offers high mechanical resistance to impacts and stresses. The reinforced plastic upper conveyor guides the cut material away from the work area, improving visibility and safety. The components are designed to reduce regular maintenance, with retractable blades that limit damage in case of impact with foreign objects.

The machine's colouring is typically red with black and grey finishes, a classic and functional design. The compact lines facilitate transport and storage, even in confined spaces.

Distinctive features of the Eurosystems P70 EVO rotary mower:

  • 4 pivoting steel knife system: efficient and clean cutting even on dense grass, thanks to self-aligning double-edged blades.

  • Working width 64 cm: wide cutting band that allows high hourly performance even on large surfaces.

  • Robust sheet metal frame: impact-resistant structure, suitable for work in the presence of obstacles.

  • Upper plastic conveyor: improves the distribution of cut material and increases operator safety.

  • Reduced maintenance: the retractable blade system prevents accidental damage, reducing machine downtime.

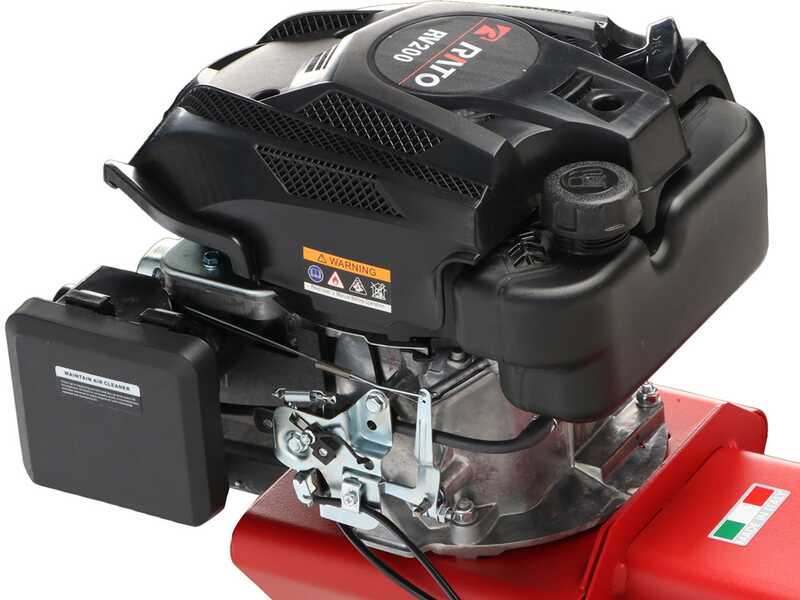

Engine Rato RV200

The Eurosystem P70 EVO is equipped with a powerful Rato RV200 engine.

Features:

  • Engine type: Single-cylinder 4-stroke;
  • Cylinder type: Aluminium;
  • Displacement: 200cc;
  • Starting: Manual, pull-start;
  • Fuel: Petrol;

WARNING!

The engine is supplied without oil. Bring the oil to level before the first start.

Nominal Power: 6.5 HP

Effective Power: 4.08 HP

WARNING!

*Also known as "Commercial" Power, we mean the classic power definition standard that was also officially used until a few years ago by all the most well-known engine manufacturers. This data is still the most widespread and advertised in the main commercial sales channels.

Optional accessories for P70 sold separately

Brush (NOT INCLUDED - to be purchased separately)

for cleaning:
- courtyards
- green areas of all kinds
- roads
- squares

Snow blade (NOT INCLUDED - to be purchased separately)
for clearing fallen snow in squares, small paths, courtyards...

Cultivator (NOT INCLUDED - to be purchased separately)
for treating small plots of soft and non-stony soil

Scythe bar (NOT INCLUDED - to be purchased separately)
with double-blade movement for clearing plots of land from wild or poorly maintained grass

Leaf blower (NOT INCLUDED - to be purchased separately)
for quick collection of fallen dry leaves in squares, paths, courtyards...

Snow blower (NOT INCLUDED - to be purchased separately)
for clearing roads, paths, squares from significant amounts of fallen snow by depositing it to the sides thanks to the cannon it is equipped with.

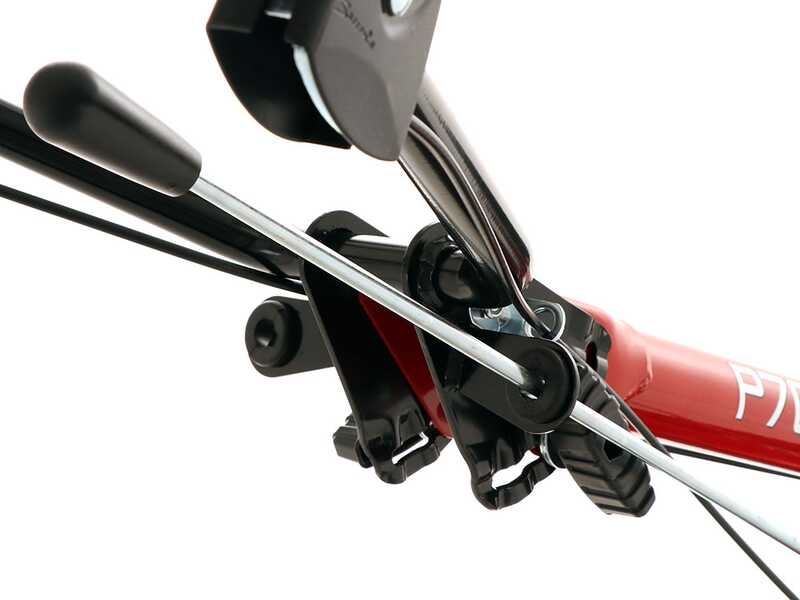

3-Speed Gear (3+2) and oil-bath gear transmission

The mower is driven by a 5-speed gearbox, 3 forward gears and 2 reverse gears.

They are selectable via the appropriate lever located under the handlebars.

Central transmission with aluminium housing and internal steel gears in an oil bath. Extremely robust and reliable.

64 cm Rotary Scythe

Cutting diameter: Ø64 cm

Blade rotation speed: 2300 rpm

Cutting height: 36 mm

Cutting system: 4 floating knives arranged at 90° to each other with double-edged retractable in case of impact with obstacles or stones

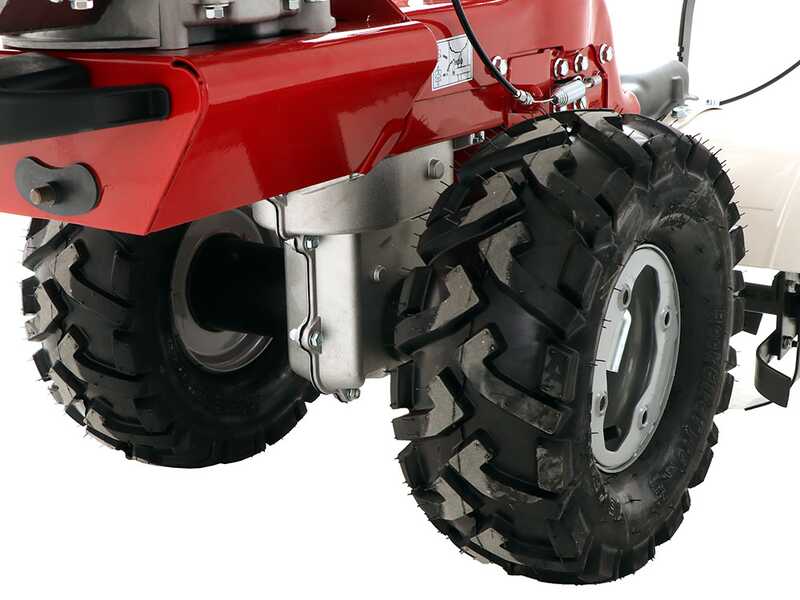

Sculpted Drive Wheels

Professional large pneumatic sculpted drive wheels 15"x6.00-6

Equipped with a lock/unlock system that can be activated and deactivated by opening the fixing support. In this way, the wheels go into neutral or regain traction.

Free items & Standard equipment

1° GIFT: Spare parts and maintenance kit for petrol engines

Universal spare parts and accessories maintenance kit for 4-stroke engine gardening machines.

WARNING: this kit is not suitable for all types of engines on the market. We do not supply sets other than those already published on this website nor do we guarantee their adaptability to machines not purchased on our website.

Included in the packaging are:

  • No. 01 original GeoTech spark plug
  • No. 01 professional spark plug wrench with jointed socket

2° GIFT: 600 ml oil bottles

COMPLIMENTARY: two sae 15 W 40 600 ml oil bottles. Specific lubricant for 4-stroke engine gardening machinery with up to 10 Hp of power. Good cleansing and dispersion.

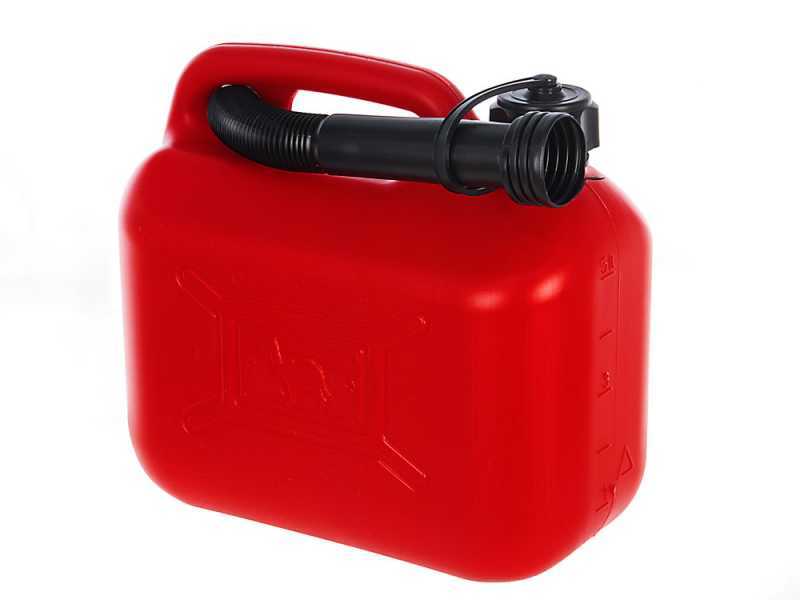

COMPLIMENTARY: Heavy-duty 5L Plastic Fuel Tank With Flexible Pouring Spout

Fuel tank: capacity 5 L

Professional ONU approved tank, made of certified plastic material.

With sealing cap equipped with comfortable anti-fall clamp.

Flexible pouring spout equipped with independent assembling sealing ring.
It allows a simple fuel dosage without the risk of spilling it.

The insides are made of exceptionally thick plastic, which makes these tanks especially sturdy and anti-drilling.

Furthermore, the plastic is red so as not to allow the penetration of light, ensuring the optimal fuel conservation.

Focus on the carrying handle and housing for the flexible pouring spout

WARNING: petrol and mixture tend to lose their characteristics and to deteriorate quickly when in contact with light. For this reason, traditional transparent tanks are strongly discouraged for these fuels (as well as for poor security reasons)

GIFT: SAFETY KIT

SAFETY KIT

Noise-cancelling earmuffs to work with maximum comfort
Hearing protection must be performed correctly in every situation. In this case, the supplied earmuffs are specifically designed to educe machine noise.

Protective goggles that can be used as an alternative to the visor mask.
Protective mask goggles in polycarbonate with CE certificate, equipped with antifog and anti-scratch panoramic screen. The ventilation is ensured thanks to the holes made on the frame to avoid fogging and to improve comfort of use.

100% cotton Agrieuro bandana

Cotton gloves with rubber ripples for comfort and a secure and stable grip on equipment.

Free Items Included

The machine will be supplied in its original packaging

Instruction manual included in the package

WARNING
the engine is supplied without oil. Bring the oil to level before the first start.
