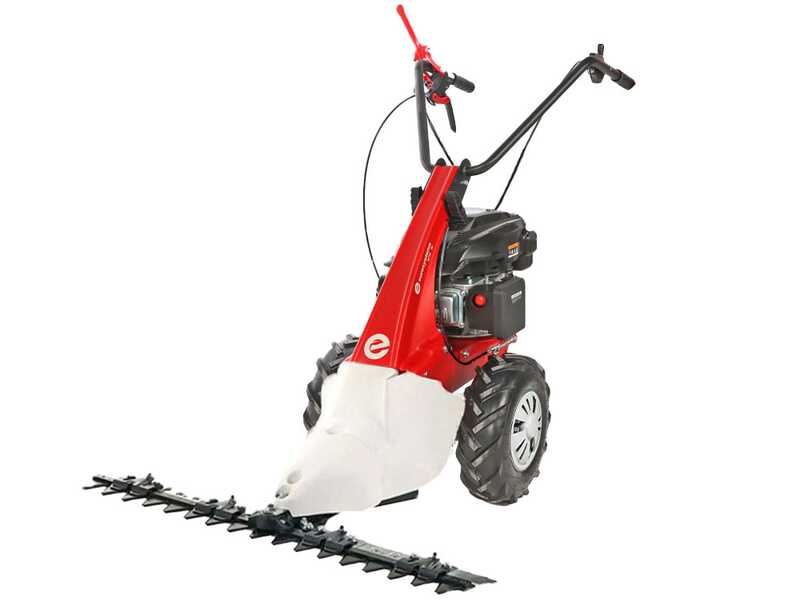

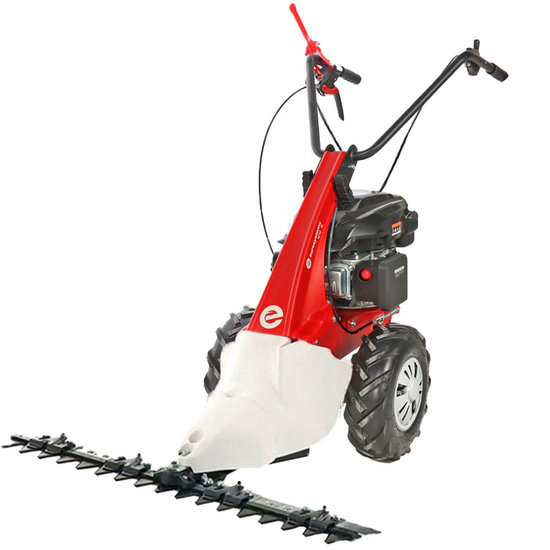

Eurosystems Minieffe RM - Multi-function Mower - Rato RV200

The Minieffe is a petrol engine mower, self-propelled, equipped with puncture-proof sculpted wheels 13x6.00-6 with tractor profile and rims driven by a worm gear transmission in an oil bath. It is equipped with 1 forward gear and 1 reverse gear, for greater versatility in use.

The 87 cm cutting bar, included in the price, is of mulching type with standard single-blade movement.

The mulching refers to the high cutting efficiency, achieved thanks to the particular profile and sharpening of the blades, which allow for an optimal finish.

The cutting bar is connected via belt transmission, a solution that contributes to the product's durability and acts as a protection against possible damage, similar to a clutch effect.

This self-propelled mower is powered by a 200cc Rato RV200 petrol engine, known for its reliability and high performance.

WARNING:
these accessories are not included in the purchase price of the machine.

53 cm MOWER DECK: transforms this petrol-powered all-purpose mower into a powerful petrol-powered all-purpose mower (for finely destroying and grinding grass)

COLLECTOR BRUSH WITH BASKET: allows you to transform this machine into a functional self-propelled brush

105 CM FRONT BRUSH

FRONT BLADE: suitable for small quantities of snow, sand, earth, etc...

PAIR OF SNOW CHAINS: suitable for pairing with the FRONT BLADE accessory

WARNING!

The photos are for illustrative purposes only and may differ from the main product.

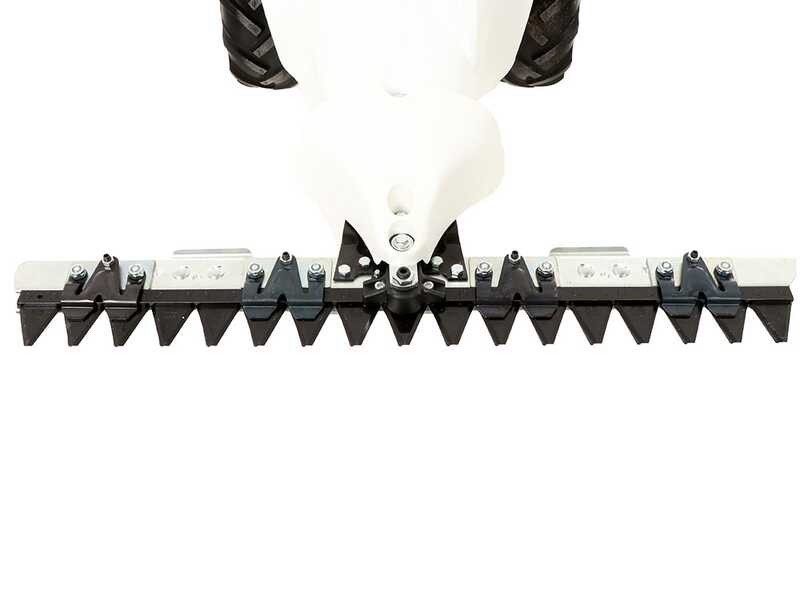

Cutting width of the mower bar: 87 cm

Mulching Cutting System: the bar consists of a lower blade and an upper one, which moves in an oscillating motion in contact with the fixed lower blade that acts as a counter-blade. This type of cutting bar is called mulching due to the particular clean cut it performs on any type, consistency, and height of grass, achieved thanks to the special profile of the blades it is composed of.

The cutting bar is equipped with blade holders placed on the upper part of it.

The mower bar is of the oscillating type.

It rotates around its attachment axis to the machine body, allowing this petrol-powered self-propelled mower to work on any kind of terrain, even slightly uneven ones, being able to adapt to its irregularities.

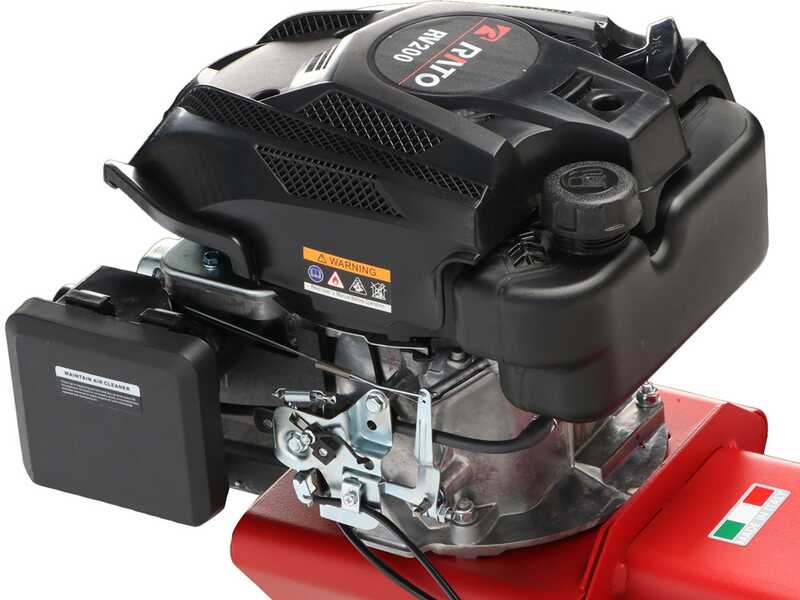

The machine is supplied with a powerful Rato RV200 engine.

Features:

• Engine type: Single-cylinder 4-stroke;
• Cylinder type: Aluminium;
• Displacement: 200cc;
• Starting: Manual, recoil;
• Fuel: Petrol;

WARNING!

The engine is supplied without oil. Bring the oil to level before the first start.

Nominal Power: 6.5 HP

Effective Power: 4.08 HP

WARNING!

*Also called "Commercial" Power, we mean the classic standard definition of power that was also officially used until a few years ago by all the most well-known engine manufacturers. This data is still the most widespread and advertised in the main commercial sales channels.

The intermediate transmission is a worm gear in an oil bath.

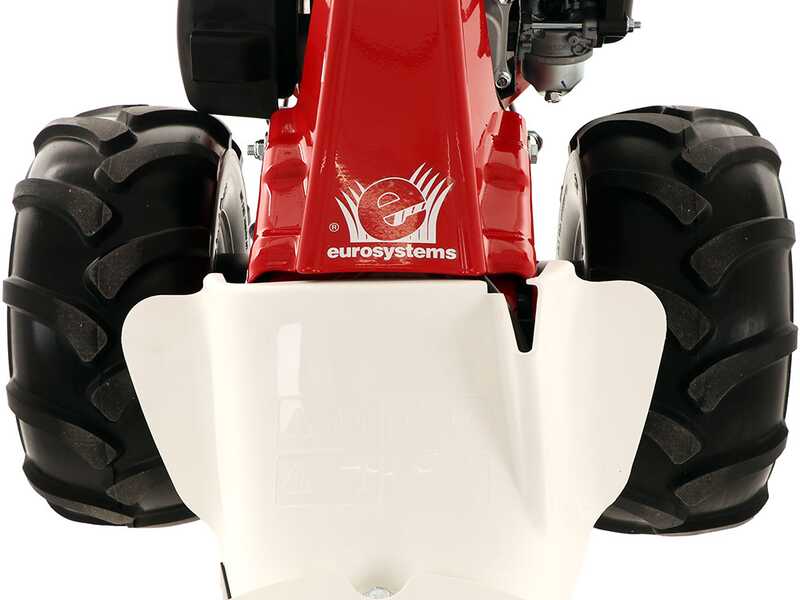

The wheels are of tractor type puncture-proof with generously sized rims: 13x6.00 - 6

Their remarkable sculpting allows the mower to advance even on the most difficult terrains while maintaining ideal grip at all times.

Screws for wheel disassembly.

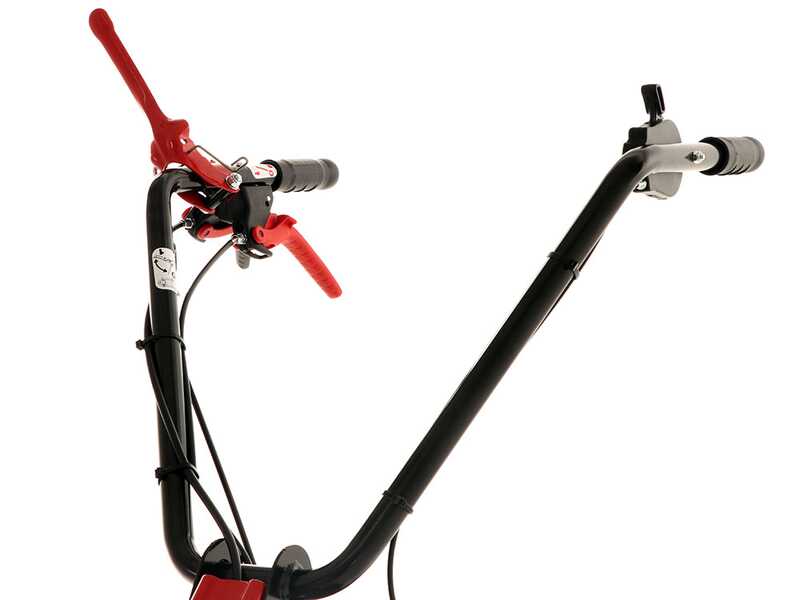

The handles are adjustable vertically via the appropriate knobs.

The red lever and the black lever are the levers to engage the forward gear and reverse gear of the machine, respectively.

Machine operation lever.

Throttle control.

The Minieffe series has introduced a new and effective anti-vibration system, between the handlebar and its connection to the machine, which will absorb the vibrations coming from the engine and the accessory mounted on the machine, moreover, the grips are also anti-vibration with rubber covering present on them.

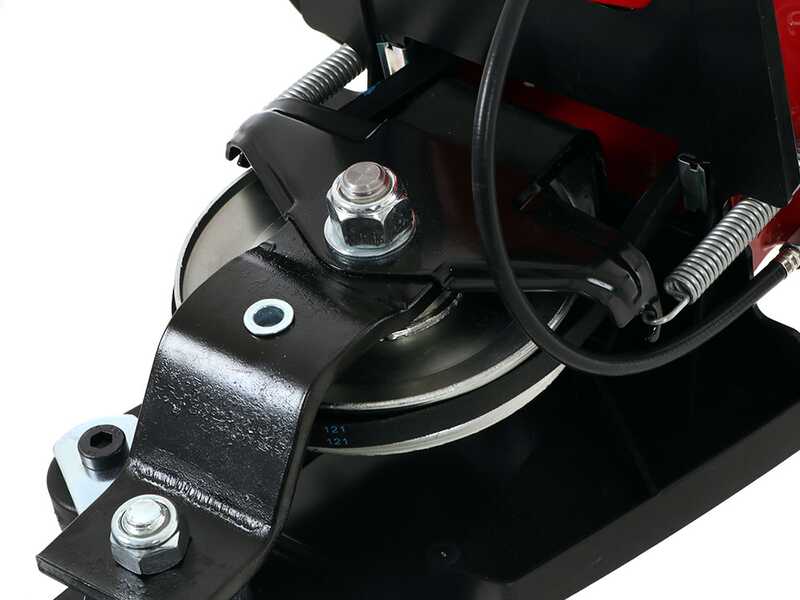

Final belt transmission between the cutting bar and the central transmission of the machine (protected by the white front cover in the photo).
This allows for extending the overall lifespan of this mower. In fact, the belt performs a function similar to that of a clutch (slipping in case of impact by the moving blades, often preventing the most wear-prone components of the machine from being damaged).

However, we advise against taking impacts with this mower or working on stony grounds.

Another great benefit associated with the presence of the belt drive is the blade engagement and disengagement lever (red lever at the top). This petrol-powered self-propelled mower allows you to activate it only when necessary, for example, at the point where the work is to be carried out, to deactivate it whenever necessary. For example, it allows for movements using the wheel traction but with the blade stopped.
