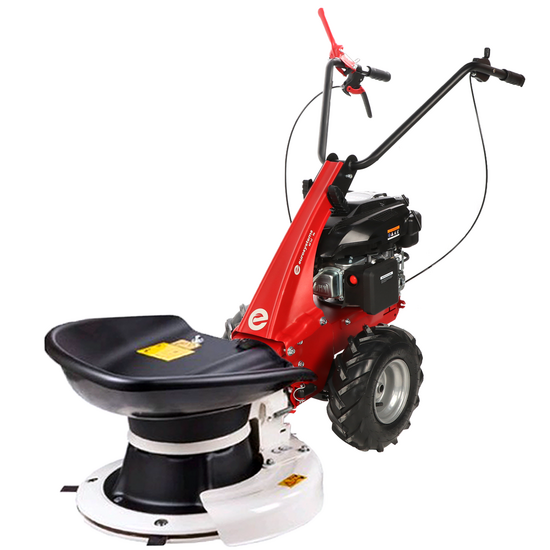

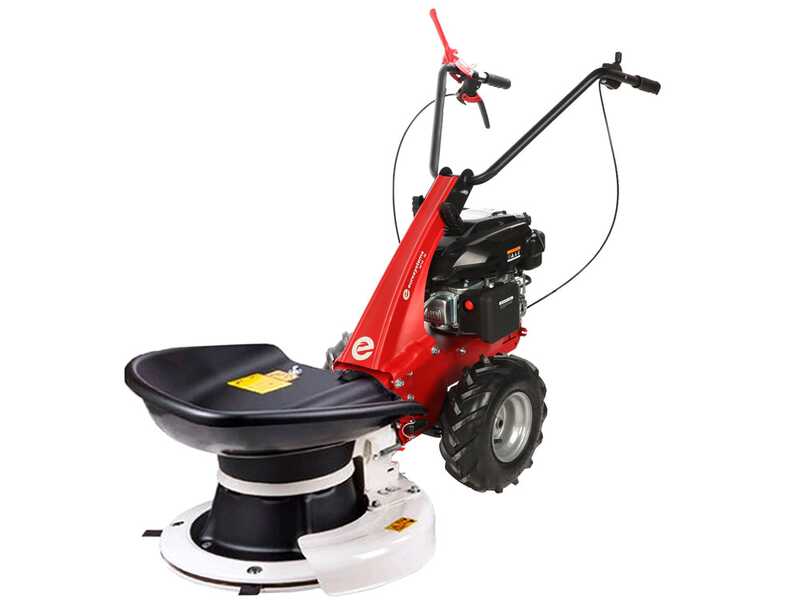

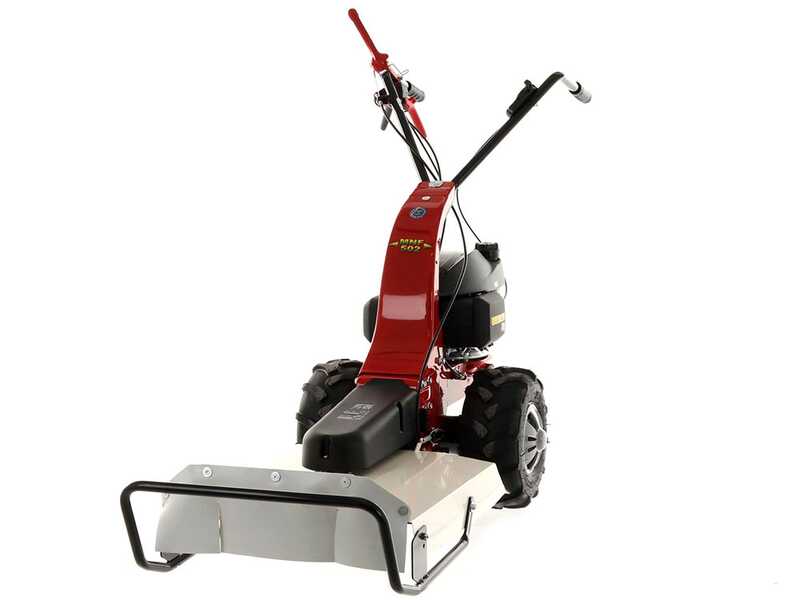

Eurosystems Minieffe - Multi-function Rotary Mower - Rato RV200

The rotary mower Eurosystems Minieffe is a self-propelled machine with a combustion engine, equipped with a powerful Rato RV200 engine, ideal for working on terrains of various consistencies and inclinations. The worm gear transmission in an oil bath and the tractor tread pneumatic wheels ensure excellent traction on difficult surfaces.

The advanced cutting system features a 57 cm rotary blade with 4 retractable knives, which automatically retract inside the housing in case of impact, providing greater protection and durability. This system is similar to that used in professional mowers mounted on agricultural tractors.

The Minieffe is suitable for working on all types of terrain and with all types of grass, whether tall or short, thick or thin, even on inclined or damaged surfaces.

Distinctive Features

• Rato RV200 petrol engine: 3.5 kW of power for high performance.

• Cutting system with 4 retractable rotary blades: protects the machine from impacts and ensures precise cutting.

• Tractor tread pneumatic wheels: for optimal traction on difficult terrains.

• Suitable for all types of terrain and grass: versatile and high-performing on various surfaces.

WARNING:
these accessories are not included in the purchase price of the machine.

MOWER BAR 87 cm

MULCHING PLATE 53 cm: transforms this combustion engine all-purpose mower into a powerful combustion engine all-purpose mulcher (for finely shredding and grinding grass)

COLLECTOR BRUSH WITH BASKET: allows transforming this machine into a functional self-propelled sweeper

FRONT BRUSH 105 cm

FRONT BLADE: suitable for small quantities of snow, sand, earth, etc...

PAIR OF SNOW CHAINS: suitable for use with the FRONT BLADE accessory

WARNING!

The photos are for illustrative purposes only and may differ from the main product.

Cutting diameter: Ø57 cm

Blade rotation speed: 2300 rpm

Cutting height: 36 mm

Cutting system: 4 floating knives arranged at 90° to each other with double edge retracting in case of impact with obstacles or stones

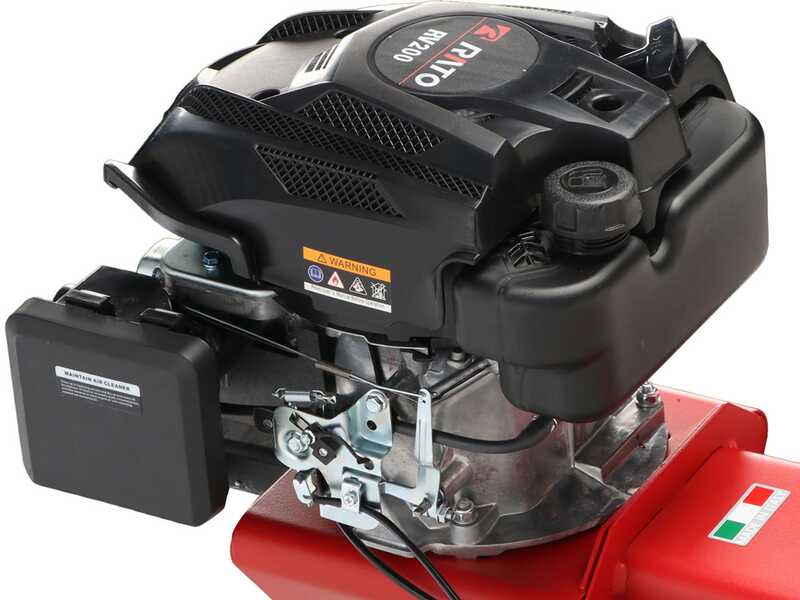

The machine is supplied with a powerful Rato RV200 engine.

Features:

• Engine type: Single-cylinder 4-stroke;
• Cylinder type: Aluminium;
• Displacement: 200cc;
• Starting: Manual, pull start;
• Fuel: Petrol;

WARNING!

The engine is supplied without oil. Bring the oil to level before the first start.

Nominal Power: 6.5 HP

Effective Power: 4.08 HP

WARNING!

*Also known as "Commercial" Power, this is the classic power definition standard that was also officially used until a few years ago by all the most well-known engine manufacturers. This data is still the most widespread and advertised in the main commercial sales channels.

The intermediate transmission is a worm gear in an oil bath.

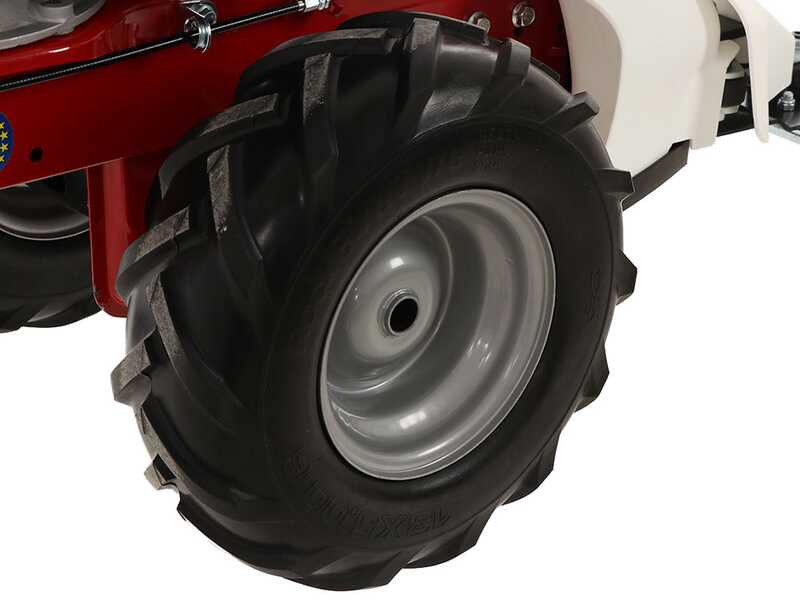

The wheels are of the tractor type with generous dimensions: 13x5.00 - 6

Their notable tread allows the mower to advance even on the most difficult terrains while maintaining ideal traction.

Wheel disassembly screws.

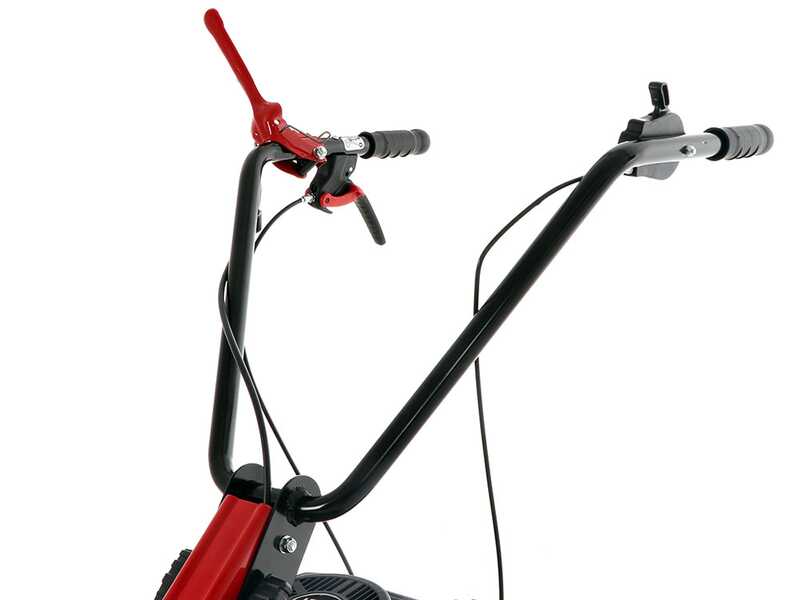

Upper red metal lever: Engage/Disengage all-purpose mowing plate.

Lower black lever (right): activates forward gear

Throttle control.

The Minieffe series has introduced a new and effective anti-vibration system , between the handlebar and its connection to the machine there are that will absorb vibrations coming from the engine and the accessory mounted on the machine, moreover, the handles are also anti-vibration with the rubber covering present on them.

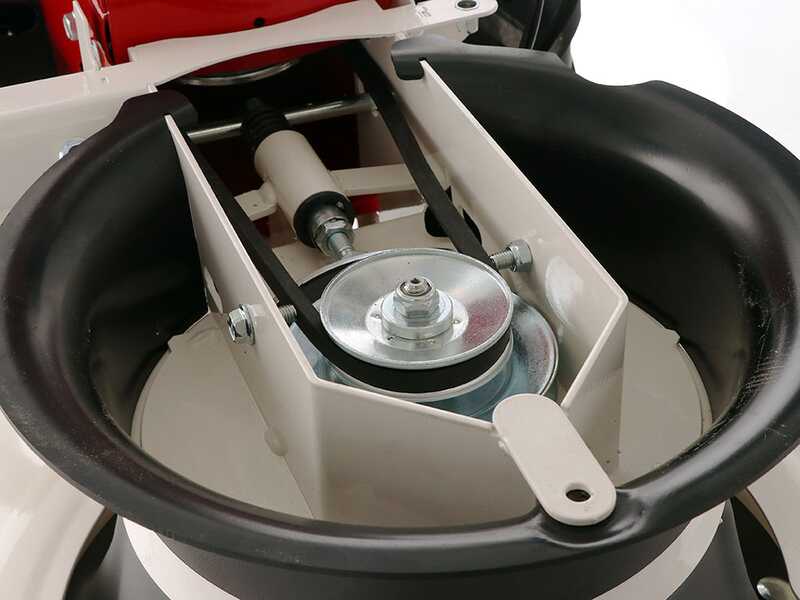

Final belt transmission between the rotary blade and the central transmission of the machine (protected by the black front cover in the photo).
This extends the overall lifespan of this mower. In fact, the belt performs a function similar to that of a clutch (slipping in case of impact by the moving blades, often preventing the most wear-prone components of the machine from being damaged).

However, we advise against taking impacts with this mower or working on stony grounds.

Another great benefit associated with the presence of the belt transmission is the blade engage and disengage lever (upper red lever). This self-propelled combustion engine mower allows it to be activated only when necessary, for example at the point where the work is to be done, to deactivate it whenever necessary. For example, it allows movements using the wheel traction but with the blade stopped.
