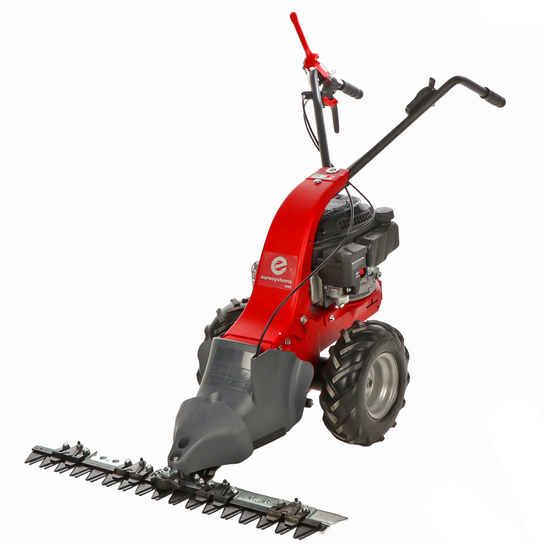

Eurosystems M90 - Single Blade Mower - Rato RV145

The Eurosystems M90 Mower is a versatile and robust tool, designed to deliver excellent performance in the care and maintenance of large agricultural lands and gardens. The machine is equipped with a worm gear transmission in oil bath and belt, ensuring long-lasting durability and perfect operation even under load. The gearbox offers a single forward gear (MA), with a speed of 2.6 km/h, ensuring efficient and controlled mowing.

The tool of the M90 is a cutter bar with a patented single blade movement, which includes a head with grease nipple and connecting rod with bearings, optimizing resistance and longevity. The cut is characterized by 880 strokes per minute and a working width of 87 cm, with a fixed working height of 2 cm, allowing for precise and uniform mowing. The machine is equipped with sheet metal skids and a double floating hood, which enhances terrain adaptability.

The puncture-proof drive wheels, sized 13x5.00-6", are designed to ensure optimal traction even on difficult terrains. The handlebar is vertically adjustable, while the ergonomic control levers with integrated safety system ensure safe and comfortable control during use.

The Eurosystems M90 Mower is presented as a powerful and compact machine, suitable for intensive work on large areas. The robust design and attention to technical details make it an ideal tool for those seeking a high-quality mower, durable over time and easy to manoeuvre.

Main Features:

• Worm gear and belt transmission: Ensures long-lasting durability and minimizes maintenance.

• MA gearbox with speed of 2.6 km/h: Suitable for sloped terrains and long work sessions.

• Patented single blade and head with grease nipple: Optimizes cutting and increases system durability.

• Puncture-proof wheels: For safe and lasting traction on various types of terrain.

• Compact design and adjustable handlebar: Ease of manoeuvrability and adaptability to operator needs.

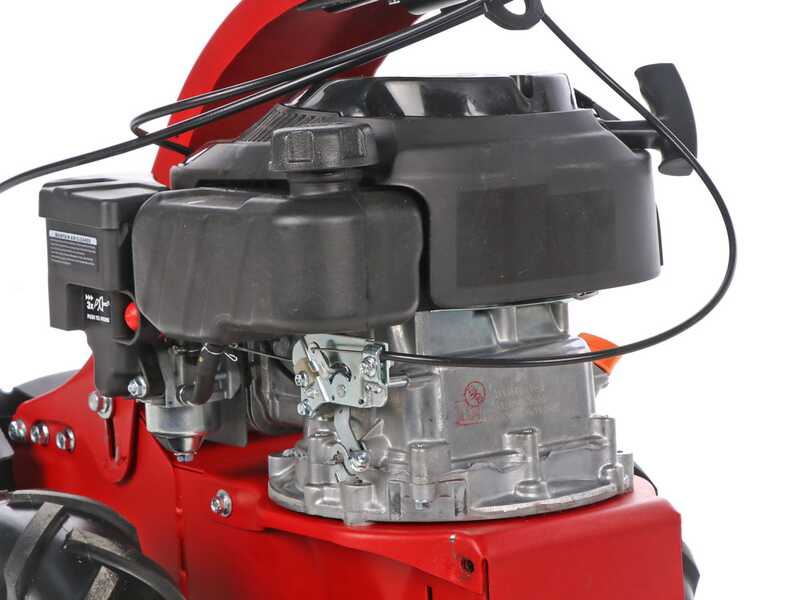

The Rato RV145 OHV engine is high-performance, suitable for tasks requiring high reliability and durability.

Features:
Engine type: Single-cylinder 4-stroke - OHV
Cylinder type: Aluminium
Displacement: 145 cm³
Fuel: Petrol
Max RPM: 3600 rpm
Starting: Manual

Latest generation 4-stroke petrol engine with overhead valve "OHV" and automatic decompression start.

WARNING!

The engine is SUPPLIED WITHOUT OIL.
Before starting, carefully read the instruction manual.

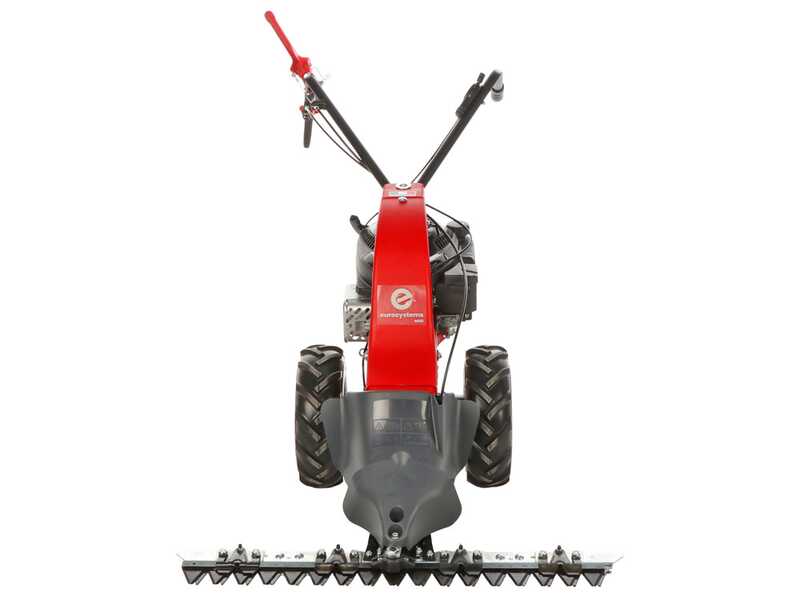

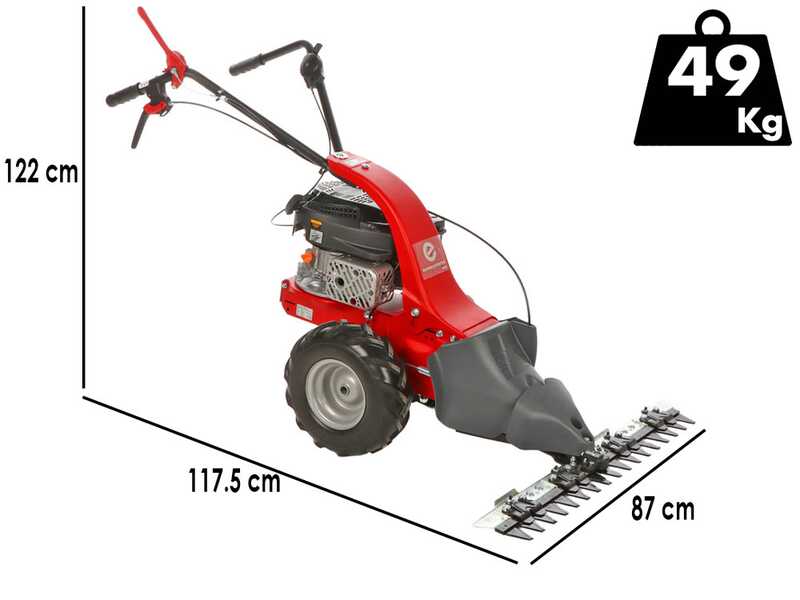

87 cm Cutter Bar.

Mulching Cutting System: the bar consists of a lower blade and an upper one, which moves in an oscillating motion in contact with the fixed lower blade acting as a counter-blade. This type of cutter bar is called mulching due to the particular clean cut it performs on any type, consistency, and height of grass, achieved thanks to the special profile of the blades it is composed of.

The cutter bar is equipped with blade holders placed on the upper part of it.

The cutter bar is of swing type.

It rotates around its attachment axis to the machine body, allowing this petrol-driven mower to work on any kind of terrain, even slightly uneven, being able to adapt to its irregularities.

The intermediate transmission is a worm gear in oil bath.

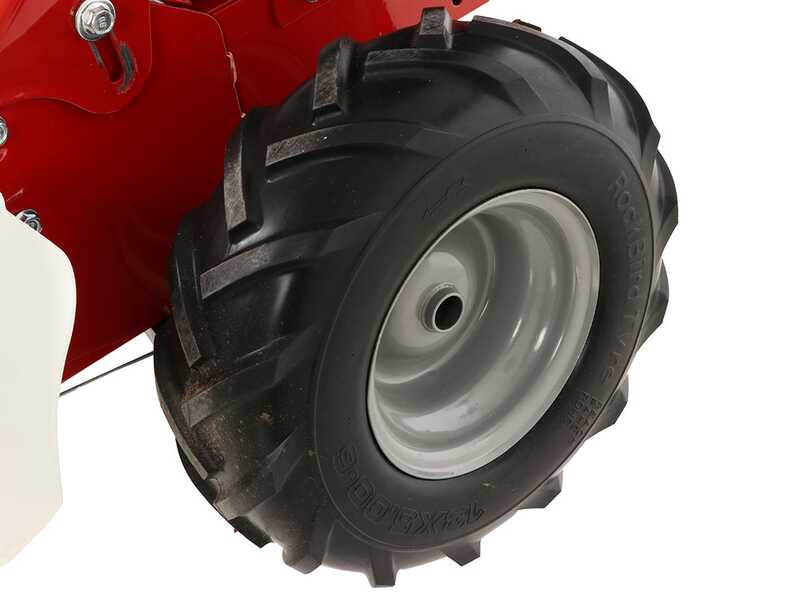

The wheels are of tractor type with generous dimensions: 13x5.00 - 6

Their notable tread pattern allows the mower to advance even on the most difficult terrains while maintaining ideal grip.

Wheel disassembly screws.

The machine's tyres are solid, thus without an inner tube and cannot be punctured.

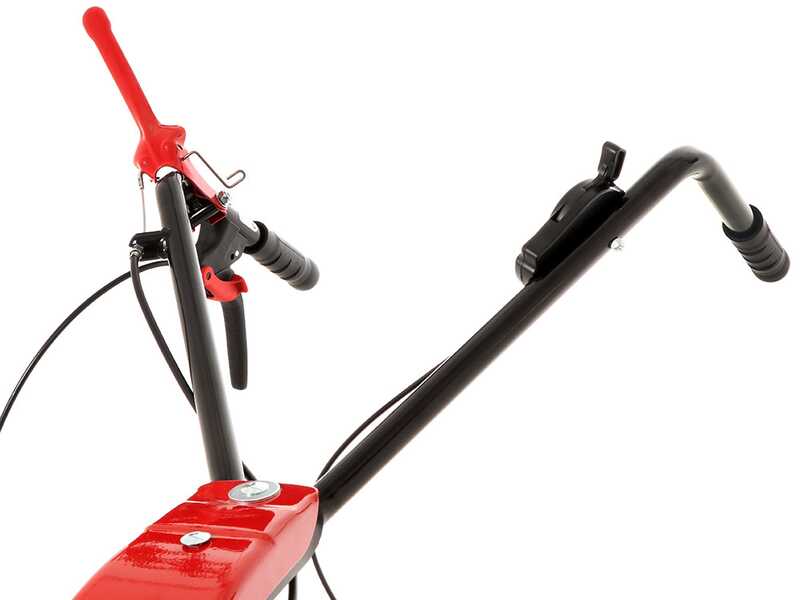

Machine controls are entirely placed on the handles.

Upper red metal lever: Engage/Disengage all-cutting plate.

Lower black lever (right): activates forward gear

Throttle control knob.

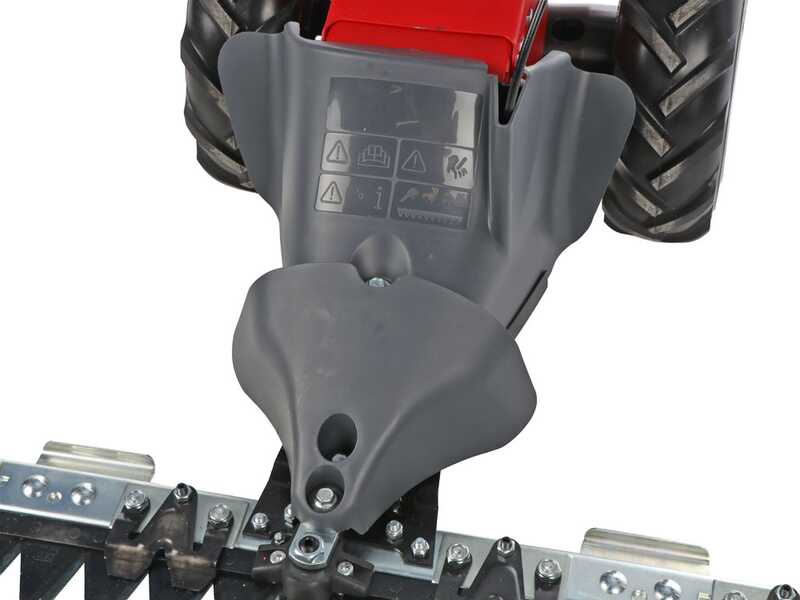

Final belt transmission between the cutter bar and the machine's central transmission, protected by the guard.
This extends the overall lifespan of this mower. In fact, the belt performs a function similar to that of a clutch (slipping in case of impact by the moving blades, often preventing the most wear-prone components of the machine from being damaged).

However, we advise against taking impacts with this mower or working on rocky terrains.

Another great benefit associated with the presence of the belt transmission is the blade engagement and disengagement lever (upper red lever). This petrol-driven mower allows it to be activated only when necessary, for example at the point where work is to be done, and then deactivated whenever necessary. For example, it allows for movements using the wheel traction but with the blade stopped.
