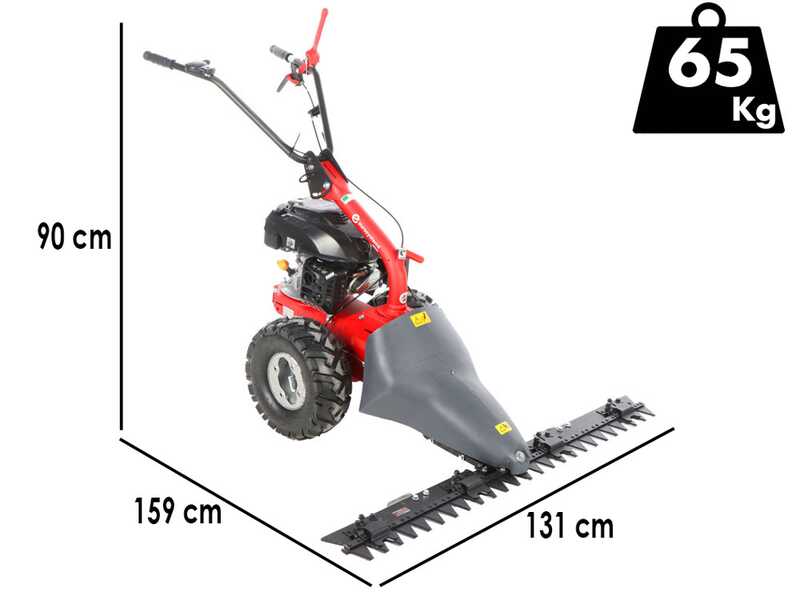

Eurosystems M310 - Two-blade Mower - Cutting Width 127 cm - Rato RV200 OHV

The Eurosystems M310 mower is a compact and functional solution for cutting grass on flat or slightly sloped terrain. It is a machine designed for private or semi-professional use in agricultural and rural settings. The Rato RV200 engine, petrol-powered, ensures good cutting power with a displacement of 200 cc and a nominal power of 3.5 kW. The recoil start allows for easy and reliable ignition.

The transmission is via worm gear in an oil bath and belt, a solution that guarantees long life and reduced maintenance. The Eurosystems mower M310 is equipped with a single-speed gearbox (MA) with a fixed speed of 3.0 Km/h. This makes it suitable for mowing operations in medium-small spaces, where advanced gear shifting is not necessary.

The structure features an adjustable handlebar both in height and laterally, facilitating operator adaptation based on the terrain's inclination. The ergonomic levers with integrated safety system offer safe control of the machine. The two-blade cutting bar allows for a clean and precise cut at a fixed height of 3 cm, ideal for managing spontaneous grasses and forage.

The compact design with floating hood and sheet metal skids contributes to smoothness on the ground and protection of the cutting components. The 15×6.00-6" tractor pneumatic wheels ensure good grip and traction.

Distinctive Features:

• Rato RV200 Engine: 200 cc petrol engine, 3.5 kW, with simple and effective recoil start.

• Transmission with worm gear in oil bath: ensures reliability and long life of the internal mechanics.

• Adjustable Handlebar: handlebar adjustable vertically and laterally, for comfortable use in any situation.

• Two-blade Cutting Bar: ensures clean cuts at 3 cm height, ideal for forage and ground cleaning.

• Tractor Pneumatic Wheels: promote traction even on uneven or slightly inclined terrain.

The Rato engine is lightweight and high-performance, suitable for jobs requiring moderate power.

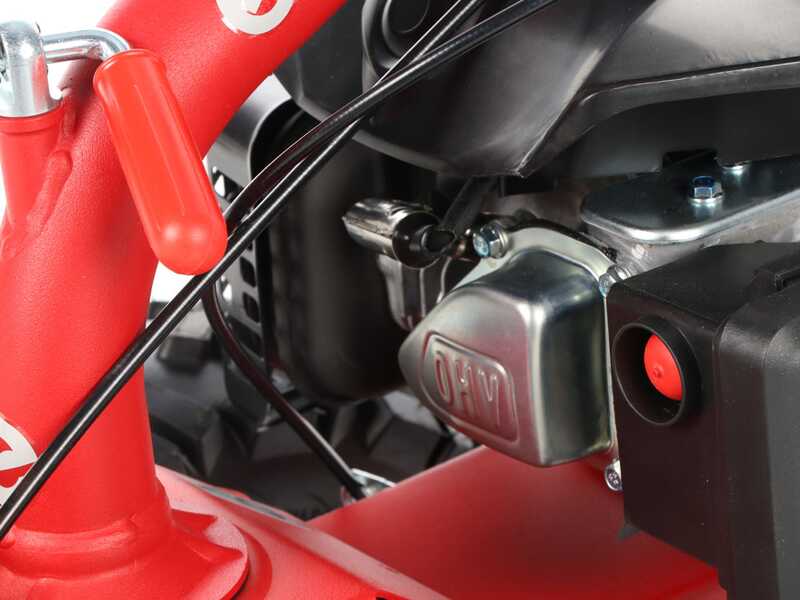

The engine is a 4-stroke petrol 200 cc displacement with overhead valves "OHV", single-cylinder and forced air cooling system.

Fuel tank capacity: 1 lt

Oil tank capacity: 0.55 lt

Detail of recoil start. The electronic ignition transistor is used for reliable ignition and the splash lubrication engine ensures a constant oil supply to the internal components, protecting the engine and extending its life.

Nominal Power: 6.5 HP
The more correct term would be "Commercial" Power, meaning the classic standard definition of power officially used until a few years ago by all the most renowned engine manufacturers.

* This data is still more widespread and advertised in the main commercial sales channels, although it is an increased figure compared to the actual power.

Effective Power: 4.7 HP
Corresponds to the actual power expressed at the crankshaft. It is the one indicated as official in the engine manufacturer's manual or technical data.

* This data can vary for the same engine model depending on the rotation speed that the equipment manufacturer has decided to have the engine deliver.

WARNING!

The engine is SUPPLIED WITHOUT OIL.
Before starting it, carefully read the instruction manual.

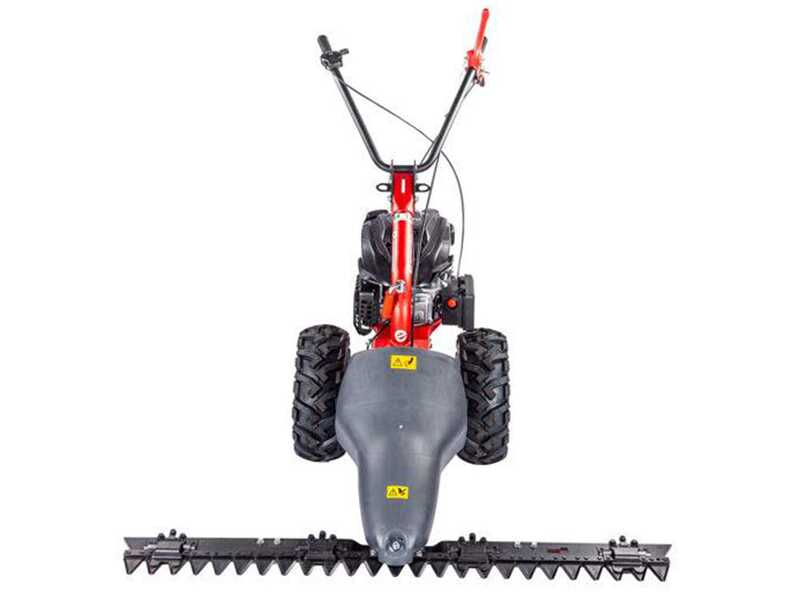

The bar consists of the lower blade and the upper one that both move in opposite motion to each other. This differentiates the cutting bar of this Eurosystems petrol mower from all other classic ones still offered on the market, which are still made with traditional single-blade movement (i.e., only the upper blade moves, while the lower blade is fixed and serves as a counter-blade).

Advantages of the two-blade cutting system:

• more effective cutting on very tall, thick grass with large-section stems
• more effective cutting on very low, thin, and particularly young and tender grass
• significantly superior cut cleanliness, without the slightest burr
• cleaner and higher quality final work
• greater work efficiency
• higher productivity in cutting

The two-blade system also allows for practically eliminating vibrations due to work, making it an excellent choice for long work sessions.

Detail of the upper blade holders with which the two-blade cutting bar is equipped.

Cutting height adjustable through the adjustment of the inclination of the 2 rear skids.

The cutting bar is of the oscillating type.
It indeed rotates around its quick-attachment pin to the machine body.
This system allows this self-propelled two-blade petrol mower to work on any type of terrain, even quite uneven, being able to adapt to its imperfections.

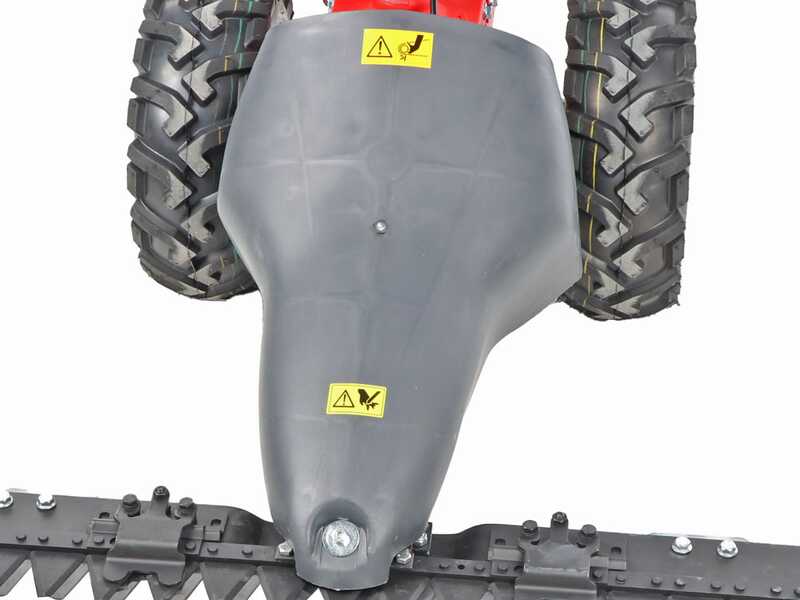

Transmission between cutting bar and machine body made with belt system (protected by the large cover).
This allows for preserving the life of the cutting bar accessory (which is the most stressed during work, being the one that actually performs the cutting operation in contact with the ground). In fact, the belt performs a function similar to that of a clutch (it can slip in case of impact by the blades, often avoiding the risk of various components wearing out or being damaged).
However, we advise against taking impacts with the machine or working on stony ground.

Another great advantage offered by the belt transmission is the blade engagement and disengagement lever. This two-blade mower allows it to be activated only during the work phase and then deactivated during dead phases, for example during various movements (using the wheel traction with the blade stopped).

The intermediate transmission is a worm gear in an oil bath.

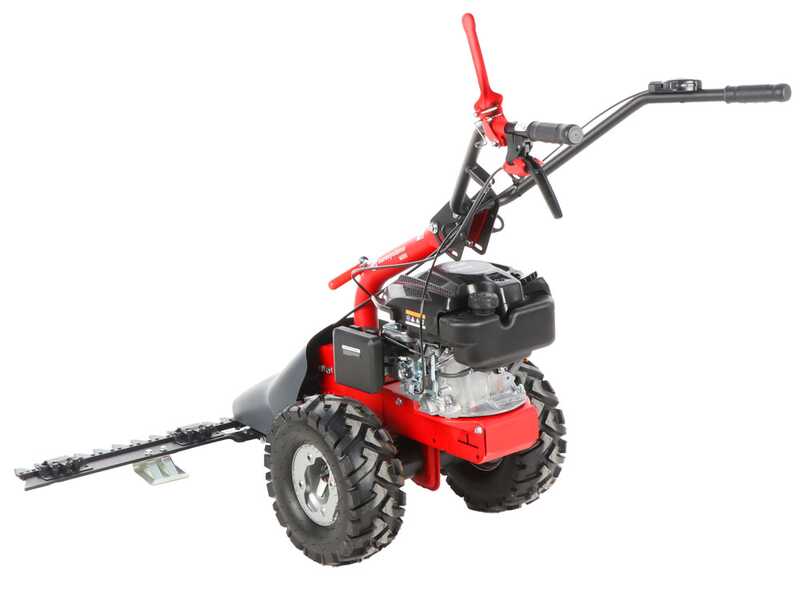

Sculpted tractor-type wheels.

They allow the mower to advance even on the most difficult terrains, always maintaining ideal grip.

This petrol mower is of the single-speed type.

The red metal lever is dedicated to the engagement/disengagement of the cutting deck.

The lower black lever activates the machine's advancement.

Throttle lever

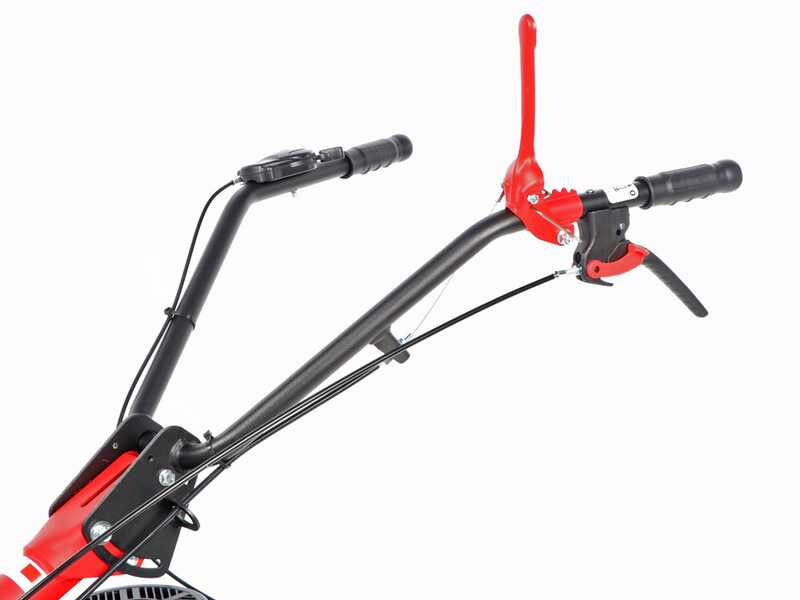

Detail of the handlebar height adjustment.

The guide handlebars are also adjustable laterally.
