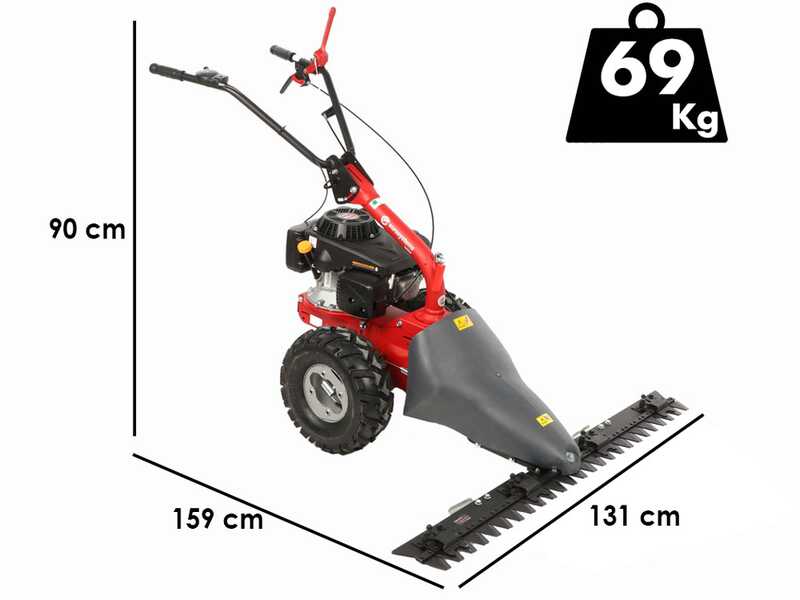

Eurosystems M310 - Twin-blade Mower - Cutting Width 127 cm - Loncin 196 OHV

The Eurosystems M310 mower is a compact and functional solution for cutting grass on flat or slightly sloped terrains. It is a machine designed for private or semi-professional use in agricultural and rural settings. The Loncin 196 OHV engine, petrol-powered, ensures good cutting power with a displacement of 196 cc and a nominal power of 3.8 kW. The recoil start allows for simple and reliable ignition.

The transmission is via an oil-bath worm gear and belt, a solution that guarantees long life and reduced maintenance. The Eurosystems M310 mower is equipped with a single-speed gearbox (MA) with a fixed speed of 3.0 Km/h. This makes it suitable for mowing operations in medium-small spaces, where advanced gear shifting is not necessary.

The structure features an adjustable handlebar both in height and laterally, facilitating operator adaptation based on the terrain's inclination. Ergonomic levers with an integrated safety system offer secure machine control. The twin-blade cutting bar allows for a clean and precise cut at a fixed height of 3 cm, ideal for managing wild grasses and forage.

The compact design with a floating hood and sheet metal skids contributes to smoothness on the ground and protection of the cutting components. The 15×6.00-6" pneumatic tractor wheels ensure good grip and traction.

Distinctive Features:

• Loncin 196 OHV Engine: 196 cc petrol engine, 3.8 kW, with simple and effective recoil start.

• Oil-bath Worm Gear Transmission: ensures reliability and long life of the internal mechanics.

• Adjustable Handlebar: handlebar adjustable vertically and laterally, for comfortable use in any situation.

• Twin-blade Cutting Bar: ensures clean cuts at 3 cm height, ideal for forage and ground cleaning.

• Pneumatic Tractor Wheels: enhance traction even on uneven or slightly inclined terrains.

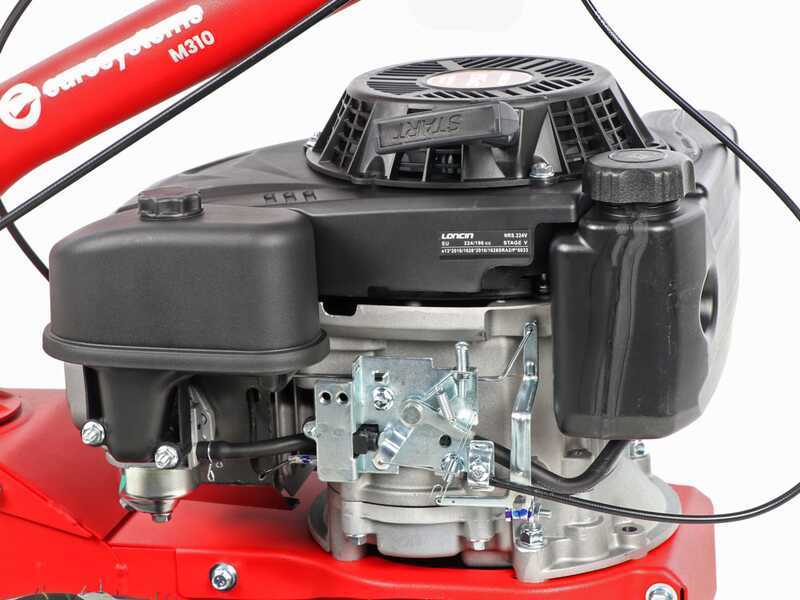

The LONCIN engine is lightweight and high-performance, suitable for tasks requiring moderate power.

The engine is the latest generation 196 cc 4-stroke petrol with overhead valves "OHV", single cylinder, and forced air cooling system.

Fuel tank capacity: 0.9 lt

Oil tank capacity: 0.55 lt

Detail of recoil start. The electronic ignition transistor is used for reliable ignition and the splash lubrication engine ensures a constant oil supply to internal components, protecting the engine and extending its life.

Detail of the filter.

Nominal Power: 6.5 HP
The more correct term would be “Commercial” Power, referring to the classic standard of power definition officially used until a few years ago by all major engine manufacturers.

* This data is still widely used and advertised in major sales channels, although it is an inflated figure compared to the actual power.

Effective Power: 4.8 HP
Corresponds to the actual power expressed at the engine shaft. It is the official one indicated in the engine manufacturer's manual or technical data.

* This data can vary for the same engine model depending on the rotation speed that the equipment manufacturer has decided to have the engine deliver.

WARNING!

The engine is SUPPLIED WITHOUT OIL.
Before starting it, carefully read the instruction manual.

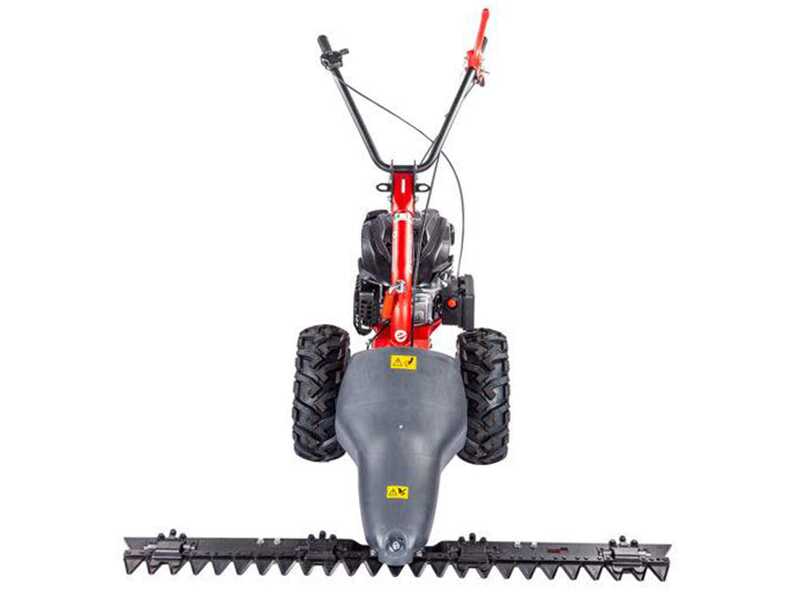

The bar consists of the lower blade and the upper blade, both moving in opposite directions. This differentiates the cutting bar of this Eurosystems petrol mower from all other classic ones still offered on the market, which are still made with traditional single-blade movement (i.e., only the upper blade moves, while the lower blade is fixed and serves as a counter-blade).

Advantages of the twin-blade cutting system:

• more effective cutting on very tall, thick grass with large stems
• more effective cutting on very low, thin, and particularly young and tender grass
• significantly superior cut cleanliness, without the slightest burr
• cleaner and higher quality final work
• greater work efficiency
• higher productivity in cutting

The twin-blade system also allows for virtually eliminating vibrations due to work, making it an excellent choice for long work sessions.

Detail of the upper blade holders with which the twin-blade cutting bar is equipped.

Cutting height adjustable through the adjustment of the inclination of the 2 rear skids.

The cutting bar is of the oscillating type.
It rotates around its quick-attachment pin to the machine body.
This system allows this self-propelled twin-blade petrol mower to work on any type of terrain, even fairly uneven, being able to adapt to its imperfections.

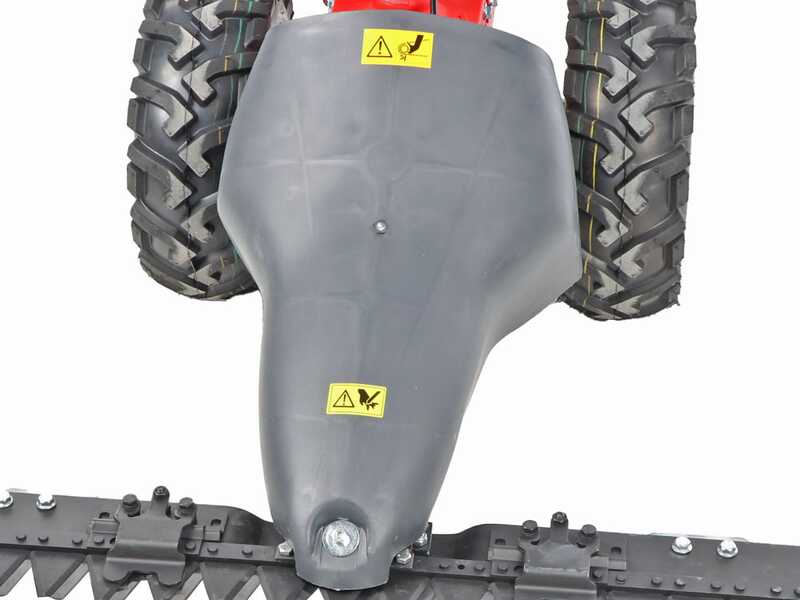

Transmission between the cutting bar and the machine body made with a belt system (protected by the large guard).
This allows for preserving the life of the cutting bar accessory (which is the most stressed during work, being the one that actually performs the cutting operation in contact with the ground). In fact, the belt performs a function similar to that of a clutch (it can slip in case of blade impact, often avoiding the risk of various components wearing out or being damaged).
However, we advise against hitting the machine or working on rocky terrains.

Another great advantage offered by the belt transmission is the blade engagement and disengagement lever. This twin-blade mower allows it to be activated only during the work phase and deactivated during idle phases, for example during various movements (using the wheel traction with the blade stopped).

The intermediate transmission is an oil-bath worm gear.

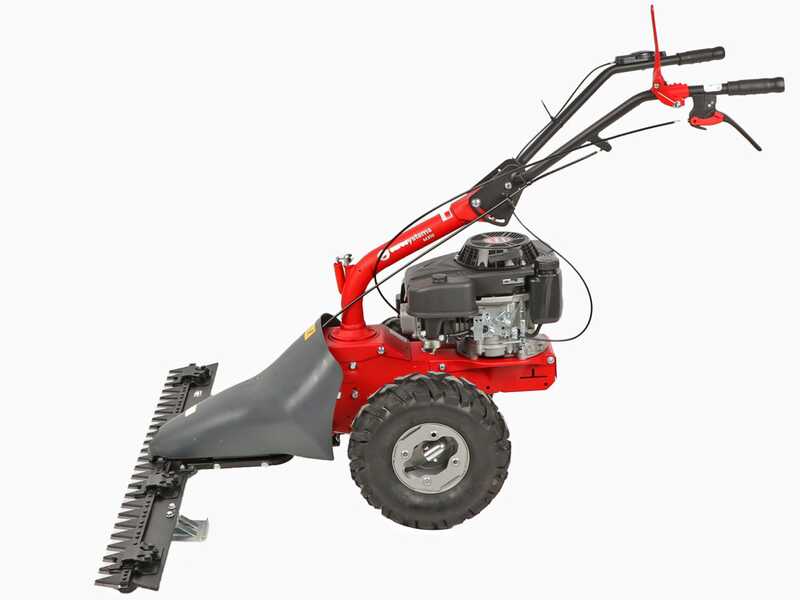

Sculpted tractor-type wheels.

They allow the mower to advance even on the most difficult terrains, always maintaining ideal grip.

This petrol-powered single-speed mower.

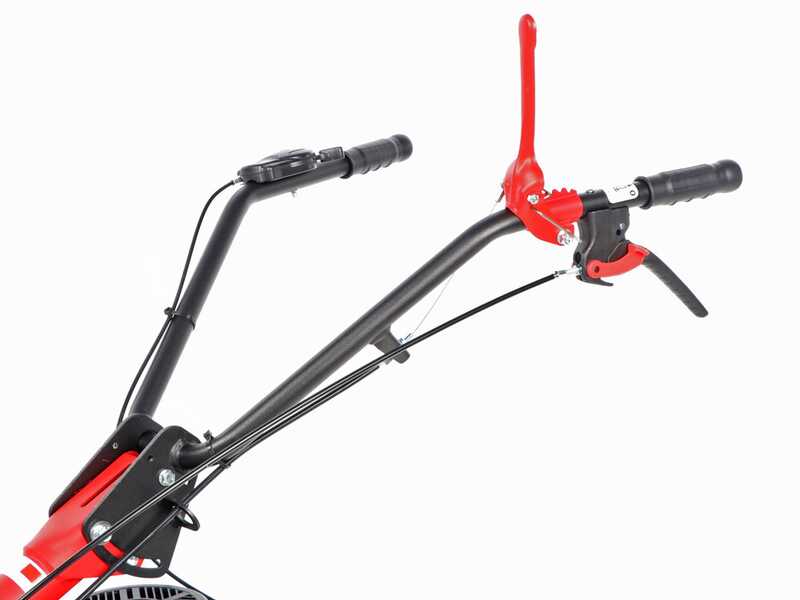

The red metal lever is dedicated to engaging/disengaging the mowing deck.

The lower black lever operates the machine's forward movement.

Throttle lever

Detail of the handlebar height adjustment.

The guide handlebars are also adjustable laterally.
