EuroSystems E5-EVO 2+1 S/R RM - 5 HP Petrol Garden Tiller - Honda GP 160

This is a medium-sized garden tiller for hobby use fitted with a new Honda GP 160 4-stroke engine with OHV technology, and equipped with 2+1 gearbox; exceptionally effective in low to medium intensity agricultural work, and for tilling work on medium-sized areas.

Versatile, sturdy, robust and powerful, it is perfect for quickly preparing the seedbed, making finely crushed and well-ventilated soil soft and ready for cultivation. On medium-compact soils, the tines mounted on this garden tiller are intended to work deeply into the ground in a easy, quick and comfortable way.

The sturdy mechanics, power and elasticity of the engine allows to operate it on medium-sized surfaces, even on untilled soils.

COMPLIMENTARY:

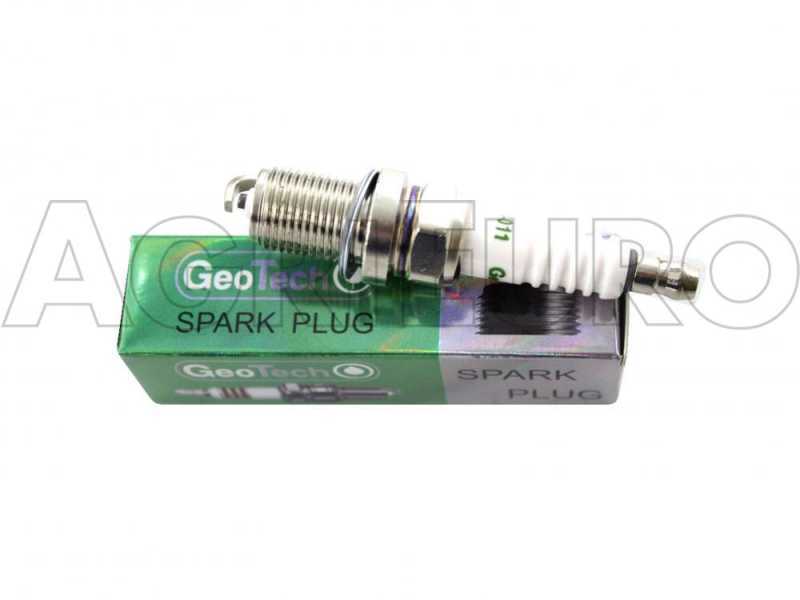

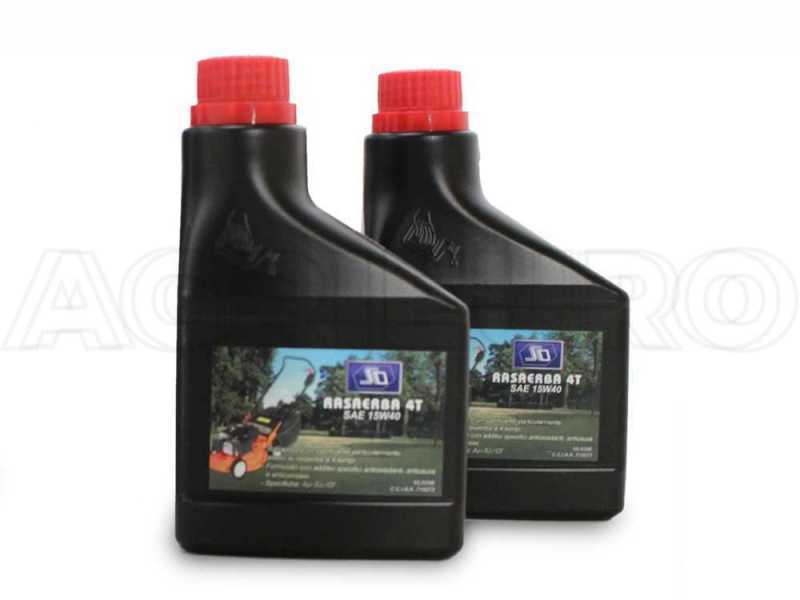

GARDEN TILLER MAINTENANCE KIT AND

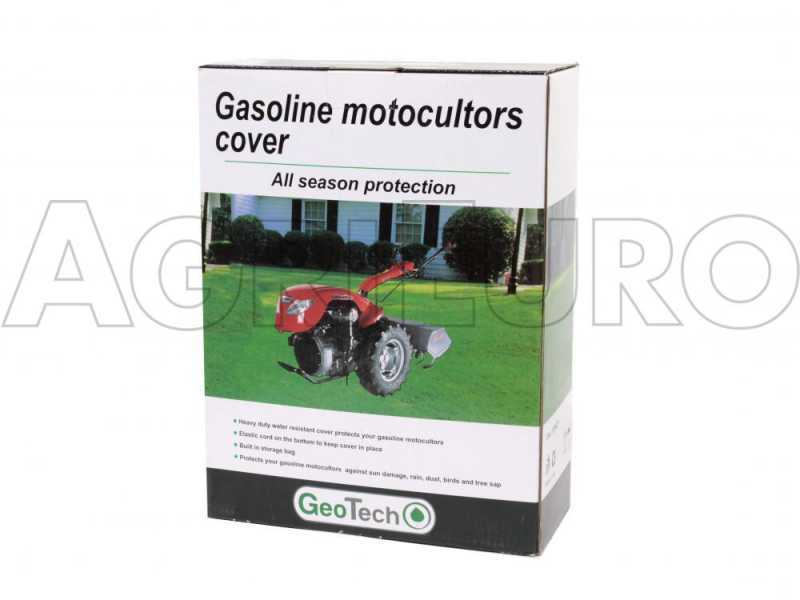

COVER SHEET

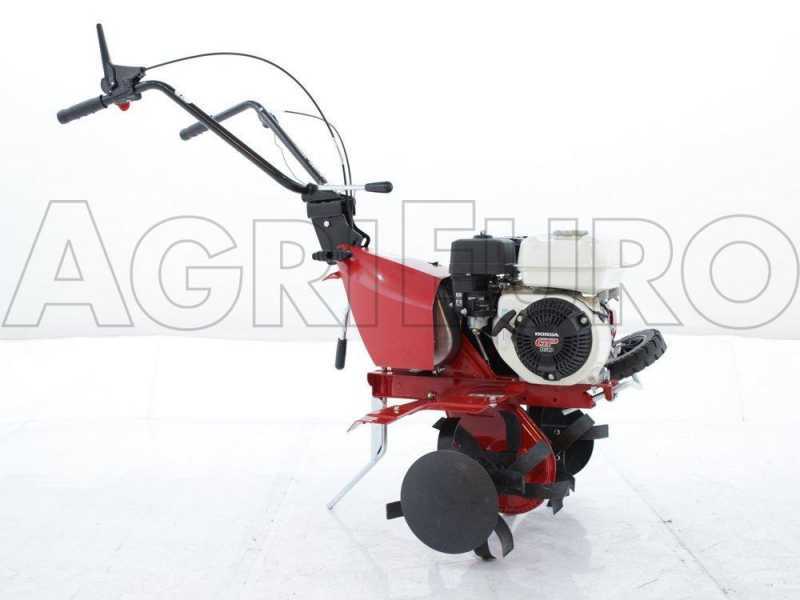

The Honda GP 160 is light and high performing, suitable for works where a certain amount of power is required, also thanks to the 163 cc of cubic capacity.

Features:

New generation 4-stroke engine with "OHV” overhead valves - horizontal shaft, otto cycle, 4-stroke, 25° inclined cast iron cylinder and forced air cooling.

Nowadays, the great majority of agricultural and gardening equipment available on the market mounts unbranded (or unknown brand) engines made in China.


The engine is PROVIDED WITHOUT OIL.
Please carefully read the instruction manual before starting the unit.

Nominal Power: 5.0 Hp
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Rated power: 3.79 Hp (at 3600 rpm)
It refers to the real power of the engine. This is the power indicated as official in the engine instructions manual.

* This technical feature may vary from a an engine model to another according to the rotation speed provided by the manufacturer.

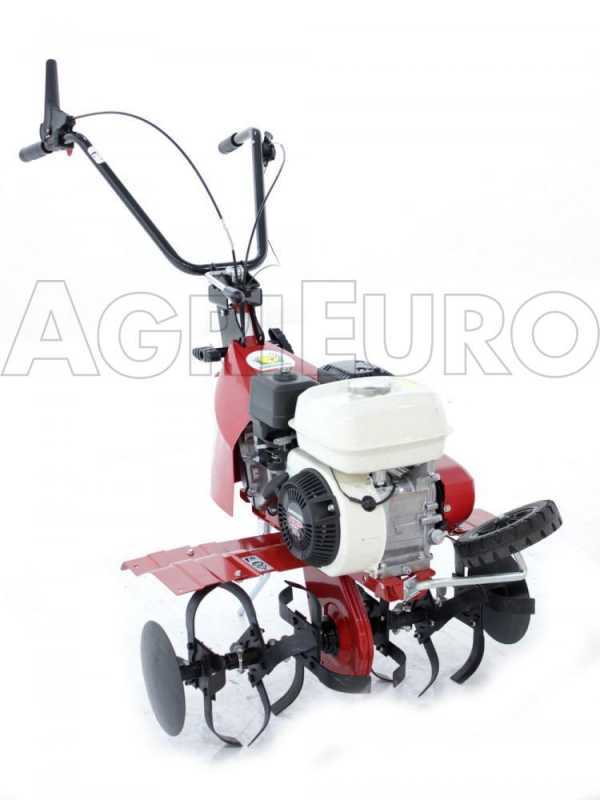

The gearbox is equipped with 2 forward gears and one reverse gear, engaged by means of the special lever placed between the steering handles.

It features a sturdy gearbox with gears in an oil bath.

It is protected by a sturdy housing from dust or accidental shocks during work.

Gears: 2 forward gears + 1 reverse gear adjustable by means of the lever located under the steering handles.

Black lever for the forward gear, red lever for the reverse gear.

Sturdy central chain drive in oil bath.

Side belt transmission protected by a sturdy openable housing.

Tine: 75 cm, with 6 rows of rotary hoes + side crop protection discs.

Easily adjustable to 50 cm.

Comparison between 2 tine sizes

The tiller adjustment is very easy: just need to insert or remove the most external element and place the crop protection disc.

The side protections are fixed by means of shaft locking pins and nut and bolt.

Front transport wheel: to move around the machine, with the engine switched off, avoiding damage to delicate surfaces and floors.

Excellent for storing the garden tiller.

The wheel adjustment operation is extremely quick and easy.
Simply pull it out and turn it to the left to fix it in the raised position.
Once the wheel has been positioned, simply use the fastener to lock it in the "side" position.

Thanks to this system, the garden tiller can be set in its working mode.

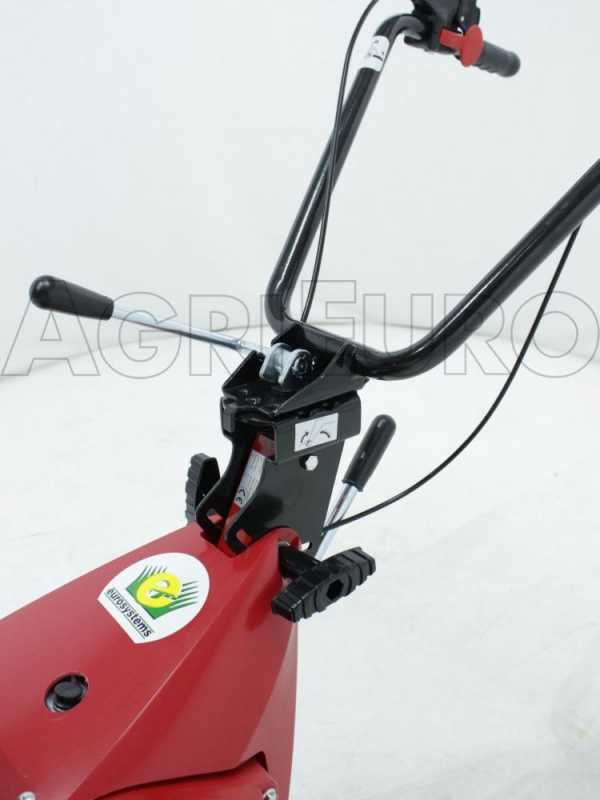

Focus on the steering handles (handlebars). All the main controls are placed in this area.

Black lever: it is the clutch lever that drives the tines and the machine’s movement.

Focus on the throttle lever.

The steering handles are height and laterally adjustable via the lever.

The adjustable rear stake is mounted on its its own axle. has been further reinforced, in order to optimise the sturdiness of the machine.

To ensure the correct operation of the petrol garden tiller and maintain its performance over time, it is important to use the machine in accordance with the specified operating conditions and to follow a few simple recommendations.

Before each use, it is advisable to check the general condition of the machine, ensuring that the tines are correctly assembled, the protective guards are intact, fluid levels are correct and the controls are working properly. A pre-use check allows you to work more safely and reduces the risk of malfunctions.

The petrol garden tiller must only be used on ground suitable for tilling. It is not advisable to work on surfaces containing a high number of stones, rocks, roots, debris or other large foreign objects, as these may strike the tines and place excessive strain on the transmission and mechanical components.

On particularly hard, compacted or previously untilled soil, it is preferable to carry out several passes at progressively greater depths, avoiding subjecting the machine to excessive loads during a single operation.

It is also not recommended to use the rotary tiller on excessively damp ground. High moisture levels cause the soil to adhere to the tines, leading to build-up of material, increased resistance to rotation and a reduction in the quality of the tilling.

Where there is tall grass, wild vegetation or unchopped plant residues, it is advisable to prepare the working area in advance. Plant material can wrap around the rotating parts, causing clogging, reduced efficiency and increased wear on components.

To ensure the machine operates correctly, only use tines, tools and accessories that are compatible with the model in use and approved by the manufacturer. Unsuitable or damaged components can cause abnormal vibrations and compromise the service life of the transmission and frame.

While working, it is important to allow the machine to advance at a rate determined by the capacity of the tines and the characteristics of the soil, avoiding forcing the machine forward with excessive pressure. On hard ground, it is preferable to reduce the working depth and proceed gradually.

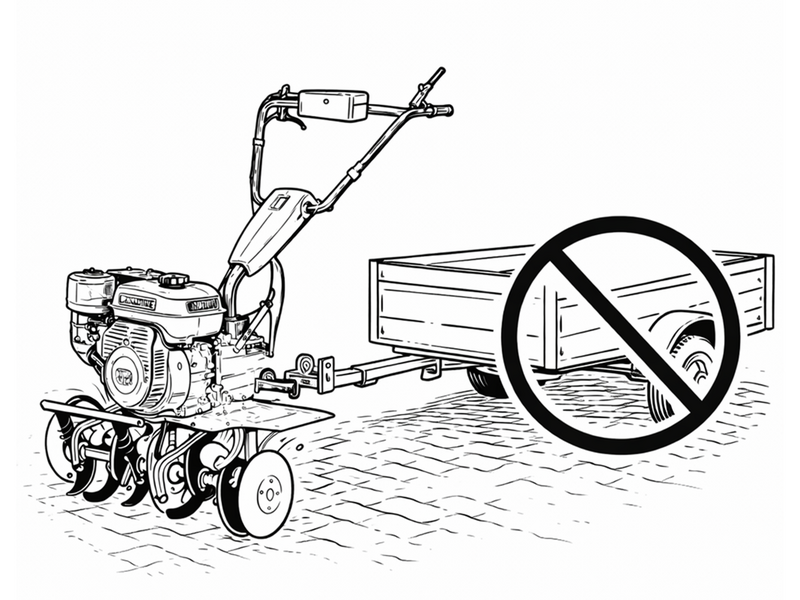

The rotary tiller must be used exclusively for soil cultivation and must not be used to pull, push or perform towing operations with loads, trailers or equipment for which it is not designed. Improper use may result in loss of control, mechanical damage and dangerous situations for the operator.

While in use, all the required guards must remain fitted. Do not touch or work on any  moving parts while the engine is running.

Proper maintenance ensures that the petrol garden tiller continues to perform efficiently. It is advisable to clean the machine regularly, remove any residue from the tines and check the condition of components subject to wear and tear.

It is always important to use fuel and lubricants suitable for the specific model of machine, following the instructions set out in the user and maintenance manual. The use of unsuitable or degraded products may compromise the correct operation of the engine and mechanical components.

If the rotary tiller is to be left unused for a prolonged period, it must be stored in a dry, clean place, protected from the elements.
